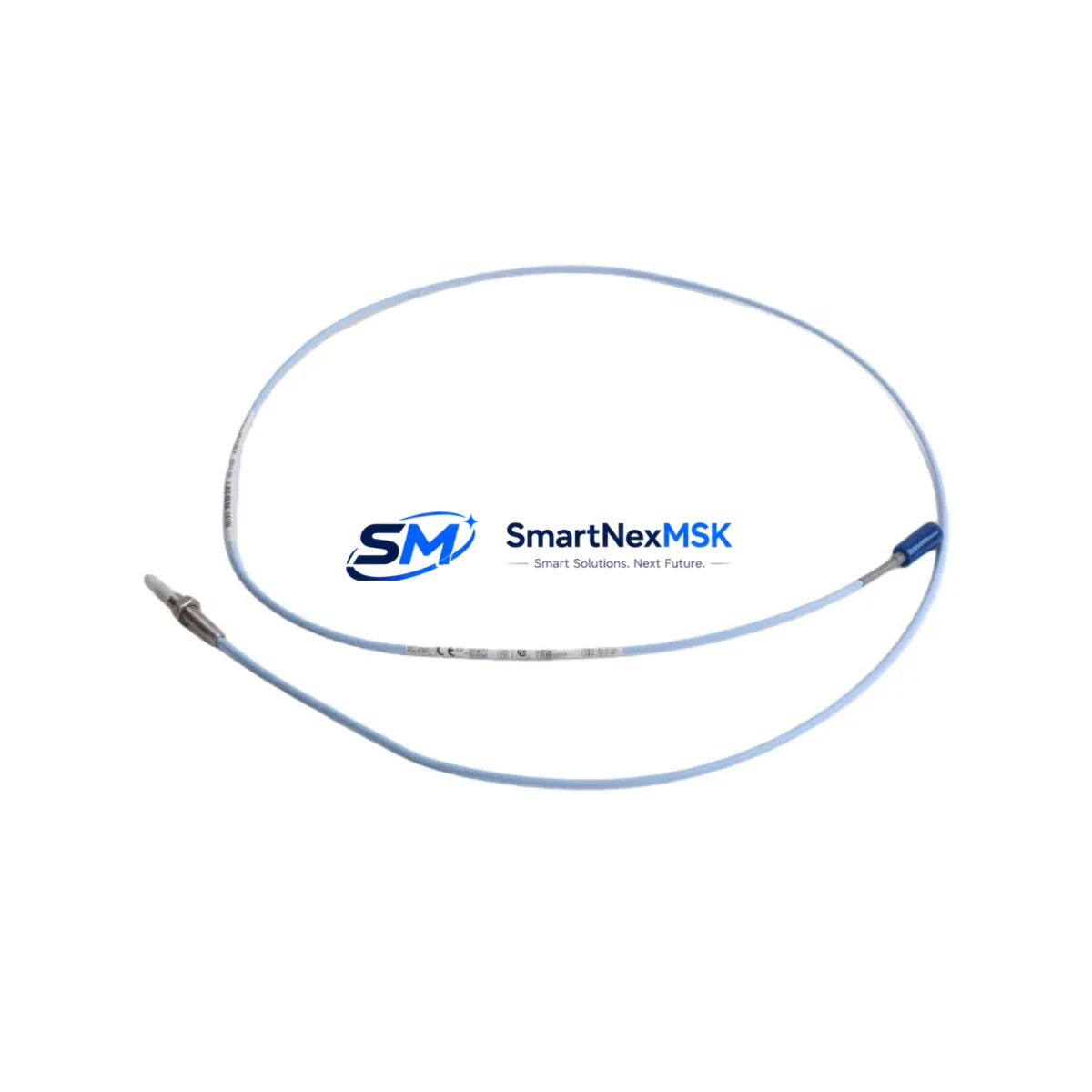

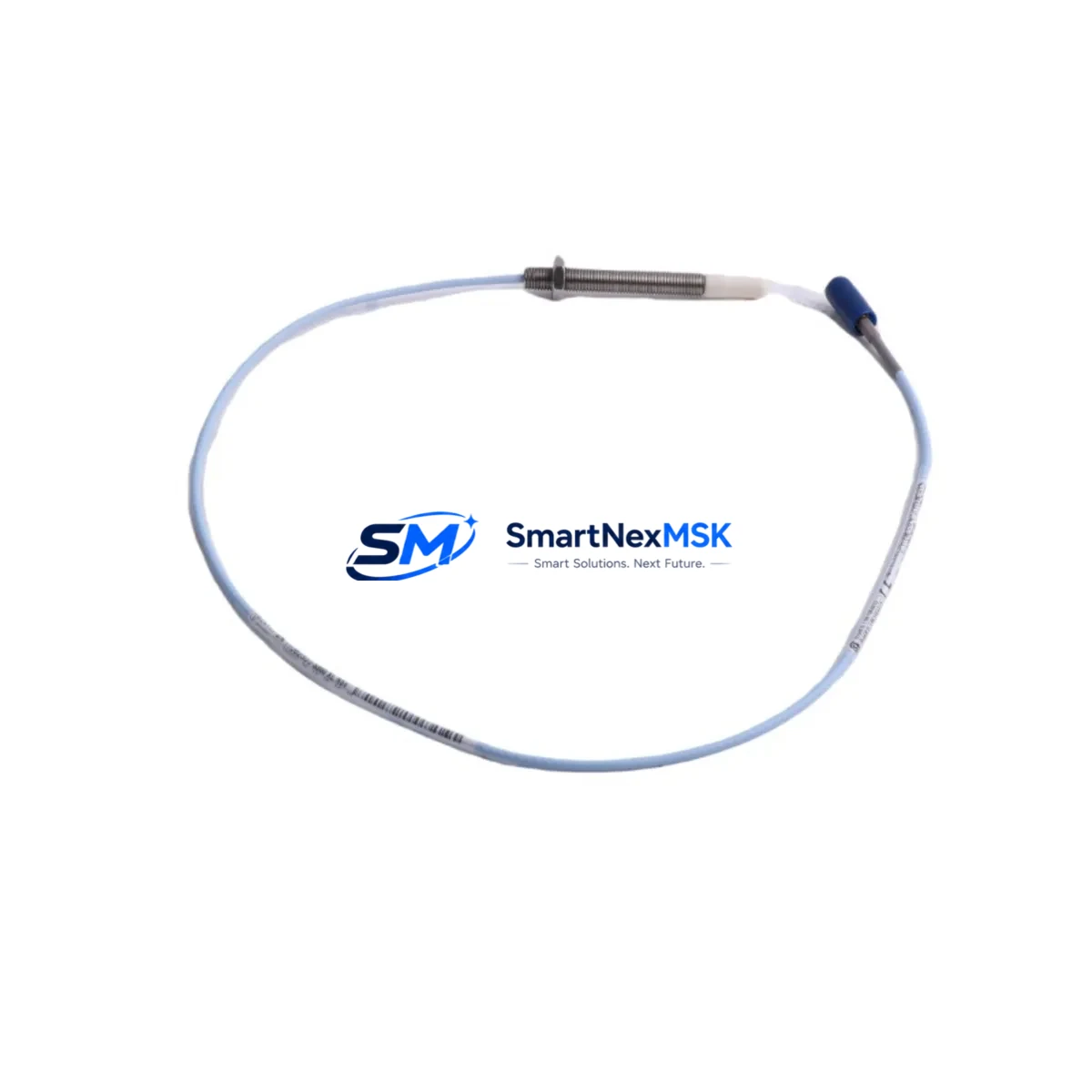

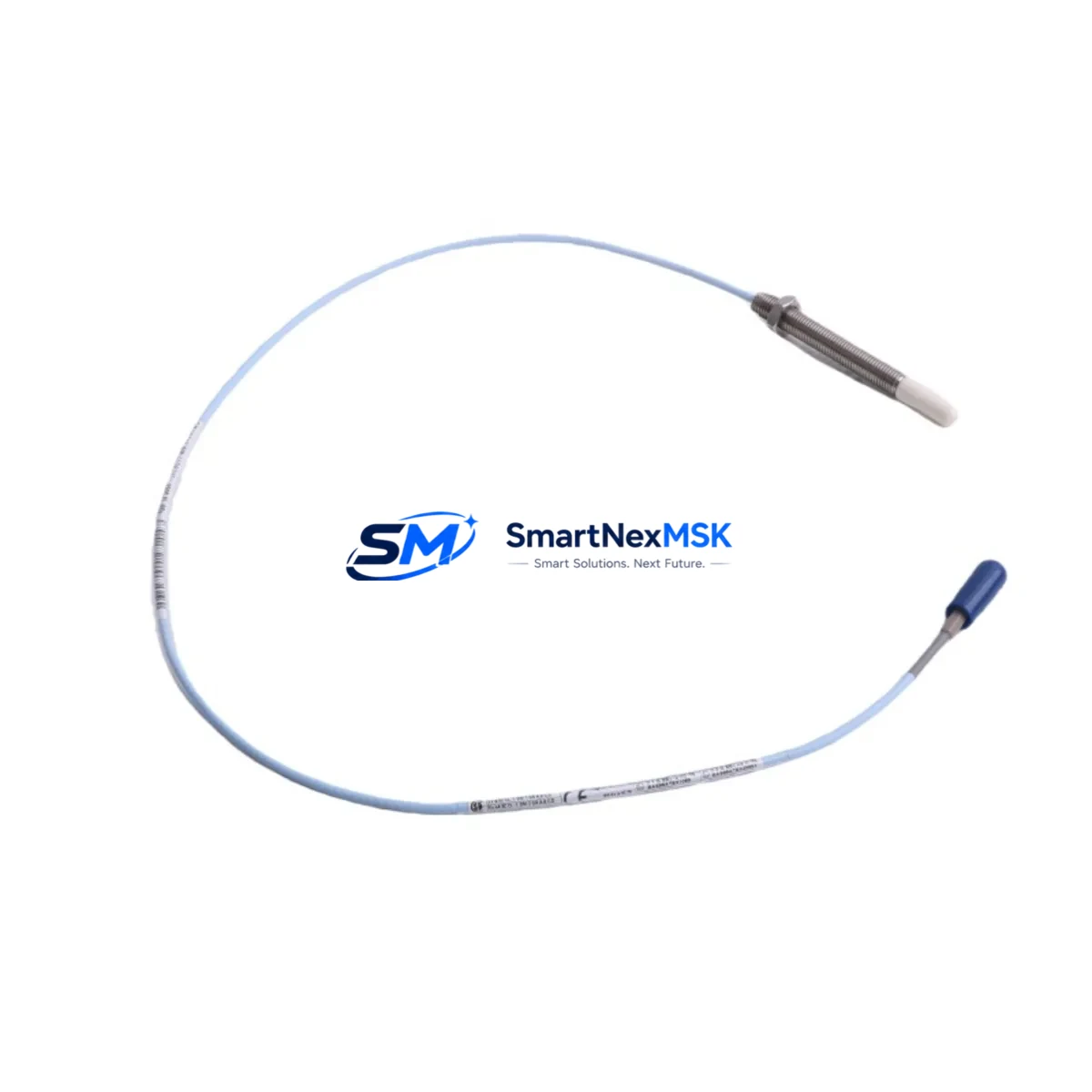

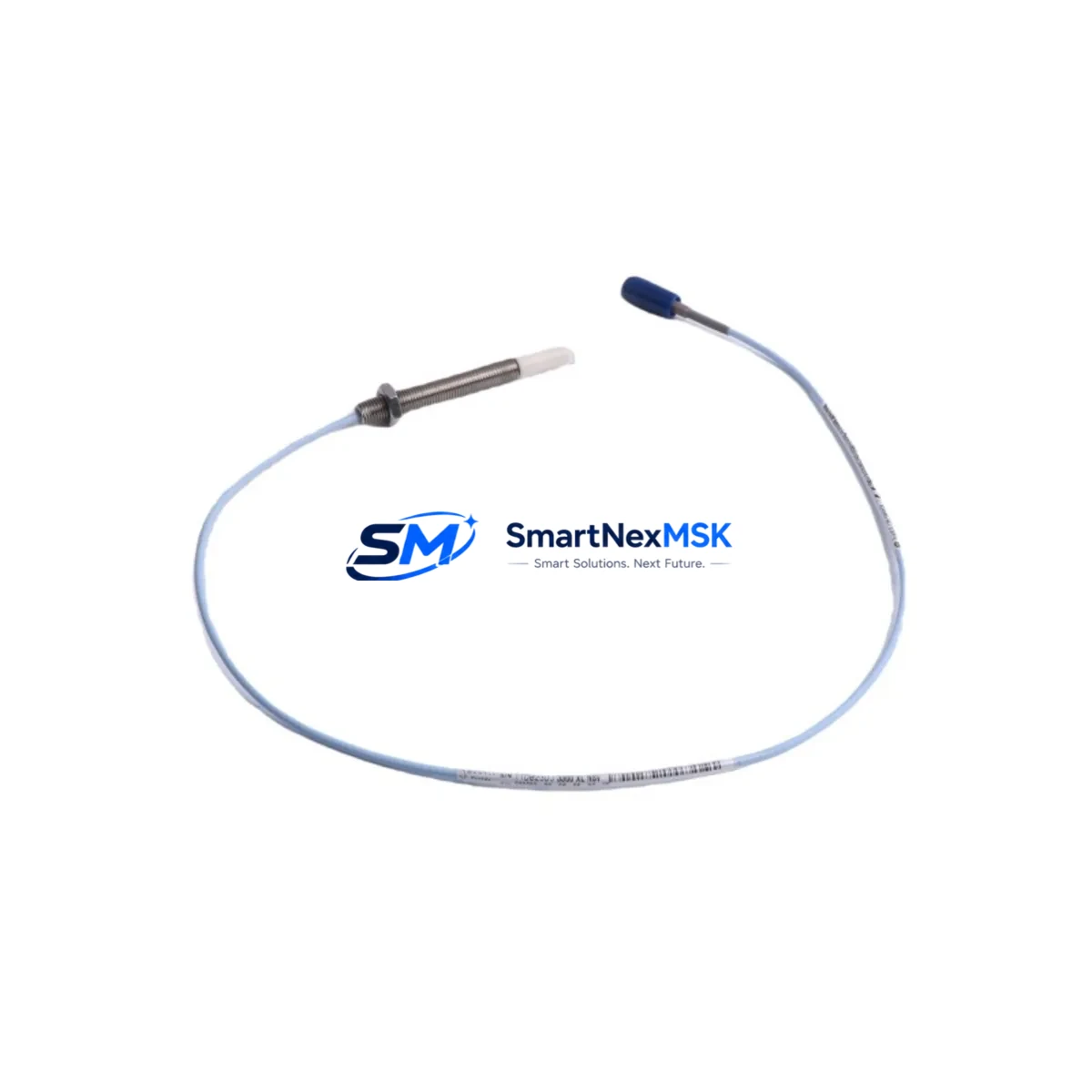

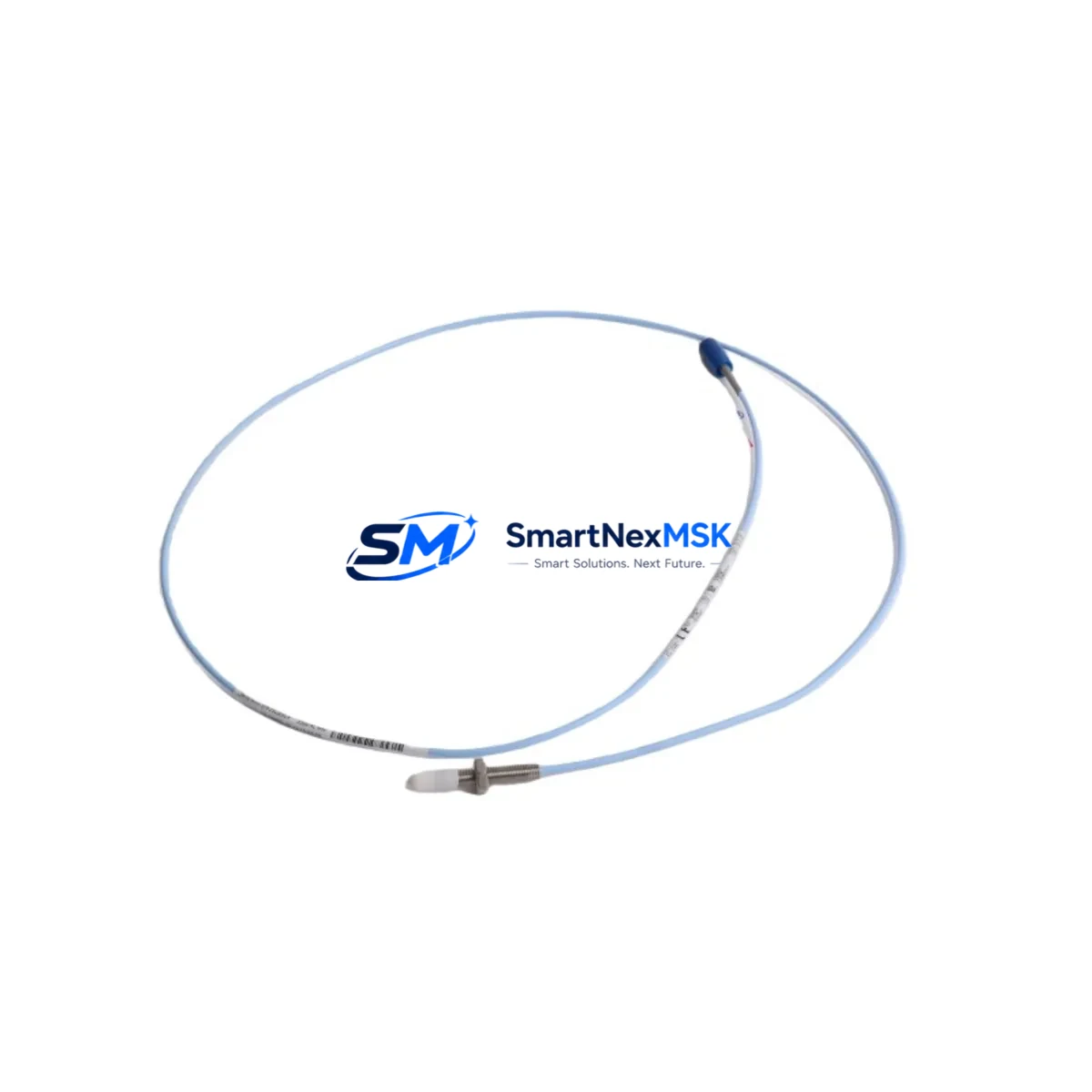

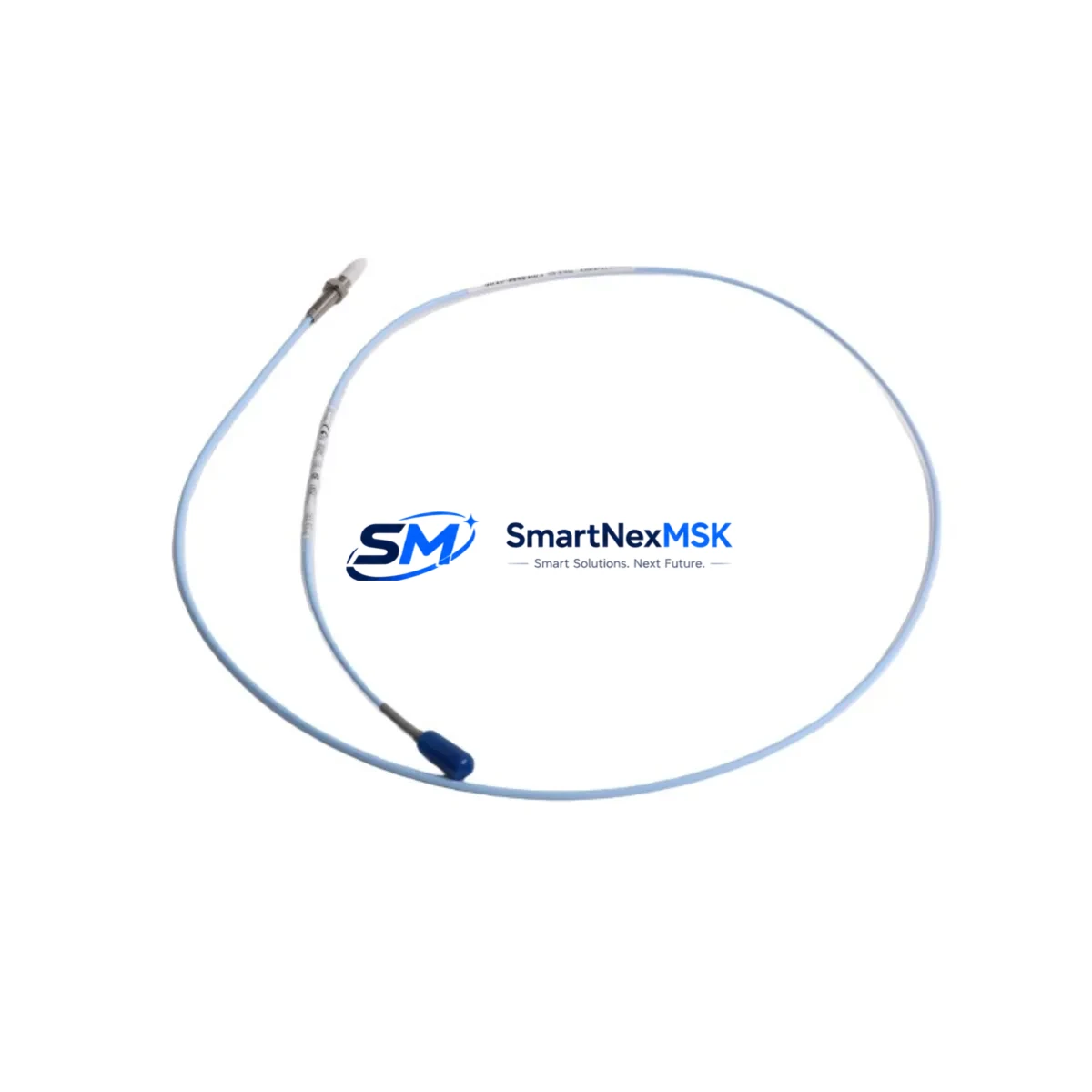

Bently Nevada 330908-39-71-05-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems
The Bently Nevada 330908-39-71-05-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv monitoring platform. Designed to deliver direct, drop-in compatibility with legacy 3300 Series installations, this unit supports smooth migration from discontinued or end-of-life configurations without requiring rack redesign or signal recalibration. Whether you are replacing a failed sensor on a critical rotating machine or executing a planned upgrade of your vibration monitoring infrastructure, the 330908-39-71-05-01-00 provides the dimensional accuracy, cable length, and sensitivity range required for seamless integration into existing 3300 XL NSv monitor slots.
Industrial facilities operating gas turbines, steam turbines, compressors, and pumps that rely on the Bently Nevada 3300 XL NSv architecture will find this transducer fully compatible with the standard 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor. The transducer’s 5-metre armored cable and standard TNC connector interface directly with the existing field wiring harness, eliminating the need for junction box modifications or intermediate signal converters. Power supply requirements align with the 24 VDC rail commonly provided by the 3300 XL Power Supply module, ensuring no additional power conditioning is necessary during the retrofit.
Upgrade Compatibility Table
| Parameter | 330908-39-71-05-01-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Series Compatibility | Bently Nevada 3300 XL NSv | Direct replacement; no rack modification required |
| Connector Type | TNC (standard) | Mates with existing 3300 XL Extension Cable |
| Cable Length | 5 metres (armored) | Verify field cable routing before installation |
| Supply Voltage | 24 VDC (from 3300 XL Power Supply) | Confirm rail voltage at terminal block before power-up |
| Output Signal | –24 VDC nominal (eddy-current) | Verify monitor channel input range matches |
| Thread / Mounting | M8 × 1.0 (standard probe tip) | Check bracket bore and lock-nut torque spec |
| Communication Protocol | Analog (4–20 mA / voltage) | No protocol migration required for NSv monitors |
| Replacement Path | Supersedes discontinued 330908 variants | Confirm full SKU suffix match before ordering |
| Commissioning Requirement | Gap voltage verification at target gap | Use Bently Nevada gap tool or calibrated feeler gauge |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-ship functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330908-39-71-05-01-00 into a live plant environment requires a structured pre-installation review. Begin by auditing the existing 3300 XL NSv monitor rack to confirm available channel slots and verify that the installed 3300 XL 8mm Proximitor Sensor has not been reconfigured for a non-standard gap range. If the original Proximitor has been replaced with a third-party equivalent, re-establish the Bently Nevada calibration curve before connecting the new transducer.
Terminal wiring should be verified against the original loop drawing. The three-wire shielded cable — carrying supply, common, and output — must be landed on the correct terminals of the 3300 XL I/O Terminal Block. Incorrect polarity or a floating shield will produce erratic gap voltage readings and may trigger false alerts in the System 1 condition monitoring software. Where the existing cable run exceeds the rated extension cable length, verify that the total system scale factor remains within the monitor’s configured range.
For facilities also upgrading adjacent channels, the 3500/42M Proximitor Monitor and the 3500/22M Transient Data Interface are common companion modules in the same control cabinet. If the retrofit scope includes replacing the 3300 XL rack entirely, the 3500 Series Rack provides a migration path with backward-compatible transducer inputs, allowing the 330908-39-71-05-01-00 to remain in service while the monitoring electronics are upgraded. The 3500/05 Power Supply Module and 3500/92 Communication Gateway are typically installed in the same upgrade cycle to modernize both power distribution and data output simultaneously.
Where HMI integration is part of the project scope, confirm that the System 1 Evolution software tag assignments reference the correct channel address after any rack renumbering. Operators should validate that trend displays, alarm setpoints, and Keyphasor reference channel assignments are preserved in the historian before the old rack is decommissioned. The 3300 XL NSv Keyphasor Module, if present, should be retained or replaced with the 3500/25 Keyphasor Module to maintain phase-reference continuity for machinery diagnostics.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer retrofit requires parallel preparation of the replacement unit before the maintenance window opens. The 330908-39-71-05-01-00 is pre-tested at the factory and ships with a functional test certificate, allowing the site team to verify output voltage on the bench using a portable 24 VDC supply and a steel target before the machine is taken offline.
During the outage window, the recommended sequence is: isolate the monitor channel, remove the existing transducer and extension cable assembly, install the new 330908-39-71-05-01-00 with the matched 3300 XL Extension Cable, re-land terminal wiring, restore power, and verify gap voltage at the monitor front panel or via System 1 before releasing the machine to operations. This sequence typically requires 45–90 minutes per channel when all materials are staged in advance.
To protect original program logic and alarm configuration, export the System 1 machine train configuration file before beginning any hardware work. If the 3300 XL NSv monitor firmware requires an update as part of the retrofit, schedule the firmware flash as a separate step after transducer commissioning to isolate variables in the event of a post-maintenance alarm. Retaining the original 3300 XL Proximitor Sensor as a tested spare provides an immediate fallback if the new transducer exhibits an installation-related fault during initial run-up.
Retrofit Support FAQ
Q1: Is the 330908-39-71-05-01-00 a direct replacement for all 330908 suffix variants?
Not all suffix combinations are interchangeable. The suffix string encodes cable length, probe diameter, temperature rating, and connector type. Confirm that the full 14-character SKU — including the -39-71-05-01-00 suffix — matches the original installed part number before ordering. If the original unit carried a different suffix, contact our technical team to verify dimensional and electrical compatibility.
Q2: What commissioning steps are required after installation?
After mechanical installation, apply 24 VDC to the system and measure the DC output voltage at the monitor terminal block with the probe tip positioned at the nominal air gap (typically 1.0 mm for 8 mm probes). The output should read approximately –10.4 VDC at the nominal gap. Adjust the probe position until the gap voltage falls within the monitor’s configured OK range, then lock the probe in place and record the final gap voltage in the maintenance log.
Q3: Can this transducer be used with non-Bently Nevada monitors?
The 330908-39-71-05-01-00 is calibrated to the Bently Nevada scale factor (200 mV/mil or 7.87 V/mm). It can be used with third-party monitors that accept this scale factor, provided the monitor’s input impedance and supply voltage are compatible. However, full performance and warranty coverage apply only when the transducer is used within a Bently Nevada 3300 XL NSv or 3500 Series system.
Q4: What does the 12-month warranty cover, and is a pre-shipment test included?
Every unit undergoes a functional output test and dimensional inspection before dispatch. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. A test report is included with each shipment; retain this document as part of your maintenance records.
