Bently Nevada 330909-00-20-05-02-05 3300 XL Spare: Precision Eddy Current Probe for Industrial Downtime Control

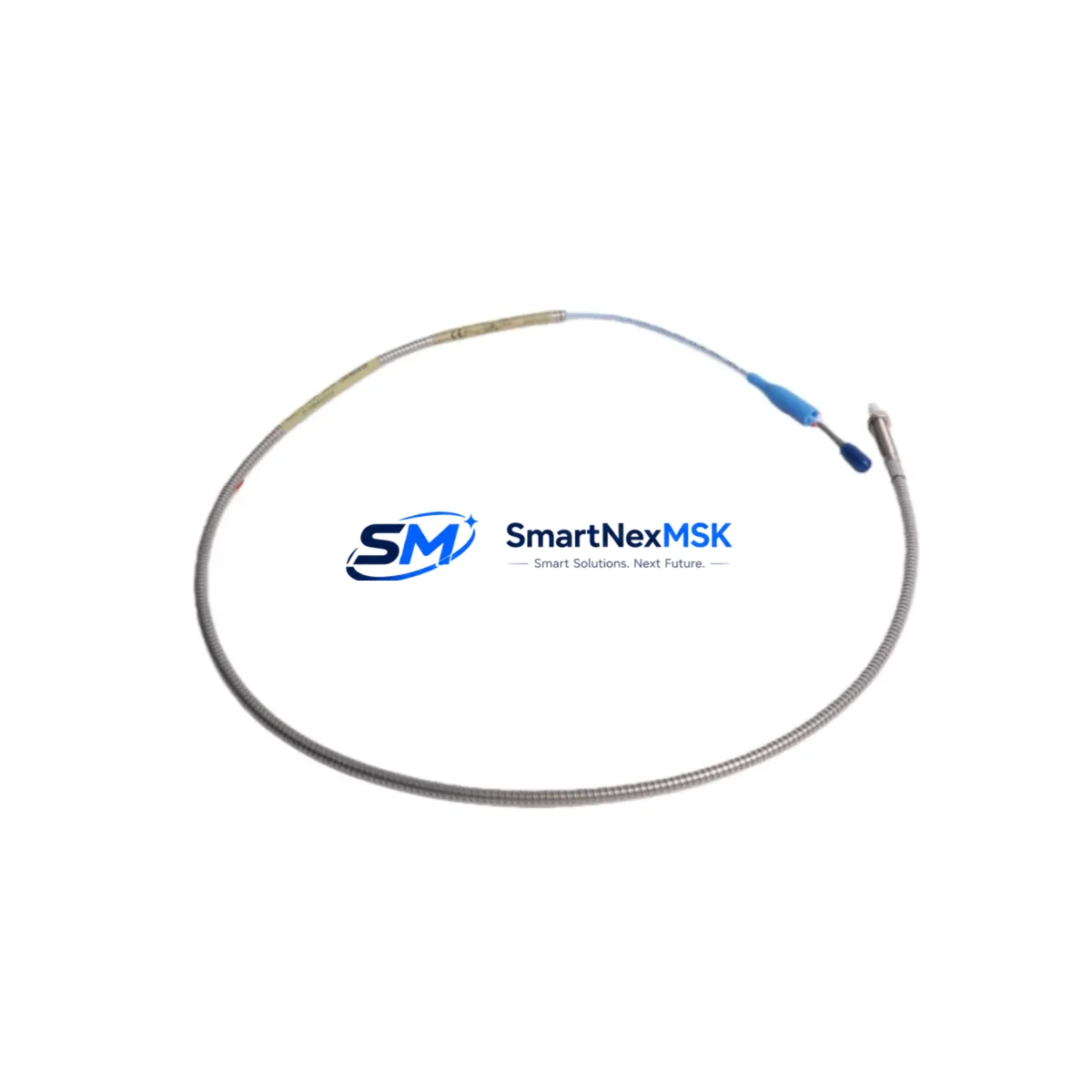

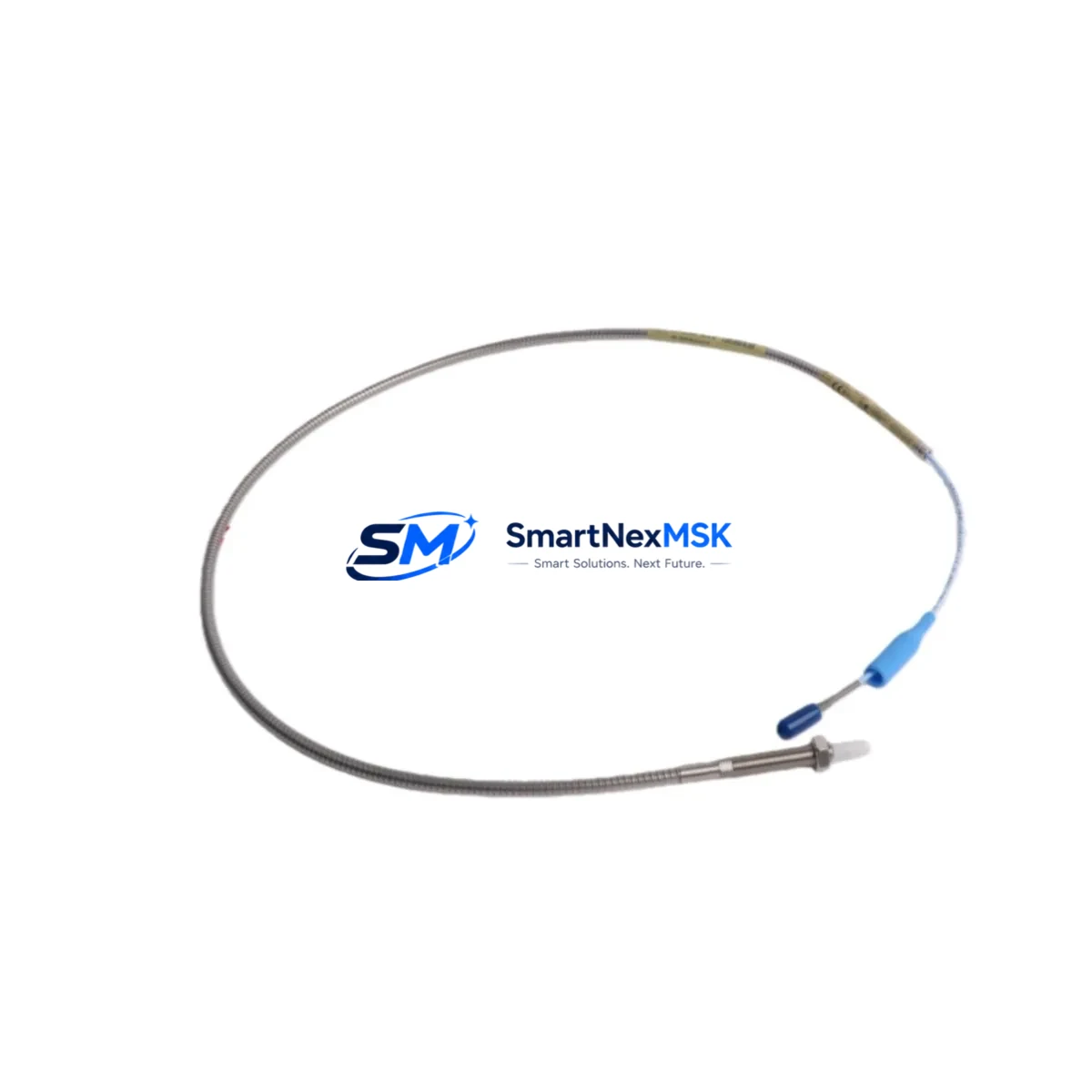

The Bently Nevada 330909-00-20-05-02-05 is a factory-original eddy current proximity probe engineered for the 3300 XL 25mm Proximity Transducer System. Designed for continuous shaft vibration and position monitoring in rotating machinery, this probe is a critical spare for turbines, compressors, pumps, and gearboxes operating in demanding industrial environments. Maintaining a verified stock of this probe directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled or emergency maintenance events.

For maintenance engineers managing aging machinery protection systems, the 330909-00-20-05-02-05 represents a direct, drop-in replacement for worn or failed probes without requiring recalibration of the full measurement chain — provided the extension cable and proximitor/driver module remain within specification. Procurement engineers sourcing this part should confirm the complete probe-cable-driver assembly compatibility before deployment, as the 3300 XL system is sensitivity-matched across all three components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330909-00-20-05-02-05 in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to audit the entire vibration measurement loop. The 3300 XL system relies on a matched assembly: the probe, the 330130-series extension cable, and the 3300 XL Proximitor module must all be within their rated operating windows for the system to deliver accurate gap voltage output. A degraded extension cable — even one showing no visible damage — can introduce measurement drift that mimics a failing probe.

During a planned outage or emergency replacement, the following components in the same control cabinet or measurement loop should be inspected or staged as concurrent spares:

• 330130-080-00-00 Extension Cable (8m) — the most common cable paired with 200mm probes in turbine bearing housings; inspect for jacket cracking and connector corrosion.
• 3300 XL Proximitor/Driver Module — verify output voltage linearity and check for thermal discoloration on the housing, which indicates sustained overtemperature.
• 3500/42M Proximitor I/O Module — if the probe feeds into a 3500 rack, confirm the I/O module firmware and channel configuration match the replacement probe’s sensitivity.
• 3500/22M Transient Data Interface — used in conjunction with proximity probes for machinery diagnostics; confirm communication integrity after probe replacement.
• Terminal Blocks and Barrier Strips — inspect field-side wiring terminations for oxidation, loose screws, and insulation breakdown, particularly in high-humidity or oil-mist environments.
• Bently Nevada 3500 Rack Power Supply (3500/15) — a marginal power supply can cause intermittent probe signal dropout that is misdiagnosed as a probe failure; measure output voltage under load.
• Signal Conditioner / Isolator — if a third-party signal isolator is installed between the proximitor and the DCS input card, verify its input impedance is compatible with the 3300 XL output.
• DCS Analog Input Card — confirm the 4–20 mA or voltage input range is correctly scaled for the replacement probe’s gap voltage output.
• Keyphasor Probe (330980 series) — often mounted adjacent to radial probes; inspect simultaneously to avoid a second unplanned outage shortly after the primary repair.
• Bently Nevada 3300 XL 8mm Probe (330729 series) — if the machine has both 8mm and 25mm probe positions, stage both sizes in the spare parts kit to cover all bearing locations in a single maintenance event.

Site Replacement Workflow

Replacing the 330909-00-20-05-02-05 on-site follows a structured sequence to minimize downtime and ensure measurement integrity from the first restart:

1. Pre-Shutdown Verification: Record the existing gap voltage (typically –10.0 VDC ±0.5V at the nominal air gap) and compare against the baseline commissioning record. A significant deviation confirms probe or cable degradation rather than a process anomaly.
2. Isolation and Lockout: De-energize the proximitor supply circuit and apply LOTO per site procedure. The 3300 XL Proximitor operates on –24 VDC; confirm isolation before disconnecting the probe connector.
3. Probe Removal: Unscrew the probe from the bearing housing bracket using the correct spanner. Note the installed gap (number of turns from flush) to replicate the air gap with the replacement unit.
4. Cable Inspection: Before installing the new probe, inspect the full length of the 330130-series extension cable. Replace if the jacket shows cracking, the connector pins are corroded, or the cable has been kinked near a hot surface.
5. New Probe Installation: Thread the 330909-00-20-05-02-05 into the bracket and set the air gap to the OEM-specified value (typically 1.0–1.5mm for 25mm probes). Secure the locknut to the specified torque.
6. Gap Voltage Verification: Re-energize the proximitor and measure the output voltage at the junction box or proximitor terminal. Confirm the reading falls within the linear range (–2 VDC to –18 VDC) and matches the target gap voltage.
7. System Functional Test: Confirm the vibration channel reads correctly in the 3500 rack or DCS display. Clear any latched alarms and verify the channel is in normal operating state before releasing the machine for restart.
8. Documentation: Record the replacement date, new probe serial number, measured gap voltage, and technician sign-off in the equipment maintenance log.

This workflow supports a typical probe replacement in under two hours for a prepared maintenance team with the spare already on-site — a strong argument for maintaining at least one 330909-00-20-05-02-05 in the local spare parts inventory at all times.

Spare Parts Support FAQ

Q1: What is the shelf life of the 330909-00-20-05-02-05, and how should it be stored?
Eddy current probes have no active components and can be stored indefinitely when kept in the original packaging in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Inspect the connector and cable jacket before installation regardless of storage duration. We recommend rotating spare stock every 5–7 years as part of a proactive spare parts lifecycle program.

Q2: Is the 330909-00-20-05-02-05 compatible with older 3300 (non-XL) Proximitor modules?
The 3300 XL series probes are designed for use with 3300 XL Proximitor modules and are not directly interchangeable with the earlier 3300 5mm or 8mm non-XL drivers. If your installation uses legacy 3300 proximitors, confirm the sensitivity specification (V/mm) matches before substituting. Contact our technical team with your existing proximitor part number for a compatibility assessment.

Q3: What pre-shipment testing is performed on each unit?
Every 330909-00-20-05-02-05 shipped from our inventory undergoes electrical continuity verification, connector integrity inspection, and dimensional check against OEM specifications. Units are shipped in anti-static, moisture-barrier packaging with a test record. Our 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q4: Can you support long-term or blanket orders for this part?
Yes. We support scheduled delivery agreements, consignment stock arrangements, and multi-unit blanket orders for MRO and shutdown planning. Long-term supply contracts are available for facilities managing multiple 3300 XL installations across rotating equipment fleets. Contact our sales team to discuss volume pricing and guaranteed lead times.
