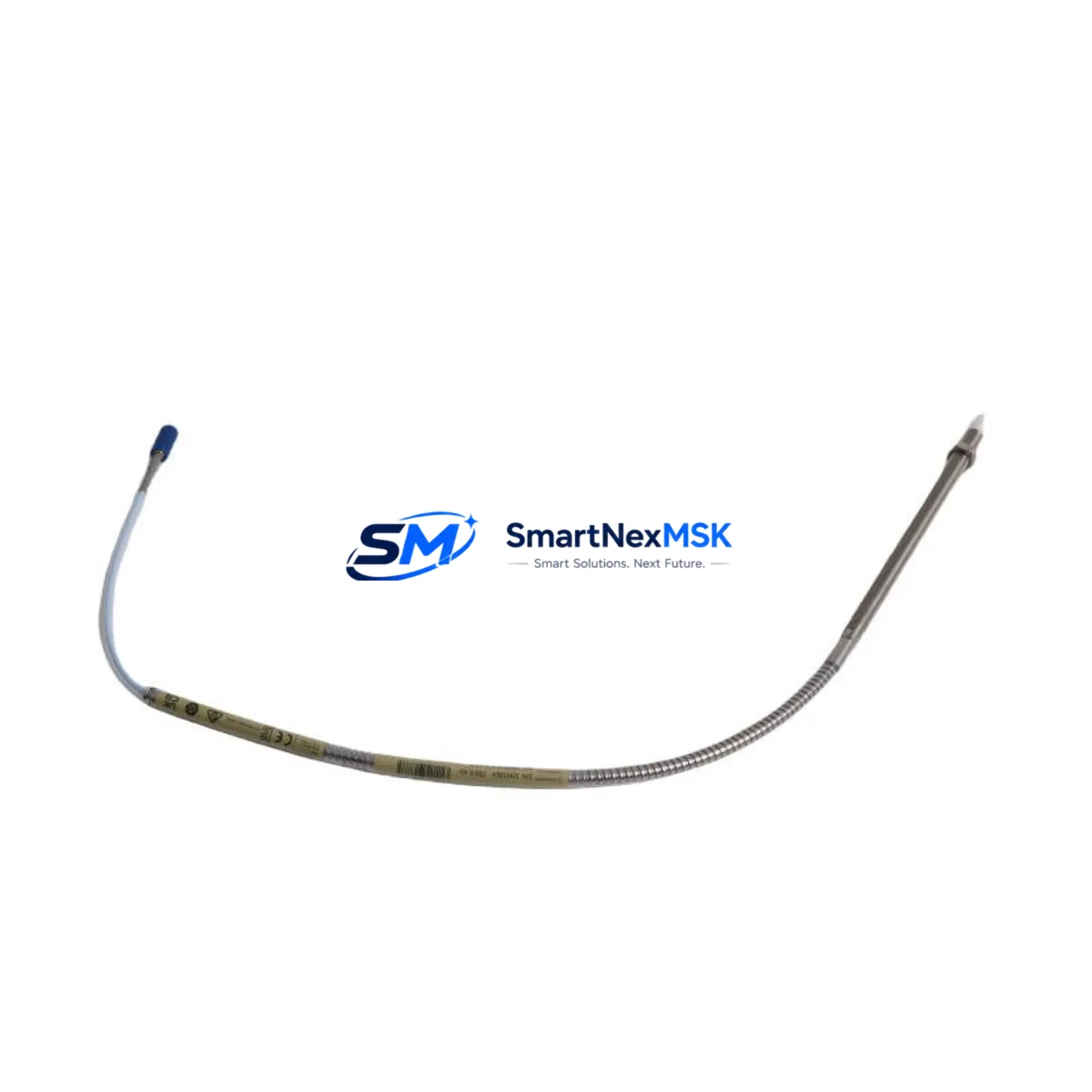

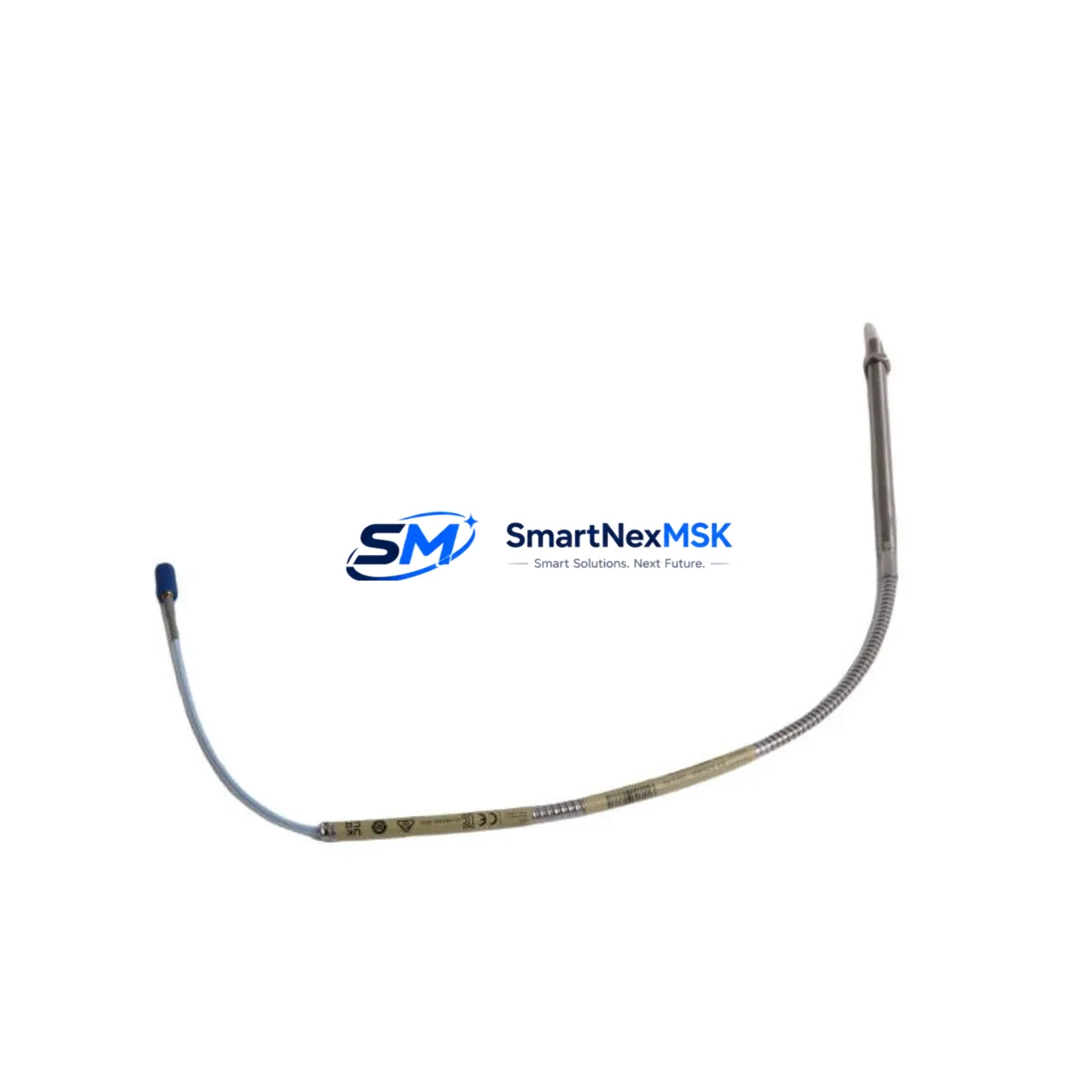

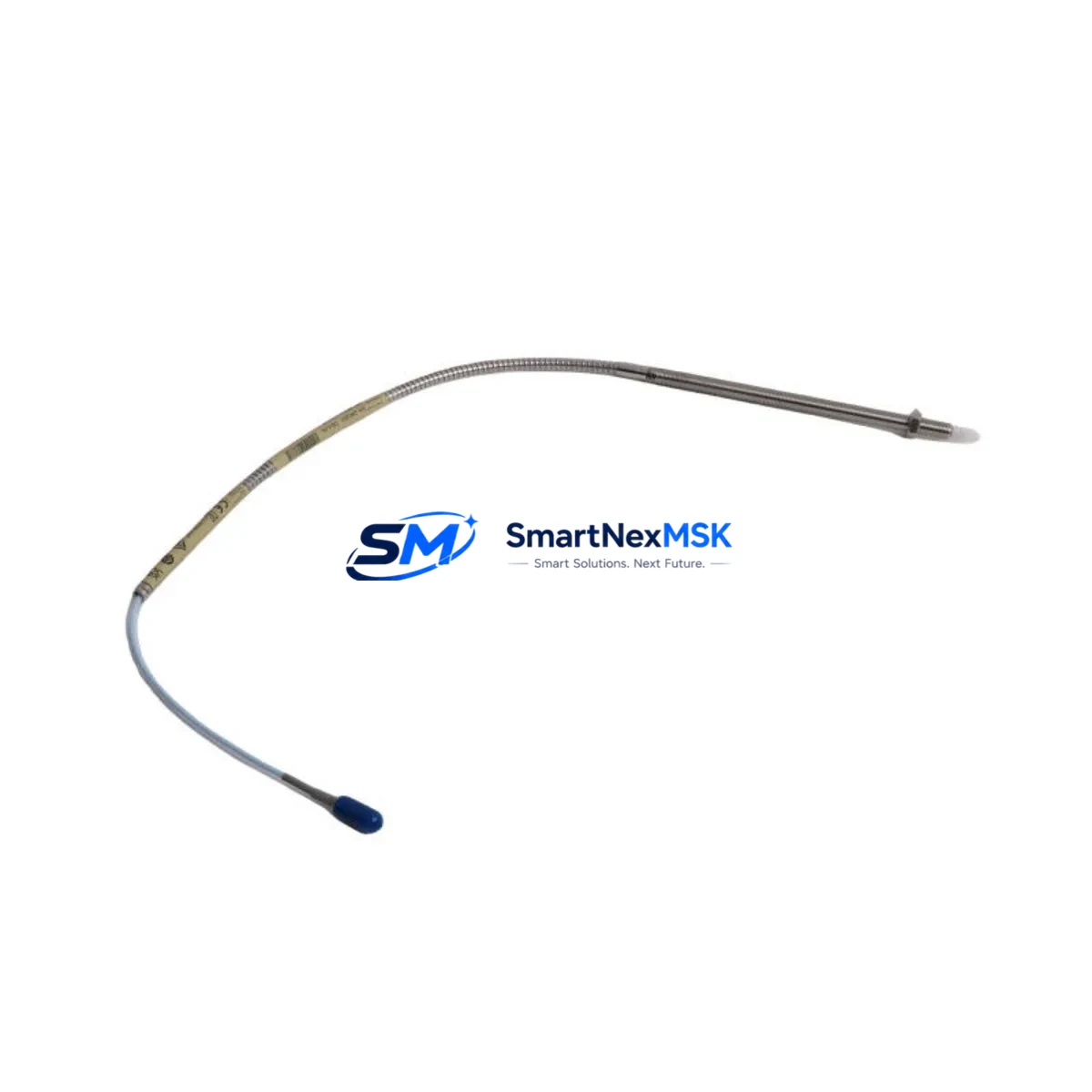

Bently Nevada 330909-51-82-10-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330909-51-82-10-02-00 is a high-precision proximity transducer designed for seamless integration into legacy 3300 XL Series vibration monitoring and machinery protection systems. As original equipment reaches end-of-life and OEM support is discontinued, this unit serves as a verified retrofit-ready replacement that preserves existing wiring infrastructure, signal conditioning architecture, and system calibration — minimizing engineering rework and unplanned downtime during migration.
Industrial facilities operating rotating machinery — including turbines, compressors, pumps, and gearboxes — rely on the 3300 XL platform for continuous shaft displacement and vibration monitoring. When a transducer in this chain fails or becomes obsolete, the entire protection loop is at risk. The 330909-51-82-10-02-00 is stocked specifically to address this gap, offering a direct functional replacement with verified electrical compatibility and dimensional conformance to the original Bently Nevada specification.
This unit is suitable for applications requiring eddy-current proximity sensing with standard 5 mm or 8 mm tip configurations, operating within the 3300 XL signal conditioning chain. It is compatible with the Bently Nevada 3300 XL 8 mm Extension Cable, the 3300 XL Proximitor Sensor, and the 3300 XL 25 mm Proximity Transducer System. When replacing a failed transducer in an existing rack, engineers should verify the gap voltage at the Proximitor output (typically –10 VDC at mid-gap), confirm the driver cable length matches the original system calibration, and re-zero the gap measurement before returning the loop to service.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330909-51-82-10-02-00 |
| Brand | Bently Nevada |
| Compatible Series | 3300 XL Proximity Transducer System |
| Tip Diameter | 8 mm (standard 3300 XL configuration) |
| Cable Length | Refer to suffix code; confirm against existing Proximitor calibration |
| Connector Type | Standard Bently Nevada coaxial, compatible with 3300 XL extension cables |
| Signal Output | –24 VDC nominal; –10 VDC at mid-gap (per 3300 XL specification) |
| Installation Interface | Direct drop-in; no bracket modification required for standard 3300 XL mounts |
| Communication Compatibility | Analog signal; compatible with 3500 Series rack monitors via signal conditioning |
| Replacement Recommendation | Verify gap voltage, cable length, and Proximitor pairing before commissioning |
| Commissioning Note | Re-gap and re-zero required after installation; confirm alarm setpoints in monitor |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Replacing the 330909-51-82-10-02-00 in an operational plant environment requires a structured approach that accounts for the full signal chain — from the transducer tip through the extension cable, Proximitor sensor, and into the 3300 XL or 3500 Series rack monitor. Before removing the failed unit, document the existing gap voltage reading at the Proximitor output terminal and record the alarm and danger setpoints configured in the associated monitor channel.
The Bently Nevada 3300 XL Proximitor Sensor (typically a 330180 or 330185 series unit) must be matched to the replacement transducer by tip size and system sensitivity. If the existing Proximitor is also degraded, it is advisable to replace both simultaneously to avoid a second outage. The 3300 XL 5 mm Extension Cable and 3300 XL 8 mm Extension Cable are available in standard lengths and must be selected to maintain the total system cable length within the calibrated range — typically 5 m or 9 m total, depending on the Proximitor model.
For facilities migrating from the 3300 XL platform to the newer Bently Nevada 3500 Series Machinery Protection System, the 330909-51-82-10-02-00 can serve as an interim replacement while the full rack migration is planned. The 3500/42M Proximitor I/O Module and 3500/22M Transient Data Interface are commonly specified in such upgrades, and the existing transducer wiring can often be reused with appropriate terminal adapter blocks. During this transition, the 3500 Series Rack Power Supply (3500/15) should be verified for adequate capacity to support the expanded I/O count.
In control cabinet environments where the 3300 XL monitor cards are mounted alongside other Bently Nevada components — such as the 3300 XL Velomitor Sensor, 3300 XL Temperature Monitor, or 3300 XL Keyphasor Module — the replacement transducer installation should be coordinated with a full loop check to confirm that adjacent channels are not affected by the maintenance activity. The Bently Nevada System 1 software platform, if in use, should be used to verify that the channel configuration and historical trend data are preserved after the transducer swap.
Downtime Control During System Migration
Minimizing production downtime during a proximity transducer replacement requires pre-staging all replacement components before the maintenance window opens. For the 330909-51-82-10-02-00, this means having the matched Proximitor sensor, the correct extension cable, and the commissioning tools — including a calibrated digital multimeter and the Bently Nevada gap-setting tool — ready at the work site before the machine is taken offline.
Where the control system permits, configure the associated 3300 XL or 3500 Series monitor channel to bypass mode before disconnecting the transducer. This prevents spurious trips from propagating to the turbine control system or DCS during the swap. If the facility uses a Distributed Control System such as a Honeywell Experion or Emerson DeltaV, coordinate with the control room to acknowledge the bypass and confirm that the protection logic is in a safe hold state.
After installation, the gap-setting procedure should be performed with the machine stationary. Set the transducer gap to achieve the target output voltage (typically –10 VDC ± 0.5 VDC at mid-gap), then verify the full-scale and near-gap voltages against the Proximitor calibration curve. Once the gap is confirmed, restore the monitor channel from bypass, verify that the alarm and danger setpoints are active, and confirm that the System 1 trend is updating correctly before returning the machine to service. Total replacement time for a prepared crew is typically 2–4 hours per channel, depending on access conditions.
Retrofit Support FAQ
Q: Is the 330909-51-82-10-02-00 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is a verified functional replacement for the original 330909-51-82-10-02-00 specification. It maintains the same tip diameter, connector type, and signal output characteristics required by the 3300 XL Proximitor system. No wiring modifications are required for standard installations.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the transducer gap to achieve –10 VDC ± 0.5 VDC at the Proximitor output. Verify alarm and danger setpoints in the associated monitor channel. If the system uses Bently Nevada System 1, confirm that the channel is communicating and that historical data continuity is maintained. A full loop check is recommended before returning the machine to service.
Q: Can this transducer be used with the Bently Nevada 3500 Series rack?
A: The 330909-51-82-10-02-00 is designed for the 3300 XL system. Compatibility with the 3500 Series depends on the specific Proximitor I/O module in use. In many migration scenarios, the existing transducer and extension cable can be reused with the 3500/42M Proximitor I/O Module, but this must be verified against the 3500 Series system configuration and calibration requirements.
Q: What warranty is provided, and has the unit been tested before shipment?
A: All units are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify signal output, connector integrity, and dimensional conformance. A test report is available upon request for critical applications.
