Bently Nevada 330910-00-02-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330910-00-02-10-02-00 Safety-Enhanced Proximity Probe: Reliable Control in Harsh Industrial Sites

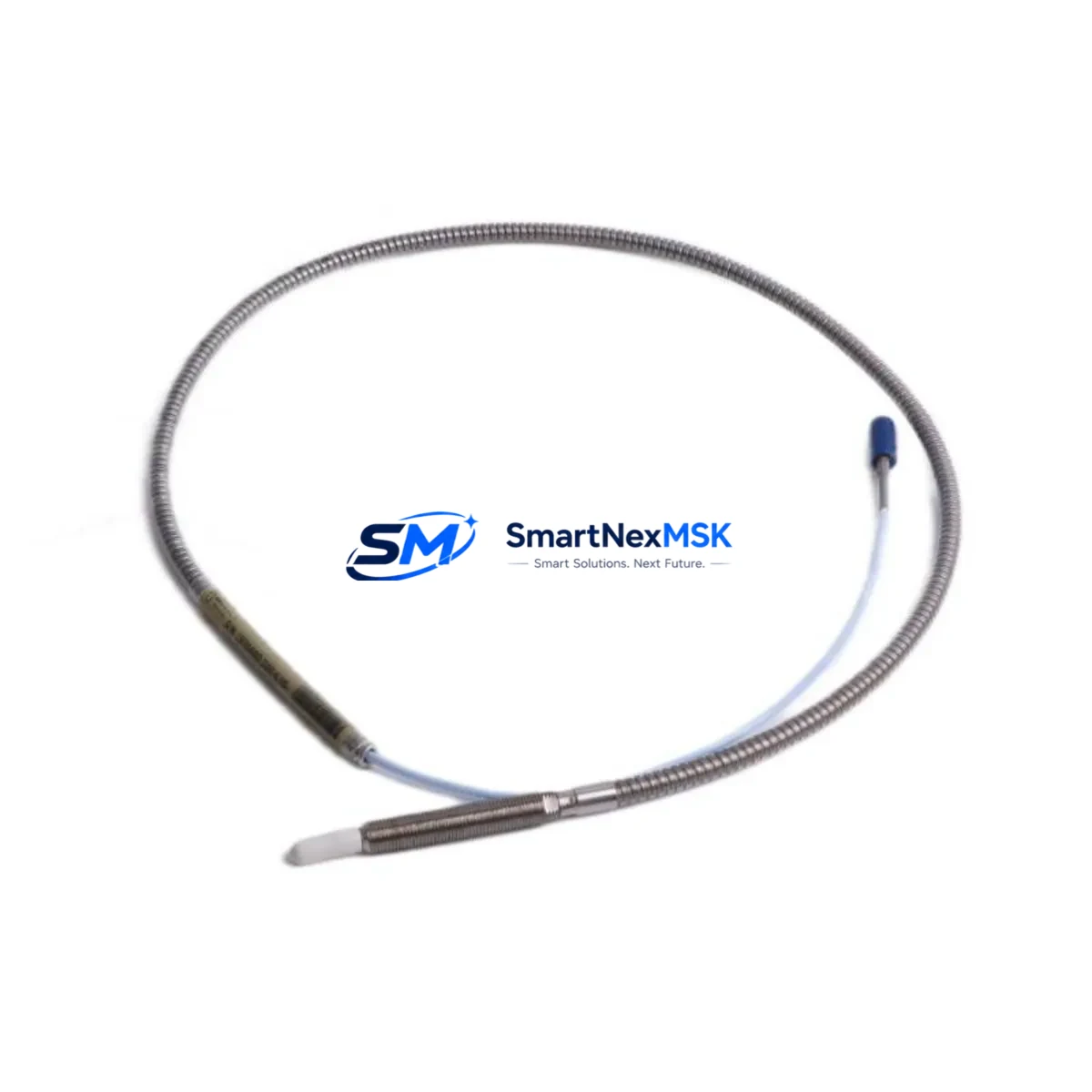

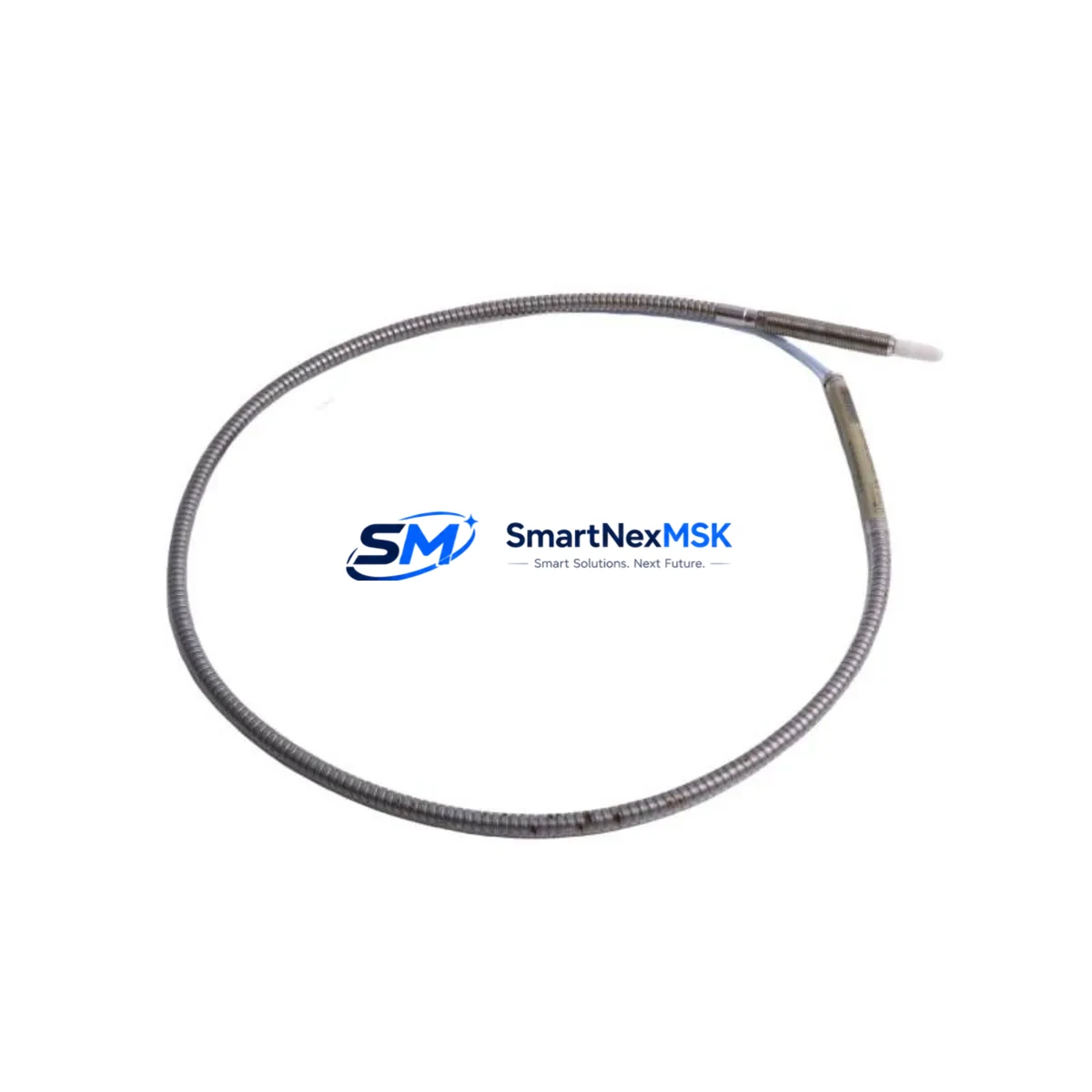

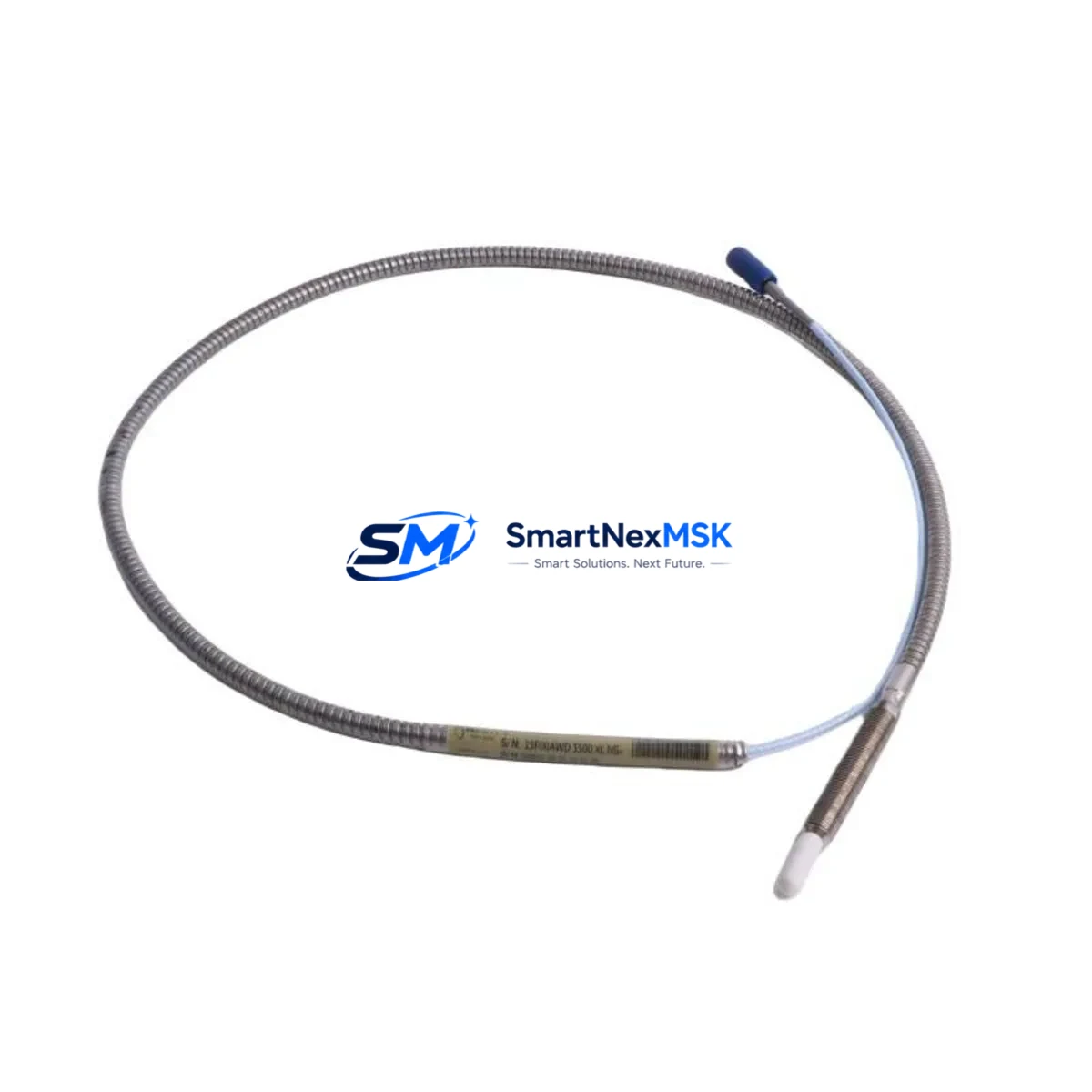

The Bently Nevada 330910-00-02-10-02-00 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 NSv monitoring system, this probe delivers stable, interference-resistant shaft displacement measurements that are essential for protecting rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous manufacturing lines.

In high-stakes industrial control architectures, signal integrity is not optional — it is a safety requirement. The 330910-00-02-10-02-00 addresses this directly through its ruggedized construction, which resists electromagnetic interference (EMI), radio-frequency interference (RFI), and the mechanical vibration that routinely degrades lesser sensors in heavy-duty control cabinets. Its hardened cable jacket and precision-wound sensing coil maintain calibrated output even under sustained thermal cycling, chemical exposure, and high-humidity conditions typical of offshore platforms and steel mill environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered rotating machinery protection system, the 330910-00-02-10-02-00 probe operates as the primary sensing element within a complete signal chain that must be treated as a unified safety architecture. The probe pairs directly with the Bently Nevada 330130-080-00-00 extension cable to bridge the distance between the bearing housing and the control cabinet without signal attenuation. The conditioned output feeds into a Bently Nevada 3300/16-02-01-01-00-00 proximitor/seismic transducer, which converts the raw probe signal into a calibrated voltage proportional to gap distance.

Within the Bently Nevada 3500/42M proximitor I/O module rack, the signal is processed against configurable alert and danger setpoints. When integrated with a Bently Nevada 3500/22M transient data interface, the system captures high-resolution waveform data during transient events — critical for post-incident forensic analysis in power turbine and compressor train applications. For plants operating under IEC 61511 functional safety requirements, the probe’s stable, drift-free output supports SIL-rated interlock logic executed through a Triconex TRICON safety controller or equivalent safety PLC.

Surge protection at the cabinet entry point is equally important. Installing a Phoenix Contact TRABTECH surge arrester on the signal lines protects the proximitor and downstream I/O cards from transient overvoltages caused by nearby motor starts, arc flash events, or lightning coupling on long cable runs. Power supply stability for the monitoring rack is maintained by a Bently Nevada 3500/15 power supply module, which provides regulated, isolated DC power with redundant input capability. For facilities requiring continuous uptime, a Schneider Electric APC Smart-UPS or equivalent industrial UPS ensures the monitoring system remains energized during grid disturbances, preventing false shutdowns that could trigger unnecessary process trips.

Communication integrity between the 3500 rack and the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — is maintained through the Bently Nevada 3500/92 communication gateway, which supports Modbus TCP and OPC DA/UA protocols. This ensures that vibration alarm states are reflected in real time on the operator console, enabling rapid response before a developing fault escalates to a forced shutdown or catastrophic bearing failure.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracker compressor trains, continuous shaft radial vibration monitoring using the 330910-00-02-10-02-00 provides the earliest warning of rotor imbalance, misalignment, and oil whirl instability. Early detection prevents unplanned shutdowns that can cost refinery operators hundreds of thousands of dollars per hour in lost throughput and emergency maintenance.

Power Generation: Steam turbine and gas turbine generators in utility and cogeneration plants rely on proximity probe arrays to monitor shaft position throughout the startup, load-following, and shutdown cycle. The ruggedized construction of this probe withstands the high-temperature, high-vibration environment adjacent to turbine bearing pedestals, where standard sensors frequently fail prematurely.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron ore processing plants operate under extreme mechanical loading. Proximity probes installed on these machines provide continuous condition data that feeds predictive maintenance programs, reducing unplanned downtime in operations where a single conveyor or mill stoppage can halt an entire processing circuit.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities require reliable vibration monitoring to comply with environmental operating permits. The 330910-00-02-10-02-00 supports 24/7 unattended monitoring in wet, chemically aggressive pump rooms where corrosion resistance and signal stability are paramount.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower compressors operate in environments with intense electromagnetic noise from large variable-frequency drives and arc furnaces. The shielded, ruggedized cable of this probe maintains signal fidelity in these high-EMI conditions, preventing spurious alarms that could trigger unnecessary process interruptions.

Port & Heavy Lifting: Crane hoist motors and gantry drive systems in container terminals and bulk material handling facilities benefit from proximity-based shaft monitoring to detect bearing wear before it progresses to a failure that could drop a load or strand a vessel at berth.

Safety and Quality FAQ

Q: What warranty coverage is provided for the 330910-00-02-10-02-00?
A: Every unit ships with a 12-month warranty from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request, ensuring your maintenance records remain complete for audit and safety compliance purposes.

Q: What pre-shipment testing is performed on each probe?
A: Each 330910-00-02-10-02-00 unit undergoes functional verification prior to shipment, including continuity testing, insulation resistance checks, and gap-versus-output linearity confirmation against Bently Nevada factory calibration standards. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q: Is this probe compatible with existing 3300 NSv and 3500 Series monitoring systems?
A: Yes. The 330910-00-02-10-02-00 is a direct-fit replacement for the standard Bently Nevada 3300 NSv probe family and is fully compatible with 3300 XL and 3500 Series proximitor modules when used with the correct extension cable and gap voltage settings. Always verify the system scale factor and gap voltage range in your monitor configuration before installation.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: We maintain stocked inventory of the 330910-00-02-10-02-00 and related 3300 NSv series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. Customers with critical fleet requirements are encouraged to contact our sales team to discuss reserved stock arrangements and priority fulfillment agreements.
