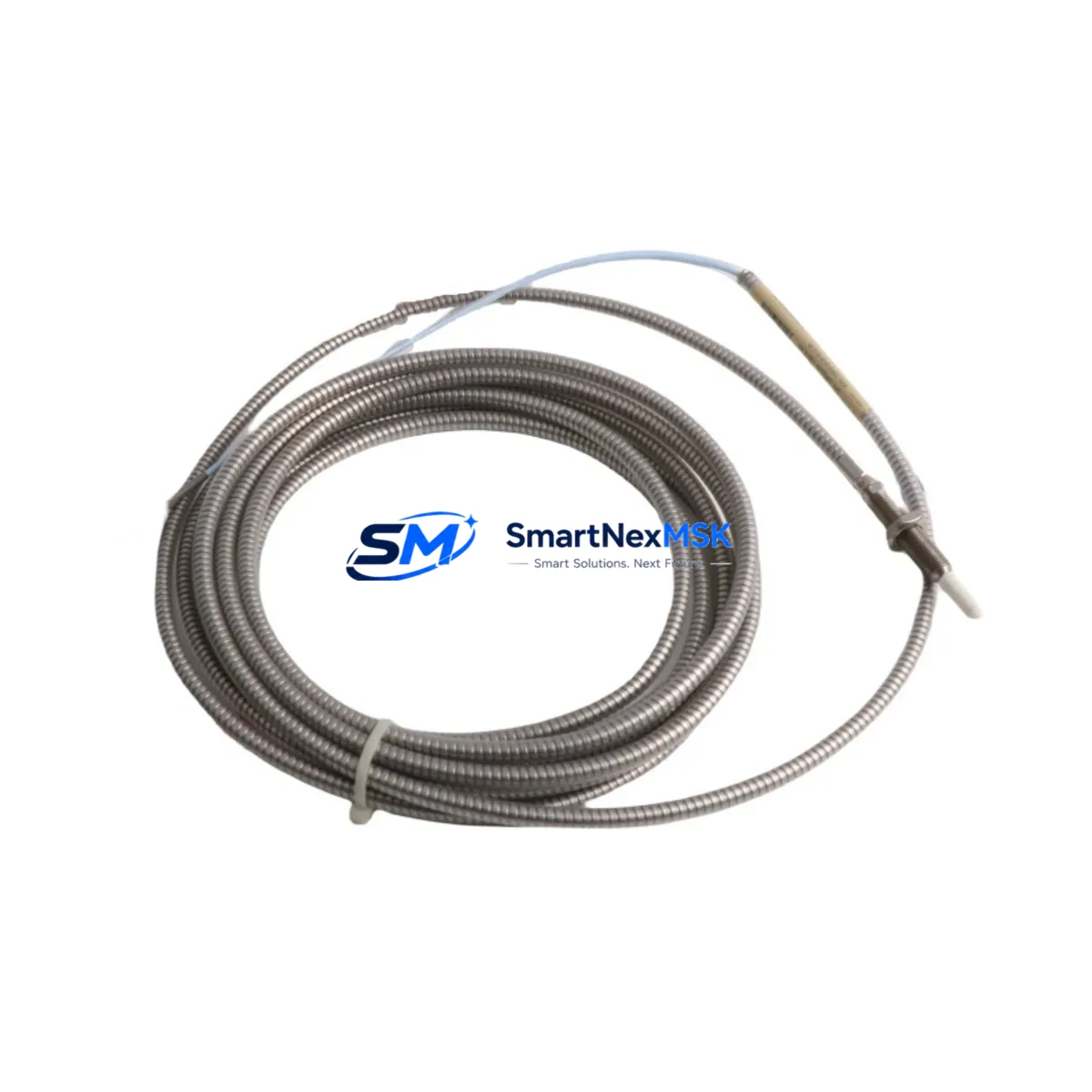

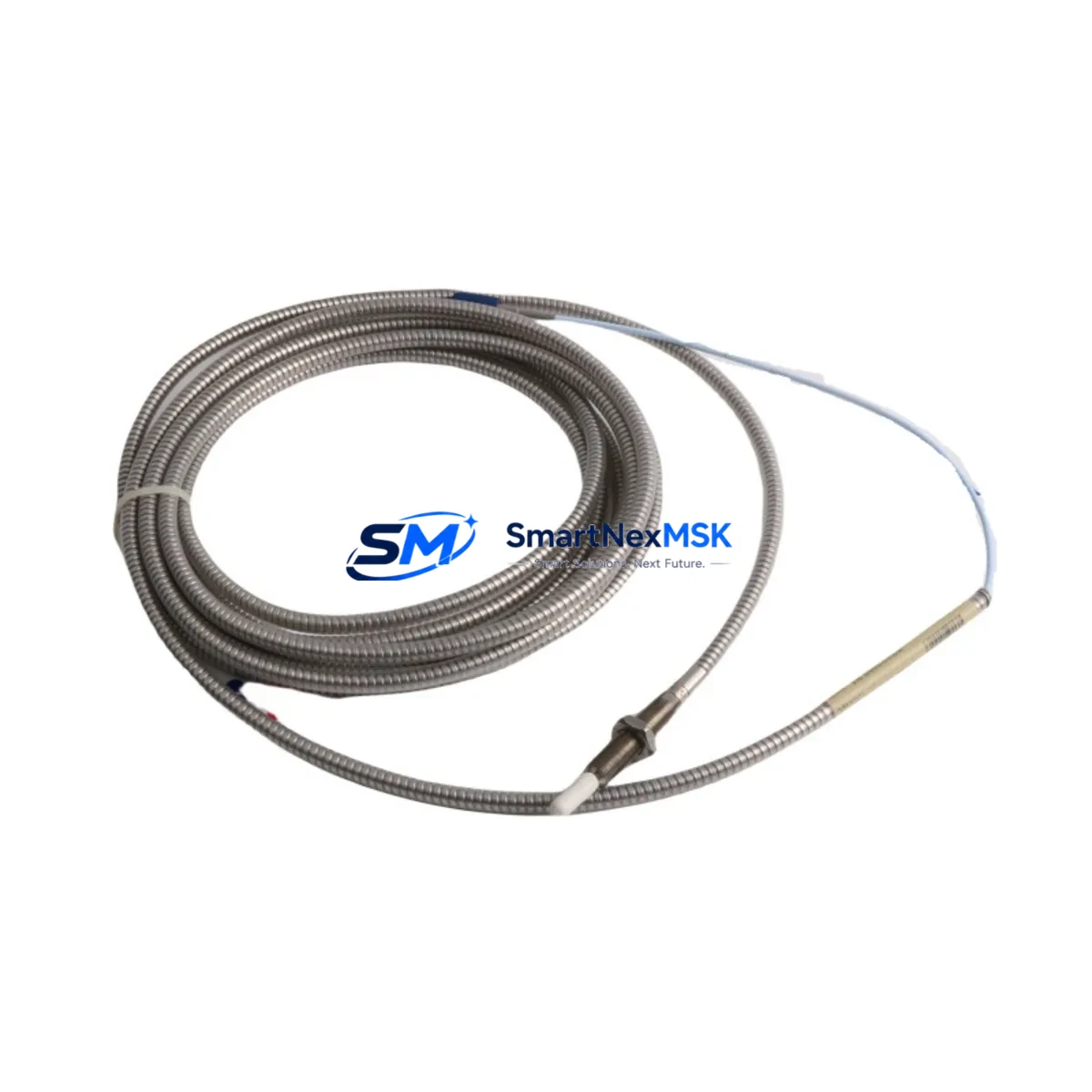

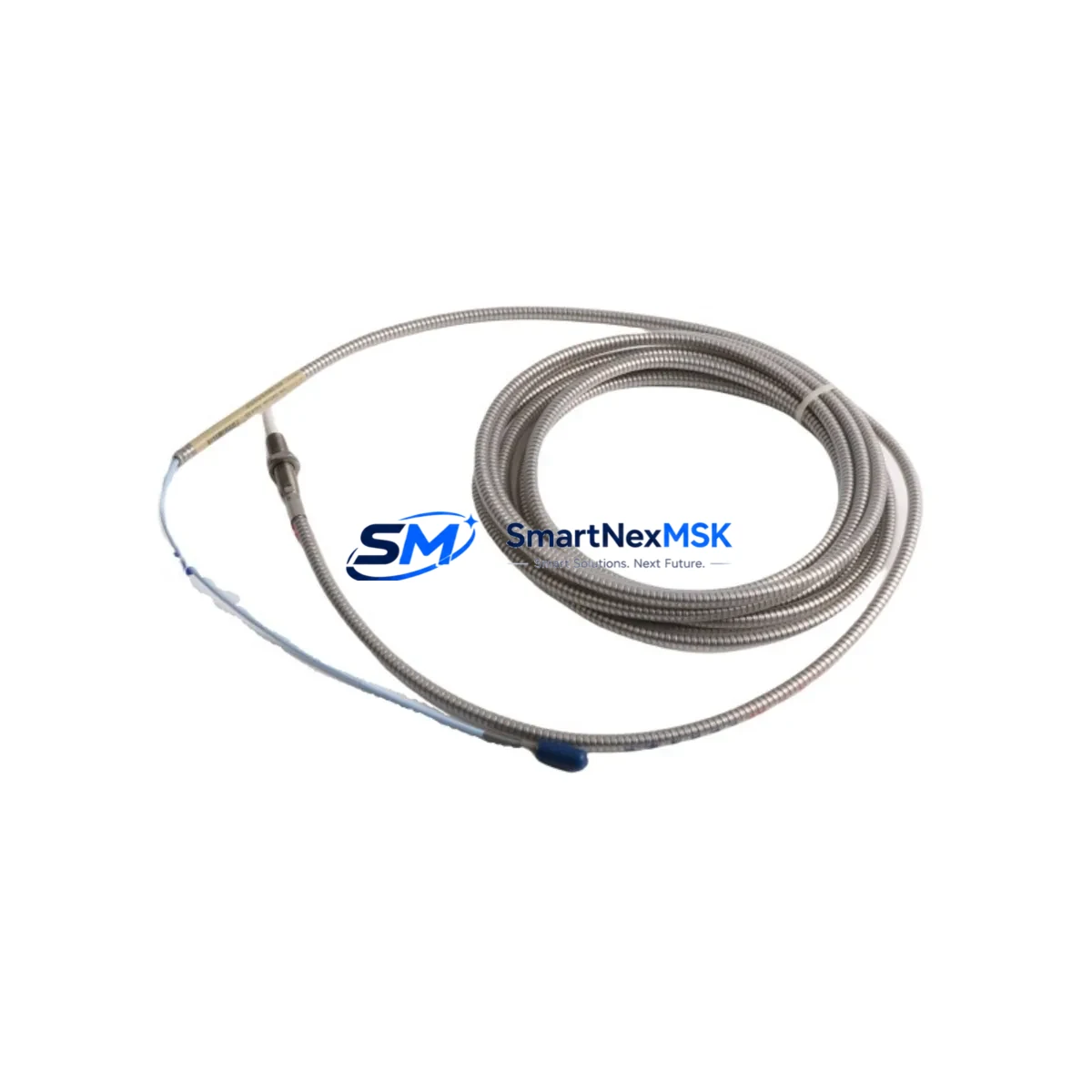

Bently Nevada 330910-00-05-05-01-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites
The Bently Nevada 330910-00-05-05-01-CN is a ruggedized eddy current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the Bently Nevada 3300 NSv Series, this probe is designed to deliver stable, interference-resistant signals in high-load rotating machinery applications where control interruption is not an option.
In heavy industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port crane systems — the integrity of shaft vibration monitoring directly determines whether a machine continues to operate safely or triggers an unplanned shutdown. The 330910-00-05-05-01-CN addresses this challenge with a hardened stainless steel housing, a 5-meter integral cable, and a calibrated sensing tip optimized for the 3300 XL 8mm Proximity Transducer System. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent signal output over extended service intervals without drift or degradation.
Signal integrity is paramount in environments subject to strong electromagnetic interference from variable frequency drives, high-current bus bars, and adjacent motor control centers. The 330910-00-05-05-01-CN’s shielded coaxial cable construction and precision-wound sensing coil suppress common-mode noise and minimize signal drift, maintaining measurement accuracy within specification even when installed in densely populated control cabinets alongside Bently Nevada 3300 XL Extension Cables and 3300 XL Proximitor Sensors. This ensures that the vibration data fed to the Bently Nevada 3500 Series Machinery Protection System remains trustworthy for alarm and trip decisions.
Power supply stability is equally critical. When paired with a Bently Nevada 3500/15 Power Supply Module, the probe system maintains its operating bias voltage within the required -18 VDC window, preventing false trips caused by power rail fluctuations. In installations where redundant power architectures are employed, the probe’s low current draw allows it to be supported by standard 24 VDC DIN-rail power supplies without derating, simplifying cabinet design and reducing thermal load.
For safety interlock and emergency shutdown (ESD) applications, the 330910-00-05-05-01-CN integrates seamlessly into SIL-rated protection loops. Its output signal is compatible with Bently Nevada 3500/40M Proximitor I/O Modules, enabling direct connection to safety PLCs and distributed control systems (DCS) without additional signal conditioning. In critical interlock circuits — such as turbine overspeed protection, compressor surge control, and pump bearing monitoring — the probe’s fast response time and low noise floor ensure that protective actions are initiated before mechanical damage can occur.
Installation in hazardous classified areas is supported by the probe’s robust IP67-rated connector and the availability of intrinsically safe barrier accessories. When used with approved Zener barriers or galvanic isolators, the system meets the requirements for Zone 1 and Zone 2 hazardous area installations, making it suitable for deployment in oil and gas processing, chemical reactors, and explosive atmosphere environments where personnel safety is the primary concern.
Replacement and spare parts management is straightforward. The 330910-00-05-05-01-CN is a direct drop-in replacement for earlier 3300 series probes, maintaining backward compatibility with existing Bently Nevada 3300 Proximitor Sensor installations. This simplifies planned maintenance shutdowns and emergency replacements, reducing mean time to repair (MTTR) and minimizing production loss. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, including bias voltage output check, cable continuity test, and connector integrity inspection, ensuring that the probe is ready for immediate installation upon arrival.
Long-term supply continuity is assured through SMARTNEXMSK’s maintained inventory of Bently Nevada 3300 NSv series components. Whether you require a single replacement probe for an emergency repair or a batch order for a planned turnaround, our stock levels and established supplier relationships support rapid fulfillment. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for installation and commissioning queries.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number | 330910-00-05-05-01-CN |
| Series | Bently Nevada 3300 NSv |
| Sensing Technology | Eddy Current (Non-Contact) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5 m (Integral) |
| Operating Bias Voltage | -18 VDC (nominal) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm – 2.26 mm (10–89 mil) |
| Frequency Response | DC – 10,000 Hz |
| Operating Temperature | -35°C to +177°C |
| Housing Material | 316L Stainless Steel |
| Connector Rating | IP67 |
| Hazardous Area Compatibility | Zone 1 / Zone 2 (with approved barriers) |
| Compatible System | Bently Nevada 3300 XL / 3500 Series |
| Warranty | 12 Months |
| Country of Origin | United States |
Control Cabinet Protection Strategy
A robust machinery protection architecture built around the 330910-00-05-05-01-CN typically incorporates multiple layers of hardware redundancy and signal conditioning. In a typical turbine or compressor control cabinet, the probe connects via a Bently Nevada 3300 XL 5m Extension Cable (330130-045-00-00) to a Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw probe signal into a calibrated voltage output suitable for the Bently Nevada 3500/40M Proximitor I/O Module. The I/O module feeds the 3500 Rack, which hosts the 3500/22M Transient Data Interface for waveform capture and the 3500/42M Proximitor/Seismic Monitor for continuous alarm and trip processing.
Power to the rack is supplied by a redundant pair of Bently Nevada 3500/15 Power Supply Modules, ensuring that a single power supply failure does not compromise the protection system. Communication to the plant DCS or safety PLC is handled via the 3500/92 Communication Gateway Module, supporting Modbus TCP, PROFIBUS DP, or OPC-DA protocols depending on the site’s control architecture. Surge protection on the signal cables is provided by dedicated transient voltage suppressors installed at the cabinet entry point, preventing surge events from propagating to the sensitive Proximitor electronics. This layered approach — from the probe tip through signal conditioning, power redundancy, and communication isolation — ensures that the 330910-00-05-05-01-CN delivers its full protective capability throughout the machine’s operational life.
Critical Industrial Safety Applications
The 330910-00-05-05-01-CN is deployed across a wide spectrum of critical industrial applications where continuous, accurate shaft monitoring is essential to operational safety and regulatory compliance.
In petrochemical and refinery environments, the probe monitors radial vibration on centrifugal compressors, pumps, and expanders operating in hydrocarbon service. Its resistance to chemical vapors and high ambient temperatures makes it suitable for installation in process areas where conventional sensors would degrade rapidly. In power generation facilities — including gas turbines, steam turbines, and large synchronous generators — the probe provides the primary vibration signal for the turbine protection system, enabling early detection of rotor imbalance, bearing wear, and oil whirl instability before these conditions escalate to catastrophic failure.
In mining and mineral processing operations, the probe is used on large ball mills, SAG mills, and crusher drives, where high shock loads and dusty environments challenge conventional instrumentation. Its IP67 connector and stainless steel housing provide the mechanical robustness required for these applications. Water and wastewater treatment facilities rely on the probe for monitoring large vertical turbine pumps and blower trains, where bearing failures can result in extended service outages and regulatory non-compliance. In metallurgical and steel mill environments, the probe operates reliably in the presence of strong magnetic fields from induction furnaces and high-current bus systems, maintaining signal accuracy where lesser probes would exhibit significant interference-induced errors. Port and bulk material handling cranes use the probe on hoist and travel drive gearboxes, where early detection of gear mesh anomalies prevents dropped-load incidents and unplanned maintenance during peak throughput periods.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330910-00-05-05-01-CN?
All units supplied by SMARTNEXMSK carry a 12-month warranty against manufacturing defects in materials and workmanship, commencing from the date of shipment. Warranty claims are supported by our technical team, and replacement units are dispatched from stock to minimize site downtime.
Q2: What pre-shipment testing is performed on each probe?
Every 330910-00-05-05-01-CN undergoes a multi-point functional verification prior to shipment, including bias voltage output measurement, cable shield continuity check, connector insertion force and retention test, and visual inspection of the sensing tip and housing. A test record is available upon request.
Q3: Is the 330910-00-05-05-01-CN compatible with existing 3300 and 3500 Series installations?
Yes. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and 3500 Series Machinery Protection System. It is a direct replacement for earlier 3300 NSv probes with the same cable length and connector configuration, requiring no recalibration of the Proximitor or changes to the rack configuration.
Q4: Can long-term supply be guaranteed for planned maintenance and turnaround projects?
SMARTNEXMSK maintains a standing inventory of 3300 NSv series probes and associated accessories to support both emergency replacements and scheduled turnaround procurement. Bulk order pricing and reserved stock arrangements are available for customers with recurring demand. Contact our sales team to discuss supply agreements tailored to your maintenance schedule.
