Bently Nevada 330910-00-05-10-02-00 3300 XL Spare Probe

Bently Nevada 330910-00-05-10-02-00 3300 XL Spare Probe: Precision Spare Replacement for Industrial Downtime Control

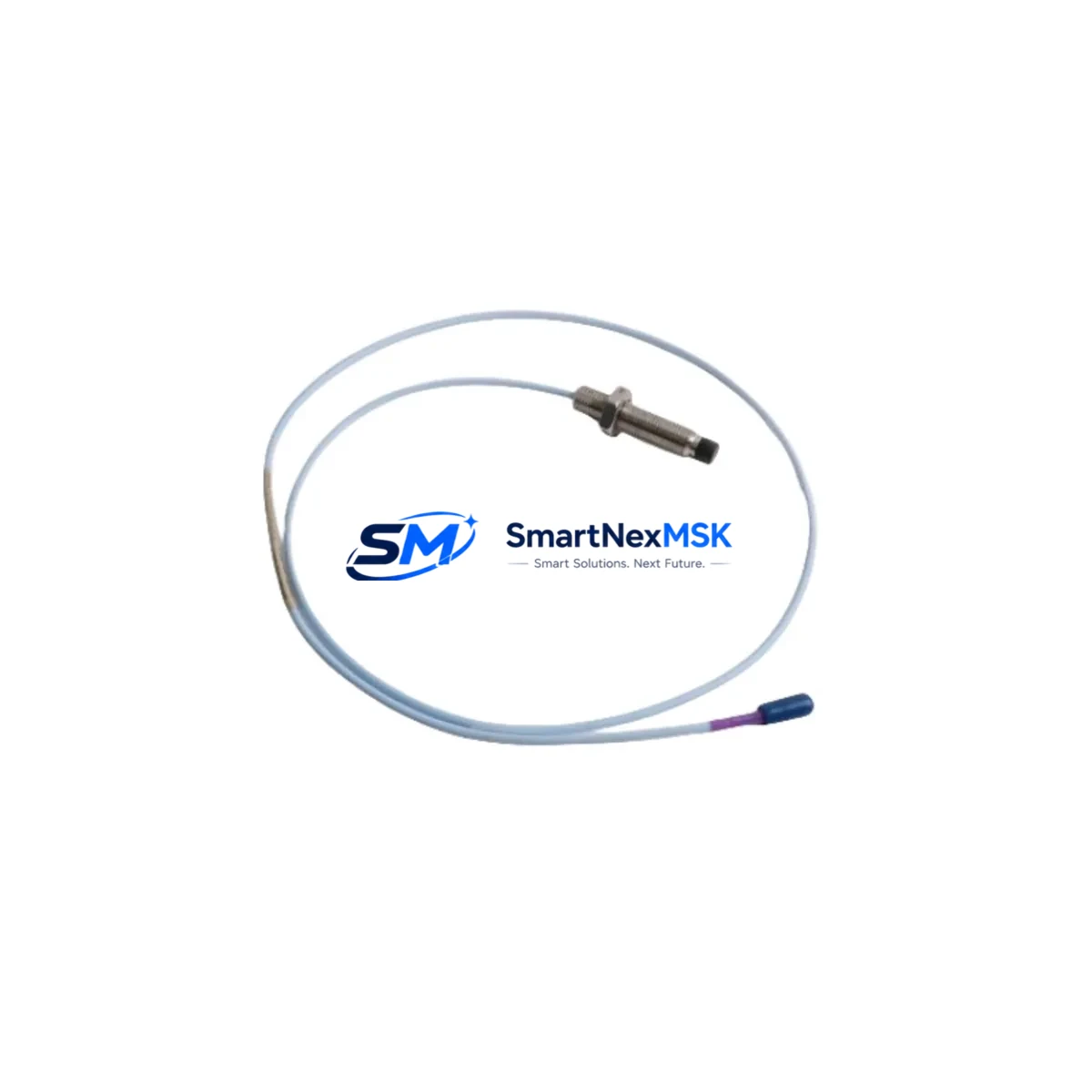

The Bently Nevada 330910-00-05-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection worldwide. When this probe fails or degrades, the entire machinery protection loop is compromised, leaving turbines, compressors, pumps, and motors without critical shaft vibration and axial position data. Stocking a verified original spare is the single most effective measure a maintenance team can take to reduce unplanned downtime and protect high-value rotating assets.

This unit ships tested and verified, backed by a 12-month warranty, and is sourced to meet the original Bently Nevada specification for sensitivity, linearity, and temperature range. Whether you are executing a planned turnaround, responding to a trip event, or building a strategic spare parts inventory for a legacy 3300 XL installation, the 330910-00-05-10-02-00 is a direct, drop-in replacement that restores full system functionality without recalibration of the monitor rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe failure rarely occurs in isolation. When a 330910-00-05-10-02-00 probe is replaced during a corrective or preventive maintenance event, experienced maintenance engineers treat the intervention as an opportunity to inspect the entire transducer loop and associated control cabinet components. The 3300 XL system relies on a tightly matched probe-extension-proximitor chain, and degradation in any element will introduce measurement error or false trips.

During the same work order, technicians should verify the condition of the 330130-080-00-00 extension cable — the armored interconnect between the probe and the proximitor. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. Simultaneously, the 330180-X1-05 NSv Proximitor should be bench-tested for output voltage linearity; a proximitor that has drifted outside its calibration window will produce erroneous gap readings even with a new probe installed.

At the monitor rack level, the corresponding 3300/16 or 3300/20 dual-channel vibration monitor card should be inspected for alarm setpoint integrity and relay output continuity. Relay output modules — particularly the 3300/46 relay output module — are frequently overlooked during probe replacements but are critical to the machinery protection trip chain. Fuse integrity on the 3300/25 power supply module should also be confirmed, as intermittent power fluctuations are a common root cause of spurious probe signal loss.

For installations where the 3300 XL rack communicates with a DCS or safety system via Modbus or 4–20 mA analog output, the signal path through any installed signal isolator or barrier module should be loop-tested end-to-end after probe replacement to confirm that the new probe’s output is correctly represented at the control room historian. Where Zener barriers or galvanic isolators are used in intrinsically safe installations, these components should be included in the inspection scope.

Maintenance planners building a comprehensive spare parts kit for a 3300 XL-protected machine train should also consider stocking the 330105-02-12-10-02-00 proximity probe (5mm variant for tighter clearance installations), 330130 series extension cables in the appropriate lengths for their machine geometry, and a spare 3300/55 temperature monitor module if the machine train includes bearing temperature monitoring in the same rack. Terminal block assemblies and DIN rail mounting hardware for the rack should also be held as consumable spares, as these are subject to wear during repeated maintenance access.

Site Replacement Workflow

Replacing the 330910-00-05-10-02-00 in the field follows a structured sequence designed to minimize downtime and eliminate the risk of introducing new faults during the intervention. Before removing the failed probe, the technician should record the existing gap voltage at the proximitor output — typically between –10 VDC and –18 VDC for a correctly gapped 8mm probe — as a baseline for post-installation verification.

The replacement probe is threaded into the existing bracket, and the gap is set to the machine OEM specification (commonly 1.0 mm to 1.5 mm for most rotating machinery applications) using a non-ferrous feeler gauge or a calibrated gap-setting tool. The integral cable is routed through the existing conduit, and the connector is mated to the extension cable. After powering the proximitor, the output voltage is measured and compared to the pre-removal baseline. A reading within ±0.5 VDC of the original gap voltage confirms correct installation.

For legacy systems where the original probe model has been superseded or is no longer available through OEM channels, the 330910-00-05-10-02-00 serves as a compatible replacement for earlier 3300 series probe variants, provided the proximitor model is confirmed to be 3300 XL NSv compatible. This eliminates the need for monitor rack reconfiguration or setpoint adjustment, preserving the existing machinery protection philosophy and reducing the risk of commissioning errors during a time-critical outage recovery.

All units supplied by SMARTNEXMSK are functionally tested prior to dispatch. Test records are available upon request for quality-critical installations. Long-term supply continuity is supported through established sourcing channels, ensuring availability for extended plant life programs and aging fleet maintenance strategies.

Spare Parts Support FAQ

Q1: Is the 330910-00-05-10-02-00 compatible with all 3300 XL monitor cards?
Yes. The 330910-00-05-10-02-00 is designed for the 3300 XL Proximity Transducer System and is compatible with all standard 3300 XL dual-channel and single-channel monitor cards, including the 3300/16, 3300/20, 3300/25, and 3300/55 series, provided the corresponding NSv Proximitor (330180 series) is used. Always confirm the proximitor model before installation to ensure the probe-proximitor pair is matched.

Q2: What is the recommended spare parts holding strategy for this probe?
For critical rotating machinery — turbines, compressors, and large pumps — industry best practice recommends holding a minimum of two spare probes per machine train per measurement plane. For plants with multiple 3300 XL-protected machines, a pooled inventory of 4–6 units is typically sufficient to cover both corrective and planned maintenance events across a 12-month maintenance cycle without emergency procurement lead times.

Q3: How is the unit tested before shipment?
Each 330910-00-05-10-02-00 unit is functionally tested against a reference 3300 XL NSv Proximitor to verify output sensitivity, linearity across the full measurement range, and connector integrity. Units that do not meet the original Bently Nevada specification are rejected. A 12-month warranty covers any defects in materials or workmanship from the date of shipment.

Q4: Can this probe replace older 3300 series (non-XL) probes?
The 330910-00-05-10-02-00 is specifically designed for the 3300 XL NSv system. Compatibility with earlier non-XL 3300 series proximitors depends on the specific proximitor model and system configuration. SMARTNEXMSK technical support can assist with cross-reference verification before purchase to confirm suitability for your specific installation.
