Bently Nevada 330910-00-05-50-02-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

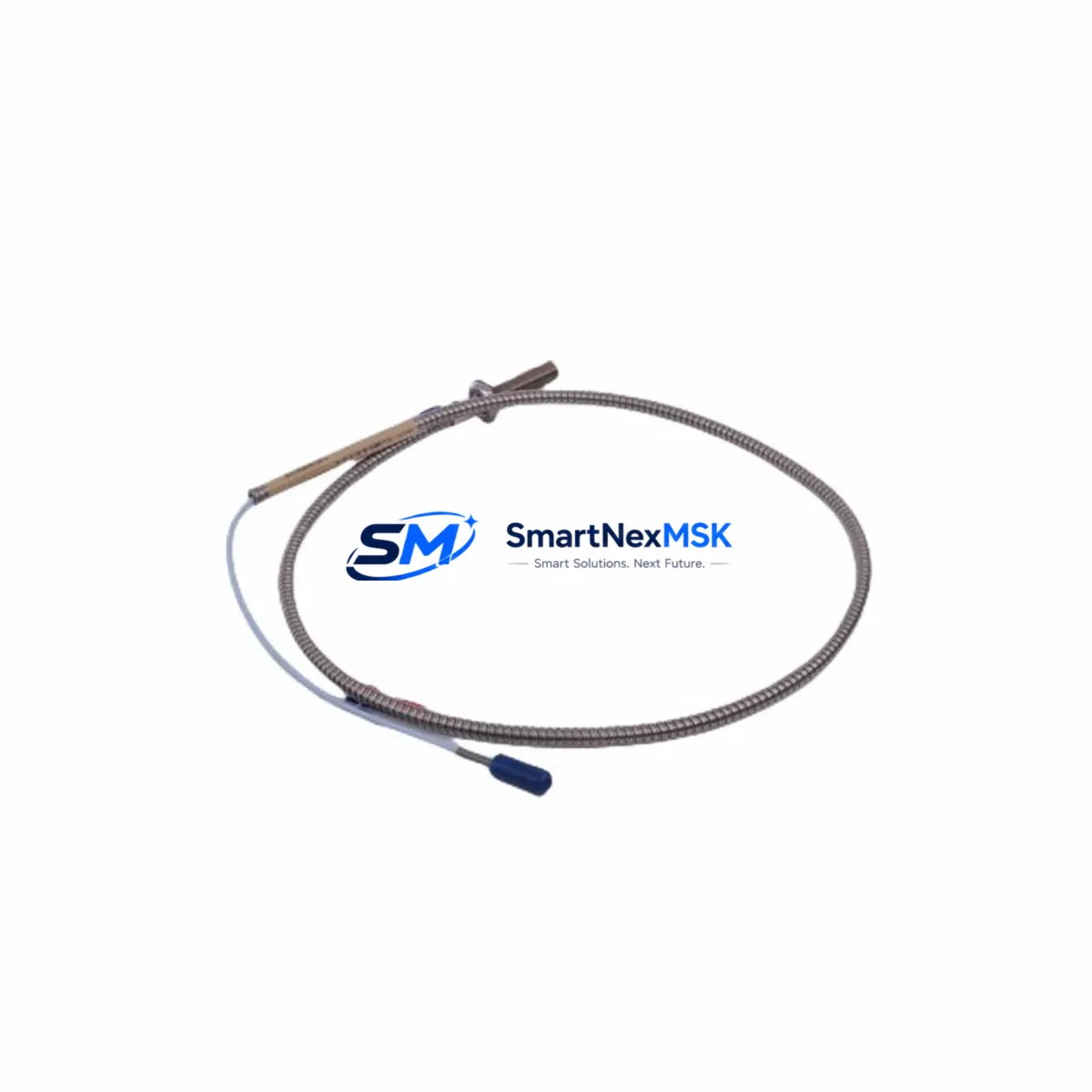

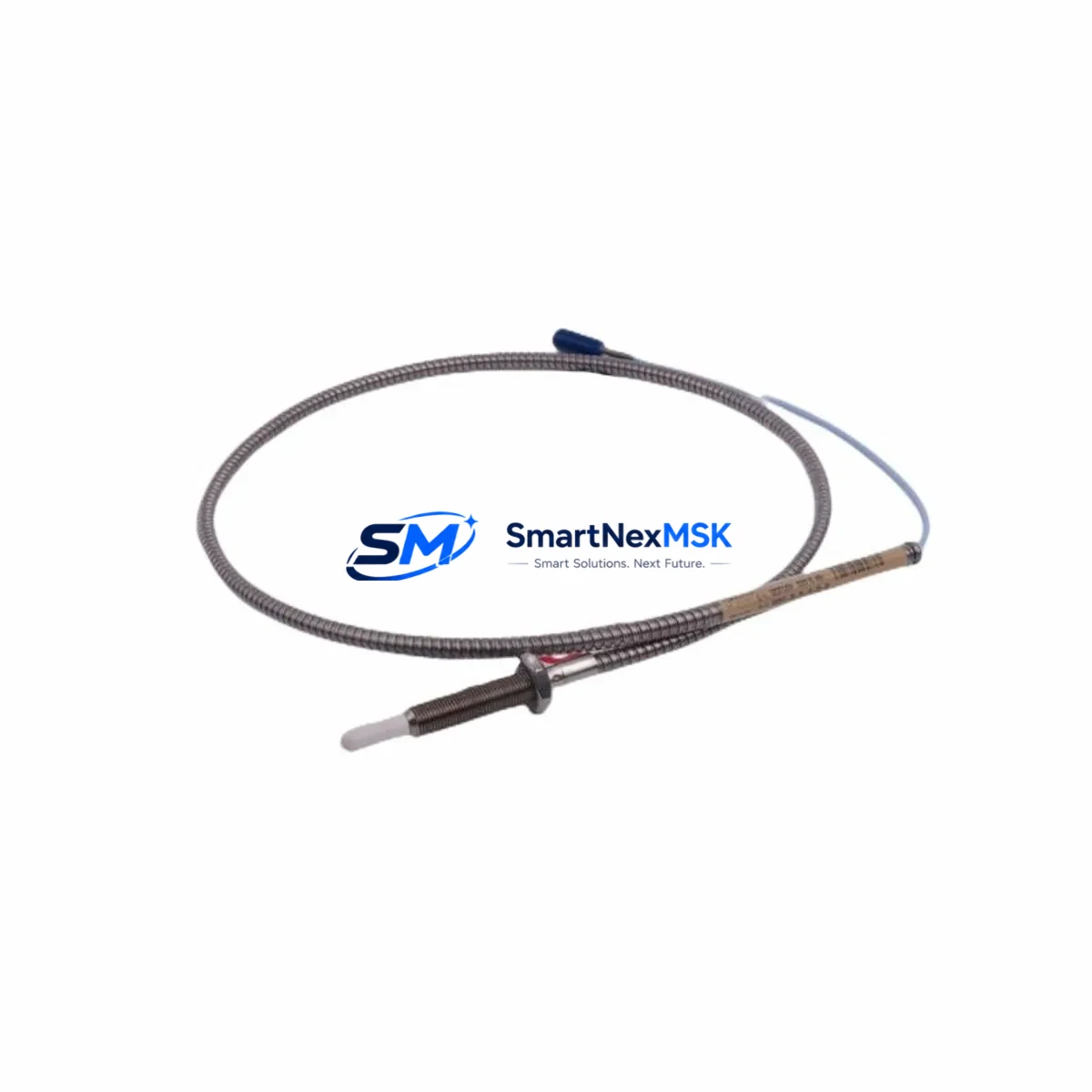

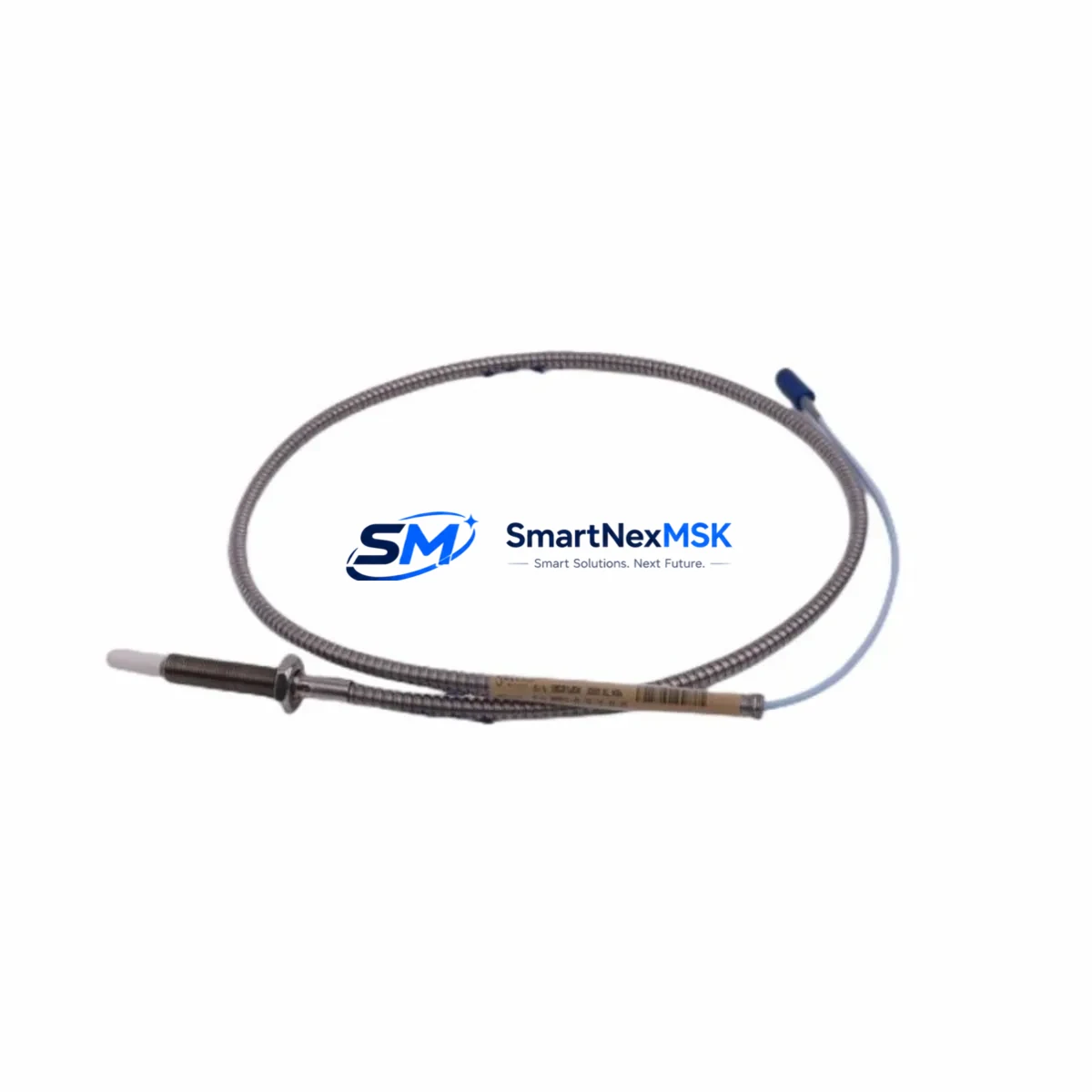

The Bently Nevada 330910-00-05-50-02-00 is an XL NSv Series 8mm eddy-current proximity transducer engineered for continuous, safety-critical machinery protection in the most demanding industrial environments. Designed to deliver precise, non-contact displacement and vibration measurements, this transducer is a cornerstone component in rotating machinery monitoring systems where control interruption, signal drift, or sensor failure can trigger catastrophic downtime or safety incidents.
Built to operate reliably in high-vibration, high-temperature, and electromagnetically noisy environments, the 330910-00-05-50-02-00 integrates seamlessly into Bently Nevada’s 3300 XL Series monitoring architecture. Its ruggedized construction and hermetically sealed housing make it the preferred choice for petrochemical compressors, power generation turbines, mining conveyors, and metallurgical process lines where continuous uptime is non-negotiable.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330910-00-05-50-02-00 |
| Brand / Series | Bently Nevada / XL NSv 3300 Series |
| Sensor Type | Eddy-Current Proximity Transducer |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0–2 mm (standard gap range) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | –35°C to +177°C (probe); –35°C to +85°C (driver) |
| Supply Voltage | –24 VDC (nominal) |
| Cable Length | 5 m (standard) |
| Extension Cable | 330130 Series compatible |
| Driver / Oscillator | 3300 XL NSv Driver (330180 Series) |
| Protection Rating | IP67 (probe assembly) |
| EMI/RFI Resistance | High — shielded coaxial cable construction |
| Surge Protection | Transient-hardened signal path |
| Safety Compliance | API 670 Machinery Protection Standard |
| Certification | CE, ATEX (Zone 1/2), IECEx |
| Country of Origin | United States |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-shipment Testing | Full functional and calibration verification before dispatch |
Control Cabinet Protection Strategy
In a well-engineered machinery protection system, the Bently Nevada 330910-00-05-50-02-00 transducer does not operate in isolation — it is one node in a tightly integrated safety and monitoring architecture. The probe connects via a 330130-080-00-00 extension cable to a 330180-X1-05 XL NSv driver, which conditions the raw eddy-current signal into a clean DC voltage output suitable for the 3500/40M Proximitor I/O Module housed in the 3500 Series rack.
Within the control cabinet, the 3500 rack is typically powered by a 3500/15 Power Supply with redundant input capability, ensuring that power fluctuations — common in heavy industrial facilities with large motor starts or arc furnace operations — do not interrupt the monitoring chain. The 3500/22M Transient Data Interface captures high-speed waveform data during transient events, while the 3500/42M Proximitor/Seismic Monitor provides dual-channel protection for both radial vibration and axial position on the same shaft.
For facilities running critical safety interlock loops, the 330910-00-05-50-02-00 is often paired with a 3500/33 16-Channel Relay Module to trigger automatic shutdown sequences when vibration thresholds are exceeded. In hazardous area installations — such as offshore platforms or chemical processing units — the system may also incorporate IS (Intrinsically Safe) barriers and Zener diode safety barriers to maintain ATEX Zone 1 compliance throughout the signal path. Communication to the plant DCS or SCADA is typically handled via the 3500/92 Communication Gateway, supporting Modbus TCP, PROFIBUS DP, or OPC-UA protocols depending on the site architecture.
This layered approach — from the field-mounted 330910-00-05-50-02-00 probe through to the control room display — ensures that signal drift, cable faults, power surges, and module malfunctions are detected and alarmed before they escalate into unplanned shutdowns or equipment damage.
Critical Industrial Safety Applications
The Bently Nevada 330910-00-05-50-02-00 proximity transducer is deployed across a broad spectrum of safety-critical industrial applications where rotating machinery reliability directly impacts production continuity and personnel safety.
In petrochemical and refinery operations, this transducer monitors radial shaft vibration and axial position on centrifugal compressors, process gas turbines, and boiler feed pumps. Undetected shaft displacement in these machines can lead to seal failures, process gas leaks, and fire hazards — making continuous, accurate proximity measurement a fundamental safety requirement under API 670 standards.
In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330910-00-05-50-02-00 is used on steam turbine shafts, generator rotors, and boiler feed pump trains. The transducer’s wide frequency response (DC to 10,000 Hz) ensures that both slow-roll runout and high-frequency subsynchronous instabilities are captured accurately, enabling early warning before bearing damage or rotor rub occurs.
In mining and mineral processing, where crusher drives, ball mill pinion shafts, and slurry pump motors operate under extreme load cycling and high ambient dust levels, the IP67-rated probe assembly of the 330910-00-05-50-02-00 resists contamination ingress while maintaining calibration stability. This is critical in environments where sensor replacement requires extended production shutdowns.
In water and wastewater treatment plants, the transducer monitors large vertical pump shafts and blower units in continuous-duty service. In metallurgical and steel mill environments, it is applied to rolling mill drive shafts and continuous casting machine drives, where electromagnetic interference from high-current bus bars and induction furnaces demands the transducer’s inherent EMI rejection capability. Port and terminal crane and hoist drive systems also rely on this sensor family for gearbox and motor shaft monitoring in safety-critical lift operations.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 330910-00-05-50-02-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies identified under normal operating conditions consistent with the product’s rated specifications. Warranty claims are supported with replacement or repair, and our team provides technical documentation to assist with site maintenance records.
Q2: What pre-shipment testing is performed before dispatch?
Every 330910-00-05-50-02-00 unit undergoes full functional verification prior to shipment, including output sensitivity calibration (7.87 V/mm), frequency response check, insulation resistance test, and visual inspection of the probe tip, cable jacket, and connector. A test report is available upon request for quality-critical procurement processes.
Q3: Is the 330910-00-05-50-02-00 compatible with existing 3300 XL Series installations?
Yes. The 330910-00-05-50-02-00 is a direct form-fit-function replacement within the Bently Nevada 3300 XL NSv ecosystem. It is compatible with 330130 Series extension cables, 330180 Series XL NSv drivers, and the full 3500 Series monitoring rack. No recalibration of the rack is required when replacing a like-for-like unit, minimizing maintenance window duration.
Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated inventory of the 330910-00-05-50-02-00 and its associated system components to support planned maintenance schedules, emergency replacements, and capital project procurement. Our sourcing network ensures continuity of supply for both current production units and legacy installations, with typical lead times confirmed at order placement.
