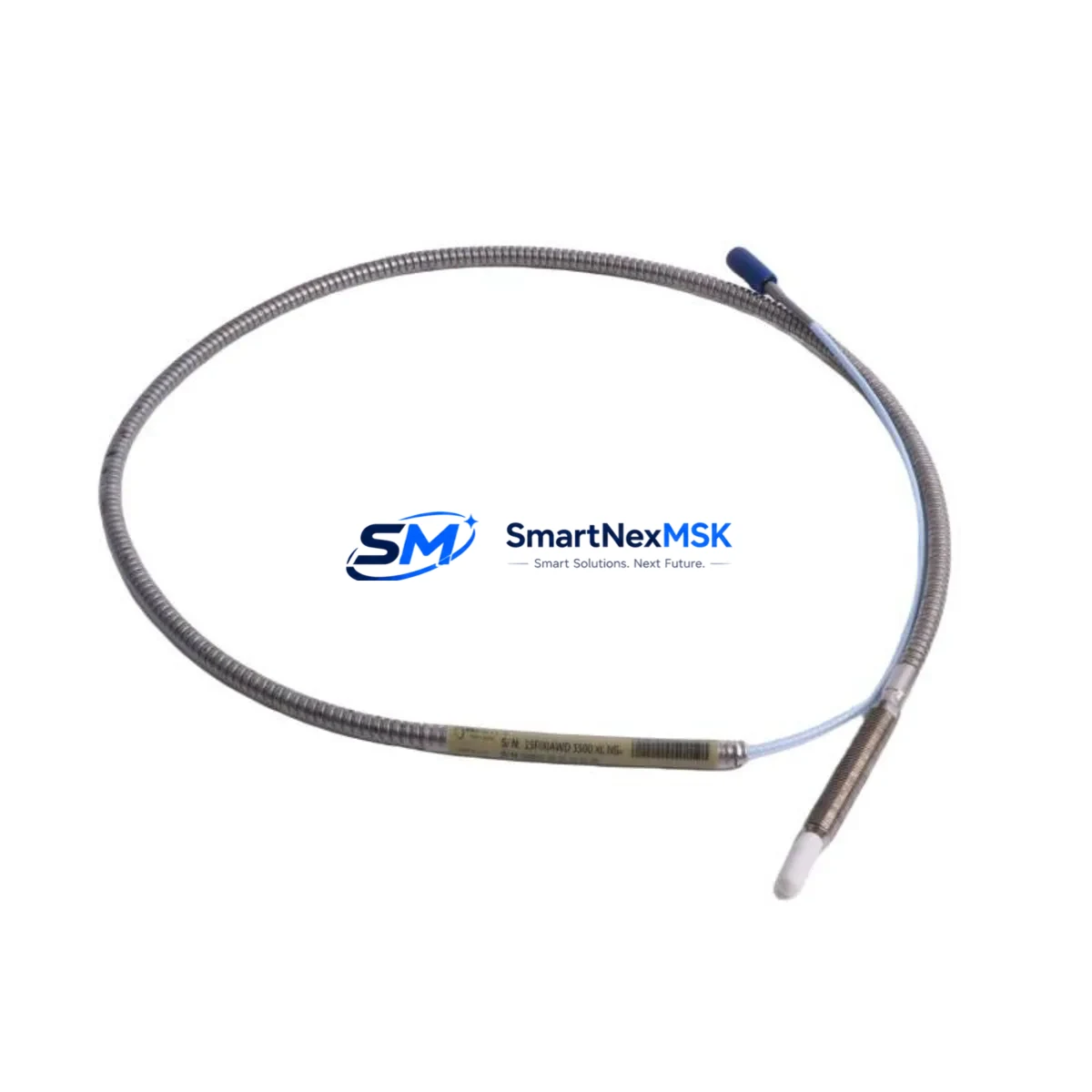

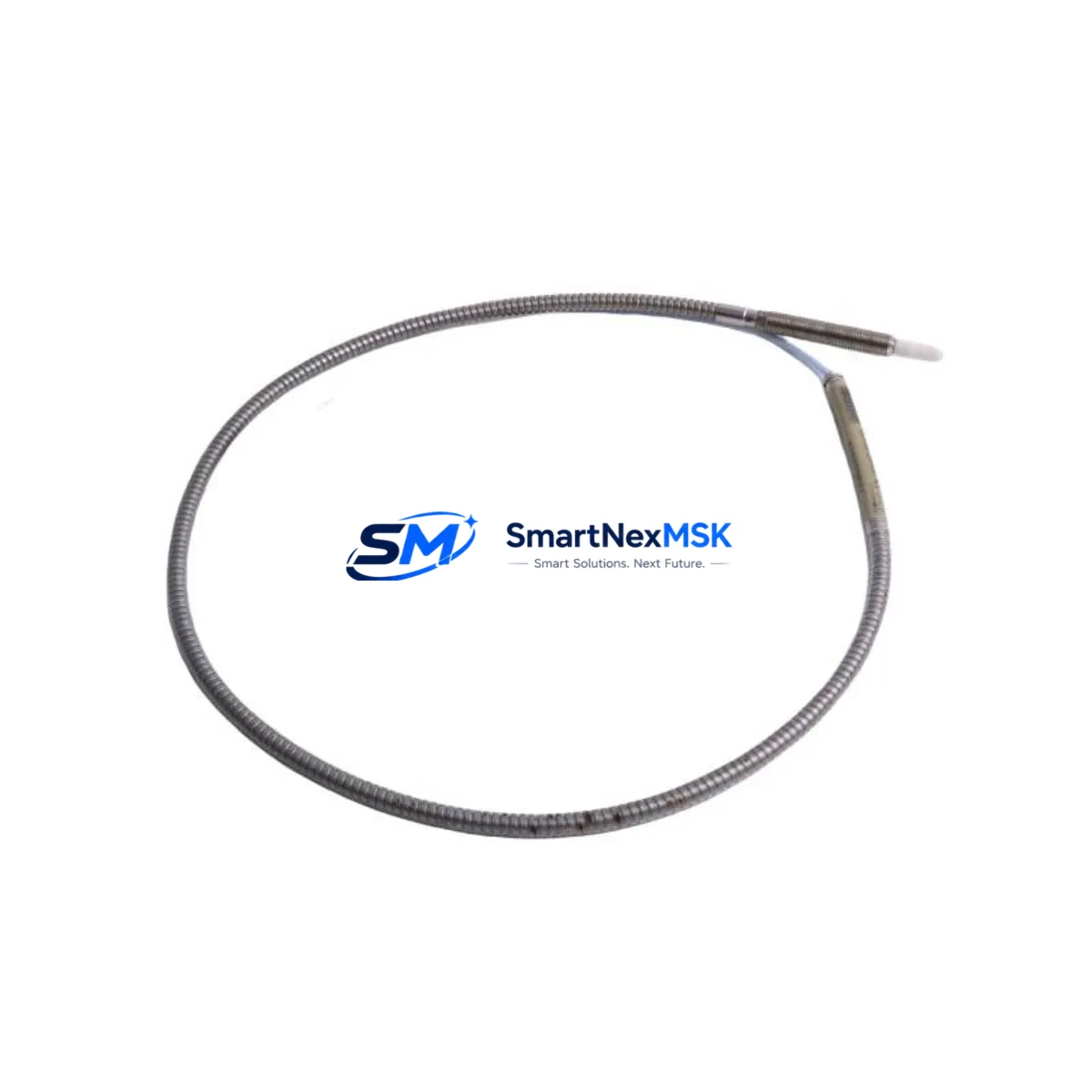

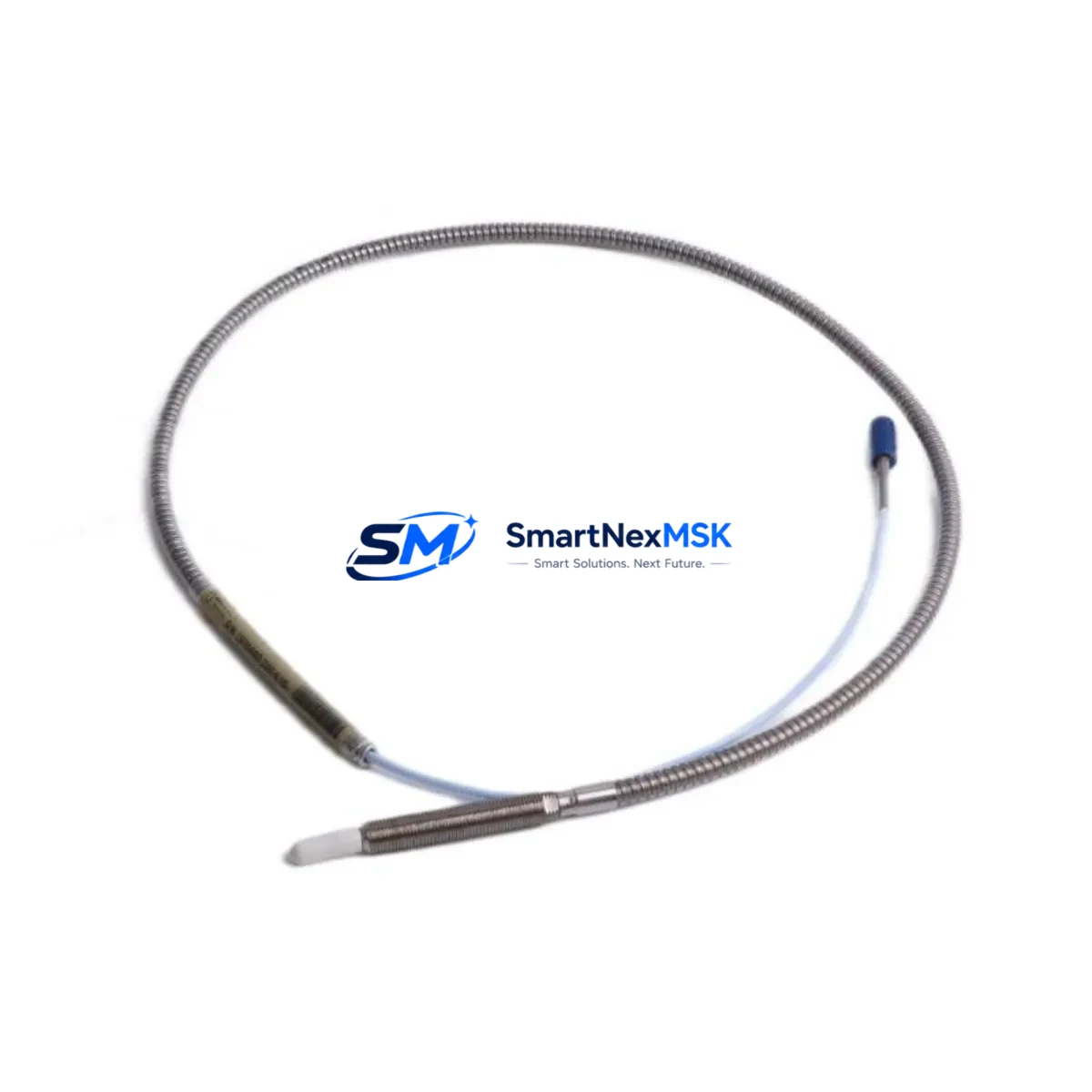

Bently Nevada 330910-00-06-10-02-00 Safety Proximity Probe

Bently Nevada 330910-00-06-10-02-00 Safety Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330910-00-06-10-02-00 is a 6mm ruggedized eddy current proximity probe engineered for the 3300 NSv vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including high-vibration machinery trains, continuous process plants, and safety-critical interlock loops — this probe delivers stable, drift-free shaft displacement measurements that form the backbone of rotating equipment protection strategies.

In heavy industrial settings such as turbine halls, compressor stations, and pump skids, signal integrity is non-negotiable. The 330910-00-06-10-02-00 probe features a hardened stainless steel housing and a precisely wound sensing coil that resists electromagnetic interference from adjacent variable frequency drives, high-current bus bars, and switching power supplies. Unlike standard proximity probes that may exhibit signal drift under thermal cycling or mechanical shock, this ruggedized variant maintains calibration stability across its full operating temperature range, ensuring that the 3300 NSv monitor receives clean, accurate gap voltage signals at all times.

When integrated into a complete Bently Nevada protection architecture, the 330910-00-06-10-02-00 works in concert with the 3300/16 16-channel monitor and the 3300/55 Keyphasor module to provide synchronous vibration analysis and phase reference data. The probe’s output is fully compatible with the 330130 extension cable and the 330180 proximitor sensor, forming a matched system that eliminates impedance mismatches — a common source of false trips and nuisance shutdowns in critical machinery protection loops. For installations requiring intrinsic safety certification in Zone 1 or Zone 2 hazardous areas, the probe pairs with the 3300 XL 8mm proximitor and approved Zener barriers to maintain SIL-rated loop integrity.

Power supply stability is equally critical in continuous production environments. The 330910-00-06-10-02-00 operates on the standard –24 VDC proximitor supply rail, and when that rail is backed by a Bently Nevada 3500/15 power supply module with redundant input capability, the risk of measurement dropout during grid transients or UPS switchover events is effectively eliminated. This is particularly important in petrochemical plants and power generation facilities where a single false shutdown can cost hundreds of thousands of dollars in lost production and restart expenses.

Communication reliability is maintained through the probe’s compatibility with the 3500 rack system‘s Modbus TCP and OPC-DA interfaces, allowing real-time vibration data to flow uninterrupted to the plant DCS or safety instrumented system. In metallurgical and mining applications where cable runs may exceed 30 meters through electrically noisy cable trays, the matched probe-cable-proximitor system suppresses common-mode noise that would otherwise corrupt the 200 mV/mil sensitivity output. The 330910-00-04-10-02-00 4mm variant and the 330905-00-06-10-02-00 standard-temperature probe are available as complementary options for installations with different gap requirements or temperature profiles.

Every 330910-00-06-10-02-00 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification including gap voltage linearity testing, insulation resistance measurement, and housing integrity inspection. This ensures that replacement probes installed during planned maintenance windows or emergency shutdowns perform identically to the original factory-calibrated units, minimizing re-commissioning time and protecting the integrity of the overall machinery protection system.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for rotating equipment begins with selecting matched, system-certified components. The 330910-00-06-10-02-00 proximity probe is the field-sensing element in a protection chain that extends from the machine shaft through the 330130 extension cable to the 330180 proximitor sensor mounted on the junction box, and ultimately to the 3300 NSv monitor card installed in the rack. Within the rack, the 3500/15 power supply module provides conditioned –24 VDC to all proximitor channels, with its redundant input design ensuring that a single AC supply failure does not interrupt vibration monitoring during critical production runs.

For plants operating safety instrumented systems to IEC 61511 requirements, the vibration trip signal from the 3300 NSv monitor is typically hardwired to a 3500/32 4-channel relay module, which drives the emergency shutdown valve or turbine trip solenoid. Surge protection on the field cable entry points — using DIN-rail mounted surge protective devices rated for the –24 VDC signal level — prevents lightning-induced transients from propagating into the monitor rack and causing spurious trips or permanent damage to the proximitor input circuitry. The 3300/55 Keyphasor module provides the once-per-revolution reference pulse needed for synchronous averaging and order tracking, enabling early detection of rotor imbalance and misalignment before vibration levels reach the danger threshold.

In installations where the control cabinet is located in a classified hazardous area, the probe system is completed with certified Zener barriers or galvanic isolators on each channel, maintaining the intrinsically safe loop parameters required for Zone 1 operation. This layered approach — matched probe, certified cable, isolated proximitor, redundant power, and relay-based trip output — represents the industry standard for turbomachinery protection in petrochemical and power generation facilities.

Critical Industrial Safety Applications

Petrochemical & Refinery: Steam turbine-driven compressors and centrifugal pumps in hydrocarbon service require continuous shaft vibration monitoring to prevent catastrophic seal failures and unplanned flaring events. The 330910-00-06-10-02-00 probe, installed on the compressor radial bearing journals, provides the real-time displacement data that triggers automatic shutdown before vibration exceeds API 670 danger limits.

Power Generation: In coal-fired and gas turbine power plants, the probe monitors rotor eccentricity and bearing wear on turbine-generator sets operating at 3000 or 3600 RPM. Continuous monitoring allows maintenance teams to schedule bearing replacements during planned outages rather than responding to emergency trips, significantly improving plant availability.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe mechanical shock and high ambient vibration. The ruggedized stainless steel housing of the 330910-00-06-10-02-00 withstands these conditions while maintaining calibration, reducing the frequency of probe replacements and associated production stoppages.

Water & Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in water treatment plants benefit from continuous vibration monitoring to detect impeller wear and bearing degradation before they cause unplanned service interruptions that affect water supply reliability.

Metallurgy & Steel: Rolling mill drives and continuous casting machine drives operate in environments with extreme temperature gradients and heavy electromagnetic interference from large DC drive systems. The probe’s shielded coil construction and ruggedized housing maintain signal integrity in these conditions, supporting the interlock systems that protect both equipment and personnel.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, functional failures, and calibration deviations from factory specifications. If the probe fails to meet its published sensitivity or linearity specifications within 12 months of shipment, SMARTNEXMSK will provide a replacement unit at no charge. The warranty applies under normal installation and operating conditions consistent with Bently Nevada’s published guidelines.

Q2: What pre-shipment testing is performed on each unit?
Every 330910-00-06-10-02-00 unit undergoes gap voltage linearity verification across the full linear range, insulation resistance testing between the coil and housing, and visual inspection of the connector, cable entry, and housing for mechanical integrity. A test report is available upon request for critical applications requiring documented traceability.

Q3: Is this probe compatible with existing 3300 NSv and 3500 series installations?
Yes. The 330910-00-06-10-02-00 is a direct replacement for the standard Bently Nevada 6mm ruggedized proximity probe used in 3300 NSv systems. It is electrically and mechanically compatible with the 330130 extension cable, 330180 proximitor, and all 3300/3500 series monitor cards without requiring recalibration of the monitor system.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of the 330910-00-06-10-02-00 and related 3300 NSv system components to support planned maintenance schedules and emergency replacement requirements. For customers with multi-unit installations or annual maintenance contracts, we offer reserved stock arrangements to ensure probe availability without lead-time risk.
