Bently Nevada 330910-00-07-10-02-05 Safety Proximity Probe

Bently Nevada 330910-00-07-10-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

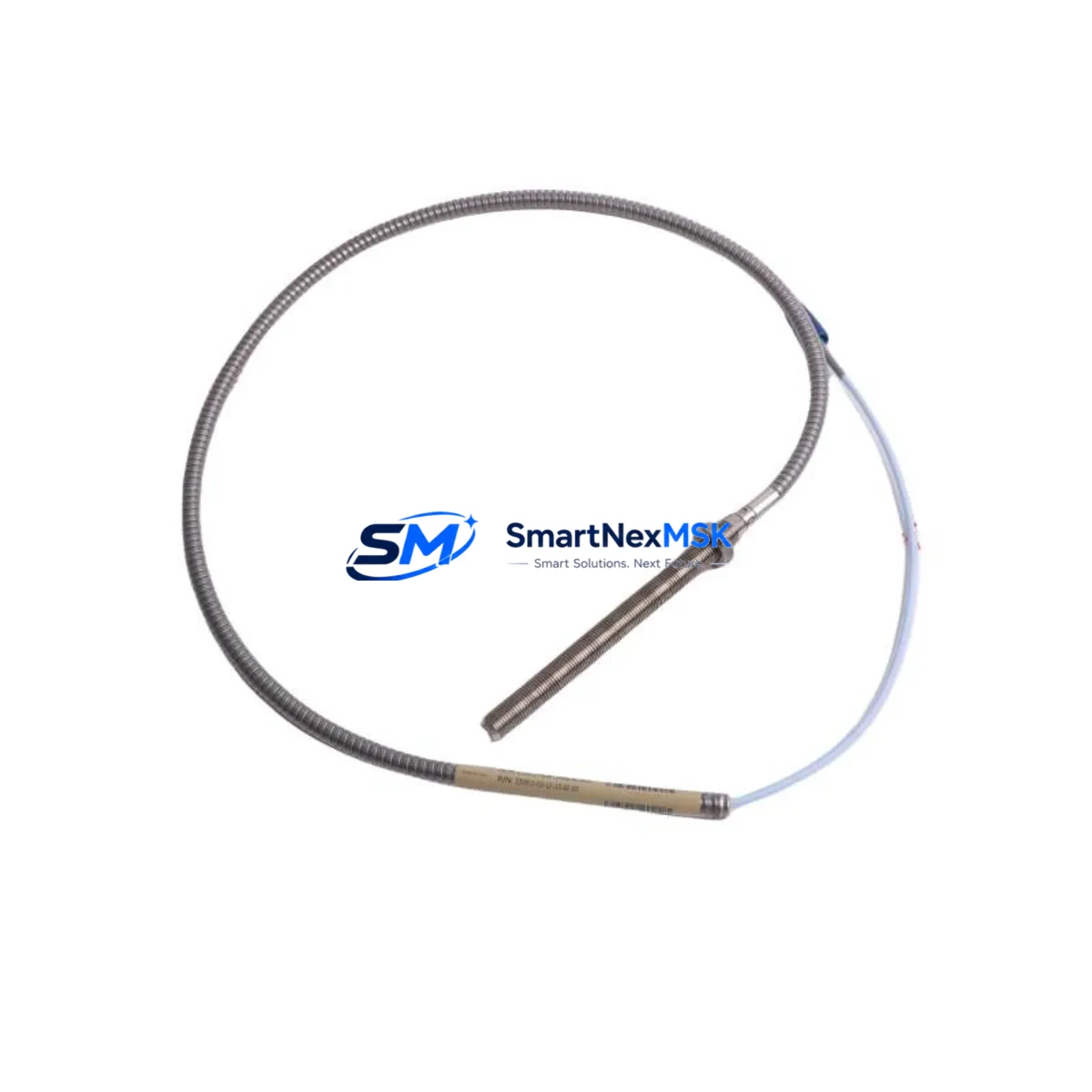

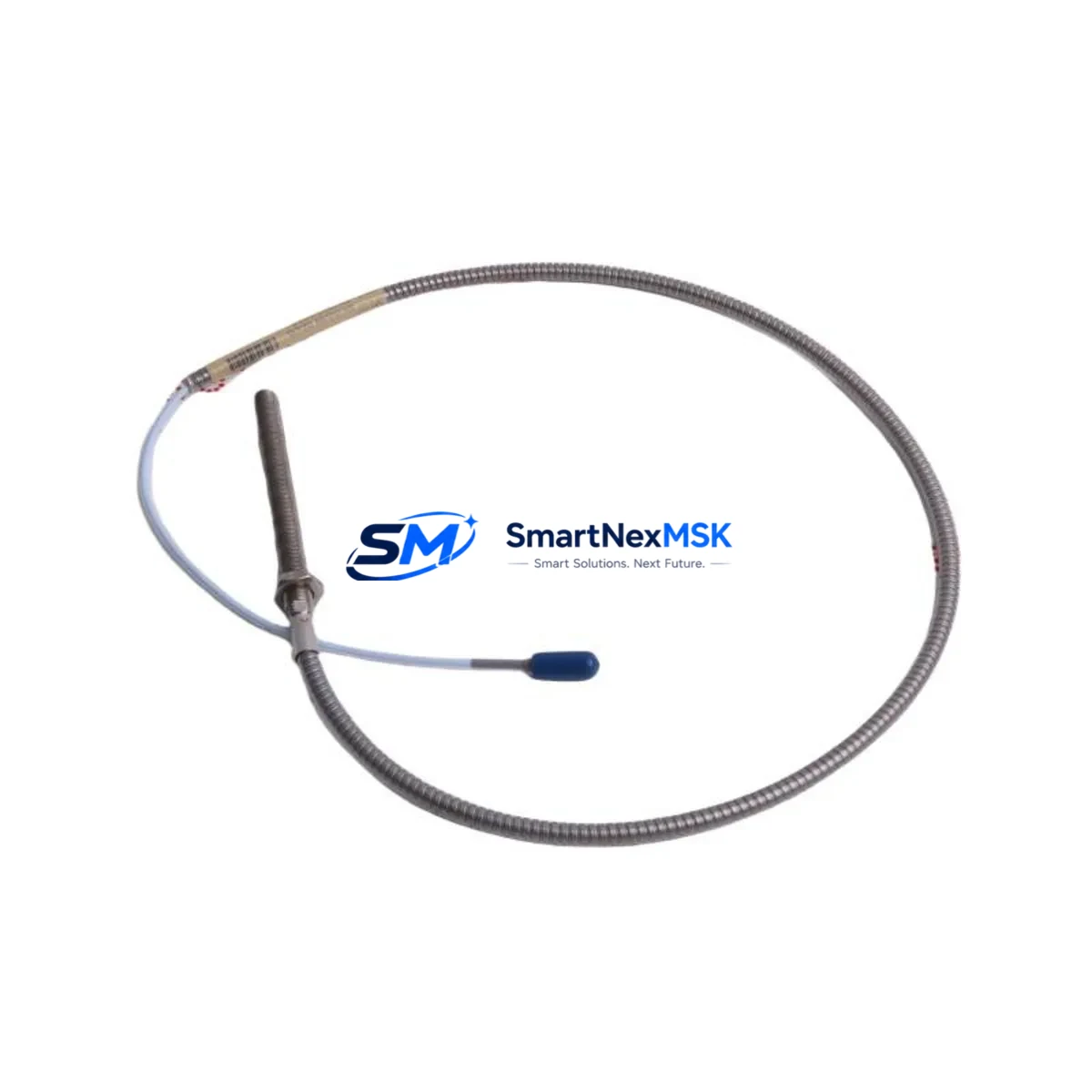

The Bently Nevada 330910-00-07-10-02-05 is a ruggedized 5mm eddy-current proximity probe from the industry-proven 3300 NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably inside high-voltage control cabinets, rotating machinery enclosures, and critical interlock circuits, this probe delivers stable, drift-free output even under severe electromagnetic interference, mechanical shock, and wide thermal cycling. For plant engineers and reliability teams operating in petrochemical, power generation, mining, water treatment, metallurgical, port, or continuous manufacturing facilities, the 330910-00-07-10-02-05 represents a proven, drop-in-compatible solution that minimizes unplanned downtime and protects both personnel and assets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection system, the 330910-00-07-10-02-05 probe does not operate in isolation — it is the front-line sensing element in a layered protection architecture. The probe connects to a Bently Nevada 3300 XL 8mm Extension Cable (typically the 330130 series) which routes the signal from the machine casing to the Bently Nevada 3500/42M Proximitor I/O Module housed in the control cabinet. The Proximitor converts the raw eddy-current signal into a conditioned 4–20 mA or voltage output that feeds directly into the Bently Nevada 3500 Rack — a modular, safety-rated monitoring platform widely deployed in turbine, compressor, and pump protection panels.

Within the same control cabinet, the 3500 Rack typically interfaces with a Bently Nevada 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS or SCADA system, ensuring that vibration trip signals propagate without delay to the Emerson DeltaV Safety Instrumented System or equivalent SIS controller. To protect the entire monitoring loop from power surges and voltage transients — a common failure mode in heavy industrial sites — a dedicated Phoenix Contact TRABTECH surge protection device is installed on the 24 VDC supply rail feeding the Proximitor modules. Complementing this, a Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that a single power fault does not interrupt vibration monitoring continuity.

For facilities requiring wireless condition monitoring alongside wired protection, the Emerson AMS Wireless THUM Adapter can be integrated on the HART loop to stream real-time vibration trend data to the asset management layer without interrupting the hardwired safety interlock. In high-temperature or chemically aggressive environments, the probe mounting is reinforced with a Bently Nevada 330105 Armored Extension Cable to prevent signal degradation from cable jacket deterioration. The complete loop — probe, extension cable, Proximitor, rack, power supply, surge protection, and communication module — forms a coherent, testable, and maintainable machinery protection circuit that meets API 670 and IEC 61511 requirements for safety instrumented functions.

Critical Industrial Safety Applications

The Bently Nevada 330910-00-07-10-02-05 is deployed across a broad spectrum of safety-critical industrial applications where continuous, uninterrupted vibration monitoring is non-negotiable:

Petrochemical & Refinery: Installed on high-speed centrifugal compressors and boiler feed pumps in ATEX Zone 1 and Zone 2 classified areas, the probe provides real-time shaft displacement data that triggers automatic shutdown before catastrophic bearing failure or seal damage can escalate into a process safety event. Its IP67 rating and armored cable construction resist hydrocarbon vapors, H₂S exposure, and high-pressure wash-down cycles common in refinery environments.

Power Generation: In coal-fired, gas turbine, and hydroelectric generating stations, the 330910-00-07-10-02-05 monitors turbine shaft eccentricity and rotor runout on units operating at 3000 or 3600 RPM. Accurate, low-latency vibration data from this probe feeds directly into the turbine protection relay, enabling sub-100 ms trip response times that protect both the generating asset and grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in open-pit and underground mining operations subject monitoring equipment to extreme dust loading, mechanical shock, and wide ambient temperature swings. The probe’s robust stainless-steel housing and high-temperature rating make it the preferred choice for mill bearing monitoring where sensor replacement under production conditions is hazardous and costly.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water treatment facilities require continuous vibration monitoring to comply with infrastructure reliability mandates. The 330910-00-07-10-02-05 provides the long-term measurement stability needed for trending analysis over multi-year pump service intervals.

Metallurgy & Steel: In continuous casting lines and rolling mill drives, the probe monitors motor and gearbox shaft vibration in environments characterized by intense electromagnetic noise from large variable-frequency drives. Its shielded coaxial construction and high EMI immunity ensure signal integrity even when installed adjacent to high-current bus bars and VFD output cables.

Port & Heavy Lifting: Crane hoist motors and port conveyor drive systems benefit from the probe’s ability to detect early-stage bearing defects before they progress to in-service failure — a critical safety requirement where unexpected mechanical failure poses direct risk to personnel and cargo.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330910-00-07-10-02-05?
The 12-month warranty covers all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. Each unit undergoes pre-shipment functional testing — including output linearity verification and insulation resistance checks — before dispatch. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: How is the probe tested before shipment?
Every 330910-00-07-10-02-05 unit is bench-tested against Bently Nevada factory specifications prior to shipment. Testing includes eddy-current output verification at defined gap distances, cable continuity and shielding integrity checks, and connector pin-out confirmation. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 330910-00-07-10-02-05 compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330910-00-07-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor/Seismoprobe system and the 3500 Series machinery protection rack. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the monitoring system, provided the target material and gap setting are maintained per the original system design.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain standing inventory of the 330910-00-07-10-02-05 and related 3300 NSv Series components to support planned maintenance shutdowns, emergency replacements, and multi-unit capital projects. For facilities with critical spare parts programs, we offer reserved stock arrangements and priority fulfillment to ensure your machinery protection systems are never compromised by parts availability.
