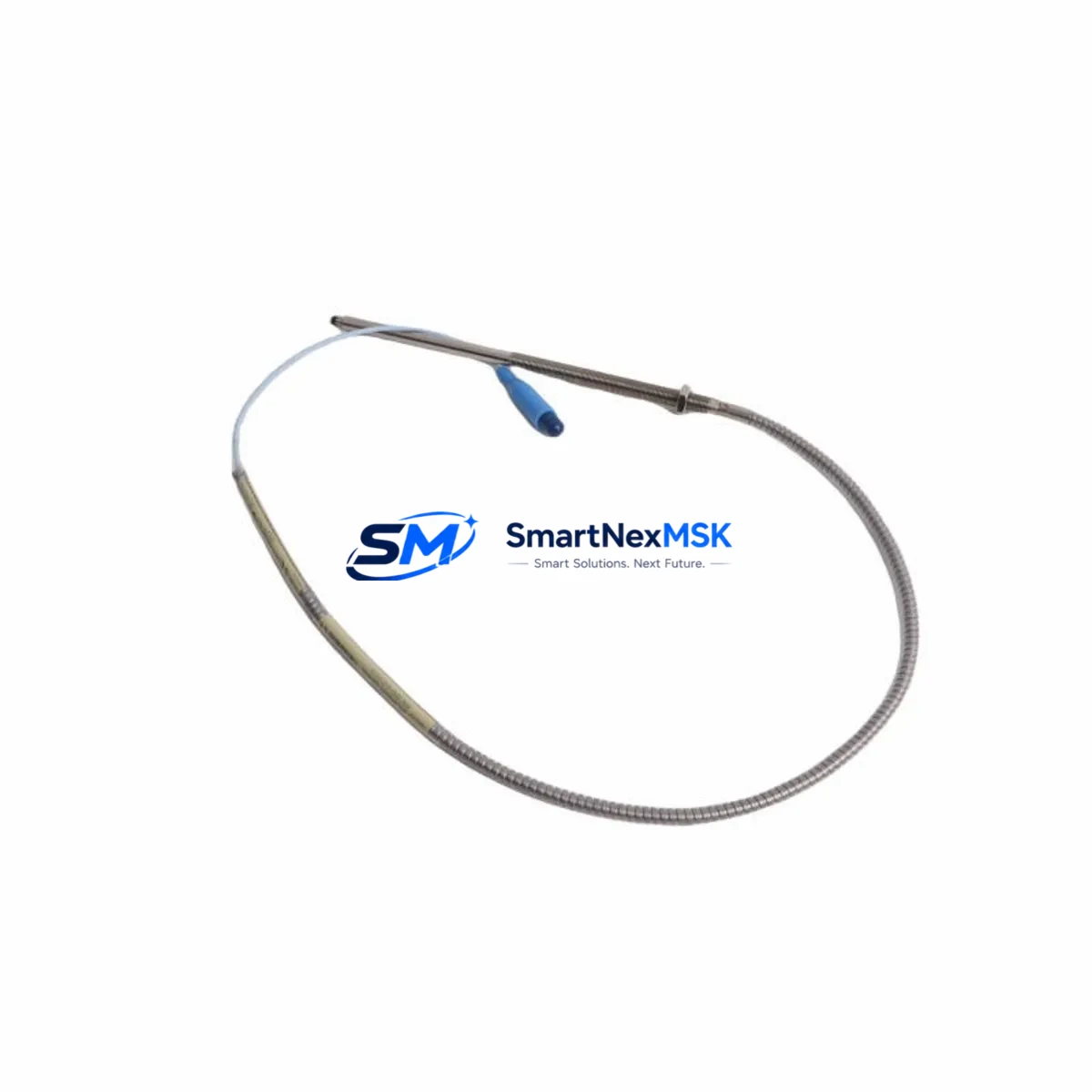

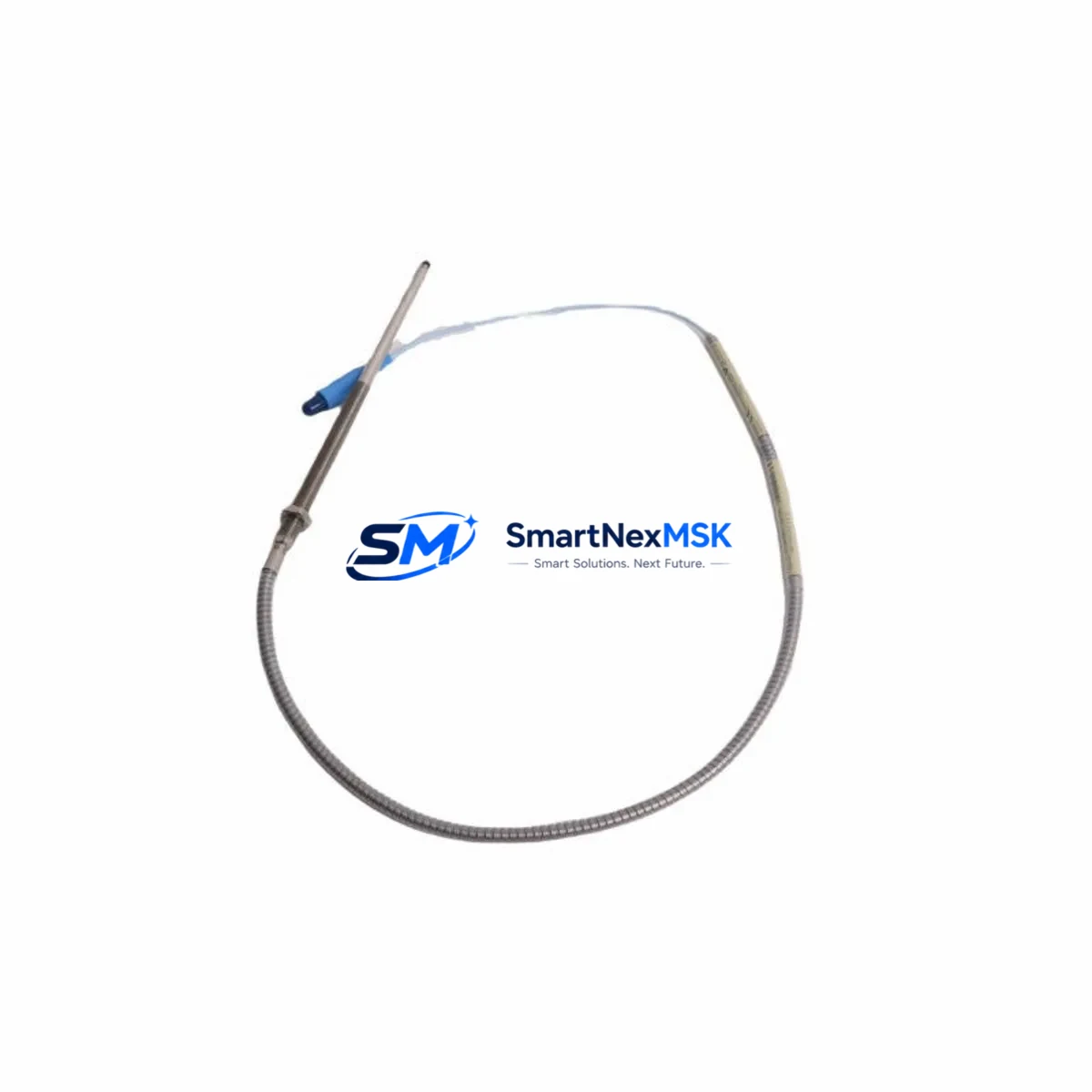

Bently Nevada 330910-00-08-50-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites
The Bently Nevada 330910-00-08-50-02-00 is a ruggedized eddy-current proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the Bently Nevada 3300 XL NSv Series, this transducer delivers exceptional signal stability, electromagnetic interference immunity, and long-term mechanical reliability — making it a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.
In high-load, high-interference production environments, control interruption caused by sensor drift or signal anomaly can trigger unplanned shutdowns, cascade interlock faults, or catastrophic machinery failure. The 330910-00-08-50-02-00 is specifically designed to eliminate these risks by maintaining precise gap measurement accuracy even under severe shaft runout, thermal cycling, and electrical noise conditions. Its ruggedized housing and hermetically sealed construction protect the sensing element from moisture ingress, chemical exposure, and mechanical vibration — ensuring uninterrupted signal output in control cabinets and field junction boxes alike.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330910-00-08-50-02-00 |
| Brand / Series | Bently Nevada / 3300 XL NSv |
| Sensor Type | Eddy-Current Proximity Transducer |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5.0 m (standard) |
| Connector Type | Integral, armored coaxial |
| Operating Temperature | -35°C to +121°C |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.26 mm (10 to 89 mil) |
| Supply Voltage | -24 VDC (nominal) |
| EMI / RFI Immunity | High — ruggedized shielded cable |
| Ingress Protection | IP67 equivalent (hermetically sealed tip) |
| Target Material Compatibility | AISI 4140 steel, Inconel 718, standard shaft alloys |
| Approvals / Compliance | CE, RoHS; compatible with API 670 machinery protection |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Condition | New / Surplus New / Tested & Verified |
| Origin | USA |
Control Cabinet Protection Strategy
Deploying the 330910-00-08-50-02-00 within a machinery protection control cabinet requires a carefully coordinated system architecture to ensure signal integrity from the field to the safety logic layer. This transducer is designed to interface directly with the Bently Nevada 3300 XL proximitor / seismic I/O module, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500 Series rack-based machinery protection system. The 3500 rack — including the 3500/22M transient data interface and 3500/42M proximitor monitor — processes vibration, position, and speed data in real time, triggering relay outputs to the safety PLC or DCS upon threshold breach.
To protect the signal path from power-line disturbances and ground loops, the system should incorporate a Bently Nevada 3300 XL extension cable with continuous armor shielding, routed separately from high-voltage power conductors. On the power supply side, a dedicated 24 VDC regulated instrument power supply — such as those from the Phoenix Contact QUINT or TRIO series — ensures stable bias voltage to the proximitor, preventing signal offset caused by supply ripple. Surge protection devices (SPDs) installed at the cabinet entry point guard against transient overvoltage events that could damage the proximitor input stage.
For facilities operating under functional safety requirements (SIL 2 or higher), the transducer output is typically fed into a safety-rated voting logic module or a Triconex / Rockwell GuardLogix safety PLC via a hardwired 4–20 mA or discrete relay interface. Complementary components such as the Bently Nevada 3500/15 power supply module and 3500/05 system rack complete the protection architecture, providing redundant power paths and hot-swap capability to eliminate single points of failure in critical interlock loops.
Critical Industrial Safety Applications
The Bently Nevada 330910-00-08-50-02-00 proximity transducer is deployed across a broad spectrum of heavy industrial and process-critical applications where continuous shaft monitoring is non-negotiable:
Petrochemical & Refinery: Installed on centrifugal compressors, reactor feed pumps, and turbine-driven blowers in API 670-compliant machinery protection systems. Monitors radial shaft vibration and axial position to detect bearing wear, rotor imbalance, and surge events before they escalate to unplanned shutdowns or seal failures.
Power Generation: Used on steam turbine shaft lines and boiler feed pump trains to provide continuous eccentricity and differential expansion monitoring. Integrated with the plant DCS via the 3500 rack relay outputs, enabling automatic turbine trip on overvibration — a critical safety interlock in grid-connected generation assets.
Mining & Mineral Processing: Deployed on large SAG mill pinion drives, slurry pump motors, and crusher main shafts operating in high-dust, high-moisture environments. The ruggedized IP67-equivalent tip construction resists abrasive contamination, maintaining reliable gap measurement even in the harshest ore processing conditions.
Water & Wastewater Treatment: Monitors vertical turbine pumps and blower shafts in continuous-duty municipal infrastructure. Provides early warning of bearing degradation and shaft misalignment, supporting predictive maintenance programs that reduce emergency repair costs and service interruptions.
Metallurgy & Steel: Applied to rolling mill main drive motors, continuous caster pinch rolls, and ladle turret slewing drives. Withstands intense electromagnetic interference from high-current bus bars and induction furnace switching, maintaining signal accuracy in environments where standard sensors fail within weeks.
Port & Heavy Lifting: Installed on crane hoist motor shafts and gantry drive systems to monitor bearing condition and detect shaft deflection under variable load cycles, supporting safe lifting operations and reducing unplanned crane downtime.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 330910-00-08-50-02-00?
The 12-month warranty covers all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. Each unit is pre-shipment tested against Bently Nevada factory calibration standards. If a unit fails within the warranty period, we provide a direct replacement or full refund — no lengthy RMA delays.
Q2: What pre-shipment testing is performed on this transducer?
Every 330910-00-08-50-02-00 unit undergoes functional verification including sensitivity check (7.87 V/mm ± tolerance), linear range confirmation, cable continuity and insulation resistance test, and connector integrity inspection before dispatch. Test records are available upon request for quality-critical procurement.
Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330910-00-08-50-02-00 is fully compatible with the Bently Nevada 3300 XL proximitor series and integrates directly into 3500 rack-based machinery protection systems. It is a drop-in replacement for earlier 330900 and 330905 series probes in most installations, subject to cable length and connector verification.
Q4: Can you guarantee long-term supply and spare parts availability?
We maintain dedicated inventory of Bently Nevada 3300 XL NSv series components, including the 330910-00-08-50-02-00 and related proximitor modules, extension cables, and rack components. Our sourcing network supports both immediate spot orders and scheduled blanket purchase agreements for facilities requiring guaranteed spare parts availability over multi-year maintenance cycles.
