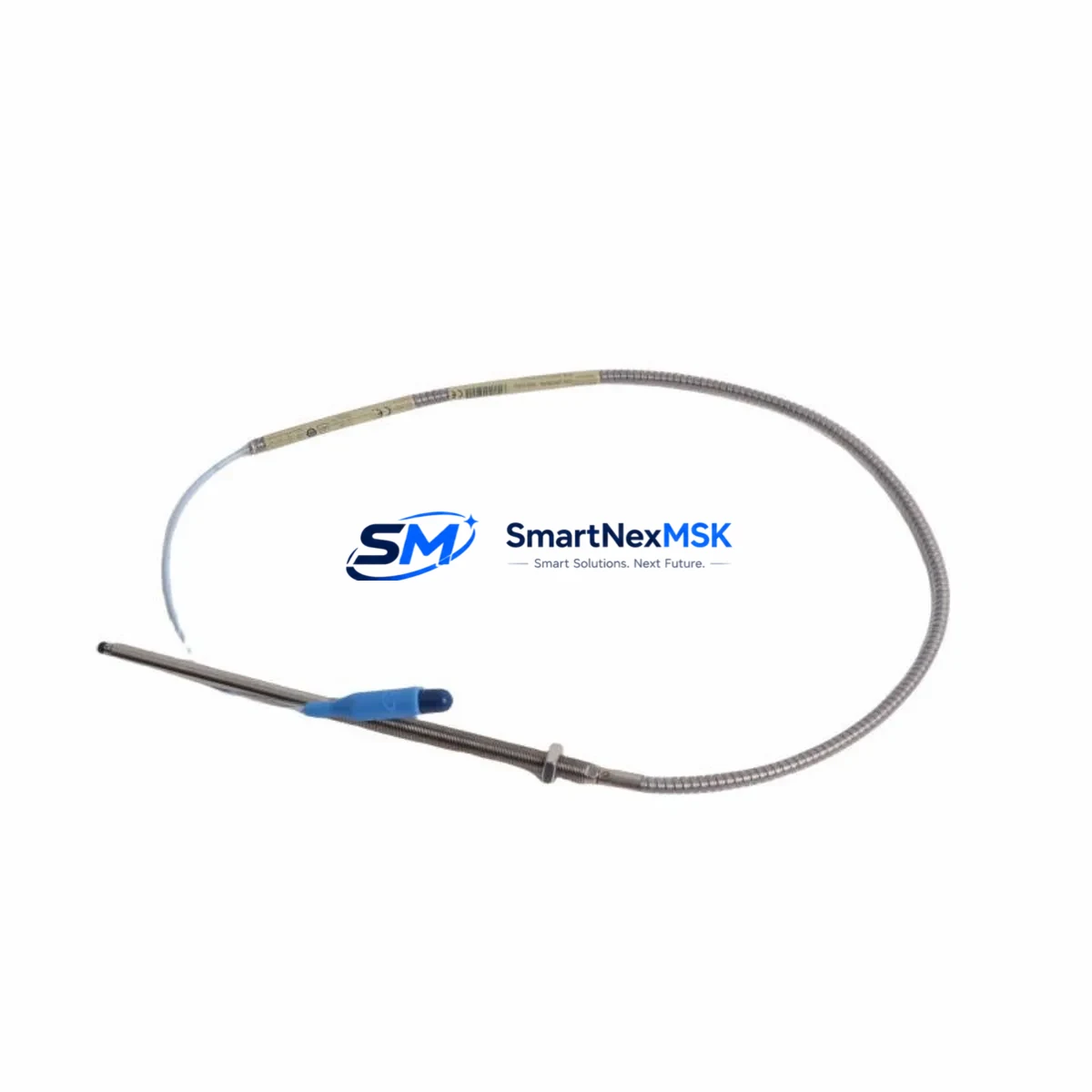

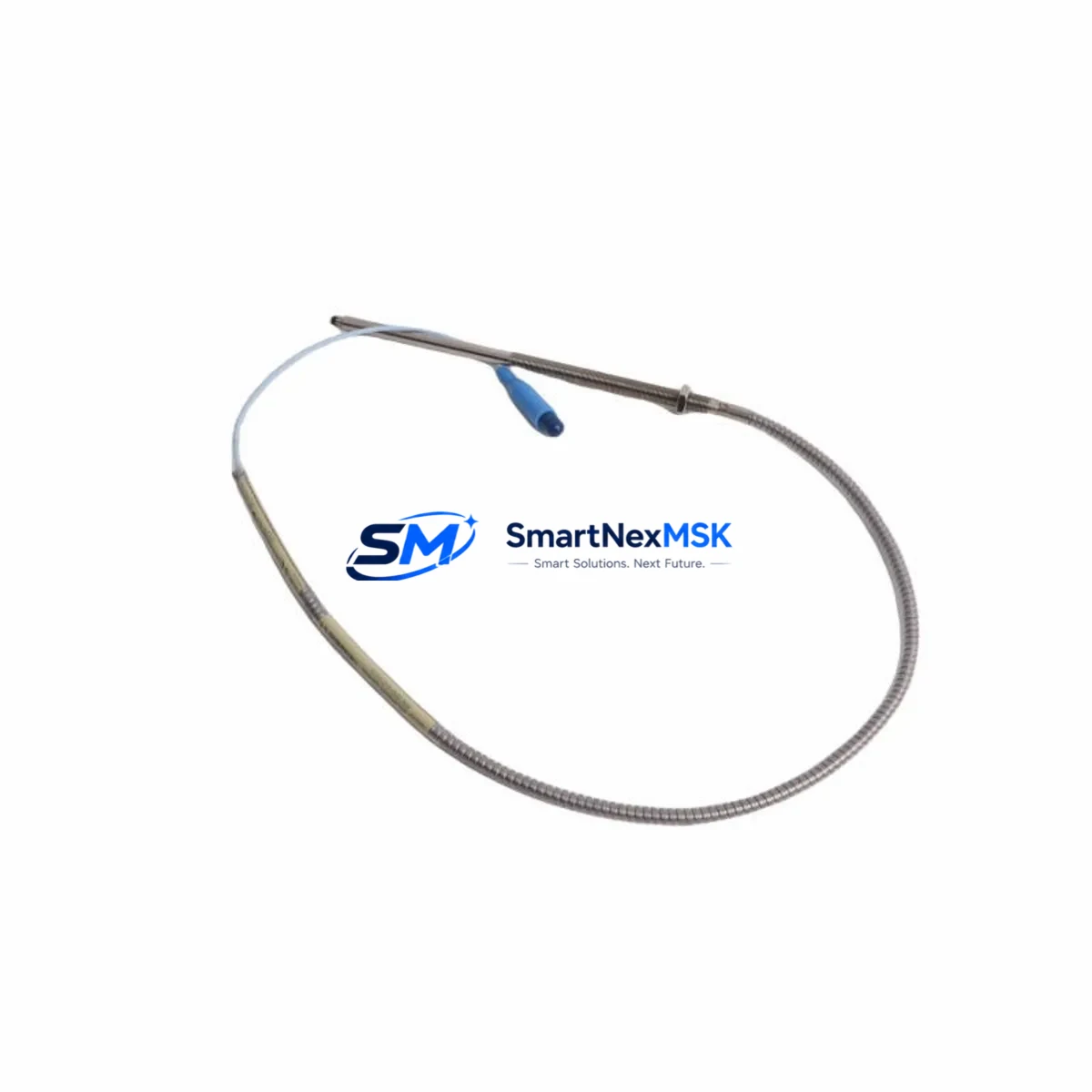

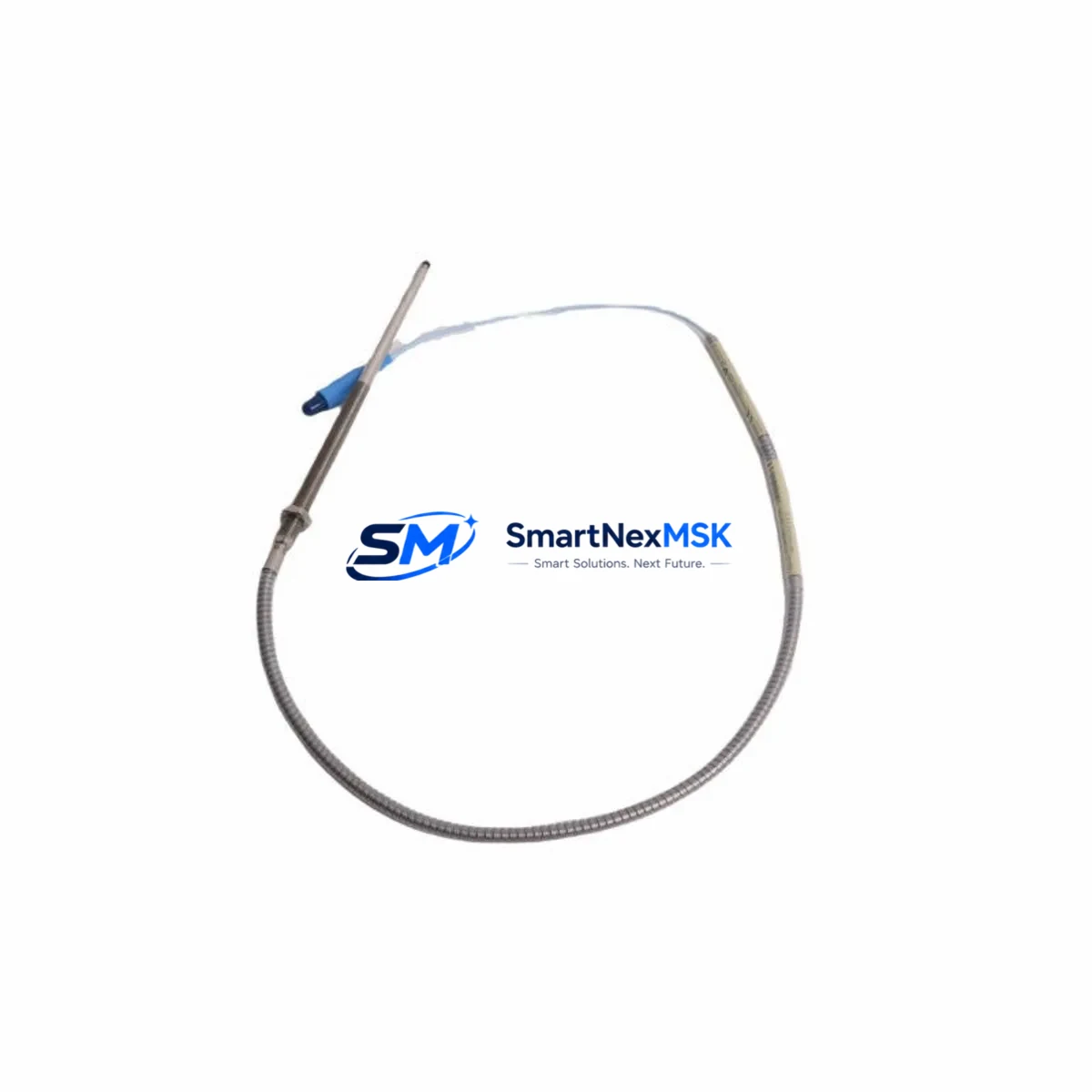

Bently Nevada 330910-00-10-05-01-00 Safety Proximity Transducer

Bently Nevada 330910-00-10-05-01-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330910-00-10-05-01-00 is a ruggedized eddy current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and corrosive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities worldwide.

Unlike standard proximity sensors, the 330910-00-10-05-01-00 is built to maintain signal integrity even when installed adjacent to high-power drives, large motors, or variable frequency drives that generate significant EMI. Its non-contact eddy current measurement principle eliminates mechanical wear, ensuring zero signal degradation over extended service cycles — a critical advantage in continuous production environments where unplanned downtime carries severe safety and financial consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330910-00-10-05-01-00 probe does not operate in isolation — it is the field-sensing front end of a complete vibration monitoring chain. The probe connects via a matched Bently Nevada 3300 XL extension cable (such as the 330130-045-00-00) to a 3300 XL Proximitor/Oscillator module (e.g., 330180-51-05), which conditions the raw eddy current signal into a calibrated DC voltage output. This output feeds directly into a Bently Nevada 3500/42M Proximitor Monitor or a 3500/40M Proximitor/Seismic Monitor rack card, where trip and alarm setpoints are enforced in real time.

For installations requiring SIL-rated safety interlock functions, the monitor output integrates with a Bently Nevada 3500/22M Transient Data Interface or connects to a safety-rated PLC input module. Surge and transient protection at the cabinet entry point is typically provided by dedicated signal surge suppressors or Bently Nevada I/O module barriers, preventing voltage spikes from field wiring from propagating into the monitor rack. In high-vibration or high-temperature enclosures, the probe cable routing is secured with armored conduit fittings and the proximitor module is mounted on a DIN rail with vibration-damping hardware to prevent mechanical loosening.

Power to the proximitor is supplied from a dedicated -24 VDC instrument power supply — often a redundant pair such as a Phoenix Contact QUINT-PS or equivalent — ensuring that a single power supply failure does not interrupt the vibration monitoring function. Communication of trip status to the plant DCS or safety system is handled via hardwired relay contacts from the 3500 rack or via Modbus RTU / Ethernet/IP gateway modules integrated into the 3500 system architecture. This complete protection chain — from the 330910-00-10-05-01-00 probe tip to the control room alarm annunciator — is what defines a robust, safety-compliant rotating machinery protection system.

Critical Industrial Safety Applications

The Bently Nevada 330910-00-10-05-01-00 is deployed across the full spectrum of heavy industrial rotating machinery protection applications:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, this transducer provides the radial vibration and axial position data required to detect bearing wear, rotor instability, and impending seal failures before they escalate into safety incidents or unplanned shutdowns. In ATEX/IECEx classified zones, the probe’s robust construction and sealed coaxial connection maintain measurement integrity in hydrogen-rich or hydrocarbon-laden atmospheres.

Power Generation: On steam turbines, gas turbines, and boiler feed pumps, the 330910-00-10-05-01-00 monitors shaft eccentricity and differential expansion during startup and load transients — conditions where thermal gradients create the highest risk of rub events. The transducer’s wide frequency response (DC to 10 kHz) captures both slow-roll runout and high-frequency sub-synchronous instability, giving operators early warning of developing faults.

Mining & Minerals Processing: In ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes operating in dusty, high-vibration environments, the IP67-rated probe body resists ingress of abrasive particulates and process fluids. The non-contact measurement principle means there is no probe wear even when monitoring shafts with surface irregularities or scale buildup.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment plants benefit from continuous shaft position monitoring to detect cavitation-induced vibration and bearing degradation. The 330910-00-10-05-01-00’s stable output over wide temperature ranges ensures reliable monitoring through seasonal ambient temperature swings.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch roll drives, and blast furnace blower trains operate under extreme mechanical loading and thermal stress. The 3300 XL probe’s high-temperature rating (to +177°C) and robust cable construction make it suitable for installation close to hot process equipment where standard sensors would fail prematurely.

Port & Marine: Shipboard propulsion systems, crane hoist drives, and port terminal conveyor drives require vibration monitoring solutions that tolerate salt air, humidity, and mechanical shock. The sealed construction and corrosion-resistant materials of the 330910-00-10-05-01-00 meet these environmental demands while delivering the measurement accuracy required for predictive maintenance programs.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330910-00-10-05-01-00?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, calibration drift beyond specification, and component failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair at no additional cost to the buyer.

Q2: What pre-shipment testing is performed on each unit?
Every 330910-00-10-05-01-00 undergoes functional verification prior to shipment, including gap-versus-output linearity checks across the full measurement range, insulation resistance testing of the coaxial cable, and connector integrity inspection. Units supplied as “Surplus New” are additionally inspected for physical condition and original factory calibration documentation where available.

Q3: Is this transducer compatible with existing 3300 XL system installations?
Yes. The 330910-00-10-05-01-00 is a direct drop-in replacement for any 3300 XL 25mm probe installation. It is fully compatible with all standard 3300 XL extension cables, 3300 XL Proximitor/Oscillator modules, and the complete Bently Nevada 3500 Series monitor rack. No recalibration of the monitor system is required when replacing a like-for-like probe.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
Yes. We maintain dedicated inventory of the 330910-00-10-05-01-00 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. Customers with recurring requirements are encouraged to contact our sales team to discuss blanket order arrangements and reserved stock agreements that guarantee availability and pricing stability.
