Bently Nevada 330910-00-10-10-02-00 Spare 3300 NSv

Bently Nevada 330910-00-10-10-02-00 Maintenance-Ready Spare for 3300 NSv Automation

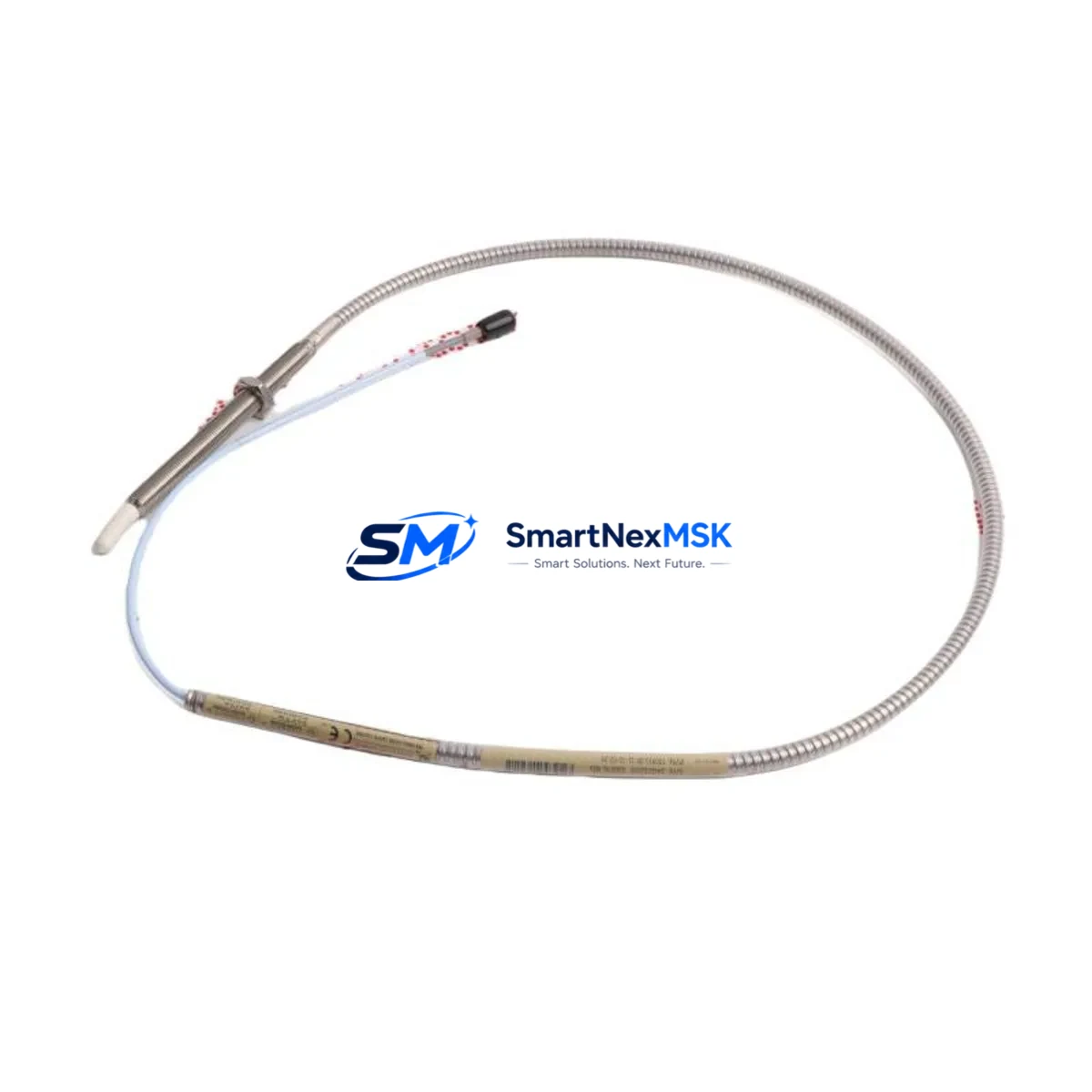

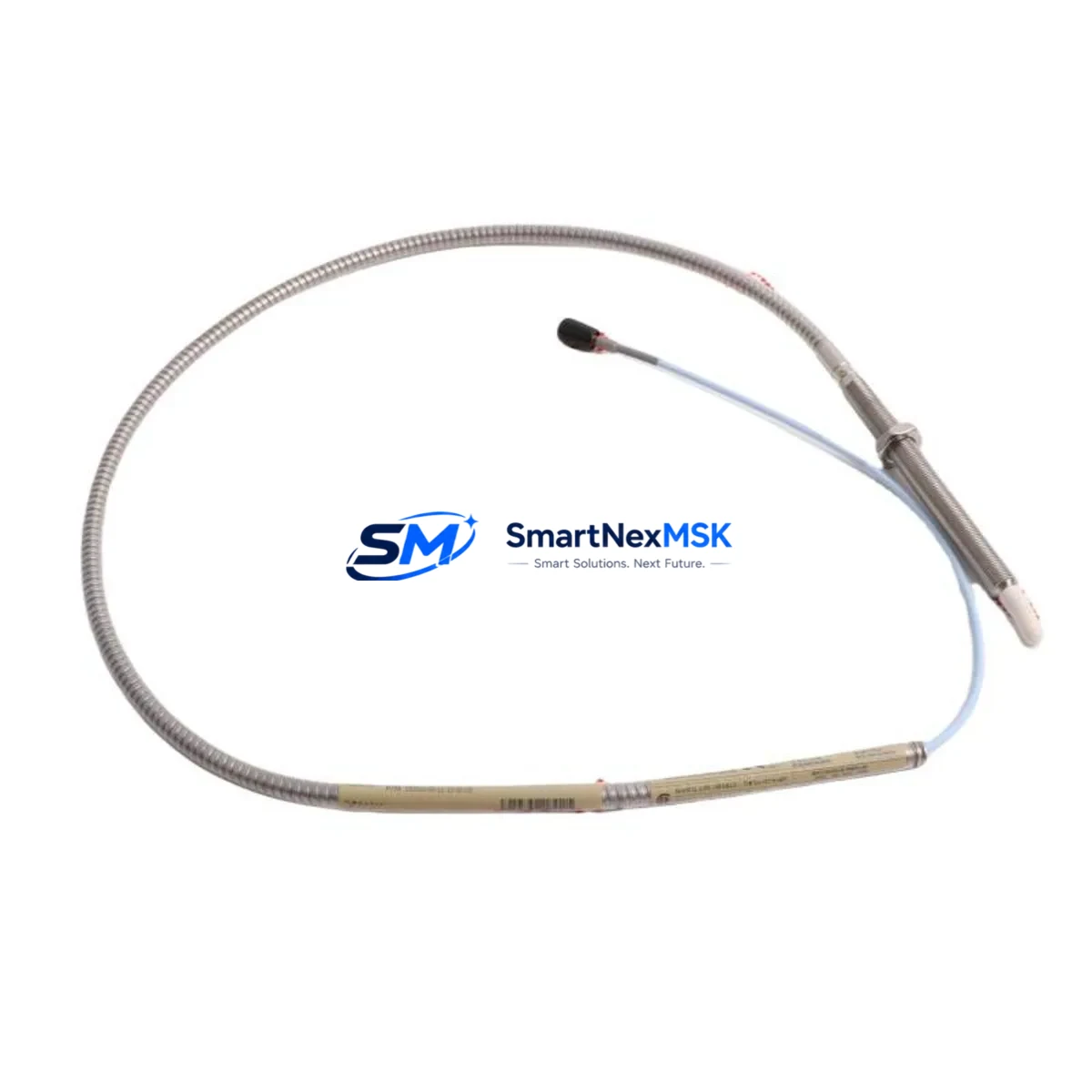

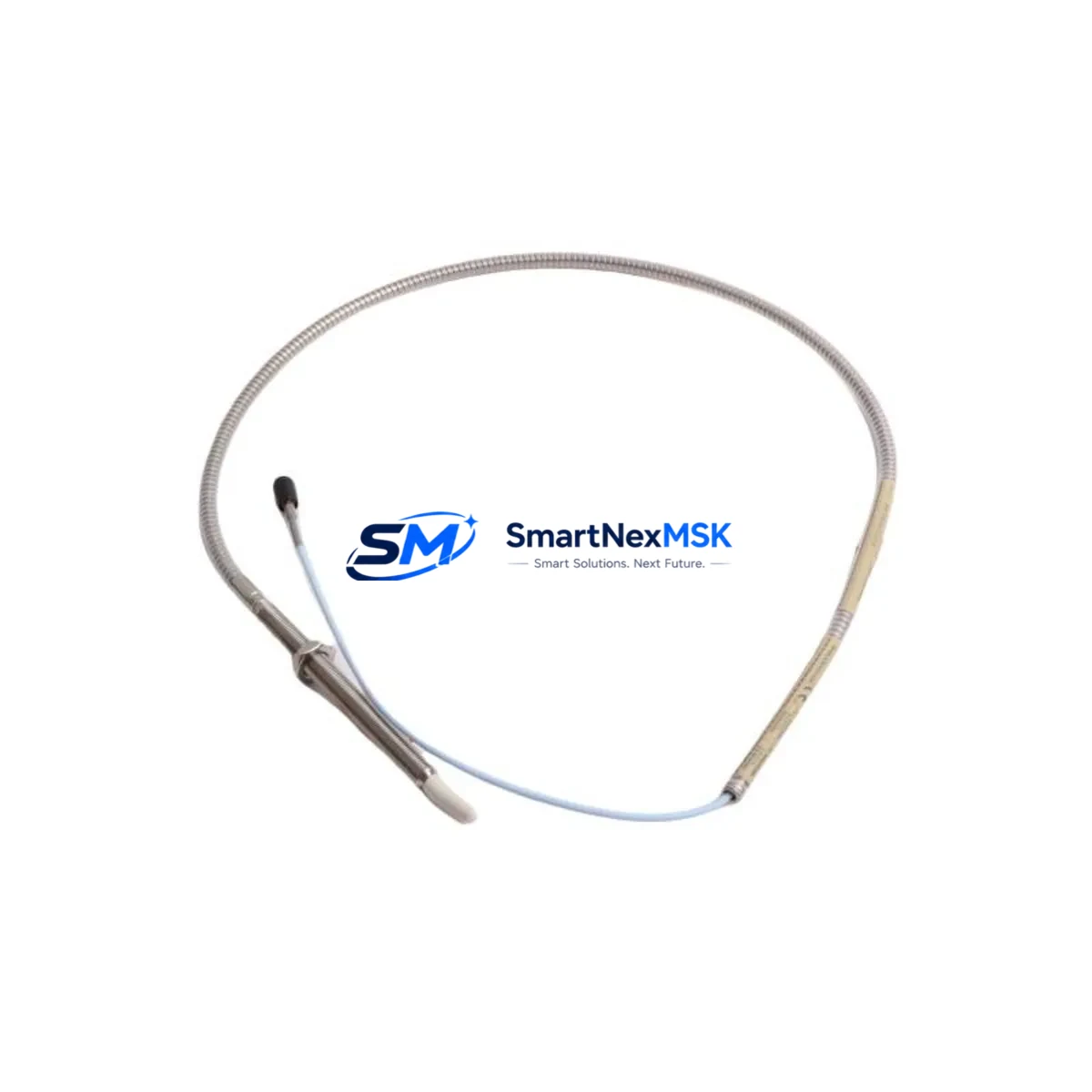

The Bently Nevada 330910-00-10-10-02-00 is an original eddy-current proximity probe engineered for the 3300 NSv monitoring system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical front-line sensing element. Unplanned failure of a proximity probe can trigger a full machine trip, resulting in costly unplanned downtime. Stocking a verified original spare of the 330910-00-10-10-02-00 is a fundamental element of any responsible predictive maintenance (PdM) or reliability-centered maintenance (RCM) program.

This listing supplies a factory-original, fully tested 330910-00-10-10-02-00 probe, shipped with inspection documentation and covered by a 12-month warranty. Each unit undergoes pre-shipment electrical verification to confirm output sensitivity, gap voltage linearity, and cable integrity before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-00-10-10-02-00 proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A comprehensive inspection of the full measurement chain is essential to restore reliable vibration monitoring and avoid repeat trips.

Begin with the 330130 series extension cable — the coaxial link between the probe and the Proximitor driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation in high-temperature or high-vibration environments. A damaged extension cable will produce erratic gap voltage readings even with a new probe installed. Inspect the full cable run, connectors, and conduit entry points.

Next, verify the 3300 XL 8mm Proximitor (330180 series) driver module. The Proximitor converts the probe’s impedance change into a calibrated DC voltage output. If the Proximitor has been exposed to voltage transients or moisture ingress, its internal oscillator circuit may be degraded, producing non-linear output even with a healthy probe. Bench-test or swap the Proximitor as part of the replacement workflow.

At the rack level, inspect the 3300/16 or 3300/20 monitor cards within the 3300 NSv rack. Check for alarm setpoint drift, relay output integrity, and communication module status. The 3300/55 Keyphasor module should also be verified — a degraded Keyphasor signal will corrupt phase-referenced vibration data across all channels in the rack.

For sites running parallel 3500 series monitoring, confirm that any 3500/42M position monitor or 3500/40M proximitor I/O module associated with the same machine train is functioning correctly. Cross-check the 3500/22M transient data interface if the machine is enrolled in a continuous online monitoring program.

On the power supply side, inspect the 3300 Power Supply module for output voltage stability. Proximity probe systems are sensitive to supply rail fluctuations; a marginal power supply can introduce noise floors that mask real vibration events or trigger nuisance alarms. Fuse integrity and terminal block torque values should be confirmed at the same time.

Finally, for sites with legacy wiring, review the junction box terminal strips and signal isolators in the measurement loop. Corroded terminals or improperly grounded shields are a common source of intermittent probe faults that are misdiagnosed as probe failures. Addressing these upstream issues before installing the new 330910-00-10-10-02-00 will ensure the replacement delivers full service life.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring rack is in bypass mode to prevent spurious trips during probe removal.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage from the Proximitor front panel or DCS historian. This establishes the baseline for the new probe installation.

Step 3 — Probe Removal: Unthread the 330910-00-10-10-02-00 probe body carefully. Inspect the probe tip for impact damage or target surface contamination. Clean the probe boss and check thread condition.

Step 4 — Extension Cable Inspection: Disconnect the 330130 extension cable at both ends. Perform a continuity and insulation resistance check. Replace if resistance is outside specification.

Step 5 — New Probe Installation: Thread the replacement 330910-00-10-10-02-00 to the correct gap distance (typically 1.0 mm / 40 mil for 8 mm probes on steel targets). Torque to manufacturer specification. Reconnect the extension cable.

Step 6 — Verification: Power up the Proximitor and confirm gap voltage is within the linear range (typically -10 VDC ± 1 V at nominal gap). Verify alarm and danger setpoints are active. Remove bypass and return the channel to normal monitoring.

Step 7 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation date, and gap voltage reading. Update the spare parts inventory to trigger reorder of the consumed 330910-00-10-10-02-00 unit.

Spare Parts Support FAQ

Q1: Is the 330910-00-10-10-02-00 compatible with both 3300 NSv and 3500 series racks?
The 330910-00-10-10-02-00 is natively designed for the 3300 NSv system. It can be used with 3500 series monitors when paired with the appropriate 3500/40M I/O module and correct Proximitor driver. Always confirm the full system configuration before ordering to ensure compatibility with your specific rack and monitor card revision.

Q2: What is the recommended spare parts stocking strategy for this probe?
For critical rotating machinery (turbines, compressors, large pumps), industry best practice recommends holding a minimum of one spare 330910-00-10-10-02-00 probe per monitored machine train, plus one spare 330130 extension cable of matching length. For plants with multiple identical machines, a pooled inventory of 2–3 units is advisable to cover simultaneous failures during major outages.

Q3: How is each unit tested before shipment?
Every 330910-00-10-10-02-00 supplied by SMARTNEXMSK undergoes pre-shipment electrical verification including gap voltage output check, sensitivity linearity confirmation, and full cable continuity test. Units are shipped with inspection records. The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions.

Q4: Can this probe extend the service life of an aging 3300 NSv system?
Yes. The 3300 NSv platform remains operational at many industrial sites, and original spare probes are increasingly difficult to source through standard distribution channels. Stocking genuine 330910-00-10-10-02-00 units allows maintenance teams to sustain reliable vibration monitoring on legacy systems without a costly full-rack upgrade, effectively extending system service life by years while a capital replacement project is planned and budgeted.
