Bently Nevada 330910-00-11-10-02-00 Spare 3300 NSv

Bently Nevada 330910-00-11-10-02-00 Maintenance-Ready Spare for 3300 NSv Automation

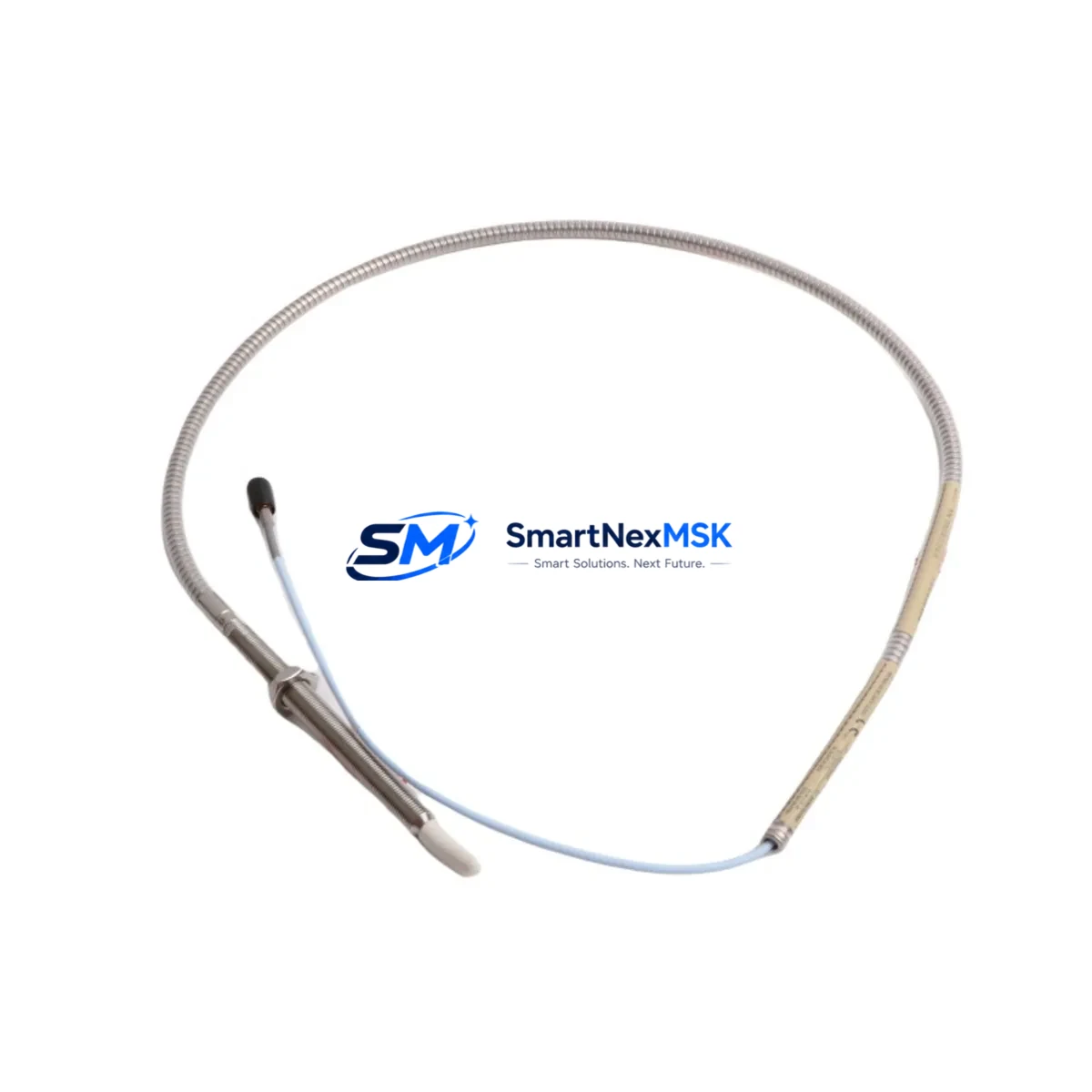

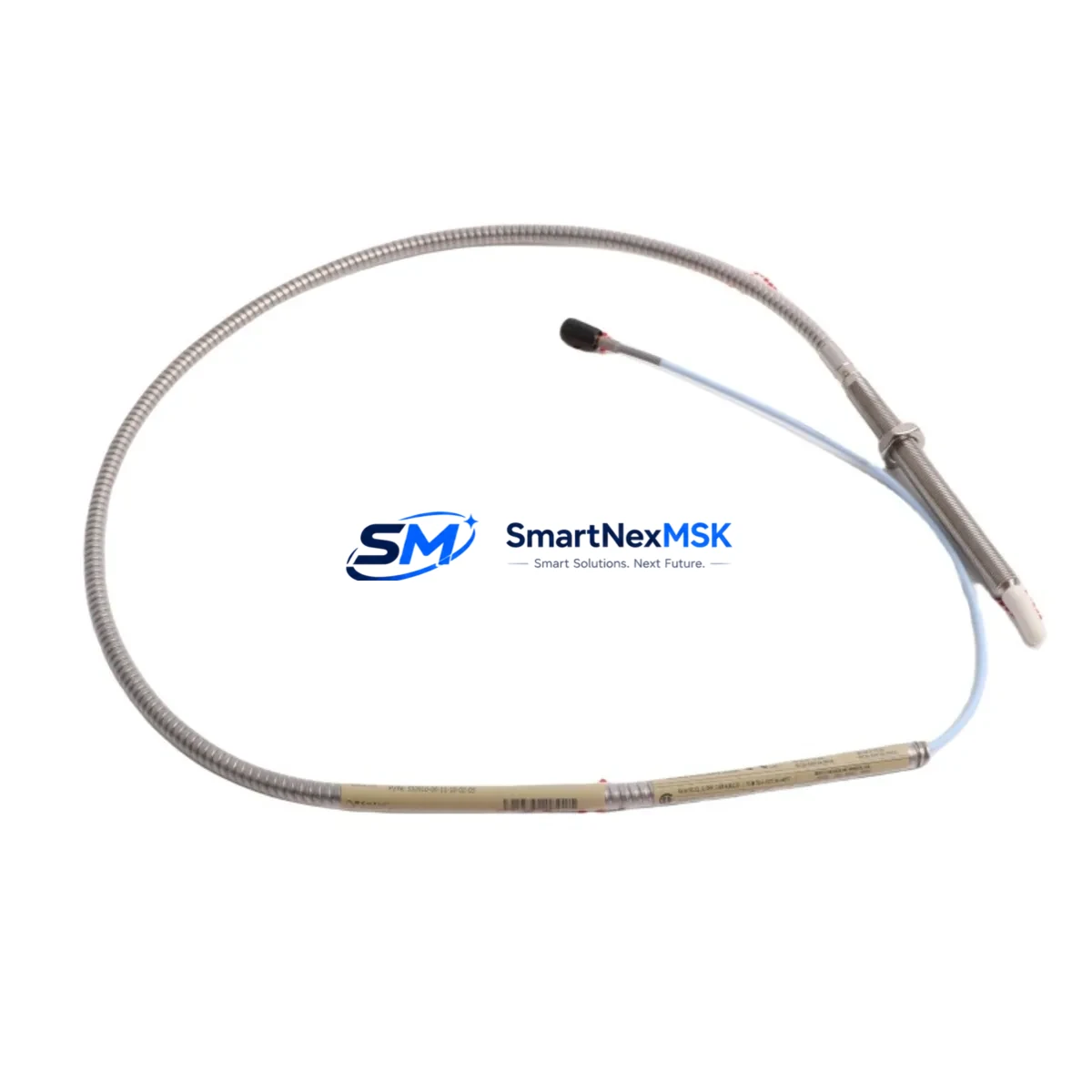

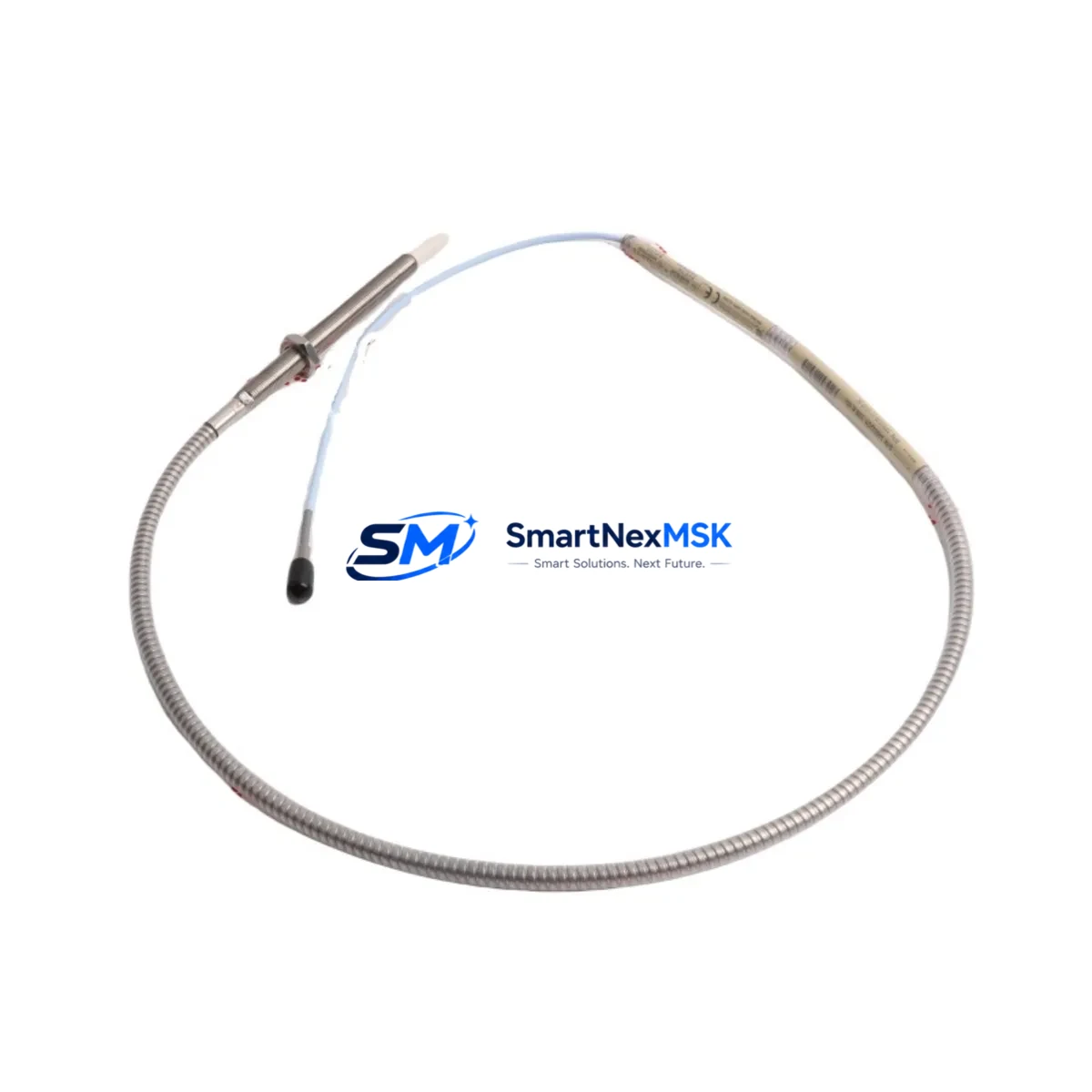

The Bently Nevada 330910-00-11-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring system. As a direct OEM-equivalent spare, this probe delivers the signal fidelity and mechanical reliability that maintenance engineers depend on for continuous machinery protection in rotating equipment applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Sourced from verified supply channels and tested prior to dispatch, this unit is stocked specifically to support rapid site replacement and minimize unplanned downtime in critical industrial environments.

For procurement and maintenance teams managing aging machinery protection systems, the 330910-00-11-10-02-00 represents a proven, cost-effective alternative to full system upgrades. Its compatibility with the 3300 NSv signal conditioning architecture means no firmware changes, no recalibration of the monitoring rack, and no disruption to existing alarm and trip setpoints — a critical advantage when restoring a machine train to service under time pressure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-00-11-10-02-00 proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader loop inspection. The probe does not operate in isolation — it is part of an integrated measurement chain that includes the 3300 XL extension cable (typically 5 m or 9 m, suffix -05 or -09), the 330180 NSv Proximitor module mounted in the monitoring rack, and the 3500/42M Proximitor I/O module if the signal feeds into a 3500 series rack. Each of these components should be inspected for connector corrosion, cable jacket integrity, and terminal torque before the new probe is commissioned.

At the rack level, maintenance teams should verify the 3500/20 Power Supply module output voltage and ripple, as degraded DC supply is a common root cause of erratic proximity readings that are misdiagnosed as probe failure. The 3500/22M Transient Data Interface should also be checked if the machine train is monitored for transient events during startup and coast-down. For plants running parallel protection architectures, the 3500/40M Proximitor I/O module in the redundant rack should be cross-checked against the primary channel to confirm consistent gap readings before returning the machine to service.

In control cabinets where the 3300 NSv system interfaces with a DCS or safety PLC, the signal isolator or barrier (commonly a Pepperl+Fuchs or MTL type) between the Proximitor output and the DCS analog input card should be tested for correct scaling. A faulty isolator can introduce a DC offset that shifts the apparent gap voltage and triggers nuisance trips even after a good probe is installed. Similarly, the terminal block assemblies on the marshalling panel — particularly the Bently Nevada-compatible DIN rail terminals — should be inspected for loose ferrules and oxidized contacts, which degrade signal quality over time in humid or high-vibration environments.

For plants maintaining a minimum viable spare parts inventory, the recommended co-stocked items alongside the 330910-00-11-10-02-00 include a matched 3300 XL extension cable, one spare 330180 NSv Proximitor, and a set of M10 probe mounting hardware (locknut and jam nut). This three-component kit covers the majority of field-replaceable failures in the 3300 NSv measurement loop and allows a trained technician to restore full vibration monitoring capability within a single shift.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machine is in a safe state. De-energize the Proximitor supply at the rack power distribution point. Do not disconnect the probe under live supply, as this can damage the Proximitor input circuit.

Step 2 — Probe Removal: Using the correct spanner for the M10 thread, back out the existing probe from the mounting boss. Note the gap setting (typically recorded in the maintenance log as a voltage reading). Inspect the mounting boss thread for damage or contamination.

Step 3 — New Probe Installation: Thread the 330910-00-11-10-02-00 into the mounting boss by hand until snug. Set the gap to the target voltage specified in the machine’s vibration monitoring datasheet (commonly -10 VDC ± 0.5 V at the nominal gap). Tighten the locknut to the specified torque (typically 20–25 Nm for M10 probes).

Step 4 — Cable Routing and Connection: Connect the extension cable to the probe and route it clear of hot surfaces, rotating components, and high-voltage conductors. Secure with cable ties at intervals not exceeding 300 mm. Connect the extension cable to the Proximitor input at the rack end, verifying connector seating and locking ring engagement.

Step 5 — Energize and Verify: Restore power to the Proximitor. Measure the output voltage at the Proximitor OK terminal and confirm it falls within the linear range. Compare the reading against the pre-outage baseline. Clear any latched alarms in the 3500 rack and confirm the channel returns to OK status before releasing the machine for restart.

Step 6 — Documentation: Record the new probe serial number, installation date, gap voltage, and technician ID in the maintenance management system. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q: Is the 330910-00-11-10-02-00 a direct replacement for earlier 3300 series probes?
A: Yes. The 330910-00-11-10-02-00 is mechanically and electrically compatible with the 3300 NSv Proximitor system and is a recognized replacement for earlier 3300 XL 8mm probes in the same mounting configuration. Always verify the suffix codes against your machine’s vibration monitoring datasheet to confirm cable length and connector type before installation.

Q: What pre-shipment testing is performed on this spare?
A: Each unit undergoes electrical continuity verification, gap voltage linearity check, and connector integrity inspection before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with protective end caps to prevent tip damage in transit.

Q: How should this probe be stored if not immediately installed?
A: Store in a dry, temperature-controlled environment between -20°C and +70°C, away from strong magnetic fields and corrosive atmospheres. Keep in original packaging with desiccant. Inspect the tip and connector before installation if stored for more than 12 months.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified temperature and gap range. Warranty claims are processed with photographic evidence and a completed failure report form.
