Bently Nevada 330910-00-11-50-02-00 3300 XL NSv Spare

Bently Nevada 330910-00-11-50-02-00 Maintenance-Ready Spare for 3300 XL NSv Automation

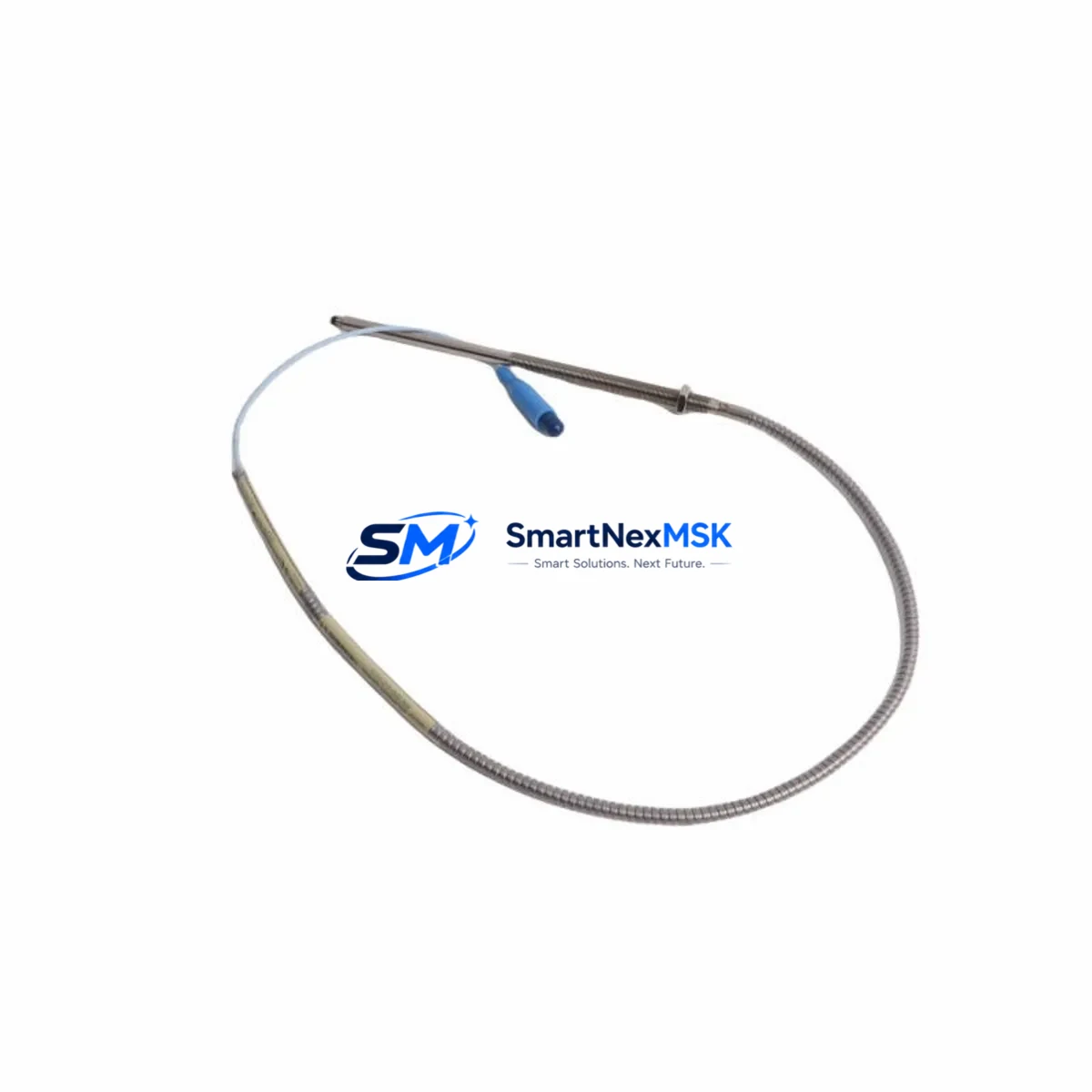

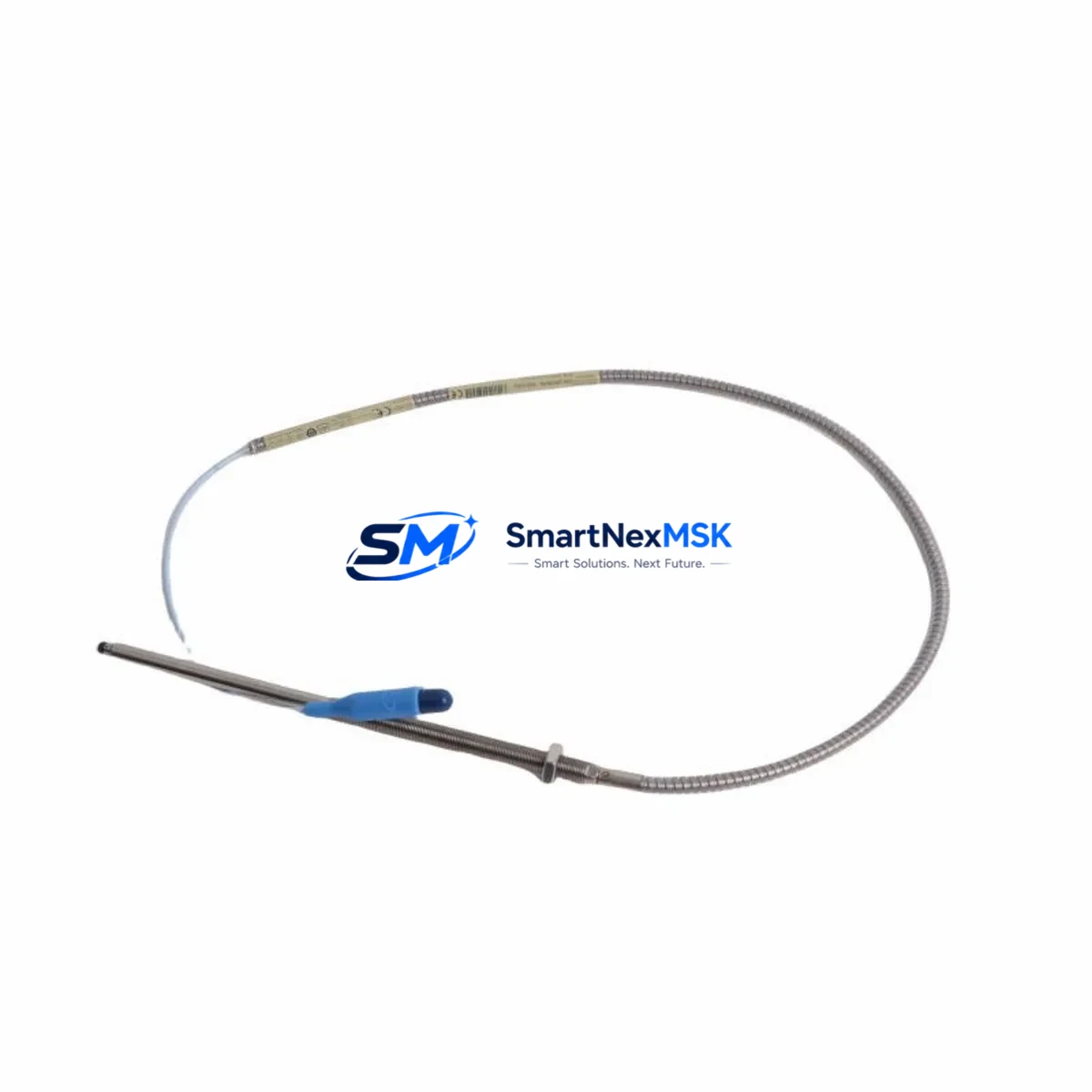

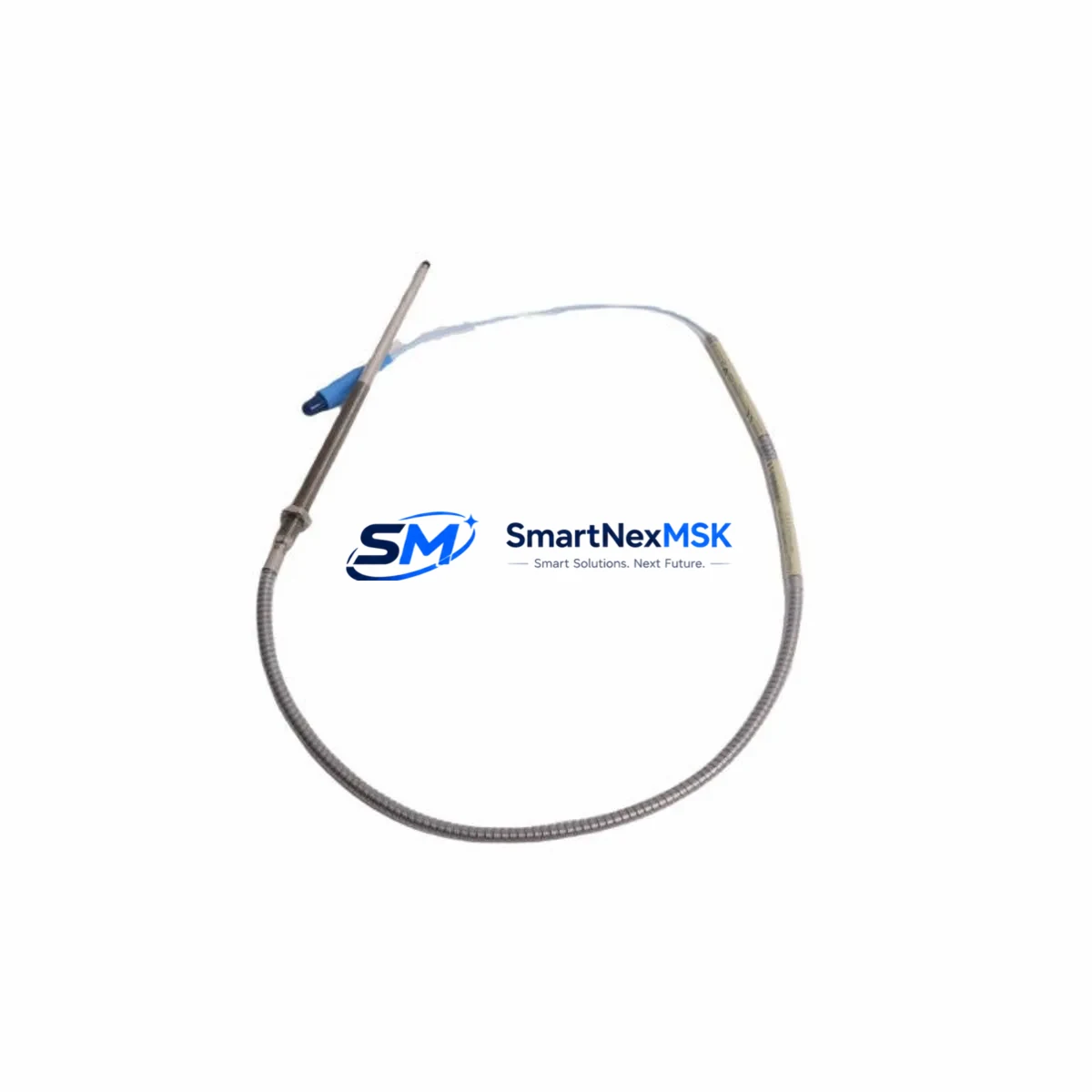

The Bently Nevada 330910-00-11-50-02-00 is an original proximity transducer engineered for the 3300 XL NSv series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and motors, this transducer is a critical front-line component in continuous vibration measurement loops. When this part fails or degrades, the entire protection channel is compromised, creating unplanned downtime risk and potential machinery damage. Stocking a verified replacement is not optional — it is a core element of any responsible predictive maintenance strategy.

This listing provides an original, tested 330910-00-11-50-02-00 unit, sourced through established industrial supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Each unit is verified for dimensional compliance, cable integrity, and electrical output before shipment. Whether you are executing a planned turnaround, responding to a trip event, or building out your critical spare inventory, this transducer is ready for immediate site deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-00-11-50-02-00 proximity transducer is flagged for replacement — whether due to a trip event, calibration drift, physical damage, or scheduled overhaul — the replacement window is the right moment to audit the entire vibration measurement loop and adjacent control cabinet components. Experienced maintenance engineers know that a single transducer failure rarely occurs in isolation; surrounding components are often subject to the same thermal cycling, vibration fatigue, and environmental stress.

Begin with the 3300 XL NSv Proximitor Sensor (driver unit), which conditions the transducer signal and provides the -24 VDC excitation. If the transducer has been running in a degraded state, the Proximitor may have been operating outside its linear range and should be bench-tested or replaced as a matched pair. Next, inspect the extension cable — typically a 330130-series armored cable — for jacket cracking, connector corrosion, or continuity loss, as cable faults are a leading cause of false vibration readings.

At the monitor rack level, verify the 3500/40M Proximitor I/O Module or equivalent 3500-series I/O card is reading within expected gap voltage range after transducer swap. Check the 3500/15 Power Supply Module output rails; a sagging -24 VDC supply will cause systematic measurement error across all connected transducer channels. If the cabinet houses a 3500/22M Transient Data Interface, confirm that the new transducer’s sensitivity constant is correctly entered to avoid scaling errors in the historian.

For facilities running legacy 3300 XL 8mm transducer systems alongside the NSv platform, this is also a good time to assess whether any remaining 8mm probes are approaching end-of-life and should be included in the next planned spare order. Similarly, review the condition of terminal blocks and field wiring in the junction box — corroded terminals are a common source of intermittent signal faults that are misdiagnosed as transducer failures. If the machine is equipped with a Keyphasor transducer (such as the 330180 series), inspect it during the same outage window, as Keyphasor signal quality directly affects phase-referenced vibration analysis.

Finally, confirm that the 3500 Series rack communication module — whether Modbus, Ethernet/IP, or Profibus — is logging the new channel correctly in the DCS or SCADA historian. A clean channel handoff, with documented gap voltage and sensitivity verification, is the mark of a professional maintenance closure.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Isolate the -24 VDC supply to the affected Proximitor channel before disconnecting the transducer. Document the existing gap voltage reading from the monitor display or DCS trend for reference.

Step 2 — Physical removal: Using the correct spanner, back out the 330910-00-11-50-02-00 from the probe holder. Note the thread engagement depth and any shim configuration for reinstallation reference. Inspect the probe holder bore for debris or corrosion.

Step 3 — New transducer installation: Thread the replacement 330910-00-11-50-02-00 into the holder. Set the gap to the manufacturer-specified nominal (typically 1.0–1.5 mm for this tip size) using a non-ferrous feeler gauge or by monitoring the gap voltage output. Tighten the locknut to the specified torque.

Step 4 — Electrical verification: Reconnect the extension cable and restore the -24 VDC supply. Verify gap voltage at the monitor is within the linear range (typically -10 to -18 VDC for this system). Confirm the channel is alarm-free and the vibration reading is stable and consistent with adjacent channels.

Step 5 — Documentation and handoff: Record the new gap voltage, installation date, and part serial number in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for this critical component.

This workflow minimizes machine downtime to the shortest possible window and ensures the replacement is fully verified before the machine is returned to service — protecting both the asset and the production schedule.

Spare Parts Support FAQ

Q: Is the 330910-00-11-50-02-00 compatible with both 3300 XL and 3500 Series monitors?
A: Yes. The 330910-00-11-50-02-00 is designed for the 3300 XL NSv system but is electrically compatible with 3500 Series monitors when the correct I/O module and sensitivity scaling are configured. Always verify the gap voltage range and sensitivity constant (7.87 V/mm) match your monitor’s channel configuration before commissioning.

Q: What is included in the 12-month warranty and how is it claimed?
A: Each unit is tested for electrical output, cable continuity, and dimensional compliance before shipment. The 12-month warranty covers manufacturing defects and verified performance failures under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement or refund is processed within 5 business days of fault confirmation.

Q: How many units should we stock as critical spares?
A: Industry best practice for rotating equipment facilities is to maintain a minimum of one-for-one critical spare for each installed transducer on machinery classified as critical or essential. For plants with multiple machines using the 3300 XL NSv system, a pooled spare of 2–4 units per transducer model is recommended to cover simultaneous failures during major turnarounds. Lead time from our stock is 1–3 business days, supporting just-in-time replenishment strategies.

Q: Can this transducer replace older 330900-series or 3300 8mm probes directly?
A: The 330910 NSv series uses a different tip geometry and sensitivity specification than the legacy 330900 and 3300 8mm families. Direct mechanical substitution is not recommended without verifying probe holder thread compatibility and reconfiguring the monitor channel sensitivity. If you are upgrading from an older probe family, contact our technical team at sales@smartnexmsk.com for a compatibility assessment before ordering.
