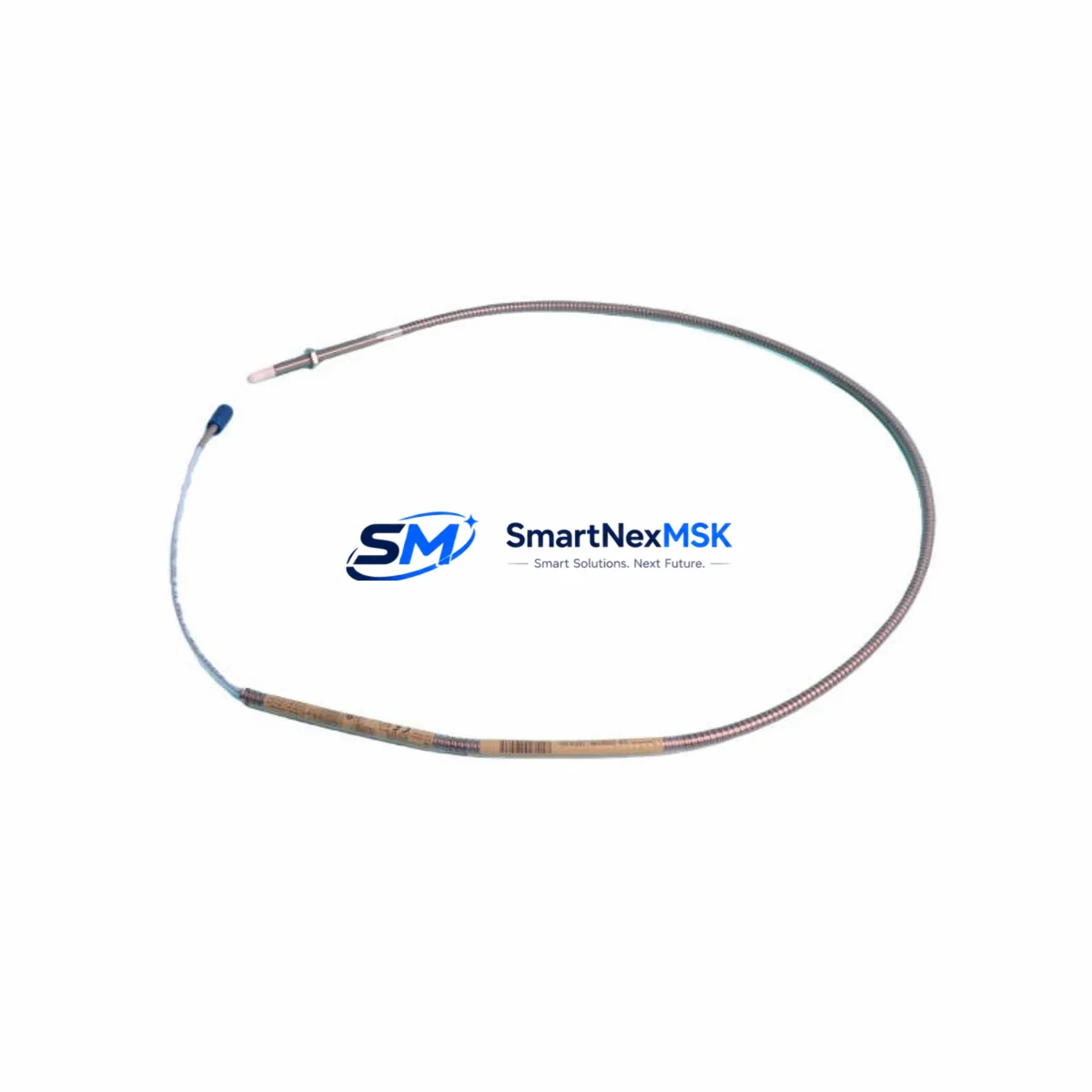

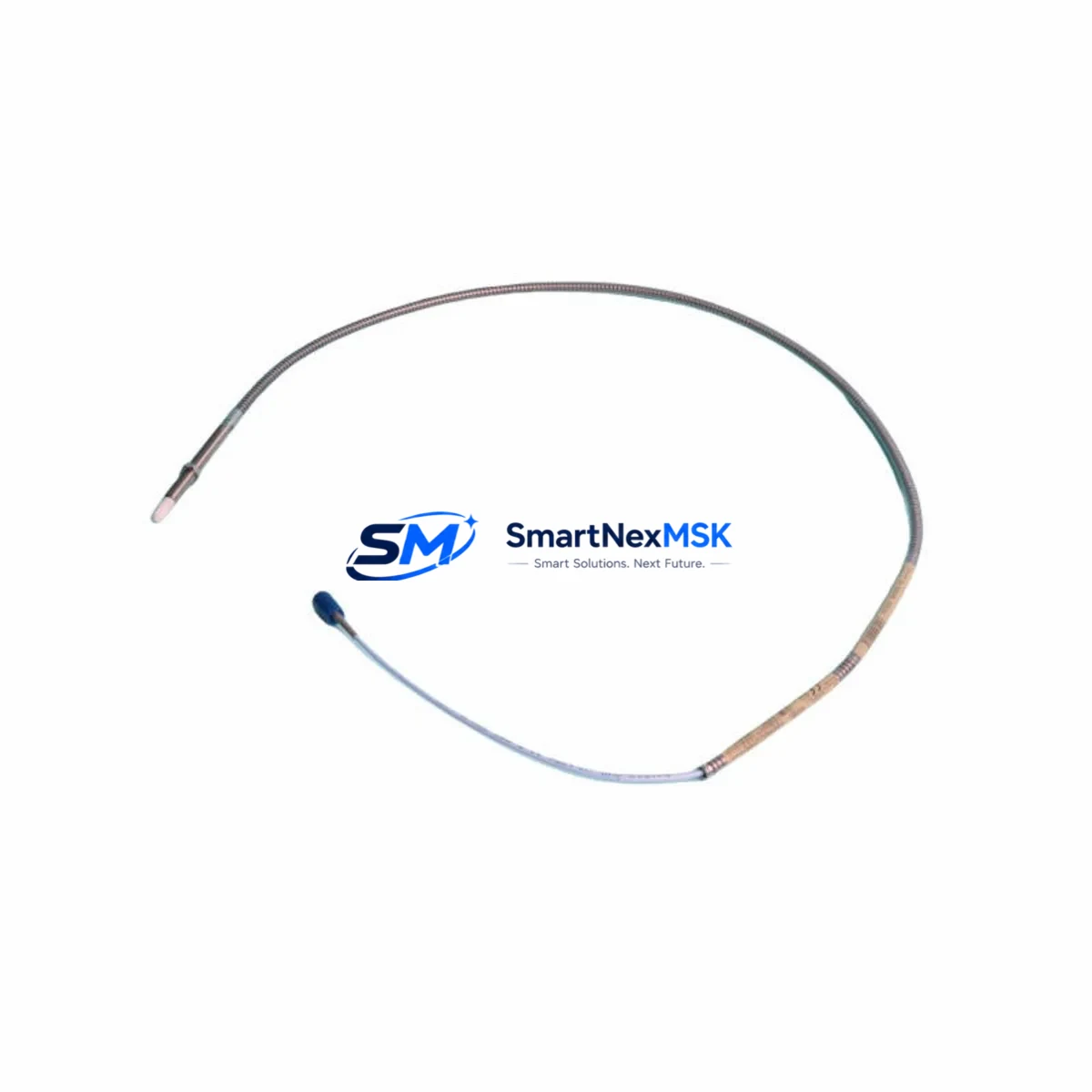

Bently Nevada 330910-00-15-10-02-00 Spare 3300 XL: Precision Replacement for Industrial Downtime Control
The Bently Nevada 330910-00-15-10-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. When this transducer fails or degrades, the consequences extend beyond a single sensor: the entire machinery protection loop is compromised, putting turbines, compressors, pumps, and critical rotating assets at risk of undetected mechanical failure.
At SMARTNEXMSK, we supply original, fully tested 330910-00-15-10-02-00 units with a 12-month warranty, pre-shipment electrical verification, and documentation support. Our inventory is maintained specifically for maintenance engineers and procurement teams who cannot afford extended lead times on critical spare parts.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330910-00-15-10-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Sensor Type | Eddy-Current Proximity Transducer |
| Probe Diameter | 8mm |
| Cable Length | 1.5m (integral cable) |
| Extension Cable | Compatible with 330130 / 330180 series extension cables |
| Driver / Monitor Compatibility | 3300 XL 8mm Proximitor Sensor (e.g. 330180-X1-05) |
| Output Signal | -18 VDC nominal, linear voltage output |
| Measurement Range | 0.25mm – 2.25mm (linear range) |
| Operating Temperature | -35°C to +121°C (probe tip) |
| Target Material | AISI 4140 steel or equivalent ferromagnetic alloy |
| Installation Environment | Turbine bearing housings, compressor pedestals, pump shafts |
| Condition | Original, new or reconditioned — electrically tested |
| Warranty | 12 Months from shipment date |
| Shipping | Worldwide, ESD-safe packaging, traceable logistics |
Maintenance Planning for Continuous Operation
Replacing the 330910-00-15-10-02-00 is rarely an isolated task. Maintenance engineers performing a planned or emergency replacement should treat this as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. A degraded transducer often signals broader wear in the signal chain.
Begin by inspecting the 330130-series extension cable that connects the probe to the Proximitor sensor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature environments. A new transducer paired with a compromised extension cable will produce erratic readings and may trigger nuisance trips.
Next, verify the condition of the 330180 Proximitor Sensor (the signal conditioning driver). This unit converts the raw eddy-current signal into a calibrated voltage output consumed by the 3500/40M Proximitor Monitor or equivalent 3300 XL monitor card. If the Proximitor sensor has accumulated operating hours comparable to the failed transducer, proactive replacement during the same maintenance window eliminates a second unplanned outage.
Within the control cabinet, inspect the 3500 Rack power supply module (e.g., 3500/15 Power Supply) for output voltage stability. Voltage fluctuations at the rack level can cause false alarms or mask genuine vibration events. Alongside the power supply, check the 3500/22M Transient Data Interface if your system uses transient capture for startup and coast-down analysis — firmware and calibration alignment between the TDI and the new transducer should be confirmed.
For facilities running legacy 3300 XL systems alongside newer 3500-series racks, also review the 3300/55 Dual Voting Trip Module or equivalent relay output cards. Relay contacts in voting trip circuits accumulate wear and should be tested for contact resistance and trip threshold accuracy during any transducer replacement outage.
If the machine is equipped with a Keyphasor transducer (such as the 330980 or 330905 series), verify its gap voltage and signal quality simultaneously. The Keyphasor reference signal is critical for phase-referenced vibration analysis and balancing — a drifting Keyphasor will corrupt all phase data collected after the transducer swap.
Finally, inspect terminal blocks, cable glands, and grounding connections within the junction box and control cabinet. Loose terminations and ground loops are among the most common sources of noise in eddy-current measurement systems and are frequently overlooked during component-level replacements.
Site Replacement Workflow
The 330910-00-15-10-02-00 is a direct replacement for earlier 3300 XL 8mm probe configurations. Before installation, confirm the following compatibility checkpoints:
1. Gap Calibration: Set the probe gap to the manufacturer-specified nominal gap (typically 1.0mm to 1.5mm depending on shaft diameter and target material). Use a calibrated gap tool or oscilloscope to verify the output voltage falls within the linear range (-10 VDC ±0.5 VDC at nominal gap for most 3300 XL configurations).
2. Extension Cable Matching: Confirm the total system cable length (probe integral cable + extension cable) matches the Proximitor sensor’s calibrated range. Mismatched cable lengths shift the calibration curve and introduce measurement error.
3. Monitor Configuration: If replacing a transducer on a 3500/40M or 3300 XL monitor, verify that the channel configuration (measurement type, alert/danger setpoints, time constants) has not been altered. Document the existing configuration before any hardware change.
4. Functional Test Before Return to Service: After installation, perform a slow-roll vibration check and confirm the monitor channel reads within expected baseline values. Compare against historical trend data if available. Only return the machine to service after the protection system has been verified as fully operational.
This workflow minimizes downtime, ensures system compatibility, and reduces the risk of a repeat failure caused by installation error or misconfiguration.
Spare Parts Support FAQ
Q: Is the 330910-00-15-10-02-00 compatible with both 3300 XL and 3500-series monitoring systems?
A: The 330910-00-15-10-02-00 is designed for the 3300 XL 8mm Proximity Transducer System. It is compatible with 3300 XL Proximitor sensors and monitors. For 3500-series racks, compatibility depends on the specific monitor card and system configuration — consult your system documentation or contact our technical team before ordering.
Q: What pre-shipment testing is performed on each unit?
A: Every unit undergoes electrical continuity verification, insulation resistance testing, and output voltage calibration check prior to shipment. Units are packed in ESD-safe materials with individual test documentation available upon request.
Q: How should I manage 330910-00-15-10-02-00 inventory for a multi-machine facility?
A: For facilities operating three or more machines with 3300 XL vibration monitoring, we recommend maintaining a minimum of two spare transducers per critical machine train, plus one spare Proximitor sensor per monitoring rack. This buffer supports both planned maintenance cycles and emergency replacement without waiting on international lead times.
Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and calibration drift beyond published specifications. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits. Warranty claims are supported with return shipping and replacement or repair at no additional cost.
