Bently Nevada 330910-00-15-50-02-00 Safety Proximity Transducer

Bently Nevada 330910-00-15-50-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

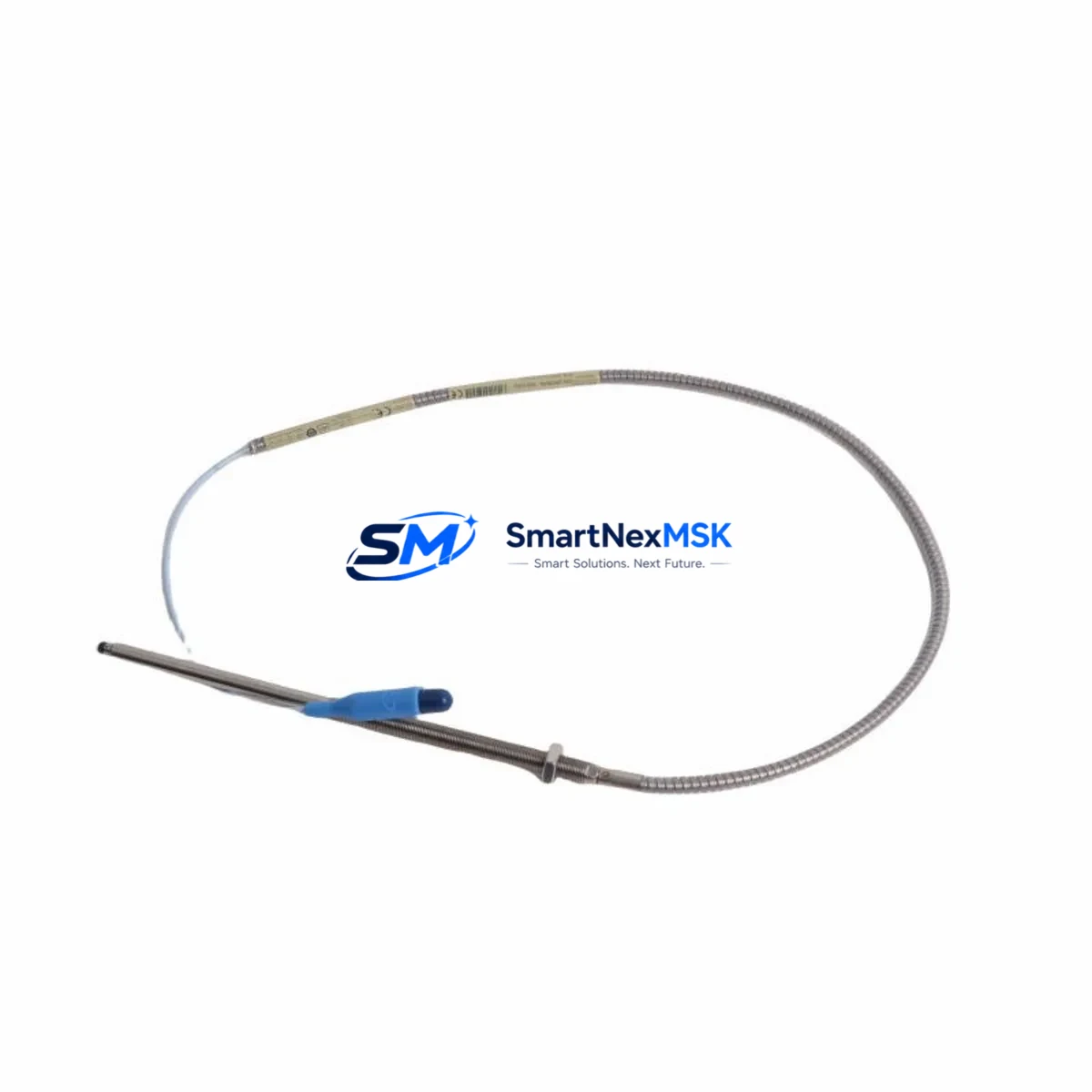

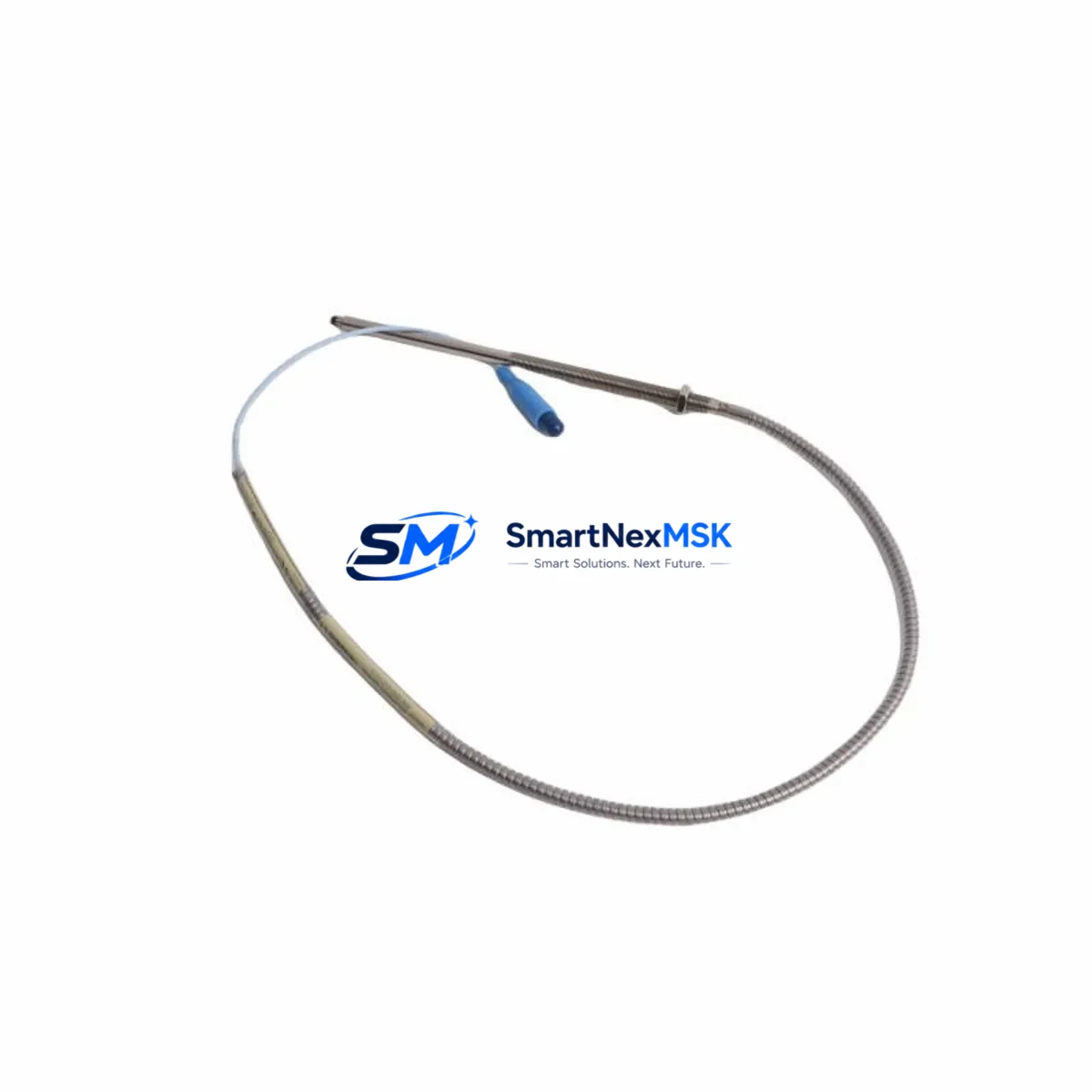

The Bently Nevada 330910-00-15-50-02-00 is an 8mm eddy-current proximity transducer engineered for the Bently Nevada 3300 XL Proximity Transducer System — one of the most widely deployed continuous vibration and position monitoring platforms in critical rotating machinery protection. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this transducer delivers stable, drift-free output signals that form the backbone of shaft vibration monitoring, radial position measurement, and safety interlock circuits across the most demanding industrial sites worldwide.

In heavy industrial control cabinets and safety-critical machinery protection loops, signal integrity is non-negotiable. The 330910-00-15-50-02-00 is built to resist electromagnetic interference, thermal cycling, and mechanical vibration — conditions that routinely cause signal drift, module mis-operation, and unplanned shutdowns in lesser components. Its ruggedized stainless-steel housing and precision-wound sensing coil maintain calibrated sensitivity across the full operating temperature range, ensuring that the Bently Nevada 3300 XL Driver receives a clean, consistent signal even in the presence of high-frequency electrical noise from variable-frequency drives, large motor starters, and power bus transients.

When paired with the Bently Nevada 330130 Proximitor Sensor and the 3300 XL 8mm Extension Cable, this transducer forms a complete, factory-matched sensing chain. The system’s output sensitivity of 200 mV/mil (7.87 V/mm) is pre-verified at the factory, eliminating field calibration errors that can introduce latent safety risks in turbine protection, compressor monitoring, and pump bearing surveillance applications. The matched cable-transducer-proximitor assembly also minimizes the risk of impedance mismatch — a common root cause of false trips and missed alarms in vibration safety loops.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330910-00-15-50-02-00 typically integrates multiple layers of hardware redundancy and signal conditioning within the control cabinet. The transducer connects to the Bently Nevada 330130-040-00-00 Proximitor Sensor, which conditions the raw eddy-current signal into a buffered voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor Monitor — the rack-mounted module responsible for alarm and trip relay actuation in API 670-compliant protection systems.

To protect the signal chain from power supply disturbances, the 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply Module with dual-redundant input capability, ensuring that a single power feed failure does not interrupt vibration monitoring continuity. In hazardous area installations — such as petrochemical compressor trains or offshore platform turbines — the transducer circuit is routed through Bently Nevada 3300 XL Zener Barrier Assemblies or equivalent galvanic isolators to maintain intrinsic safety ratings and prevent ignition risk from electrical faults.

For plants running distributed control architectures, the 3500 monitor rack communicates trip and alarm status to the DCS via Modbus RTU or Bently Nevada System 1 software, enabling centralized condition monitoring and predictive maintenance scheduling. Complementary components in the same protection loop often include the Bently Nevada 330180 Velomitor Piezo-Velocity Sensor for casing vibration measurement and the Bently Nevada 330500 Thrust Position Transducer for axial displacement monitoring — together forming a complete API 670 machinery protection suite within a single control cabinet.

Surge and transient events from large motor starts, capacitor bank switching, or lightning strikes are mitigated by installing Phoenix Contact TRABTECH surge protection devices on the 24 VDC supply rails feeding the Proximitor sensors. This layered approach — transducer, signal conditioner, surge protection, redundant power, and DCS integration — ensures that the 330910-00-15-50-02-00 delivers uninterrupted, safety-grade vibration data even during the most severe electrical disturbances on site.

Critical Industrial Safety Applications

The Bently Nevada 330910-00-15-50-02-00 is deployed across the full spectrum of heavy industrial and process-critical environments where rotating machinery failure carries severe safety, environmental, and financial consequences.

In petrochemical and refinery plants, this transducer monitors shaft radial vibration on centrifugal compressors, steam turbines, and boiler feed pumps — machines that operate continuously at high speed and where bearing failure can trigger catastrophic process upsets, fire risk, or toxic release. The transducer’s API 670 compliance makes it the standard choice for safety instrumented system (SIS) integration, where vibration trip signals must meet defined reliability and response-time requirements.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330910-00-15-50-02-00 provides real-time shaft position and vibration data to the turbine protection system, enabling automatic trip actuation before bearing damage propagates to catastrophic rotor failure. Its wide operating temperature range makes it equally suitable for hot-section turbine bearing pedestals and cold-end generator bearing housings.

In mining and mineral processing operations, the transducer is installed on large ball mills, SAG mills, and crusher drive trains, where high dust loading, moisture ingress, and mechanical shock are constant challenges. The IP67-rated stainless-steel housing and shielded cable assembly maintain measurement integrity in these harsh conditions, reducing unplanned downtime and enabling condition-based maintenance scheduling.

In water and wastewater treatment plants, the 330910-00-15-50-02-00 monitors large vertical turbine pumps and blower trains, where vibration excursions indicate impeller wear, cavitation, or bearing degradation — faults that, if undetected, lead to pump failure and treatment process interruption. In metallurgical and steel-making facilities, the transducer is used on rolling mill drive motors and continuous caster pinch roll drives, where the combination of high electromagnetic interference from arc furnaces and extreme mechanical loading demands the highest levels of signal stability and transducer robustness.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330910-00-15-50-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering defects in materials and workmanship from the date of shipment. Warranty claims are supported by our technical team, and replacement units are dispatched from stock to minimize your site downtime. Long-term supply agreements and blanket purchase orders are available for plants requiring guaranteed spare parts availability.

Q2: How is each unit tested before shipment?
Every 330910-00-15-50-02-00 undergoes a 100% outgoing functional inspection prior to dispatch. This includes sensitivity verification at the nominal 200 mV/mil output level, cable continuity and insulation resistance testing, and visual inspection of the connector, housing, and cable jacket. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Is this transducer compatible with existing 3300 XL and 3500 system installations?
Yes. The 330910-00-15-50-02-00 is a direct, drop-in replacement for all Bently Nevada 3300 XL 8mm proximity transducer assemblies with a 5.0 m cable. It is fully compatible with the 330130 Proximitor Sensor, 3500/42M Proximitor Monitor, and all standard 3300 XL extension cables and mounting hardware. No recalibration of the monitor rack is required when replacing a like-for-like unit, provided the target material and gap setting remain unchanged.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply?
Yes. We maintain dedicated stock of the 330910-00-15-50-02-00 and related 3300 XL system components to support both planned maintenance schedules and emergency breakdown situations. Our standard lead time for in-stock units is 3–7 business days internationally. For plants with critical spare requirements, we offer consignment stock arrangements and priority dispatch agreements. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
