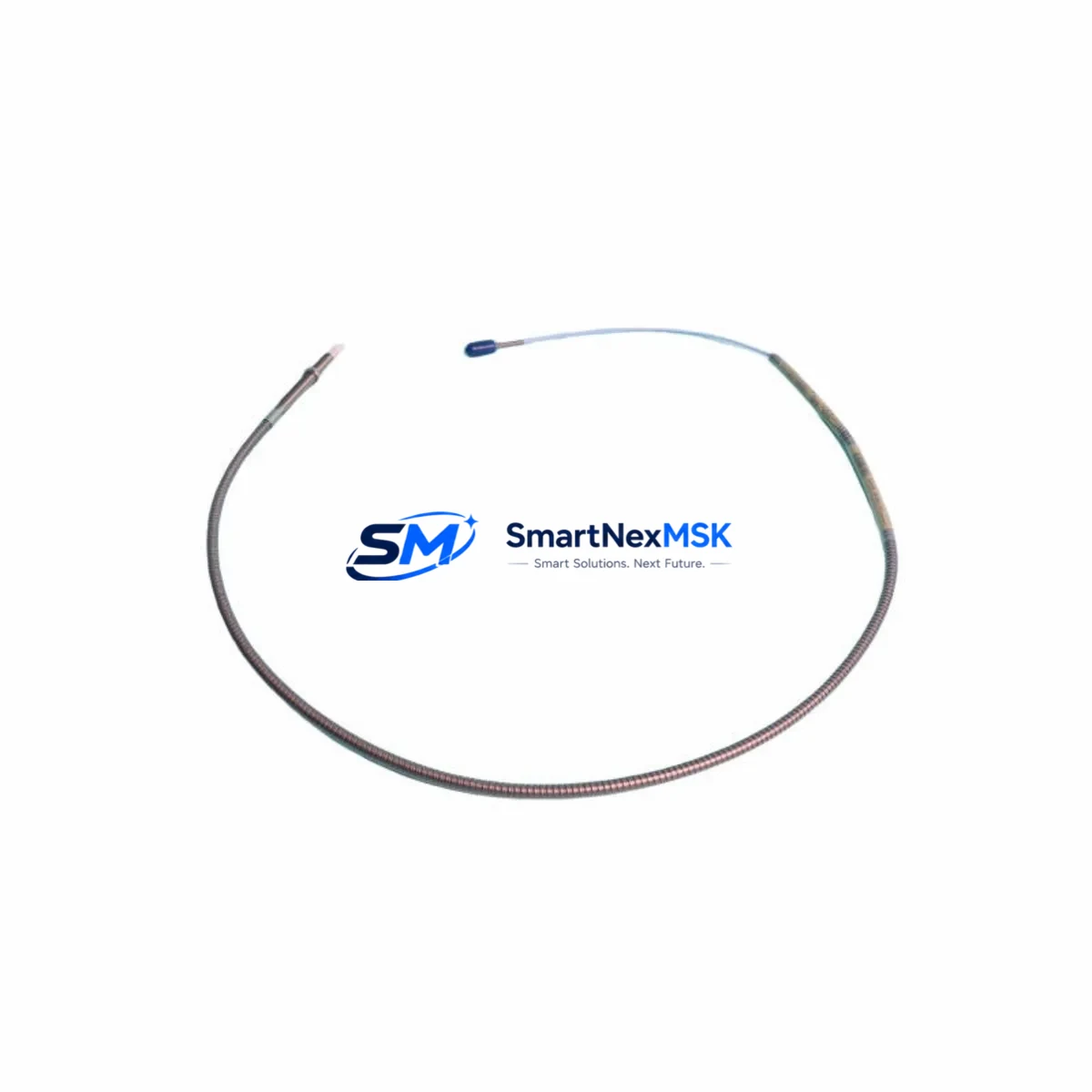

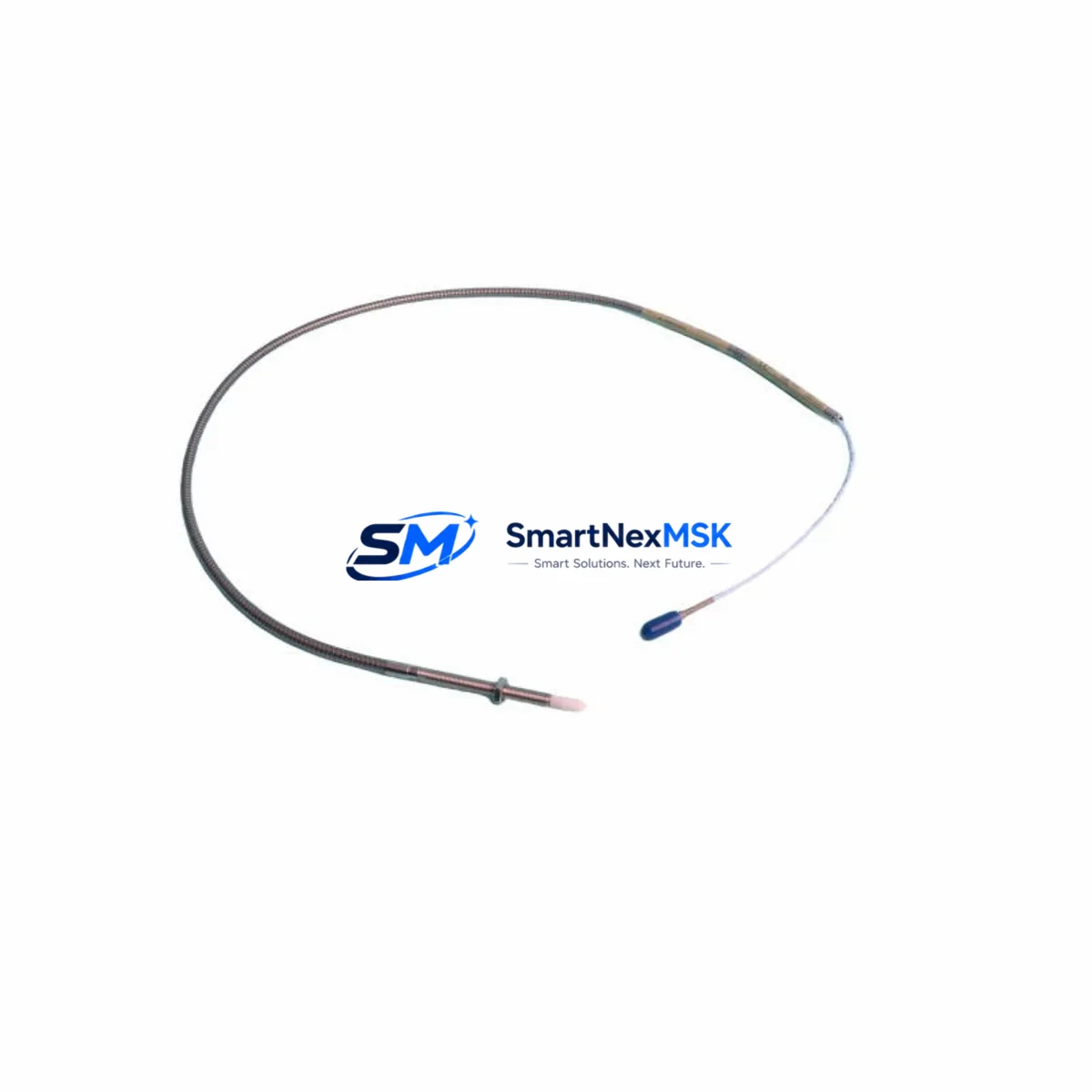

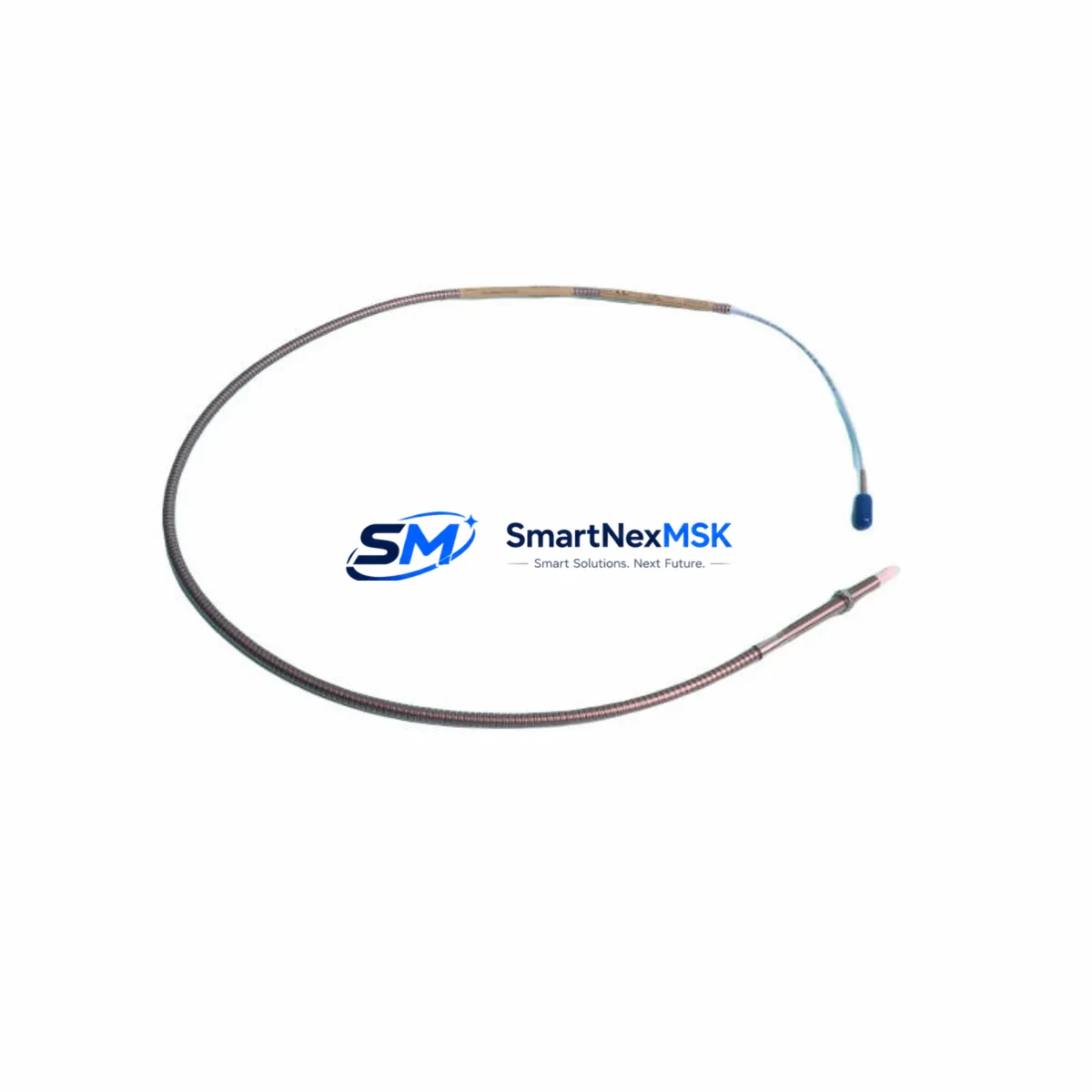

Bently Nevada 330910-00-16-10-02-00 Safety Proximity Transducer

Bently Nevada 330910-00-16-10-02-00 Safety Proximity Transducer: Reliable Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 330910-00-16-10-02-00 is a 16mm eddy current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, high-interference control cabinets, and hazardous-area installations, this transducer is a cornerstone component in modern machinery protection systems where control interruption is not an option.

In petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment infrastructure, the 330910-00-16-10-02-00 delivers consistent, drift-free shaft displacement measurements that feed directly into safety interlock loops and emergency shutdown (ESD) systems. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term signal integrity even under continuous 24/7 production cycles.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the 330910-00-16-10-02-00 transducer does not operate in isolation. It is the sensing front-end of a complete vibration monitoring chain that depends on the integrity of every upstream and downstream component. When integrated into a Bently Nevada 3500 Series Machinery Protection System rack, the transducer feeds real-time shaft displacement data to modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor, which process the signal and trigger alarms or shutdowns when vibration thresholds are exceeded.

Signal integrity from the probe tip to the monitor card is maintained through matched 330130-080-00-00 extension cables, which preserve the coaxial impedance characteristics required for accurate eddy current measurement. Any impedance mismatch or cable degradation can introduce signal drift — a critical failure mode in safety interlock applications. Pairing the 330910-00-16-10-02-00 with factory-matched extension cables and a calibrated 3300 XL Proximitor module eliminates this risk.

Power supply stability is equally critical. The 3300 XL system typically operates on a regulated –24 VDC supply. Deploying a Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that power fluctuations, surges, or momentary outages do not interrupt the monitoring chain. In high-risk installations, a secondary 3500/15 Power Supply in hot-standby configuration provides continuous protection even during maintenance windows.

For plants running integrated safety systems, the transducer output is often routed through a Bently Nevada 3500/22M Transient Data Interface or connected to a System 1 Evolution software platform for continuous waveform capture and predictive diagnostics. This architecture allows maintenance teams to detect early-stage bearing wear, rotor imbalance, or misalignment before they escalate into unplanned shutdowns or catastrophic failures.

In control cabinets where multiple monitoring loops share a common backplane, proper grounding and shielding discipline — enforced through 3500 Series I/O modules and dedicated cable trays — prevents cross-channel interference. Surge protection devices installed at the cabinet entry point further protect the sensitive analog front-end of the proximity transducer system from transient overvoltage events common in heavy industrial environments such as arc furnace facilities or large motor drive installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330910-00-16-10-02-00 is widely deployed on centrifugal compressors, turbine expanders, and boiler feed pumps in refinery and gas processing plants. In these environments, undetected shaft vibration can lead to seal failure, process gas release, and fire or explosion hazards. The transducer’s intrinsically safe certification makes it suitable for Zone 1 and Zone 2 hazardous area installations, where it monitors radial shaft displacement and provides the primary input to emergency shutdown interlock logic.

Power Generation: Steam turbines and gas turbines in power plants operate at high rotational speeds where even minor rotor imbalance can cause catastrophic bearing failure within seconds. The 330910-00-16-10-02-00, mounted in X-Y probe configurations on turbine journal bearings, provides the continuous shaft orbit data required by the 3500 Series protection system to initiate a controlled trip before damage propagates to the casing or rotor blades.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme mechanical loading and high levels of electromagnetic interference from variable frequency drives (VFDs). The shielded coaxial construction of the 330910-00-16-10-02-00 and its high EMI rejection capability ensure reliable signal transmission even in the presence of strong VFD switching noise, preventing false trips while maintaining genuine fault detection sensitivity.

Metallurgy & Steel Production: In continuous casting lines and rolling mill drives, the transducer monitors the radial position of work rolls and drive shafts, providing real-time feedback to the process control system. Thermal gradients and mechanical shock loads in these environments demand a sensor with wide operating temperature range and robust mechanical construction — both hallmarks of the 3300 XL Series design.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from continuous vibration monitoring to prevent bearing failures that could interrupt critical public infrastructure services. The IP67-rated connector of the 330910-00-16-10-02-00 provides reliable performance in the humid, chemically aggressive atmospheres typical of these installations.

Safety and Quality FAQ

Q1: What warranty coverage does the 330910-00-16-10-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from in-stock inventory to minimize your plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330910-00-16-10-02-00 transducer undergoes functional verification prior to shipment, including output sensitivity check, cable continuity and insulation resistance test, and connector integrity inspection. Units are shipped in anti-static, impact-protective packaging to prevent transit damage.

Q3: Is this transducer compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330910-00-16-10-02-00 is a direct form-fit-function replacement for existing 3300 XL 16mm probe installations. It is fully compatible with 3300 XL Proximitor modules, 3500/40M and 3500/42M monitor cards, and standard 330130 Series extension cables. No recalibration of the monitor system is required when replacing a like-for-like probe.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the 330910-00-16-10-02-00 and related 3300 XL Series components to support planned maintenance schedules, annual turnarounds, and emergency spare requirements. We provide supply commitment documentation for customers operating critical infrastructure who require assured availability over multi-year maintenance contracts.
