Bently Nevada 330910-00-17-50-02-00 3300 XL NSv Retrofit

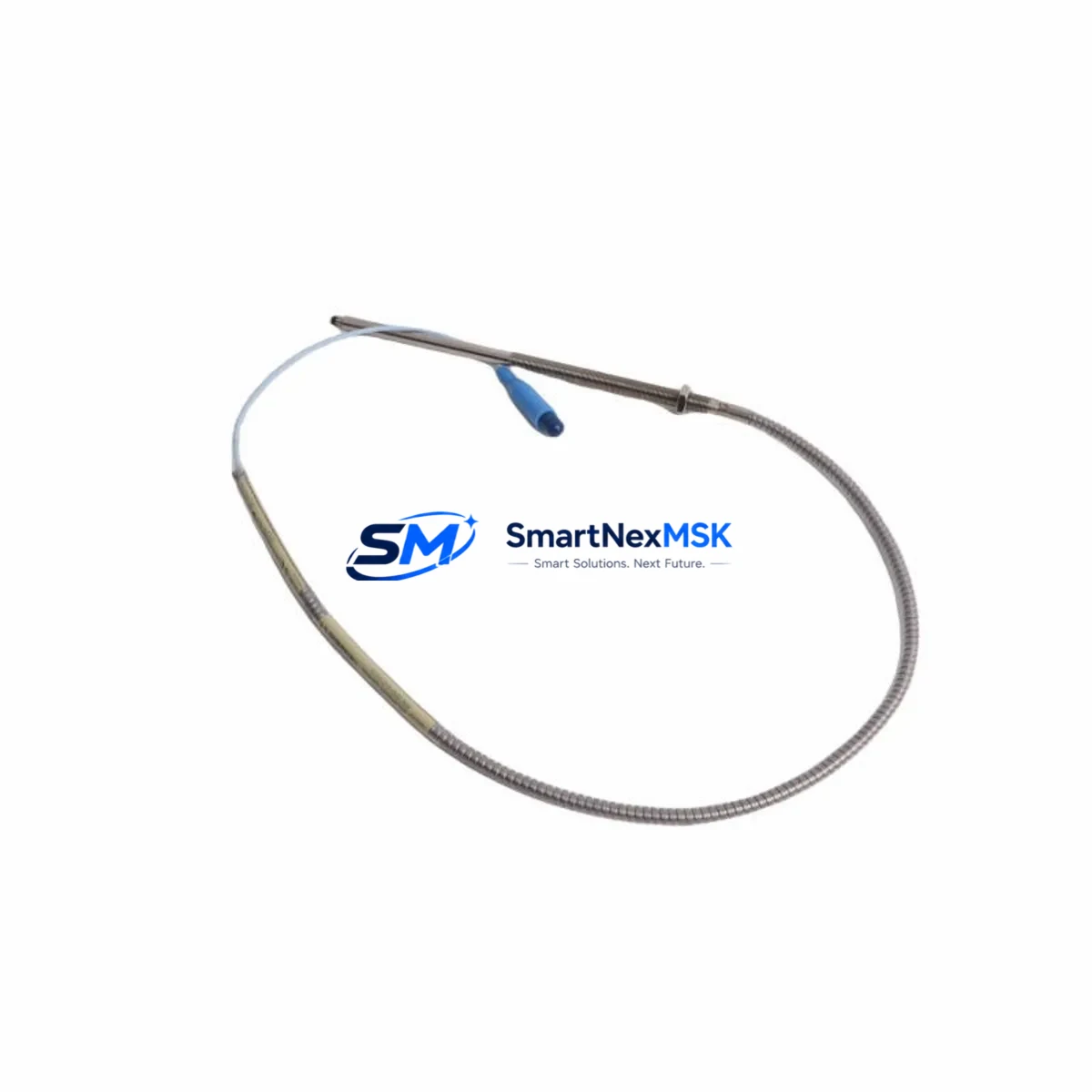

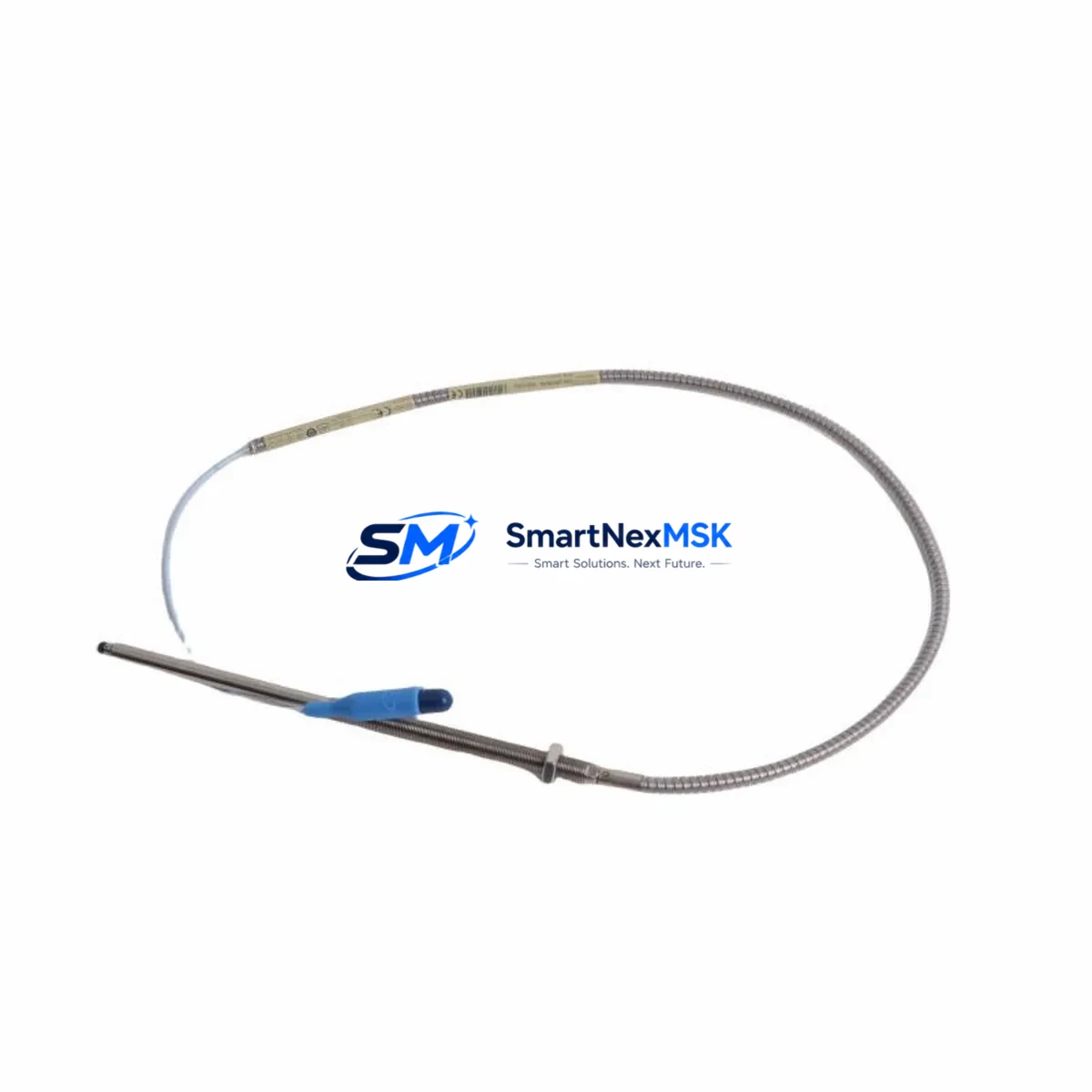

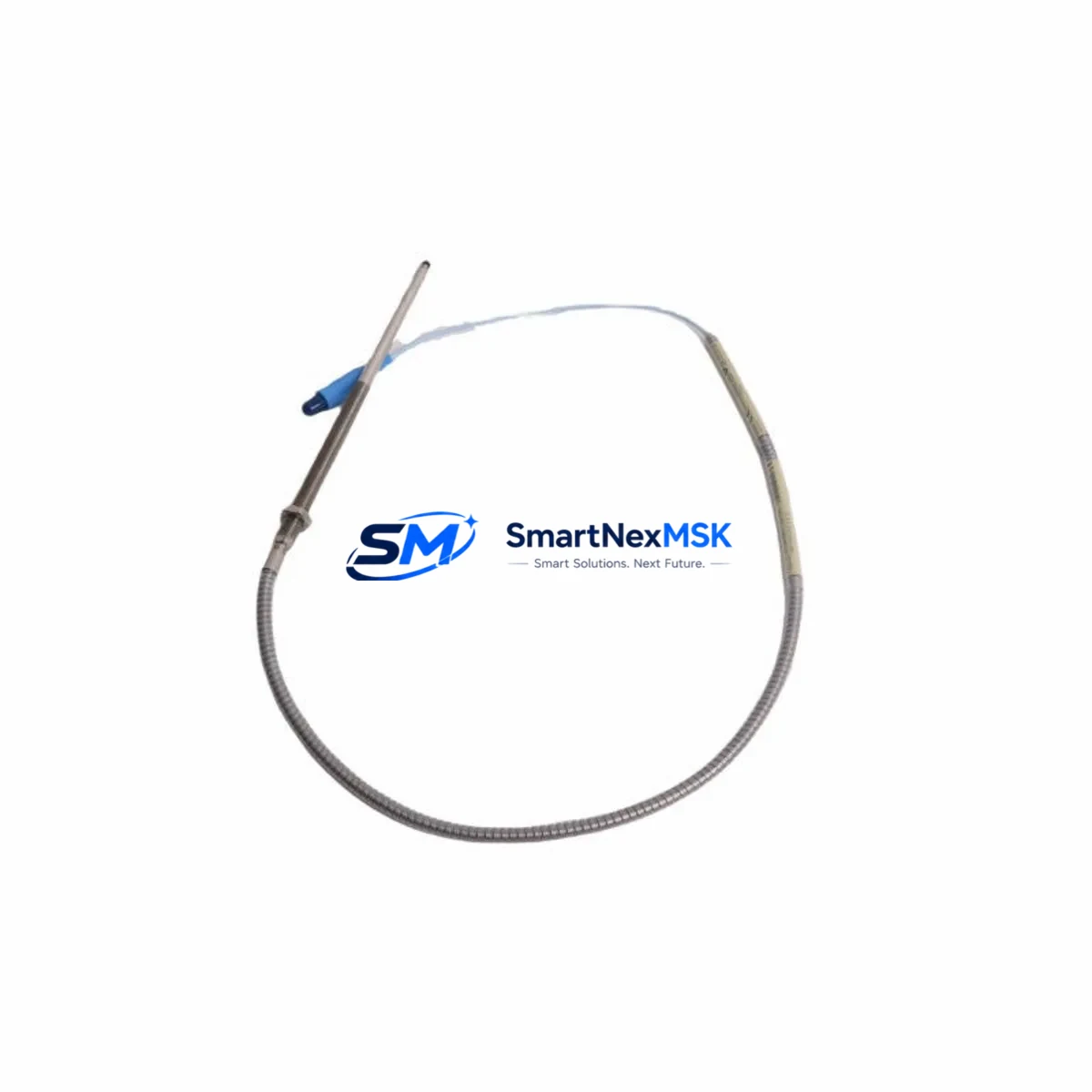

Bently Nevada 330910-00-17-50-02-00 3300 XL NSv Retrofit-Ready Proximity Transducer System

The Bently Nevada 330910-00-17-50-02-00 is a precision proximity transducer system from the 3300 XL NSv Series, engineered for non-contacting vibration and position measurement in rotating machinery. This unit is a direct retrofit replacement for legacy 3300 Series transducer assemblies, offering seamless compatibility with existing Bently Nevada monitoring racks, field wiring, and condition monitoring software platforms. Whether you are upgrading an aging vibration monitoring loop, replacing a discontinued proximity probe assembly, or restoring a critical machinery protection system, the 330910-00-17-50-02-00 delivers the measurement accuracy and signal integrity required for continuous plant operation.

Industrial facilities running legacy turbine protection panels, compressor monitoring systems, or pump vibration loops frequently encounter obsolescence challenges when original transducer assemblies reach end-of-life. The 330910-00-17-50-02-00 addresses this directly: it maintains backward compatibility with the 3300 XL rack architecture, preserving existing cable runs, junction box terminations, and extension cable assemblies such as the 330130 and 330180 series. Engineers can retain their existing field wiring without re-pulling cables, significantly reducing retrofit labor costs and minimizing planned outage windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330910-00-17-50-02-00 into an existing machinery protection system requires a structured pre-installation review. Begin by auditing the current monitor module installed in the rack — typically a 3300/16 Dual Vibration Monitor or a 3500/42M Proximitor/Seismic Monitor — to confirm that the channel configuration, alert setpoints, and danger setpoints are documented before any hardware is disturbed. If the plant is running Bently Nevada System 1 condition monitoring software, export the current machine train configuration and archive the historical trend data prior to the outage.

At the field junction box, verify the existing 330130 or 330180 extension cable is undamaged and that the armored cable jacket shows no signs of abrasion or moisture ingress. The 330910-00-17-50-02-00 uses the same connector pinout as its predecessors, so the extension cable can be reused without modification. Confirm the Proximitor sensor housing — often a 330180-51-05 or equivalent — is securely mounted and that the probe tip is accessible for gap adjustment.

Inside the control cabinet, inspect the 3300 XL rack backplane for any corrosion on the module edge connectors. If the rack is also being upgraded, consider replacing the 3300/05 Power Supply at the same time to avoid a second planned outage. For plants migrating from older 3300 Series monitors to the 3500 Series platform, note that the 3500 rack uses a different backplane architecture; however, the 330910-00-17-50-02-00 transducer system remains fully compatible at the field level, requiring only a reconfiguration of the monitor channel parameters via the 3500 Rack Configuration Software.

I/O mapping should be reviewed if the vibration signal feeds a DCS or Safety Instrumented System (SIS). Confirm that the 4–20 mA analog output scaling in the receiving controller — whether a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM DCS — matches the new transducer’s sensitivity specification of 200 mV/mil (7.87 V/mm). If the plant uses a Modbus RTU or OPC-DA link between the Bently Nevada rack and the DCS historian, verify that the communication link remains active during the module swap to avoid data gaps in the process historian.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires careful sequencing. Where process conditions permit, perform the transducer swap during a scheduled maintenance window rather than a forced outage. Before removing the legacy probe assembly, place the associated monitor channel into bypass mode using the 3300 or 3500 monitor front panel or via System 1 software to prevent a spurious trip signal from reaching the turbine trip relay or the SIS logic solver.

Document the existing gap voltage reading — typically between -10 VDC and -18 VDC depending on the target material and gap distance — before disconnecting the probe. After installing the 330910-00-17-50-02-00 and reconnecting the extension cable, measure the new gap voltage with a calibrated digital multimeter at the monitor terminal strip. Adjust the probe gap to achieve the OEM-specified nominal gap voltage before releasing the bypass. This procedure protects the original PLC or DCS program logic from modification, since the signal scaling remains unchanged.

For critical machinery where a cold swap is not acceptable, consider staging a pre-tested spare 330910-00-17-50-02-00 unit on-site with the gap pre-set and verified against a calibration target block. This reduces the in-field installation time to under 30 minutes for a trained technician, keeping the machinery protection system offline for the shortest possible interval. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and include a test report confirming output voltage linearity and sensitivity compliance.

Retrofit Support FAQ

Q1: Is the 330910-00-17-50-02-00 a direct replacement for the 330900 and 330905 series?
Yes. The 330910-00-17-50-02-00 is backward compatible with the 330900 and 330905 legacy transducer assemblies. The connector pinout, thread specification, and signal output characteristics are identical, allowing a direct swap without modification to the extension cable or monitor wiring. Confirm the probe tip diameter (8 mm) matches the existing probe guide before installation.

Q2: What commissioning steps are required after installation?
After mechanical installation, adjust the probe gap to achieve the nominal gap voltage specified in the Bently Nevada calibration procedure (typically -10.0 VDC ± 0.5 VDC at 50 mil gap on AISI 4140 steel). Verify the output voltage linearity across the measurement range using a calibrated gap simulation tool or a precision micrometer stage. Re-enable the monitor channel and confirm that alert and danger setpoints are correctly restored in the 3300 or 3500 monitor configuration.

Q3: Can this unit be used with a 3500 Series rack if we are migrating from a 3300 Series system?
Yes. The 330910-00-17-50-02-00 is compatible with 3500 Series monitor modules including the 3500/42M and 3500/45. When migrating from a 3300 rack to a 3500 rack, reconfigure the monitor channel parameters using the 3500 Rack Configuration Software to match the transducer sensitivity (200 mV/mil) and the target gap voltage. No field wiring changes are required at the junction box or probe end.

Q4: What warranty and pre-shipment testing does SMARTNEXMSK provide?
All 330910-00-17-50-02-00 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including output voltage verification, sensitivity measurement, and connector integrity inspection. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging suitable for international air freight.
