Bently Nevada 330910-00-19-50-02-00 Spare 3300 XL NSv

Bently Nevada 330910-00-19-50-02-00 Maintenance-Ready Spare for 3300 XL NSv Automation

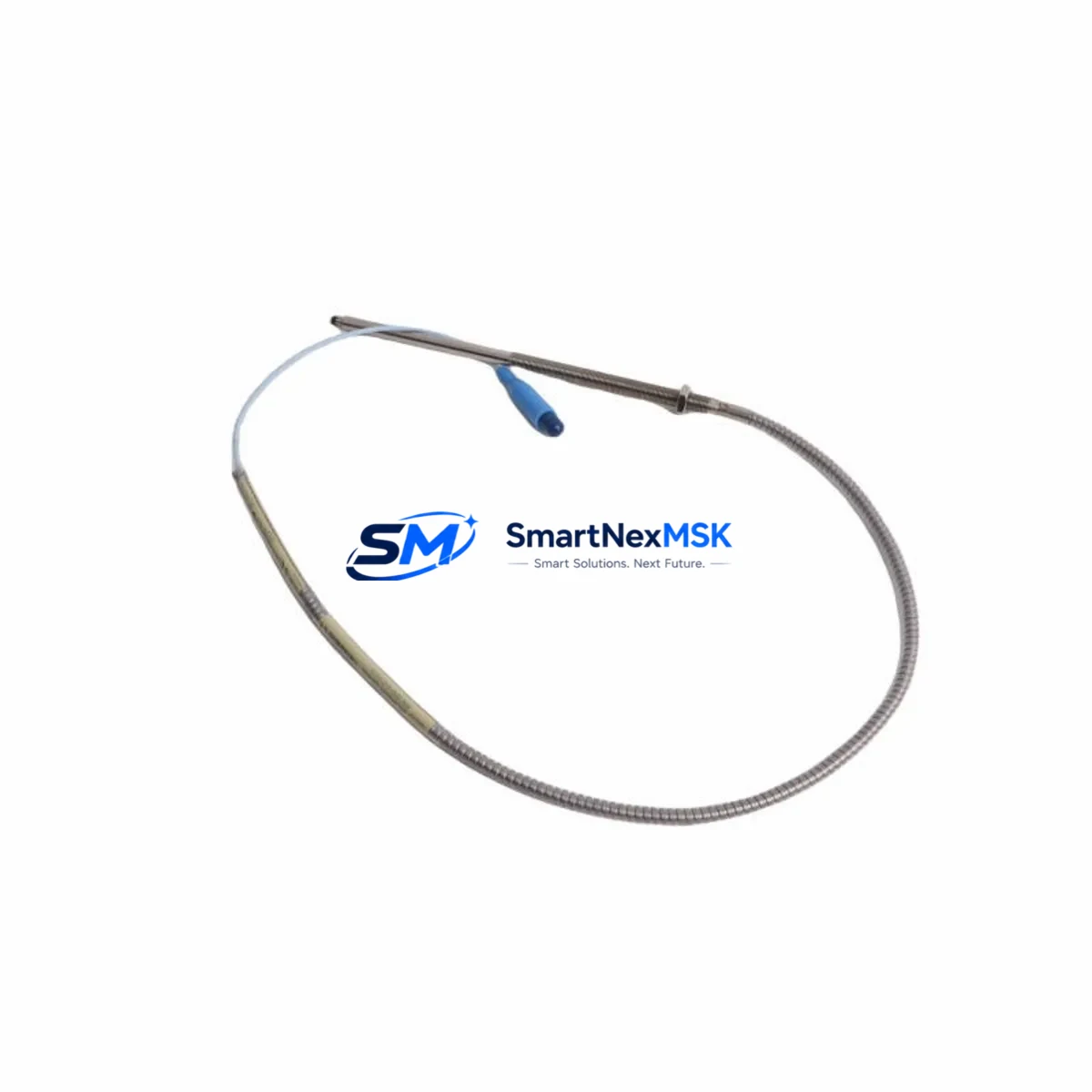

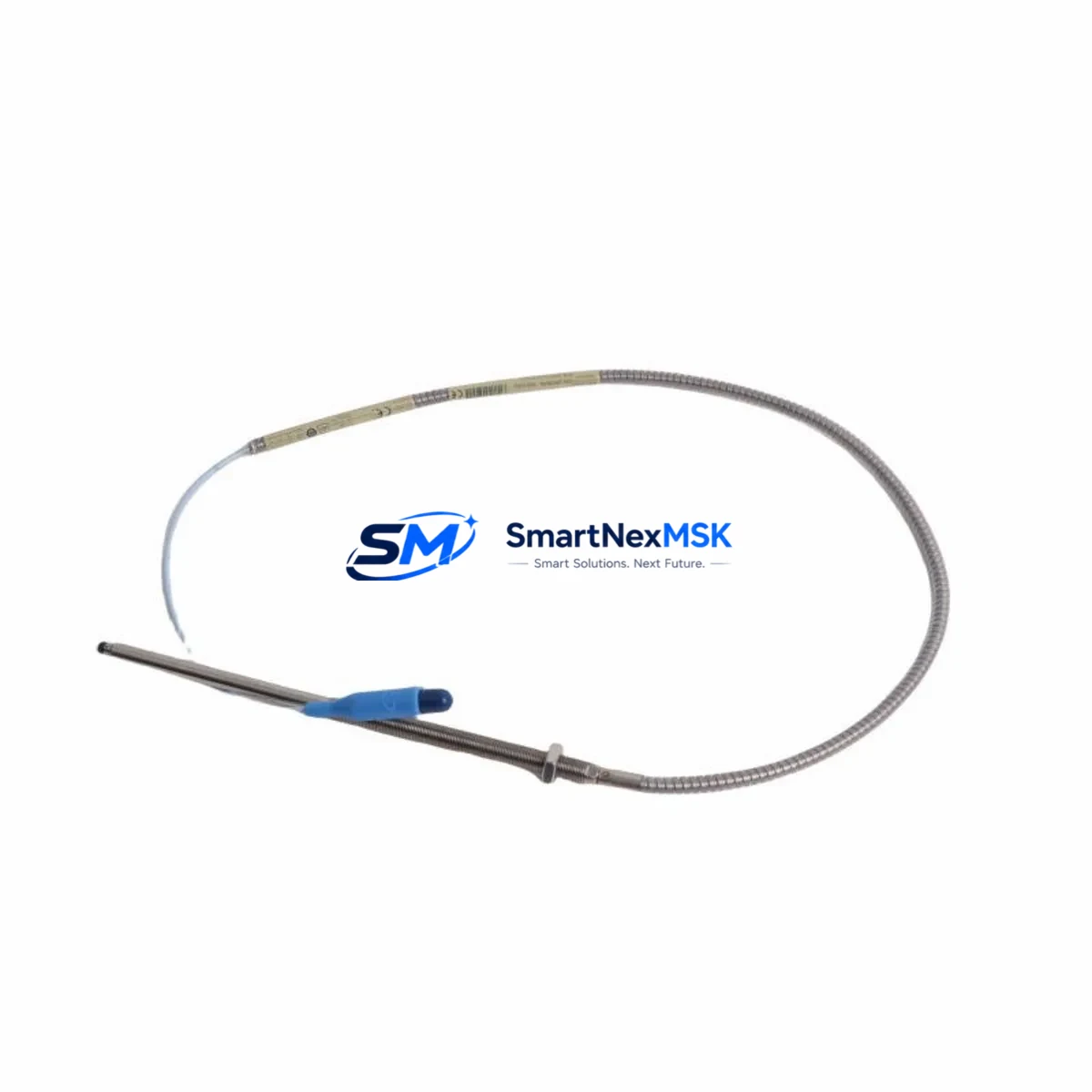

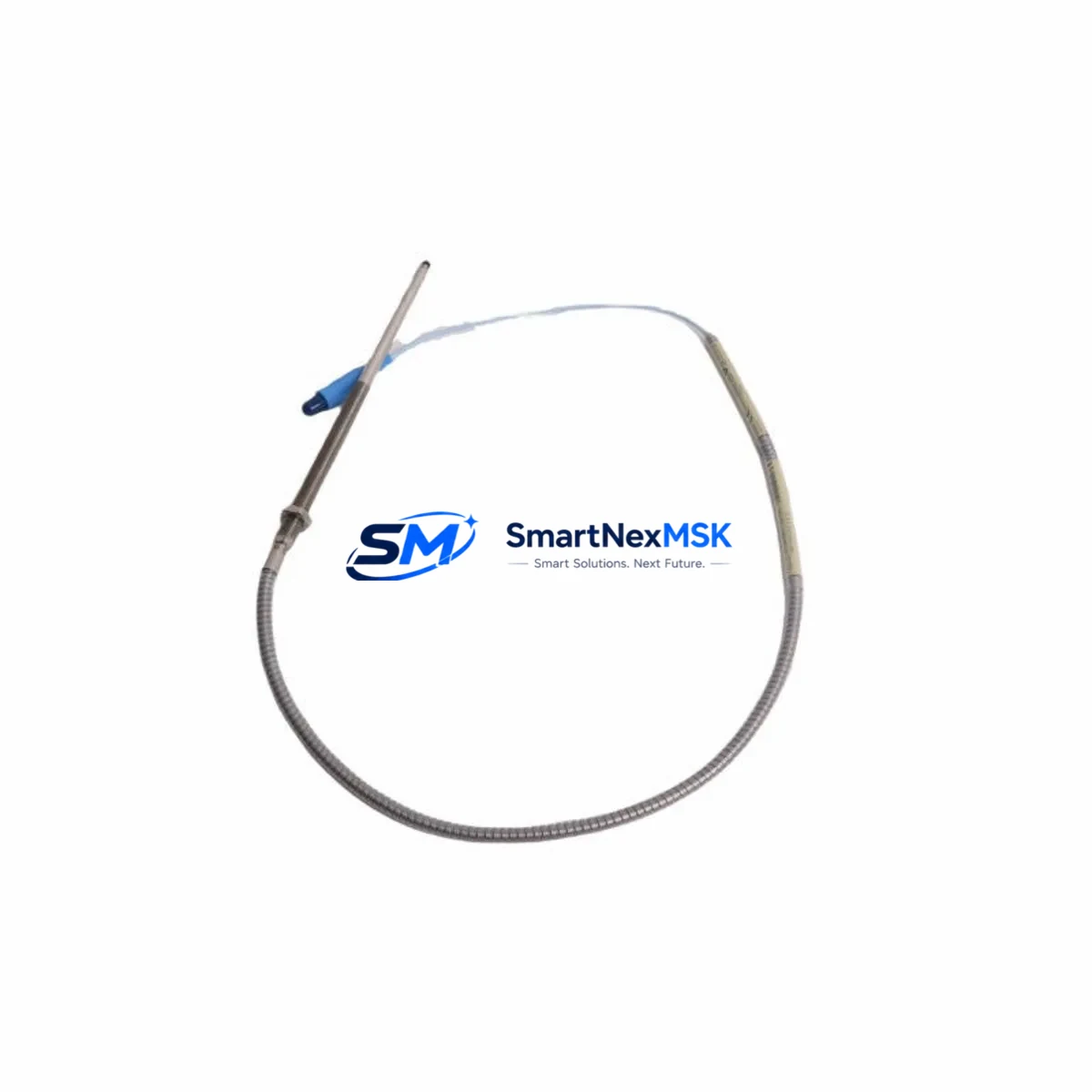

The Bently Nevada 330910-00-19-50-02-00 is an original 8mm eddy-current proximity transducer engineered for the 3300 XL NSv series — one of the most widely deployed vibration monitoring platforms in rotating machinery protection systems. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this transducer is a critical field-replaceable unit. Unplanned failure of this sensor directly triggers machinery protection shutdowns, making rapid access to a verified spare the single most effective strategy for minimizing unplanned downtime.

At SMARTNEXMSK, every 330910-00-19-50-02-00 unit is sourced from authorized supply chains, individually inspected, and shipped with full documentation. Our 12-month warranty covers functional performance under normal industrial operating conditions, giving procurement engineers the confidence to stock this part as a long-term inventory asset rather than a reactive emergency purchase.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-00-19-50-02-00 proximity transducer is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. A thorough inspection of the complete vibration monitoring loop is essential to restore full system integrity and prevent repeat failures.

Begin with the 3300 XL NSv Proximitor® Sensor (driver module), which conditions the transducer signal and is subject to the same environmental stresses. Verify its output voltage and linearity before declaring the loop healthy. Next, inspect the interconnect extension cable — typically a 3300 XL series armored cable — for jacket damage, connector corrosion, or continuity faults introduced during the same event that degraded the probe.

At the monitor end, confirm that the 3500/42 Proximity Monitor or equivalent 3300/16 series card is reading within calibrated range. If the monitor card has accumulated years of service in a high-vibration or high-temperature environment, this is an appropriate time to evaluate it for proactive replacement. Spare monitor cards should be part of any rotating machinery protection spare parts kit.

Within the control cabinet, check the 24 VDC or -24 VDC power supply rail feeding the Proximitor. Voltage sag or ripple on this rail is a common root cause of false vibration alarms and can mask a genuine transducer fault. A dedicated DC/DC isolated power module for the vibration monitoring circuit is best practice in high-interference environments.

For systems integrated into a Bently Nevada 3500 Series rack, also inspect the 3500/20 rack interface module and the 3500/92 communication gateway if Modbus or Ethernet connectivity is used for remote monitoring. Communication faults at the gateway level can prevent alarm data from reaching the DCS or historian, creating a blind spot even when the transducer itself is functional.

In facilities running GE Mark VIe or Emerson Ovation DCS platforms alongside Bently Nevada protection systems, verify that the analog input cards receiving the -18 VDC proximity output are within calibration. Signal isolators — such as a PHOENIX CONTACT MACX MCR-SL signal conditioner or equivalent — between the Proximitor output and the DCS analog input card protect the monitoring system from ground loops and should be inspected for drift.

Finally, review the terminal block wiring (Weidmüller or Phoenix Contact DIN-rail terminals are common in these cabinets) for loose connections, oxidation, or insulation breakdown. A torque check on all terminal screws in the vibration monitoring circuit takes less than 30 minutes and eliminates a significant category of intermittent fault.

Site Replacement Workflow

Step 1 — Verify Compatibility: Confirm the replacement 330910-00-19-50-02-00 matches the installed probe length (-19 = 190 mm), cable length (-50 = 5.0 m), and connector type. Cross-reference with the machine’s vibration monitoring datasheet or the original Bently Nevada system drawing.

Step 2 — Isolate and De-energize: Follow site LOTO (Lockout/Tagout) procedures. De-energize the Proximitor power supply before disconnecting the probe. Note the gap voltage reading from the monitor card before removal — this serves as a baseline for the new installation.

Step 3 — Remove and Inspect: Unthread the probe using the correct spanner. Inspect the probe tip for physical damage, target surface condition, and any contamination (oil, metallic debris) that may have contributed to the fault. Clean the target area before installing the replacement.

Step 4 — Install and Gap: Thread the replacement 330910-00-19-50-02-00 into the bracket. Set the air gap to the system-specified value (typically 1.0 mm / 40 mil for 8mm probes) using a feeler gauge or the Proximitor output voltage method. Lock with the jam nut to the specified torque.

Step 5 — Reconnect and Verify: Reconnect the extension cable and Proximitor. Restore power and verify the DC gap voltage is within the linear range (-10 VDC ± 1 VDC is typical for a correctly gapped 8mm probe). Confirm the monitor card clears any latched alarms and returns to normal status.

Step 6 — Document and Restock: Record the replacement in the maintenance management system (SAP PM, Maximo, or equivalent). Immediately initiate a reorder for the consumed spare to maintain minimum stock levels. SMARTNEXMSK supports standing order arrangements and priority restocking for critical rotating machinery spares.

Spare Parts Support FAQ

Q1: Is the 330910-00-19-50-02-00 a direct drop-in replacement for older 330910 series probes?
Yes. The 330910-00-19-50-02-00 is dimensionally and electrically compatible with earlier 330910 series probes used in 3300 XL 8mm system configurations. Always verify probe length, cable length, and connector type against the installed system drawing before installation. If your system uses a different cable length suffix, contact us — we stock multiple 330910 configurations.

Q2: What is included in the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers functional failure under normal industrial operating conditions, including output signal deviation beyond specification and physical defects not caused by installation error or environmental abuse. To initiate a claim, contact sales@smartnexmsk.com with the order number, failure description, and site photos. We will arrange return shipping and provide a replacement unit within 5 business days of receiving the defective part.

Q3: How should this spare be stored to maintain its condition before installation?
Store the 330910-00-19-50-02-00 in its original packaging in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Keep the probe tip protected with the supplied cap. Avoid storing near strong magnetic fields or in areas with high vibration. Inspect the connector and cable jacket annually if the spare is held in long-term inventory.

Q4: Can SMARTNEXMSK supply multiple 330910 configurations for a site-wide spare parts standardization program?
Yes. We support bulk procurement and site-wide spare parts programs for rotating machinery protection systems. We can supply multiple 330910 series configurations (varying probe and cable lengths), matched Proximitor sensors, extension cables, and monitor cards under a single purchase order. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss volume pricing and lead times.
