Bently Nevada 330910-00-22-10-02-05 3300 Series Spare

Bently Nevada 330910-00-22-10-02-05 3300 Series Maintenance-Ready Spare

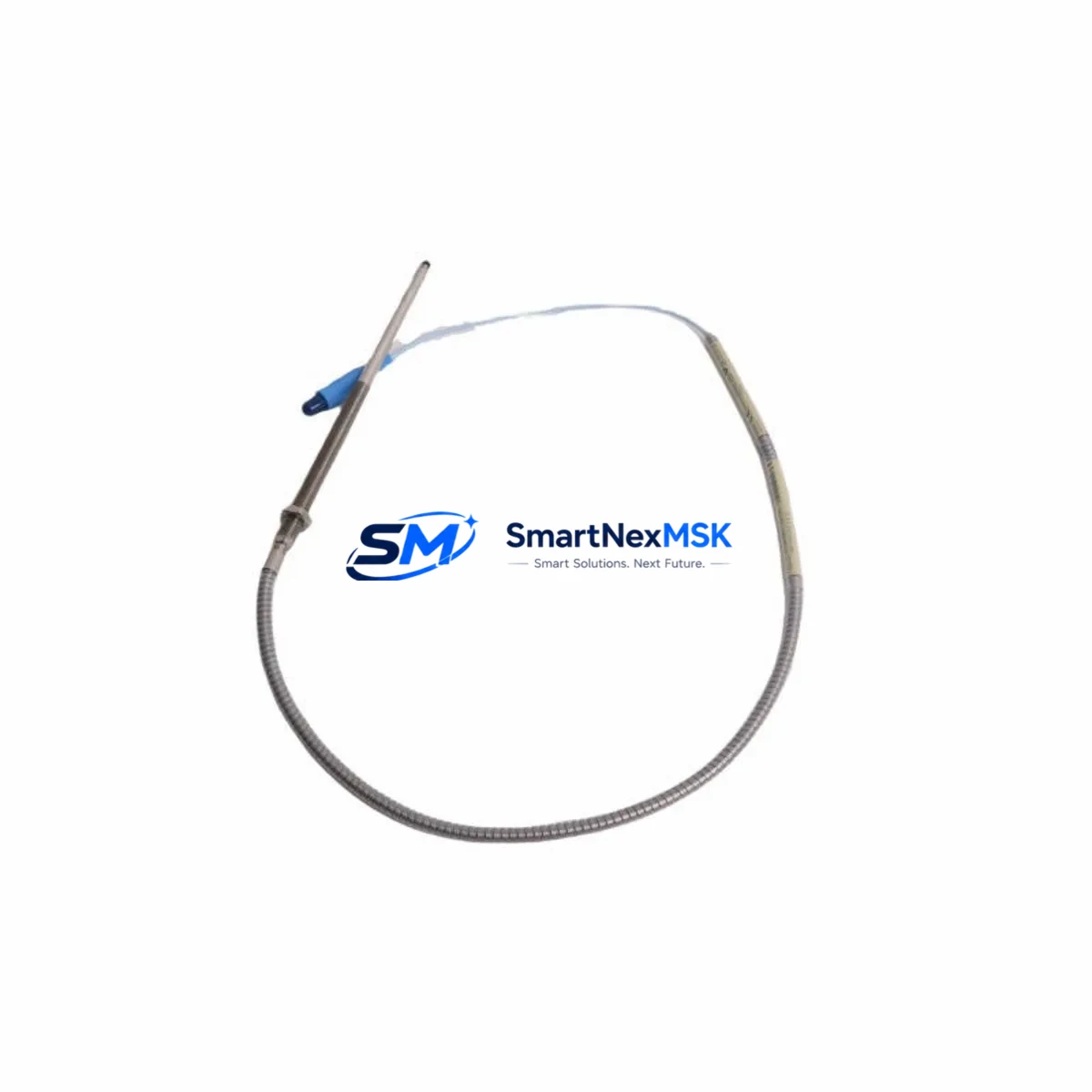

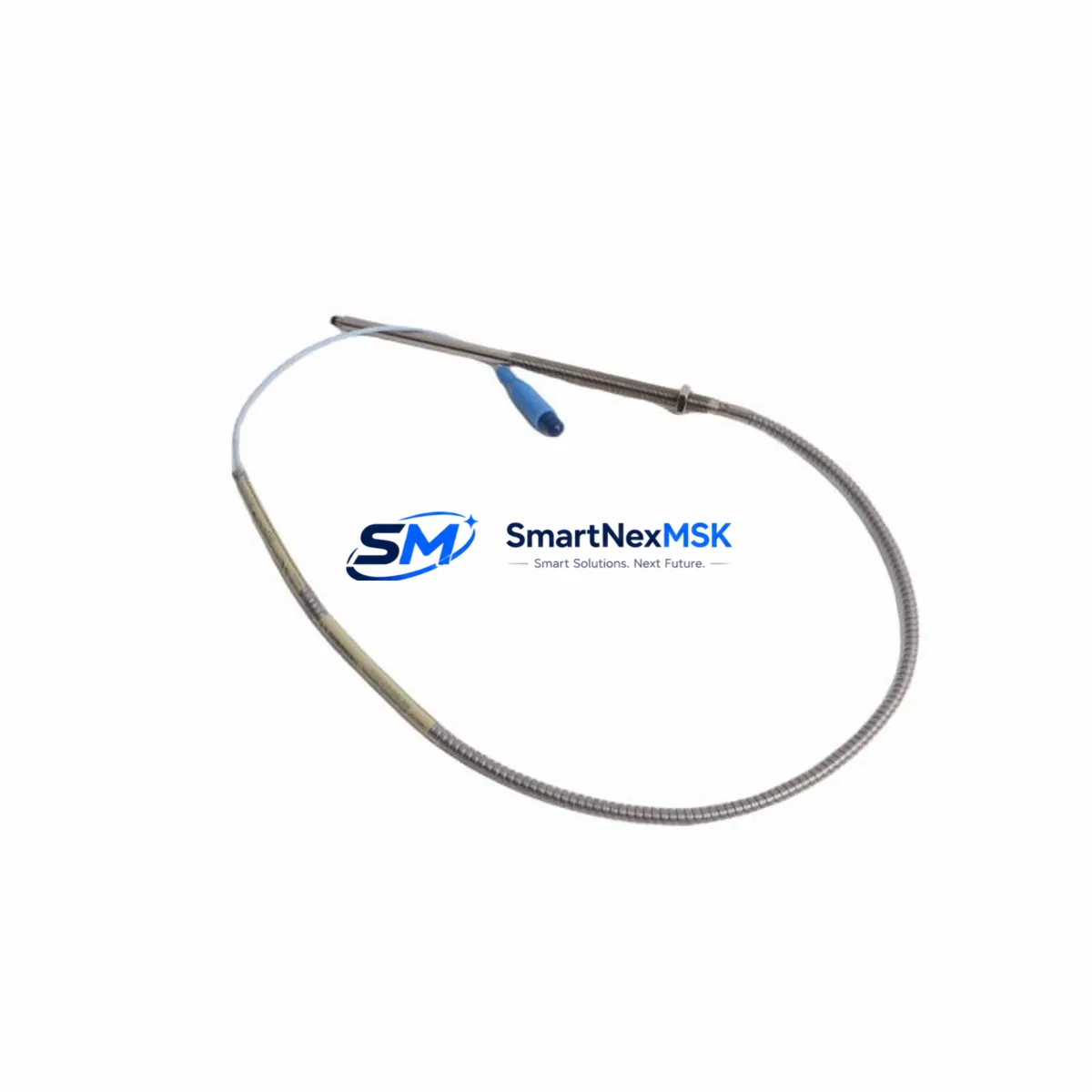

The Bently Nevada 330910-00-22-10-02-05 is an original eddy-current proximity transducer from the 3300 Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. For maintenance engineers managing turbines, compressors, pumps, and generators, this transducer is a critical front-line component whose failure can trigger unplanned shutdowns and costly downtime events. Stocking a verified replacement unit is the most effective strategy to minimize mean time to repair (MTTR) and maintain system availability in 24/7 industrial operations.

This unit is sourced as an original Bently Nevada spare, inspected, and tested prior to shipment. It is compatible with the 3300 Series monitoring system architecture and is designed for direct drop-in replacement without reconfiguration of the monitoring rack. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330910-00-22-10-02-05 in the field, a disciplined maintenance engineer will treat the transducer swap as an opportunity to audit the entire vibration monitoring loop. The Proximitor sensor (typically a 3300 XL 8mm or equivalent driver module mounted in the field junction box) should be inspected for contamination, connector corrosion, and output voltage drift — a faulty driver will cause the new transducer to read incorrectly even if the transducer itself is good.

The extension cable connecting the transducer to the Proximitor is a frequent failure point in high-vibration or high-temperature environments. Cables in the 3300 Series system, such as the 330130 series extension cables, should be checked for insulation integrity and continuity. Connector pins at both the transducer end and the junction box end should be cleaned and inspected for fretting corrosion.

Inside the control cabinet, the 3300 Series monitor card (such as the 3300/16 dual-channel vibration monitor or the 3300/55 machinery protection monitor) should be verified for correct gap voltage reading after transducer installation. If the gap voltage is outside the -10 to -18 VDC window, the probe-to-shaft gap must be adjusted before returning the machine to service. The monitor card’s relay output and OK status LED should also be confirmed functional.

Procurement engineers building a spare parts inventory for a 3300 Series-equipped machine train should consider stocking the following alongside the 330910-00-22-10-02-05: a matched Proximitor driver (3300 XL 8mm), at least one extension cable set, a spare 3300 Series I/O module, and terminal block assemblies for the field junction box. For plants running Bently Nevada System 1 software, the communication interface module (such as the TDI or 3500/92 Ethernet transient data interface) should also be included in the critical spare list.

For machines where the 3300 Series monitors shaft axial position in addition to radial vibration, the paired thrust position transducer (often a second 330910 variant with a different cable length suffix) should be inspected simultaneously. Differential expansion probes and case expansion sensors in the same measurement loop should be checked for consistent output and correct calibration against the reference gap.

In aging control systems where the 3300 Series is approaching end-of-support, maintenance teams often run parallel monitoring using portable vibration analyzers during the transition period. Ensuring that the 330910-00-22-10-02-05 and its associated signal chain remain functional extends the operational life of the legacy system and defers costly full-system upgrades.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring system is in bypass or alarm-inhibit mode before disconnecting the transducer.

Step 2 — Document Existing Gap Voltage: Record the gap voltage reading from the 3300 Series monitor card before removal. This serves as the baseline for reinstallation calibration.

Step 3 — Remove Old Transducer: Disconnect the extension cable at the field junction box. Unthread the transducer from the probe holder using the correct spanner. Inspect the probe holder threads and the shaft target area for damage or contamination.

Step 4 — Install 330910-00-22-10-02-05: Thread the new transducer into the probe holder. Set the initial gap to the manufacturer-specified range (typically 50 mil / 1.27 mm for 8mm probes). Connect the extension cable and verify connector seating.

Step 5 — Verify Gap Voltage: Power the Proximitor and confirm gap voltage is within -10 to -18 VDC. Fine-adjust the gap until the output matches the documented baseline. Confirm the monitor card shows OK status.

Step 6 — Return to Service: Remove bypass/inhibit, confirm alarm setpoints are active, and log the replacement in the maintenance management system (CMMS) with the new unit’s serial number and installation date.

This workflow applies equally when replacing an older 330900 or 330905 series transducer with the 330910-00-22-10-02-05 as a compatible upgrade, maintaining system compatibility without requiring monitor reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330910-00-22-10-02-05 compatible with both 3300 Series and 3500 Series monitoring systems?
The 330910-00-22-10-02-05 is designed and specified for the 3300 Series monitoring architecture. While the eddy-current sensing principle is shared with the 3500 Series, the 3500 Series uses its own qualified transducer list. Compatibility with 3500 Series monitors should be verified against the 3500 Series transducer qualification documentation before installation. For 3500 Series applications, contact our technical team for the correct part number.

Q2: What is included in the 12-month warranty?
Each 330910-00-22-10-02-05 unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional performance failure under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside specified environmental limits. Warranty claims are processed with return authorization and include replacement or full refund.

Q3: How is the unit tested before shipment?
Every unit undergoes pre-shipment functional testing including output voltage verification at a calibrated gap distance, cable continuity check, and connector integrity inspection. Units that do not meet the original Bently Nevada output specification are rejected. A test report is available upon request for critical applications.

Q4: What is the recommended spare parts stocking strategy for a 3300 Series machine train?
For a single machine train, the recommended minimum stock is two transducer units per measurement point (one installed, one on-shelf), one matched Proximitor driver, one extension cable set, and one spare monitor card per channel type. For plants with multiple identical machines, a pooled inventory of 3-5 transducer units per model variant is cost-effective and reduces emergency procurement lead times to zero.
