Bently Nevada 330910-00-24-50-02-00 Spare for 3300 XL

Bently Nevada 330910-00-24-50-02-00 Spare for 3300 XL Automation: Minimizing Downtime with Maintenance-Ready Proximity Transducers

In rotating machinery protection and vibration monitoring systems, the Bently Nevada 330910-00-24-50-02-00 is a critical 8mm eddy-current proximity transducer engineered for the 3300 XL Series platform. When this transducer fails or degrades, the consequences extend beyond a single sensor — the entire vibration monitoring loop, including the proximitor/extension cable assembly and the monitor rack, becomes unreliable. Maintenance engineers and procurement teams responsible for turbines, compressors, pumps, and gearboxes must treat this component as a priority spare to prevent unplanned shutdowns and protect rotating assets.

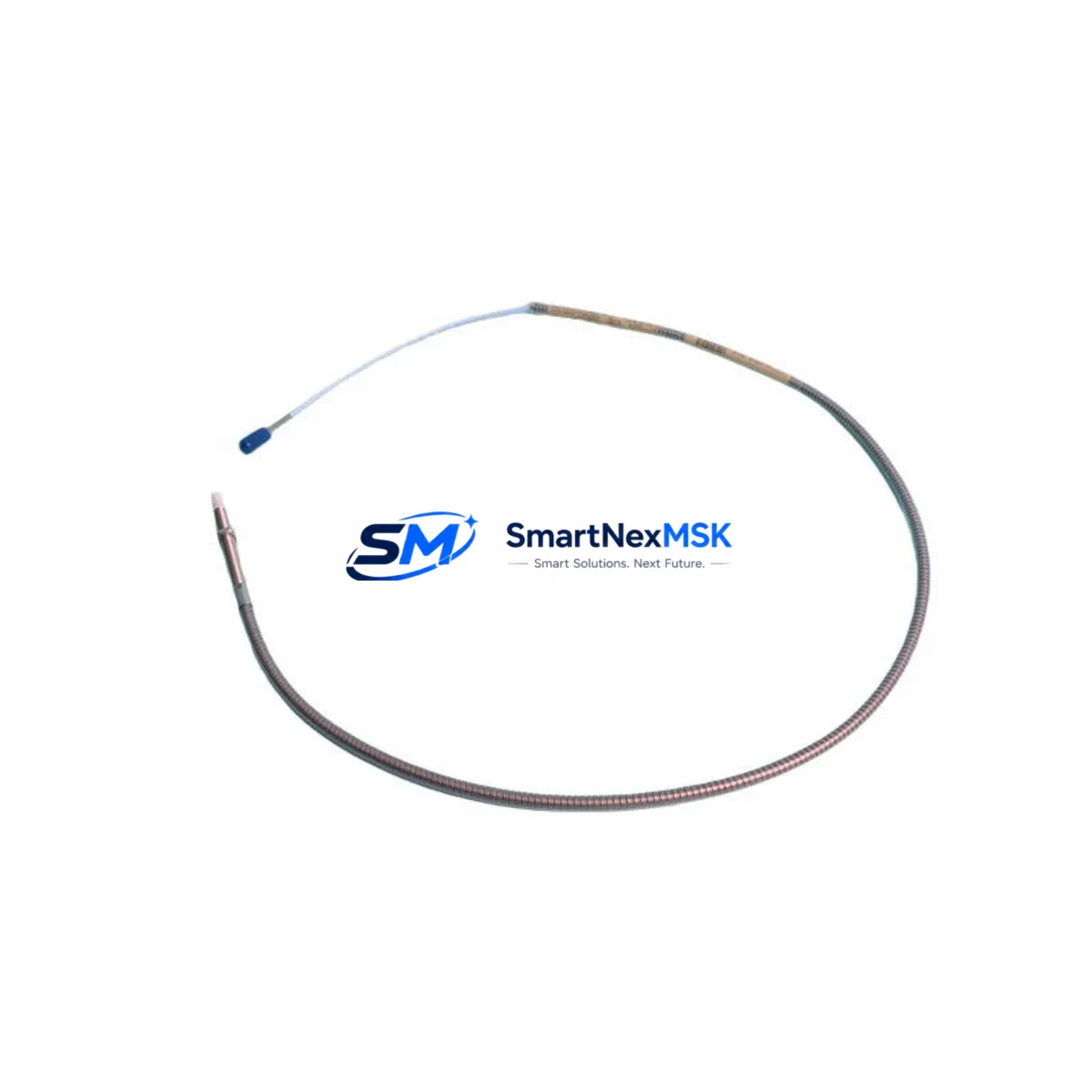

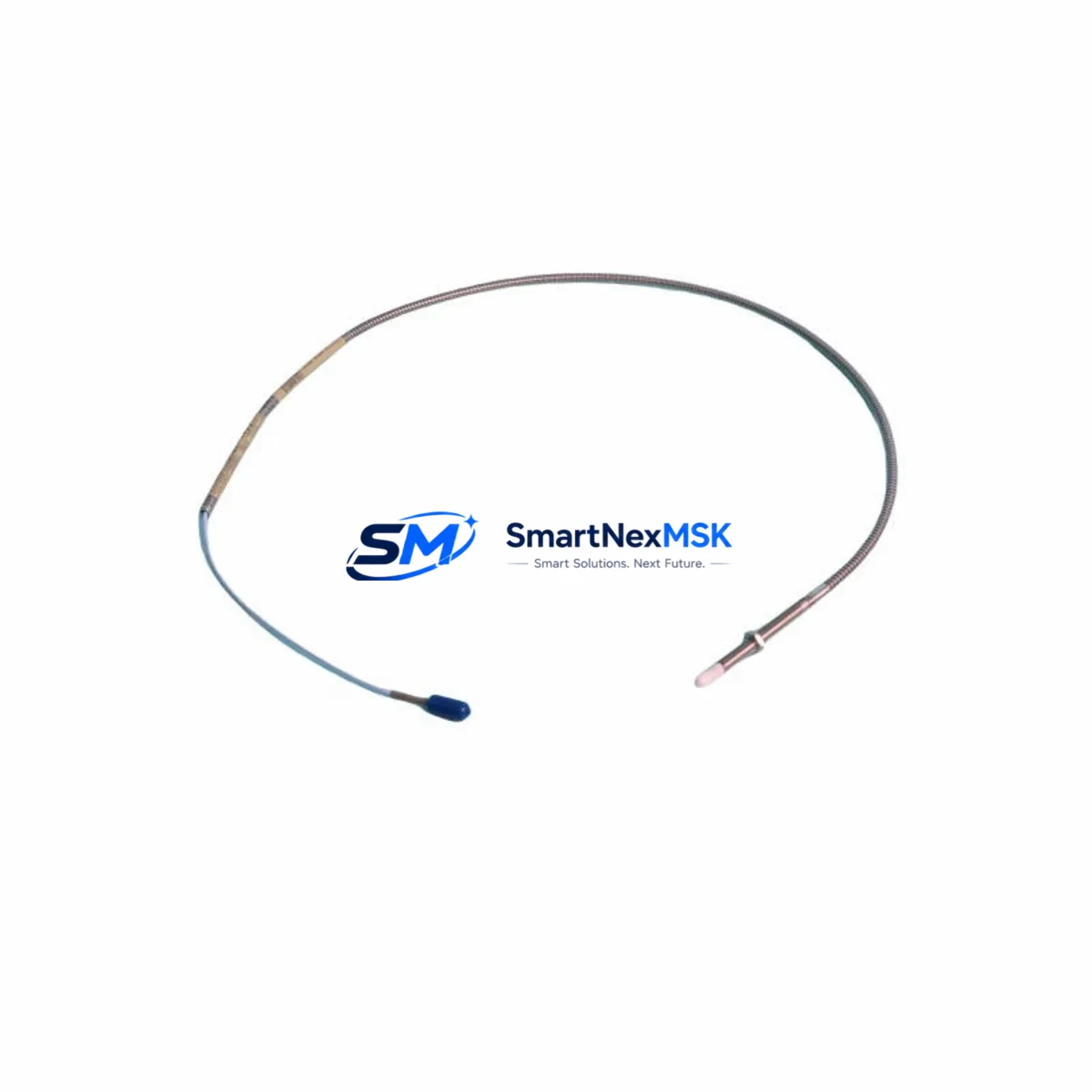

This listing provides an original, tested Bently Nevada 330910-00-24-50-02-00 proximity transducer, ready for immediate field deployment. Each unit is inspected prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can execute a confident, fast replacement without extended lead times or compatibility risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330910-00-24-50-02-00 proximity transducer in a 3300 XL monitoring system, a thorough site inspection is essential to prevent repeat failures and ensure the entire measurement chain is restored to specification. Maintenance engineers should approach this as a loop-level replacement, not a single-component swap.

Begin by inspecting the 330130 series extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — especially in high-vibration or high-temperature environments. A degraded extension cable will produce erratic gap voltage readings even with a new transducer installed. Similarly, the 330180 series 3300 XL Proximitor should be bench-tested or replaced as a precaution if the transducer failure was caused by a power surge or sustained overvoltage condition.

Check the 3300 XL monitor rack (such as the 3300/16 or 3300/20 series) for blown fuses, damaged I/O terminals, and correct channel configuration. Verify that the -24 VDC power supply module feeding the proximitor is within tolerance — a sagging supply rail is a common root cause of transducer measurement drift. If the control cabinet houses a 3500 series rack for overall machinery protection, confirm that the 3500/42M or 3500/45 position monitor cards are not flagging related alarms that could indicate a systemic issue beyond the transducer itself.

For cabinets with mixed I/O, inspect the terminal blocks and field wiring at the junction box. Loose or corroded terminals on the transducer signal pair (typically a coaxial or triaxial run) introduce noise that mimics mechanical vibration. If the system uses signal isolators or barriers for intrinsically safe zones, verify their output impedance is compatible with the 3300 XL proximitor input requirements. In older installations, Zener barriers or galvanic isolators may have drifted out of specification and should be replaced alongside the transducer.

Finally, if the machinery protection system interfaces with a DCS or PLC via 4–20mA output cards, confirm that the analog output from the 3300 XL monitor is correctly scaled and that the receiving I/O card (such as an analog input module in a Rockwell ControlLogix or Siemens S7-300 rack) is reading within expected range after the transducer swap. Document the as-found and as-left gap voltage readings to support future predictive maintenance trending.

Site Replacement Workflow

The 330910-00-24-50-02-00 is a direct replacement for earlier Bently Nevada 8mm probe assemblies used in 3300 XL systems. Its standardized connector interface and sensitivity output (200 mV/mil) ensure backward compatibility without requiring recalibration of the proximitor or monitor card in most installations.

Step 1 — Isolation: De-energize the proximitor supply and lock out the -24 VDC rail feeding the affected channel. Confirm zero voltage at the proximitor input terminals before disconnecting the probe cable.

Step 2 — Removal: Unthread the existing probe from the bracket, noting the installed gap (typically measured in mils using a DC voltmeter at the proximitor output). Record the as-found gap voltage for comparison after installation.

Step 3 — Installation: Thread the 330910-00-24-50-02-00 into the bracket and set the gap to the OEM-specified value (commonly 50 mil / 1.27mm for radial vibration applications). Secure the locknut and reconnect the extension cable.

Step 4 — Verification: Re-energize the proximitor and measure the DC gap voltage at the monitor input. Confirm the reading falls within the linear range (typically -10 VDC ±1 VDC at nominal gap). Clear any latched alarms on the 3300 XL monitor and verify the channel is reading live vibration data correctly.

Step 5 — Documentation: Log the as-left gap voltage, installation date, and part number in the equipment maintenance record. Update the spare parts inventory to trigger reorder of a replacement 330910-00-24-50-02-00 for the next planned maintenance cycle.

Spare Parts Support FAQ

Q1: Is the 330910-00-24-50-02-00 compatible with both 3300 XL and 3500 series monitoring systems?
The 330910-00-24-50-02-00 is designed and specified for the Bently Nevada 3300 XL system. While the 3500 series uses the same eddy-current measurement principle, the 3500 platform typically requires 3500-series qualified probes and proximitors. Confirm compatibility with your 3500 monitor card datasheet before cross-applying this transducer to a 3500 rack.

Q2: How should I manage inventory levels for this transducer in a multi-machine facility?
For facilities operating three or more machines with 3300 XL monitoring, a minimum stock of two 330910-00-24-50-02-00 transducers per machine type is recommended. Given typical lead times for OEM spares, maintaining a local buffer stock ensures same-shift replacement capability during unplanned outages. Pair each probe spare with a matched 330130 extension cable to avoid mixed-vintage assemblies.

Q3: What pre-shipment testing is performed on each unit?
Each 330910-00-24-50-02-00 unit is tested for DC resistance, insulation integrity, and output sensitivity (200 mV/mil ±1%) before dispatch. Units that do not meet Bently Nevada original specification are rejected. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and performance deviation from published specifications.

Q4: Can this transducer replace older discontinued Bently Nevada 8mm probe models?
The 330910-00-24-50-02-00 is the current production part for 8mm, 2.0m cable, 3300 XL proximity transducers and supersedes several earlier part numbers in the 330900 family. In most cases it is a direct drop-in replacement. However, always verify the proximitor model and extension cable part number to confirm the complete loop assembly remains within the 3300 XL system specification before commissioning.
