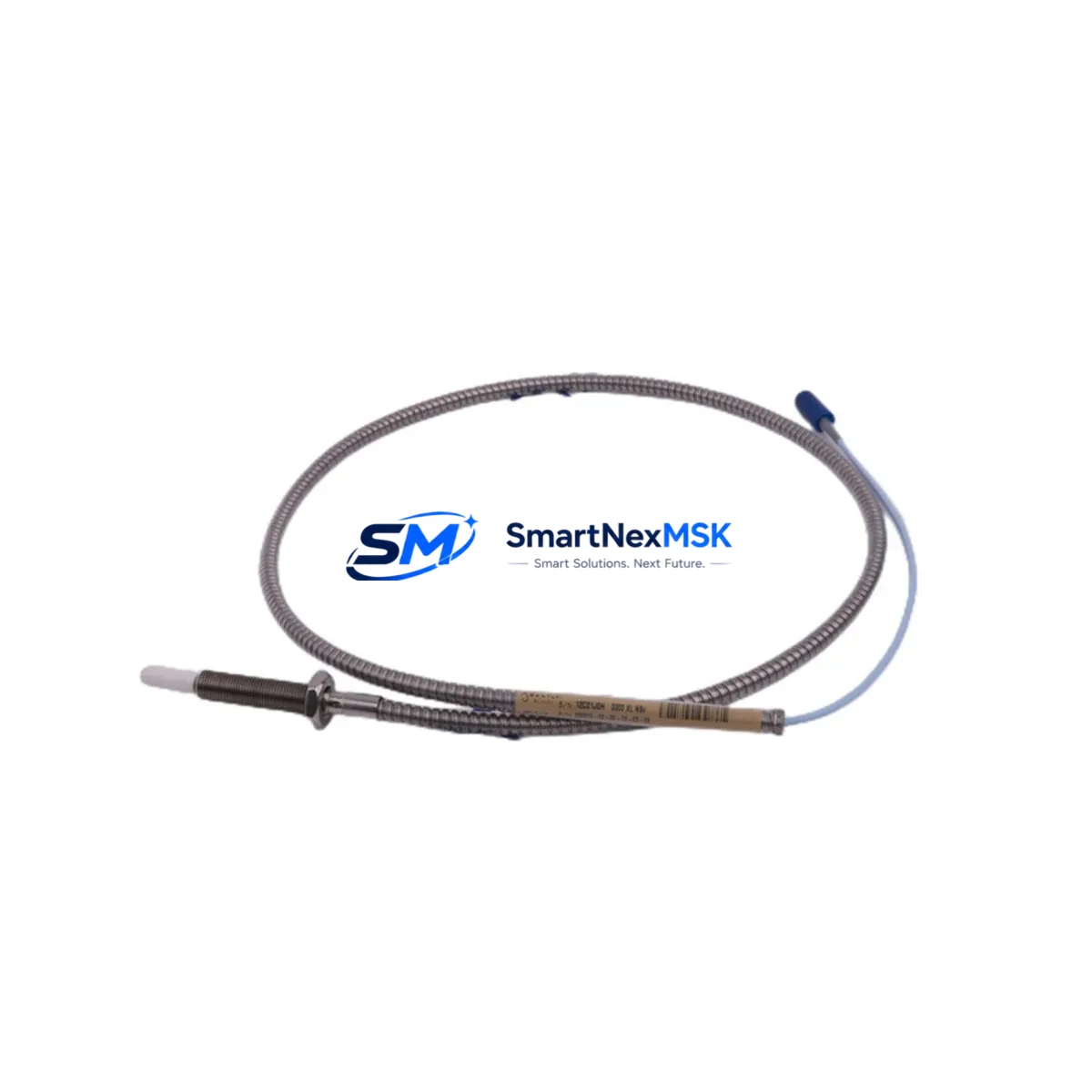

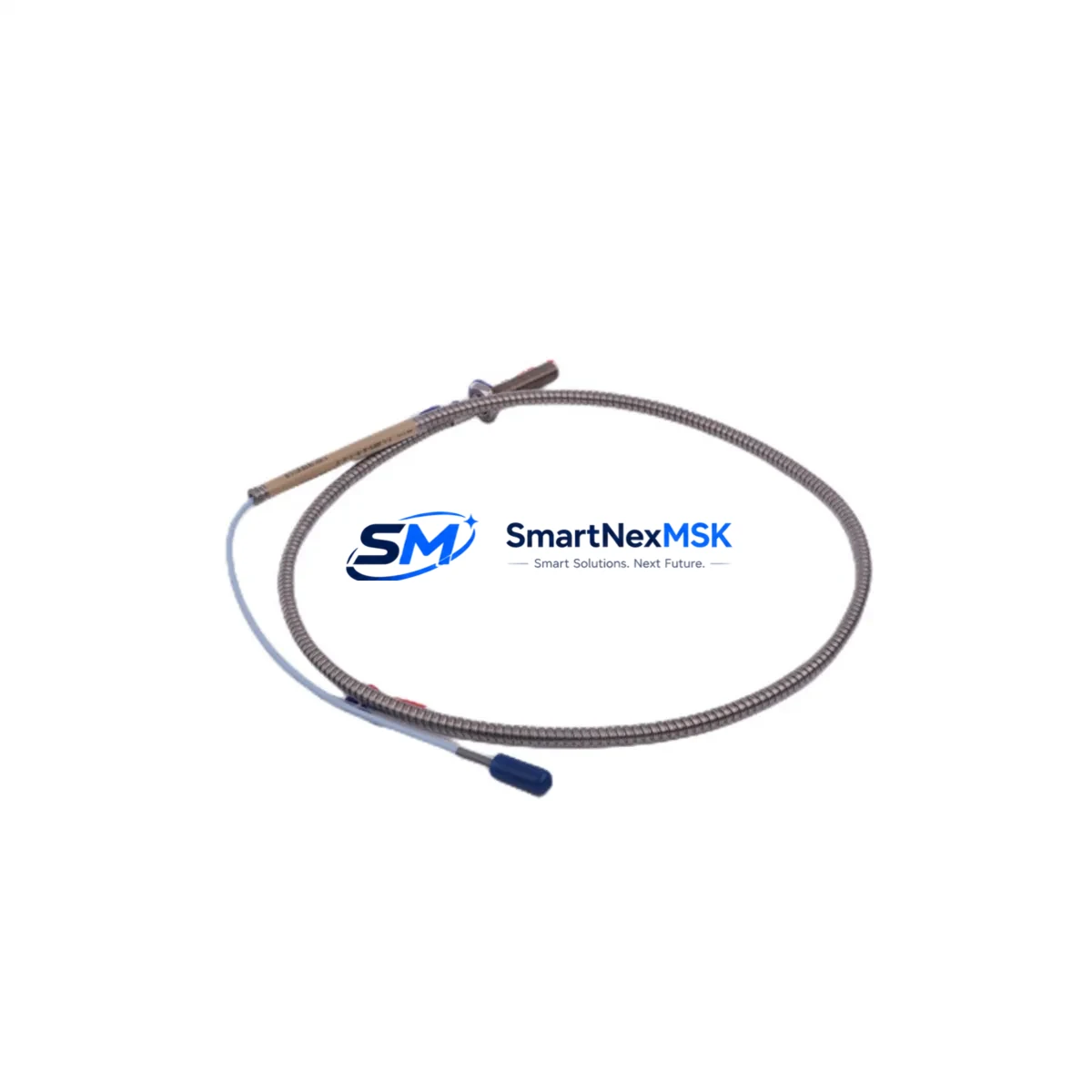

Bently Nevada 330910-05-11-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330910-05-11-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330910-05-11-10-02-00 is a ruggedized 11 mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably inside high-voltage control cabinets, rotating machinery enclosures, and hazardous-area installations, this probe delivers the signal integrity and mechanical durability that plant engineers depend on to prevent unplanned shutdowns and protect personnel.

In high-load, high-interference production facilities — petrochemical reactors, power generation turbines, mining hoists, metallurgical rolling mills, and water-treatment pump stations — vibration monitoring is not optional. It is the first line of defense against catastrophic bearing failure, shaft misalignment, and rotor instability. The 330910-05-11-10-02-00 is purpose-built for these conditions, providing stable, drift-free output even when exposed to electromagnetic interference, thermal cycling, mechanical shock, and corrosive atmospheres.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins with a correctly assembled measurement chain. The Bently Nevada 330910-05-11-10-02-00 probe is the field-sensing element of a complete 3300 XL system. It works in conjunction with the Bently Nevada 330130-045-00-00 Extension Cable to bridge the distance between the probe tip and the proximitor module mounted inside the control cabinet. The Bently Nevada 330180-X1-05 3300 XL Proximitor conditions the raw eddy-current signal into a clean, calibrated DC voltage output that can be read directly by the plant DCS or safety system.

Within the control cabinet, the Proximitor output feeds into Bently Nevada 3500/42M Proximitor / Seismic Monitor cards housed in a 3500 Rack, where trip and alarm setpoints are enforced in real time. To protect the entire measurement chain from power-line transients and surge events, a dedicated 24 VDC DIN-rail power supply with surge protection — such as those from the Phoenix Contact QUINT series — is recommended upstream of the Proximitor. Surge protection devices (SPDs) installed at the cabinet entry point prevent voltage spikes from propagating into sensitive signal circuits.

For installations in classified hazardous areas, the probe system is paired with Bently Nevada Zener barriers or galvanic isolators (such as the MTL 7787+ series) to maintain intrinsic safety (IS) integrity across the Ex ia boundary. Communication between the 3500 rack and the plant DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Profibus DP — is routed through isolated communication modules to prevent ground loops and common-mode noise from corrupting trip signals. Redundant 24 VDC UPS modules ensure that the monitoring system remains energized during grid disturbances, eliminating the risk of a false healthy status during a power event.

For rotating machinery with multiple measurement planes, the 330910-05-11-10-02-00 is typically deployed alongside Bently Nevada 330900 Series radial vibration probes and 330500 Series thrust position probes, forming a complete shaft-monitoring architecture that covers radial vibration (X–Y), axial position, and phase reference — all essential inputs for API 670-compliant machinery protection.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor trains and reactor feed pumps operating under continuous duty, the 330910-05-11-10-02-00 monitors shaft radial vibration to detect early-stage bearing wear, rotor imbalance, and oil-film instability. Early detection prevents uncontrolled releases and fire hazards associated with seal failure on high-pressure hydrocarbon services.

Power Generation: Steam and gas turbine generators require sub-millisecond response vibration monitoring to protect against catastrophic rotor failure. Installed on turbine bearing pedestals, this probe feeds real-time data to the 3500 protection rack, enabling automatic trip before vibration amplitude reaches destructive levels.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust, moisture, and mechanical shock. The ruggedized construction and wide operating temperature range of the 330910-05-11-10-02-00 ensure continuous signal output without recalibration drift, reducing unplanned downtime in remote mine sites where spare-part logistics are critical.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment plants run continuously. Vibration excursions caused by cavitation, impeller wear, or bearing degradation are detected early, allowing maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures.

Metallurgy & Steel: Rolling mill drives and continuous caster pinch rolls operate under extreme radial loads. The probe high-temperature tolerance and robust coaxial cable shielding maintain measurement accuracy in the presence of strong electromagnetic fields generated by large drive motors and induction furnaces.

Port & Heavy Lifting: Crane hoist gearboxes and large electric motors in port terminals benefit from continuous vibration monitoring to prevent catastrophic gear or bearing failure during high-cycle lifting operations, where a mechanical failure can result in dropped loads and personnel injury.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 330910-05-11-10-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering parts and workmanship defects from the date of shipment. If a unit fails under normal operating conditions within the warranty period, we provide a replacement or full refund.

Q2: How is each unit tested before shipment?
Every 330910-05-11-10-02-00 probe undergoes a 100% outgoing functional inspection prior to dispatch. Testing includes scale factor verification, linear range confirmation, and cable continuity check. A test report is available upon request for critical installations.

Q3: Is this probe compatible with existing 3300 XL extension cables and Proximitor modules?
Yes. The 330910-05-11-10-02-00 is fully compatible with the complete Bently Nevada 3300 XL ecosystem, including 330130 Series extension cables and 330180 Series Proximitor modules. It is a direct drop-in replacement for worn or failed probes in existing installations, requiring no recalibration of the Proximitor when the cable length configuration is matched.

Q4: Can long-term supply be guaranteed for maintenance and spare-part programs?
SMARTNEXMSK maintains dedicated stock of the 330910-05-11-10-02-00 and related 3300 XL components to support planned maintenance programs, annual turnarounds, and emergency replacement requirements. We supply to petrochemical, power, mining, and process industries globally, with fast dispatch and export documentation support for international shipments.
