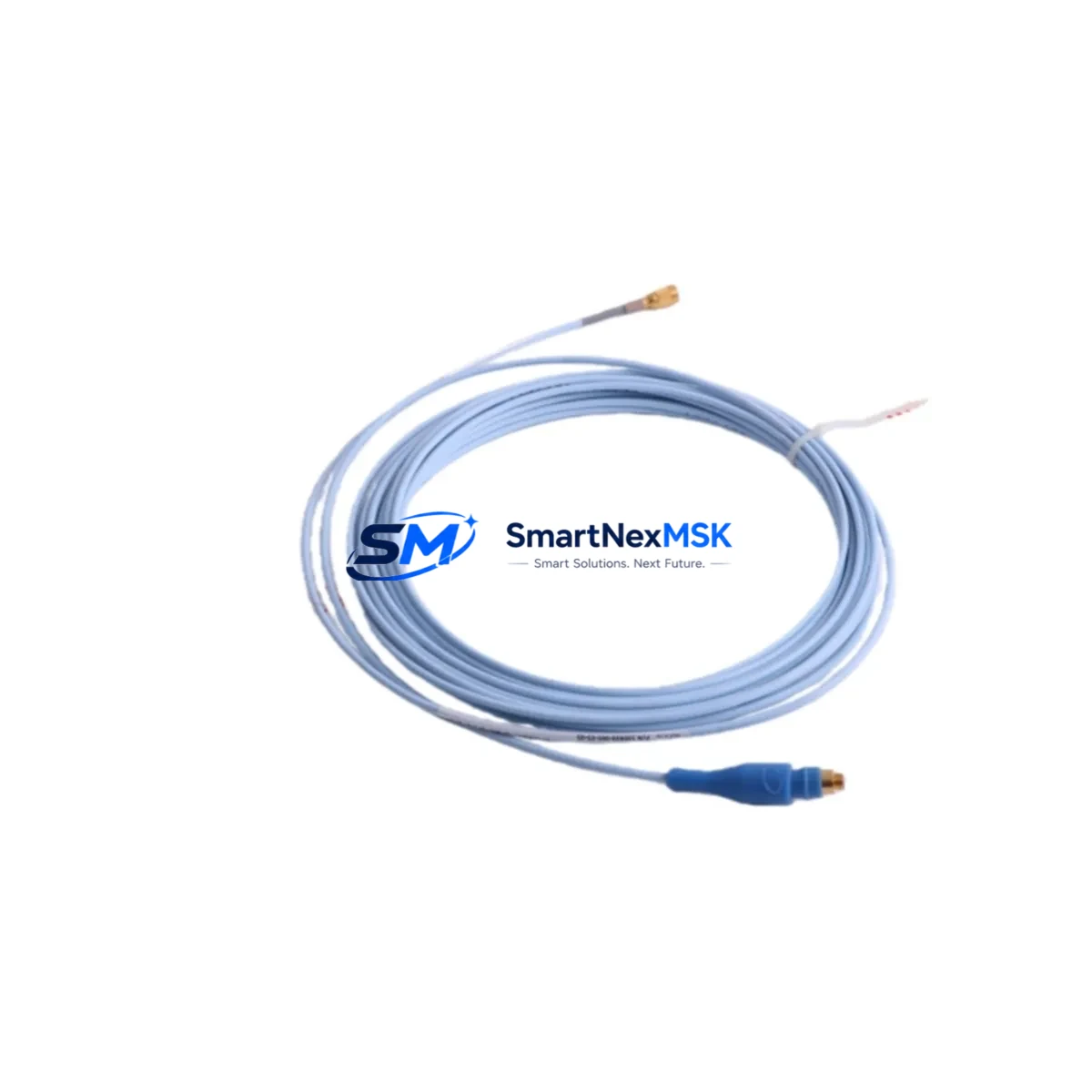

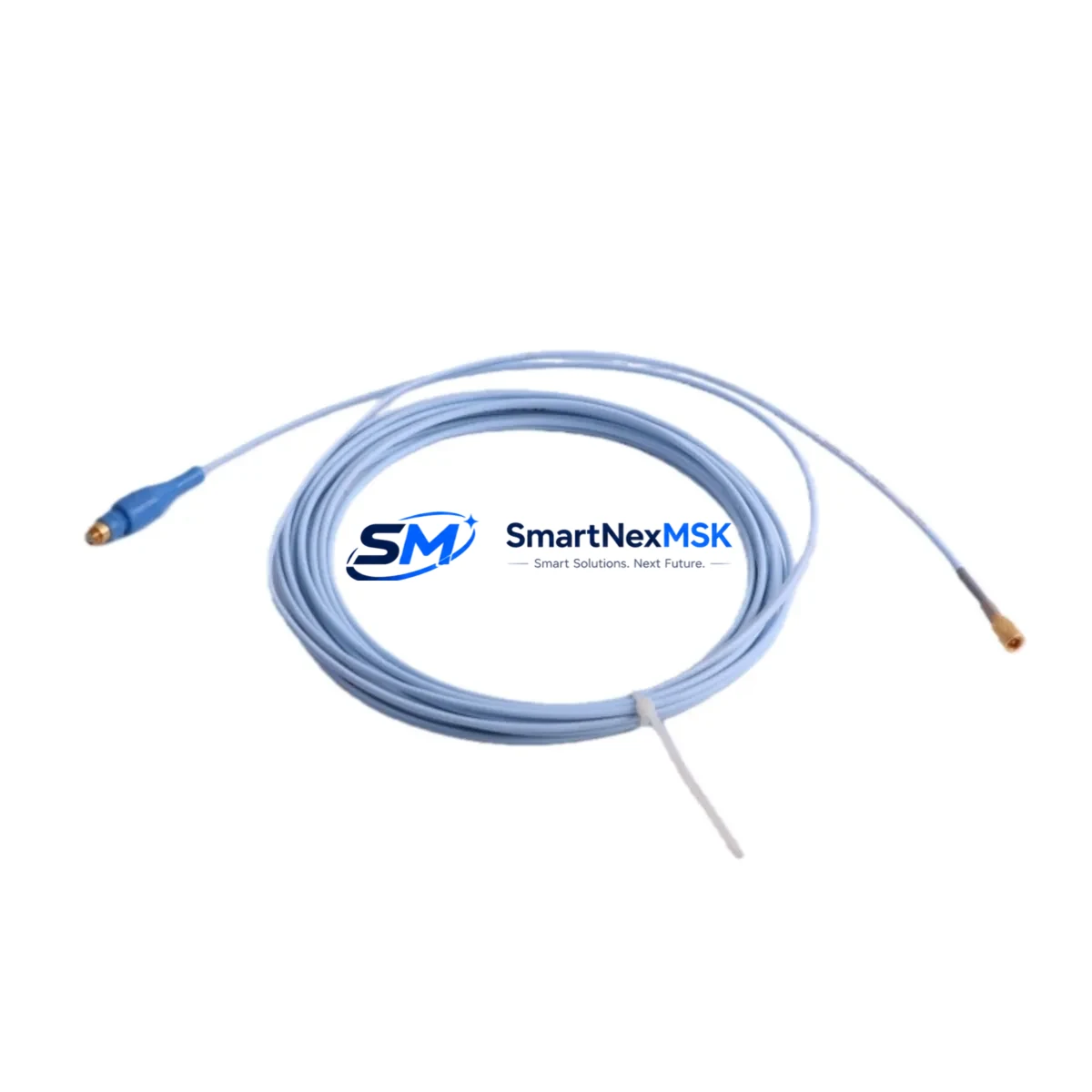

The Bently Nevada 330930-065-03-00 is a 6.5-metre (21-foot) extension cable engineered for the 3300 XL Proximitor® System — one of the most widely deployed eddy-current proximity transducer platforms in rotating machinery protection. This cable forms the critical signal path between the 330100-series proximity probe and the 3300 XL Proximitor® sensor, carrying the raw DC gap voltage and dynamic vibration signal to the monitoring system. A degraded or failed extension cable is a common root cause of spurious vibration alarms, false trips, and loss of machinery protection coverage. Stocking a verified replacement unit is the single most cost-effective step a maintenance team can take to protect uptime on turbines, compressors, pumps, and gearboxes instrumented with Bently Nevada 3300 XL systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330930-065-03-00 extension cable is replaced during a planned outage or emergency callout, experienced maintenance engineers treat the event as a trigger for a broader loop inspection. The extension cable is only one element of the complete proximity measurement chain. Before returning the machine to service, the following components in the same measurement loop and control cabinet should be verified:

• 330100-series proximity probe — inspect tip condition, thread integrity, and gap setting (typically 1.0–1.5 mm for 3300 XL). A worn probe tip will produce a non-linear output even with a new cable.
• 3300 XL Proximitor® Sensor (330180 / 330185) — check oscillator output voltage (nominally −12 VDC at calibrated gap), verify housing seal, and confirm the sensor is within its calibrated range for the target material.
• 3500/42M Proximitor® I/O Module — if the machine is integrated into a 3500 Series rack, inspect the I/O module for corrosion on the terminal block and verify channel configuration in the 3500 Rack Configuration Software.
• 3500/15 Power Supply Module — confirm output voltage stability (±24 VDC) and check for blown fuses or capacitor bulge. A marginal power supply is a frequent hidden cause of intermittent vibration channel faults.
• Barrier / Zener safety barrier or galvanic isolator — in hazardous-area installations, inspect the intrinsic safety barrier (e.g., MTL or Pepperl+Fuchs units) for correct entity parameters and continuity. A degraded barrier can attenuate the proximity signal and cause false low-gap alarms.
• Terminal blocks and cable glands — check all Phoenix Contact or equivalent terminal blocks in the junction box for loose screws, oxidation, and correct wire ferrule crimps. Loose terminations are a leading cause of intermittent channel dropouts.
3500/22M Transient Data Interface (TDI) — if ADRE 408 DSPi or System 1 software is in use, verify the TDI module is communicating correctly and that waveform data is being captured for the repaired channel.
• Keyphasor® probe and cable (330980-series) — the Keyphasor signal is used for phase and speed reference across all vibration channels. Inspect the Keyphasor extension cable and Proximitor® sensor in parallel with any radial or axial channel repair.
• Signal conditioner / 3300 XL Velomitor® (330500-series) — on machines with both proximity and velocity measurements, inspect the Velomitor® cable and connector for chafing or moisture ingress, particularly in outdoor or wash-down environments.
• HMI / DCS interface card — confirm that the 4–20 mA or digital output from the 3500 rack to the DCS (e.g., Emerson DeltaV or Honeywell Experion) is within range after the cable replacement, and that no latched alarms remain in the safety system.

Maintaining a minimum of two 330930-065-03-00 cables per critical machine train in the site spare-parts store is recommended practice for facilities operating continuous-duty rotating equipment. The cable’s relatively low unit cost compared to the cost of an unplanned shutdown makes it a high-priority line item in any reliability-centred maintenance (RCM) spare-parts strategy.

Site Replacement Workflow

The 330930-065-03-00 is a direct, pin-compatible replacement for earlier Bently Nevada 330930-065-XX-00 variants used in legacy 3300 and 3300 XL installations. The following workflow minimises downtime during a field swap:

1. Isolate and document — record the existing gap voltage (DC bias) on the channel before disconnection. This baseline confirms the probe and Proximitor® sensor are healthy and isolates the cable as the fault source.
2. Disconnect at both ends — release the MIL-C-5015 bayonet connectors at the probe junction box and at the Proximitor® sensor. Inspect both connector shells and pins for corrosion, bent contacts, or moisture. Clean with contact cleaner if required.
3. Route and secure the new cable — follow the original cable route to avoid interference with hot surfaces, rotating parts, or high-voltage conduit. Use stainless-steel cable ties or conduit clamps rated for the operating temperature.
4. Reconnect and verify gap — reconnect both ends, power up the Proximitor® sensor, and measure the DC gap voltage. Adjust probe position if the gap voltage has shifted from the pre-fault baseline. Target gap is defined in the machine-specific Bently Nevada installation drawing.
5. Confirm system response — clear any latched alarms in the 3500 rack or DCS, verify that vibration and position readings are within normal operating limits, and confirm that the ADRE or System 1 historian is logging data from the repaired channel.
6. Update maintenance records — log the part number, serial number (if applicable), installation date, and post-replacement gap voltage in the CMMS. Schedule the next cable inspection at the next planned outage.

This workflow applies equally to radial vibration, axial position (thrust), and differential expansion channels instrumented with 3300 XL hardware. The same procedure, with minor adaptations, covers replacement of 330930-045-03-00 (4.5 m) and 330930-090-03-00 (9.0 m) cables in the same series.

Spare Parts Support FAQ

Q1: Is the 330930-065-03-00 compatible with both the 3300 XL and the older 3300 Proximitor® systems?
A: Yes. The 330930-065-03-00 is electrically and mechanically compatible with the 3300 XL Proximitor® sensor family. It is also backward-compatible with earlier 3300-series Proximitor® sensors that use the same MIL-C-5015 connector standard, provided the total system cable length (probe + extension) remains within the Bently Nevada-specified range for the target gap and material.

Q2: What pre-shipment testing is performed on each unit?
A: Every 330930-065-03-00 shipped from our inventory undergoes continuity testing on all conductors, insulation resistance measurement between conductors and shield, and a physical inspection of both connector assemblies. Units that do not meet specification are quarantined and not shipped. A test record is available on request.

Q3: How should the 330930-065-03-00 be stored as a long-term spare?
A: Store in the original packaging or an anti-static bag, in a clean, dry environment between −20 °C and +60 °C, away from direct sunlight and chemical vapours. Inspect connector caps for integrity annually. Cables stored under these conditions maintain full electrical specification for a minimum of five years. Our 12-month warranty runs from the date of shipment.

Q4: What is the lead time and warranty coverage?
A: In-stock units are dispatched within 1–3 business days. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Warranty claims are supported by our technical team with replacement or full refund at our discretion. Long-term supply agreements and consignment stock arrangements are available for OEM and EPC customers.

---
