Bently Nevada 3500/05-01-02-00-00-00 Retrofit-Ready Rack Chassis for 3500 Series Control Systems

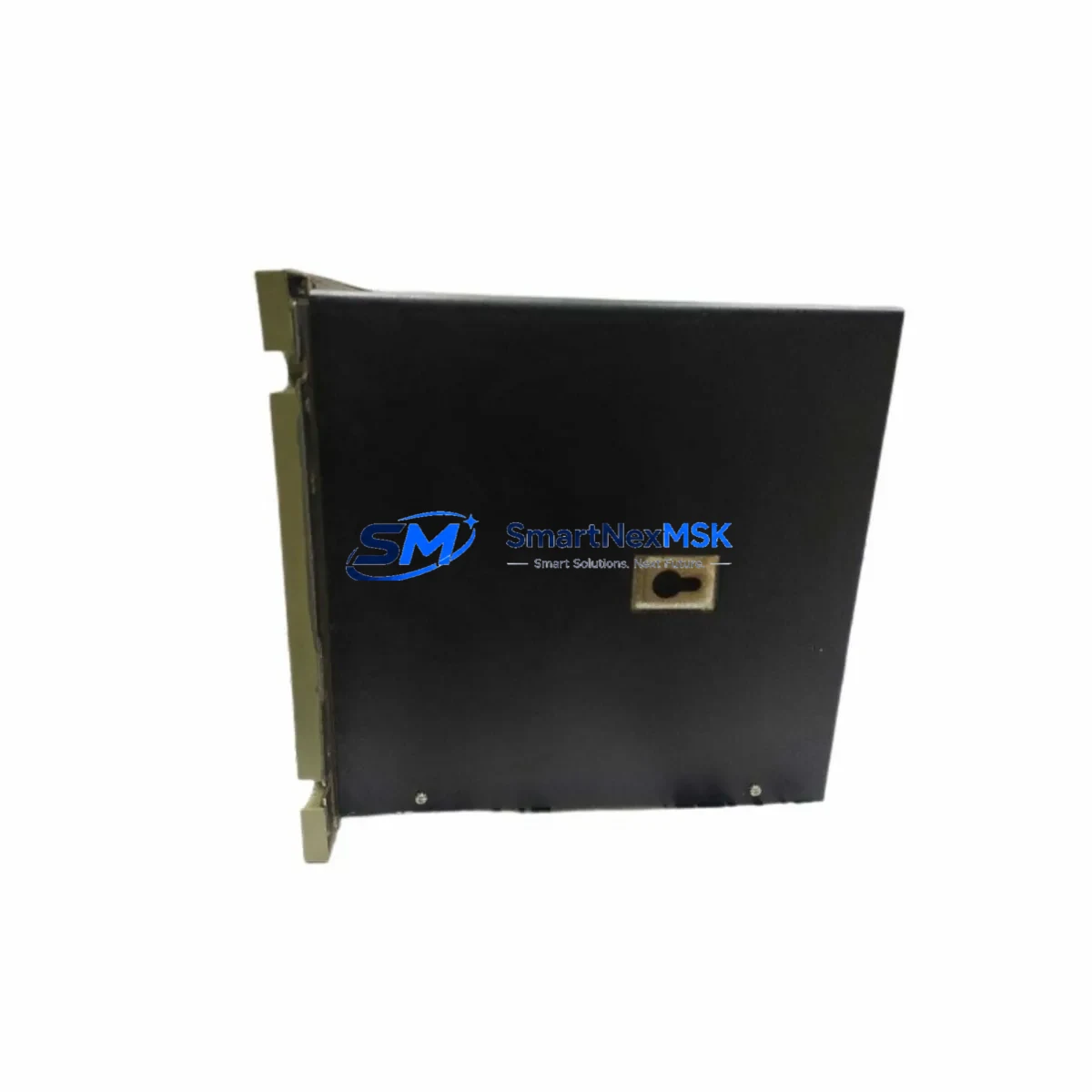

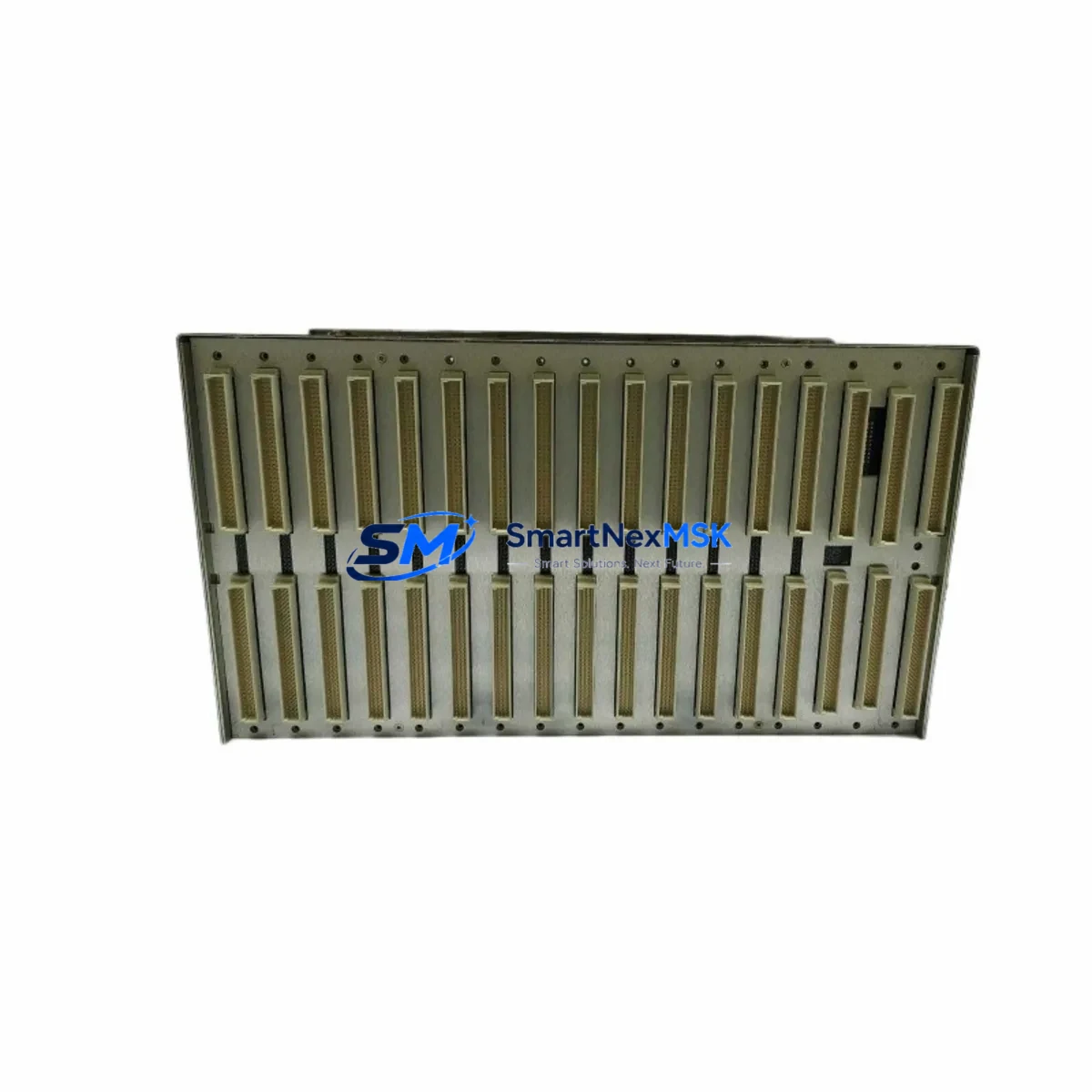

The Bently Nevada 3500/05-01-02-00-00-00 is a 19-inch rack chassis designed as the structural and power backbone of the Bently Nevada 3500 Series Machinery Protection System (MPS). As legacy installations age and OEM support windows close, this chassis has become one of the most sought-after retrofit components for plants seeking to extend the operational life of their existing 3500 Series infrastructure without committing to a full platform migration. Whether you are replacing a failed chassis, upgrading a degraded backplane, or rebuilding a control cabinet after a surge event, the 3500/05-01-02-00-00-00 provides a verified drop-in solution that preserves your existing module population, wiring topology, and program logic.
This chassis accommodates the full range of 3500 Series I/O and monitor modules, including the 3500/15 Power Supply Module, 3500/20 Rack Interface Module, 3500/22M Transient Data Interface, 3500/25 Enhanced Keyphasor Module, 3500/32 4-Channel Relay Module, 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor. The backplane slot addressing and inter-module communication bus remain fully compatible with all standard 3500 Series monitor cards, eliminating the need for firmware re-mapping or address reassignment during swap-out.
For sites running Bently Nevada System 1 software or interfacing via the 3500/92 Communication Gateway Module using Modbus RTU, Modbus TCP, or Profibus DP, the chassis replacement does not interrupt the communication link configuration stored in the gateway module itself. Engineers should verify that the 3500/20 Rack Interface Module is reseated correctly and that the system rack address DIP switches are set to match the original configuration before powering up the replacement chassis.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 3500/05-01-02-00-00-00 |
| Brand | Bently Nevada |
| Series | 3500 Series Machinery Protection System |
| Form Factor | 19-inch Rack Chassis |
| Slot Capacity | Supports full 3500 Series module population |
| Backplane Interface | Compatible with all standard 3500 Series monitor and I/O modules |
| Power Input | Accepts 3500/15 Power Supply Module (AC/DC variants) |
| Communication Compatibility | Modbus RTU, Modbus TCP, Profibus DP via 3500/92 Gateway |
| Rack Interface Module | 3500/20 (required, not included) |
| Installation Requirement | Standard 19-inch rack mount; ESD precautions required |
| Replacement Scope | Direct chassis swap; no module firmware changes required |
| Commissioning | DIP switch rack address verification; System 1 re-scan recommended |
| Origin | USA |
| Warranty | 12-Month Warranty |
Retrofit Planning for Existing Automation Systems
A successful chassis retrofit begins well before the replacement unit arrives on site. The first step is a full module inventory of the existing rack: document every occupied slot, record the module part number, firmware revision, and any jumper or DIP switch settings. For a typical 3500 Series installation, this will include the 3500/15 Power Supply Module, the 3500/20 Rack Interface Module, one or more 3500/40M or 3500/42M Proximitor/Seismic Monitor cards, a 3500/32 4-Channel Relay Module for trip output wiring, and potentially a 3500/22M Transient Data Interface for high-speed waveform capture. If the system is integrated with a DCS or SCADA platform via the 3500/92 Communication Gateway Module, export the gateway configuration file before any hardware is disturbed.
Terminal wiring is the most time-sensitive element of the retrofit. The 3500 Series uses a rear-entry I/O termination architecture, meaning all field wiring connects through the back of the chassis via dedicated I/O module terminal blocks. Before removing the old chassis, photograph or sketch every terminal connection, label each wire with its destination tag, and verify that the replacement chassis backplane pinout matches the original. For sites where the 3500/25 Enhanced Keyphasor Module is installed, pay particular attention to the Keyphasor input wiring polarity and shield grounding, as incorrect reassembly can cause false speed readings and nuisance trips.
Power capacity verification is equally critical. Confirm that the 3500/15 Power Supply Module in use — whether the standard AC input or the 24 VDC version — is rated to supply the full module load of the replacement chassis. If additional I/O modules such as a 3500/45 Position Monitor or a 3500/50M Tachometer Monitor have been added to the system since the original installation, recalculate the total power budget before commissioning. Overloading the power supply is a common cause of intermittent resets and false trip events in retrofitted 3500 Series racks.
For sites migrating from an older Bently Nevada 3300 Series or 7200 Series platform to the 3500 Series, the 3500/05-01-02-00-00-00 chassis serves as the foundation of the new rack assembly. In these cross-series migrations, the transducer wiring, Keyphasor probe cabling, and relay output circuits will all require re-termination to match the 3500 Series I/O module pinout. A programming cable and a laptop running System 1 software should be on hand during commissioning to verify that all channel configurations, alert setpoints, and danger setpoints have been correctly transferred from the legacy system documentation.
Downtime Control During System Migration
Minimizing unplanned downtime during a chassis swap requires a structured pre-outage preparation protocol. Begin by scheduling the replacement during a planned maintenance window and coordinating with the operations team to ensure that all associated machinery — compressors, turbines, pumps, or fans monitored by the 3500 Series rack — can be safely taken offline for the duration of the swap. For critical rotating equipment where continuous monitoring is contractually or regulatorily required, arrange for a portable vibration monitoring system to maintain surveillance during the chassis replacement interval.
Before powering down the existing rack, use System 1 software to export a full configuration backup, including all channel parameters, setpoint tables, relay logic assignments, and communication gateway settings. This backup file is your primary recovery tool if the commissioning of the replacement chassis reveals any discrepancy between the documented configuration and the actual field wiring. Store the backup on a local drive and a network share simultaneously.
During the physical swap, transfer modules one at a time from the old chassis to the new 3500/05-01-02-00-00-00 chassis, maintaining slot position discipline throughout. Do not power up the new chassis until all modules are seated, all rear terminal wiring is reconnected and verified, and the rack address DIP switches on the 3500/20 Rack Interface Module are confirmed to match the original setting. After initial power-up, allow the system to complete its self-test sequence before re-enabling trip outputs. Verify all channel OK status indicators on the 3500/20 front panel before returning the monitored machinery to service. A full System 1 re-scan and alarm acknowledgment cycle should be completed before the maintenance window is closed.
Retrofit Support FAQ
Q: Is the 3500/05-01-02-00-00-00 a direct replacement for all 3500 Series chassis variants?
A: The 3500/05-01-02-00-00-00 is the standard 19-inch rack chassis for the Bently Nevada 3500 Series MPS. It is compatible with the full range of 3500 Series monitor and I/O modules. If your existing installation uses a different chassis suffix (e.g., -01-00-00-00-00 or -02-00-00-00-00), contact our technical team to confirm the exact backplane and power supply compatibility before ordering.
Q: Do I need to reconfigure the 3500/92 Communication Gateway Module after a chassis swap?
A: In most cases, no. The communication configuration is stored in the 3500/92 module’s non-volatile memory and is not affected by a chassis replacement. However, after reseating the module in the new chassis, perform a communication link test from your DCS or SCADA host to confirm that Modbus or Profibus polling is restored correctly before returning the system to service.
Q: What pre-shipment testing is performed on the 3500/05-01-02-00-00-00?
A: Each unit undergoes functional power-up testing, backplane continuity verification, and visual inspection prior to shipment. Units are packed with ESD-protective materials and shipped with a test report. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
Q: Can this chassis be used in a hot-standby or redundant 3500 Series configuration?
A: Yes. The 3500/05-01-02-00-00-00 chassis supports redundant power supply configurations when paired with a second 3500/15 Power Supply Module. For full system redundancy, consult the Bently Nevada 3500 Series System Manual for rack addressing and redundancy wiring requirements. Our technical team can assist with redundancy planning as part of the retrofit support service.
