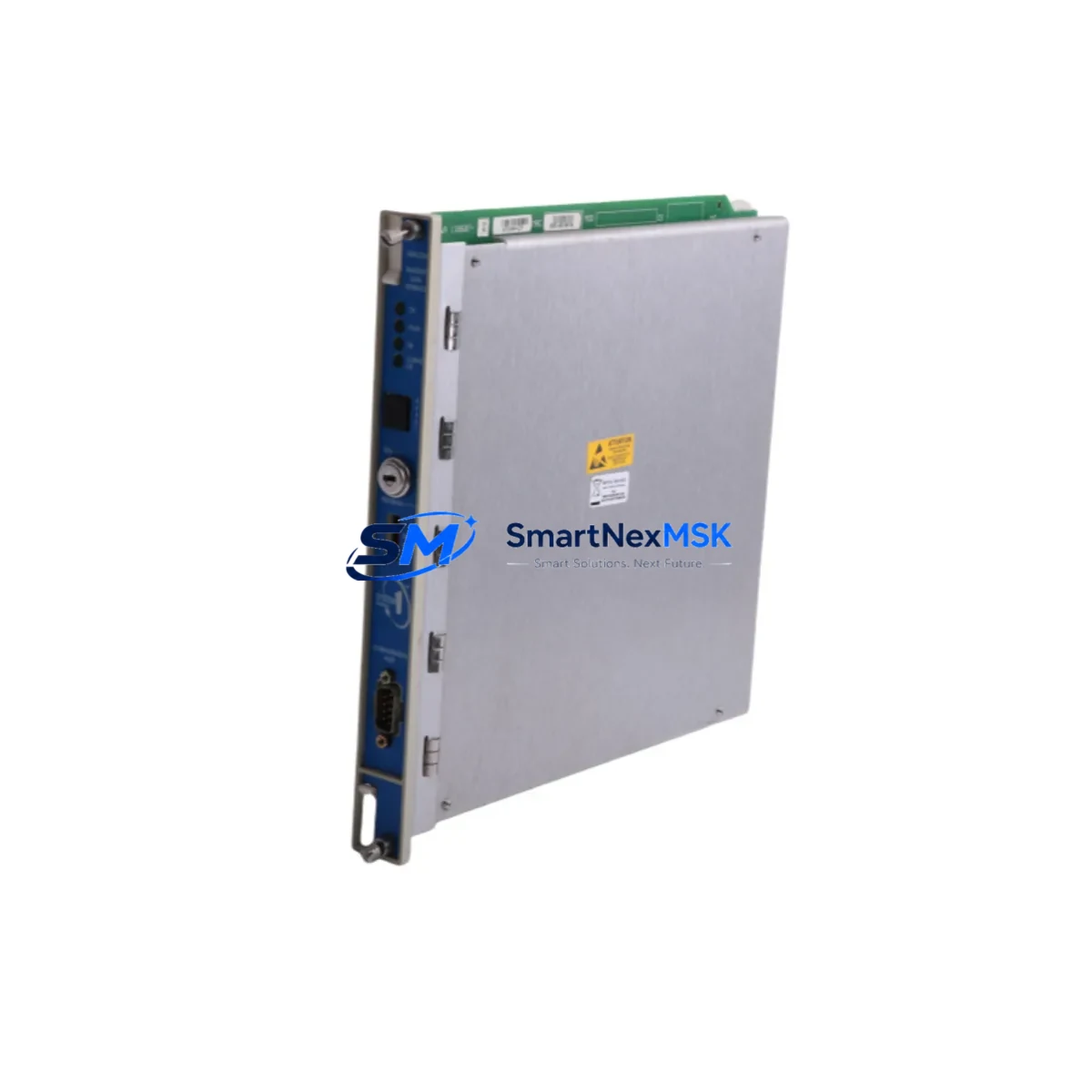

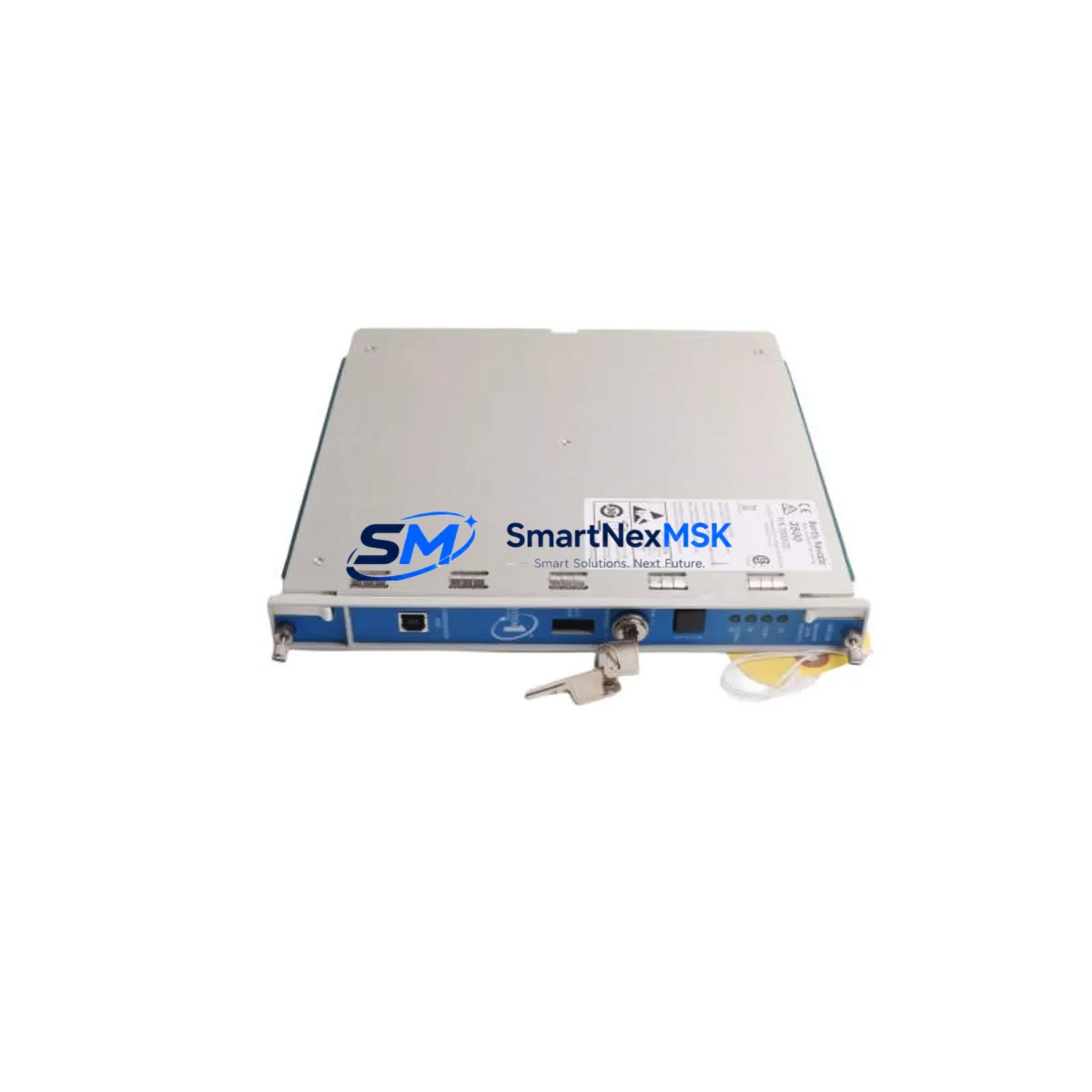

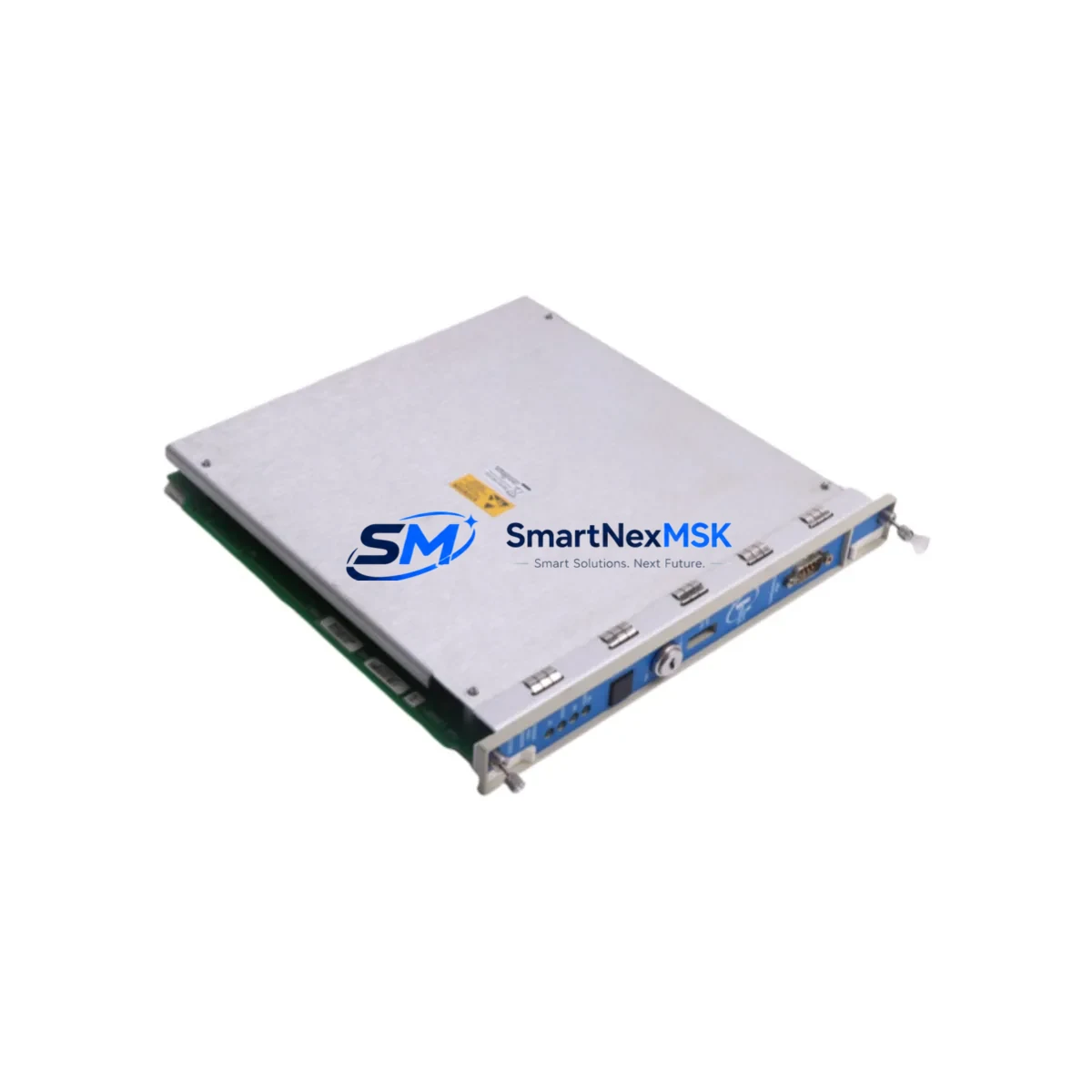

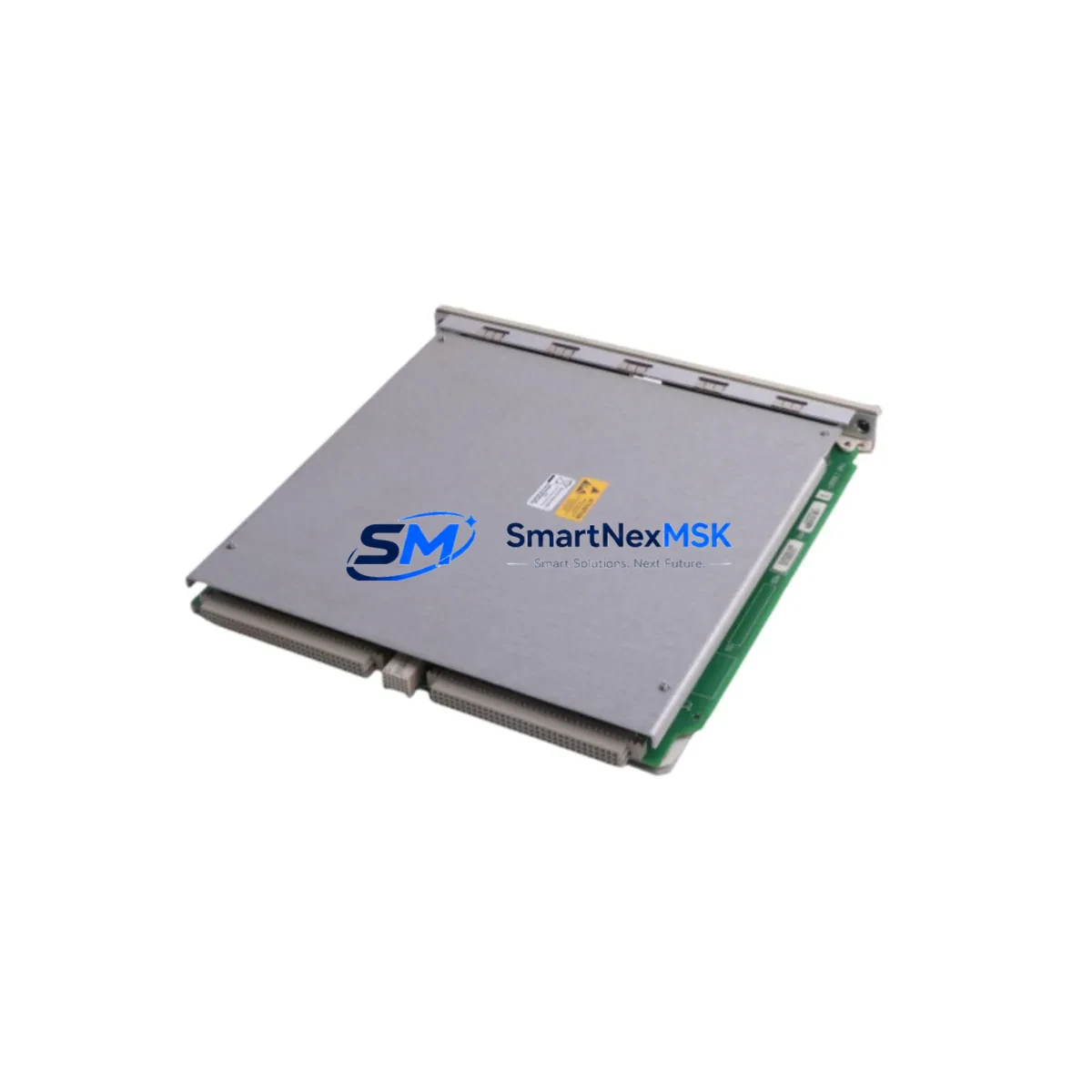

Bently Nevada 3500/22M 138607-01 Retrofit-Ready TDI Module

Bently Nevada 3500/22M 138607-01 Retrofit-Ready TDI Module for 3500 Series Control Systems

The Bently Nevada 3500/22M 138607-01 is a Transient Data Interface (TDI) Module designed for seamless integration into the Bently Nevada 3500 Series Machinery Protection System. As legacy vibration monitoring infrastructure ages across power generation, oil and gas, petrochemical, and rotating machinery applications, the 3500/22M 138607-01 serves as a critical retrofit and drop-in replacement component — enabling engineers to restore full transient data acquisition capability without redesigning the existing rack architecture or rewriting established monitoring logic.

This module captures high-resolution transient waveform data from proximity probes, velocity sensors, and accelerometers connected to the 3500 Series rack. It interfaces directly with the 3500/01 Rack Interface Module and communicates transient records to the System 1 condition monitoring software platform via the rack backplane. When a legacy TDI module fails or reaches end-of-service life, the 3500/22M 138607-01 provides a verified, tested replacement that preserves existing channel configurations, alarm setpoints, and Keyphasor reference assignments without requiring a full system reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life 3500/22M 138607-01 in an operating plant requires careful pre-outage planning to minimize risk and ensure a smooth cutover. Before the scheduled maintenance window, engineers should document the existing rack configuration using the Bently Nevada Rack Configuration Software (RCS), exporting the current .rck file as a baseline. This file captures all channel assignments, full-scale ranges, alarm setpoints, Keyphasor references, and transient data trigger parameters — all of which must be verified against the replacement module after installation.

The 3500 Series rack typically houses a combination of modules depending on the monitored machine train. A standard turbine protection rack may include the 3500/40M Proximitor/Seismic Monitor for radial vibration, the 3500/42M Proximitor/Seismic Monitor for axial position and thrust, the 3500/45 Position Monitor for differential expansion, and the 3500/50M Tachometer Module for speed measurement. The 3500/22M 138607-01 TDI module works alongside these monitors, capturing raw waveform snapshots triggered by alarm events or operator commands, and forwarding them to the System 1 software for spectral analysis and trend review.

Power budget verification is an essential pre-installation step. The 3500/15 or 3500/15E Power Supply Module must have sufficient headroom to support the replacement TDI module. Engineers should confirm the total rack power draw does not exceed the supply rating, particularly in racks that have been expanded with additional I/O or communication modules over time. The 3500/20 Rack Interface Module or 3500/01 provides the backplane connectivity that the 3500/22M relies on — confirm that the backplane is undamaged and that the slot contacts are clean before seating the replacement module.

Terminal wiring for field sensors connected to the TDI module is routed through the associated I/O module terminal block. Before removing the failed module, photograph or document all field wiring terminations. The replacement 3500/22M 138607-01 uses the same terminal block pinout as the original, so no rewiring is required in a direct swap scenario. However, if the retrofit involves migrating from an older 3500/22 variant, verify that the terminal block connector type is compatible or source the appropriate adapter terminal block.

For plants integrating the 3500 Series rack with a DCS or SCADA platform via Modbus TCP or OPC-DA, the 3500/92 Communication Gateway Module handles protocol translation. After replacing the TDI module, confirm that the gateway configuration still correctly maps the transient data tags to the DCS historian. If the plant is migrating from an older communication architecture to OPC-UA, this retrofit window is an appropriate time to upgrade the 3500/92 gateway firmware or replace it with the current-generation communication module to support modern data integration requirements.

Downtime Control During System Migration

Minimizing unplanned downtime during a TDI module replacement is achievable with a structured hot-swap protocol. The 3500 Series rack supports individual module replacement without powering down the entire rack, provided the replacement is performed according to Bently Nevada field service procedures. Before removing the 3500/22M 138607-01, place the rack in bypass mode for the affected channels to prevent spurious trips during the swap. The 3500/01 Rack Interface Module allows channel-level bypass to be applied from the front panel or via the RCS software, ensuring that the remaining protection channels — radial vibration, axial position, speed — continue to provide active machinery protection throughout the procedure.

Once the replacement module is seated and the rack recognizes it, reload the saved .rck configuration file to restore all channel parameters. Perform a functional verification by applying a known reference signal to each input channel and confirming that the System 1 software displays the expected waveform and amplitude. Verify that transient data triggers are active and that the Keyphasor reference from the 3500/17 module is correctly assigned. Remove the channel bypass only after all verification steps are complete and the module has been confirmed operational. This structured approach typically allows a TDI module replacement to be completed within a two-to-four hour maintenance window, with no impact to the protection logic of adjacent monitoring channels.

All replacement 3500/22M 138607-01 modules supplied by SMARTNEXMSK are tested prior to shipment using functional test equipment that replicates the 3500 Series rack environment. Each unit is verified for correct transient data acquisition, channel isolation, backplane communication, and alarm output response before packaging. Units are shipped with a 12-month warranty covering manufacturing defects and functional performance, with documentation available upon request for quality records and incoming inspection.

Retrofit Support FAQ

Q: Is the 3500/22M 138607-01 a direct drop-in replacement for the original module in my 3500 Series rack?
A: Yes. The 3500/22M 138607-01 is a direct slot-compatible replacement for the original Bently Nevada TDI module in the 3500 Series rack. No mechanical modifications or backplane adapters are required. Existing field wiring, terminal blocks, and rack configuration files (.rck) are fully reusable, significantly reducing installation time and reconfiguration risk.

Q: What commissioning steps are required after installing the replacement module?
A: After seating the module, reload the saved Rack Configuration Software (.rck) file to restore channel assignments, alarm setpoints, full-scale ranges, and Keyphasor references. Apply a reference signal to each input channel to verify correct amplitude and waveform display in System 1. Confirm transient data triggers are active, then remove channel bypass and return the rack to normal protection mode. Document all verification results for maintenance records.

Q: How do I verify wiring compatibility if I am replacing an older 3500/22 variant rather than a like-for-like 3500/22M?
A: Compare the terminal block connector type and pinout between the installed variant and the 3500/22M 138607-01 using the Bently Nevada installation manual for each part number. In most cases the terminal block is compatible, but if the older variant used a different connector style, a terminal block adapter may be required. Contact our technical team with your existing part number and we will confirm compatibility before shipment.

Q: What does the 12-month warranty cover, and is pre-shipment testing documentation available?
A: The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. All units undergo functional pre-shipment testing that verifies transient data acquisition, channel isolation, backplane communication, and alarm output response. Test documentation and certificates of conformance are available upon request and can be provided with the shipment for incoming inspection and quality records.
