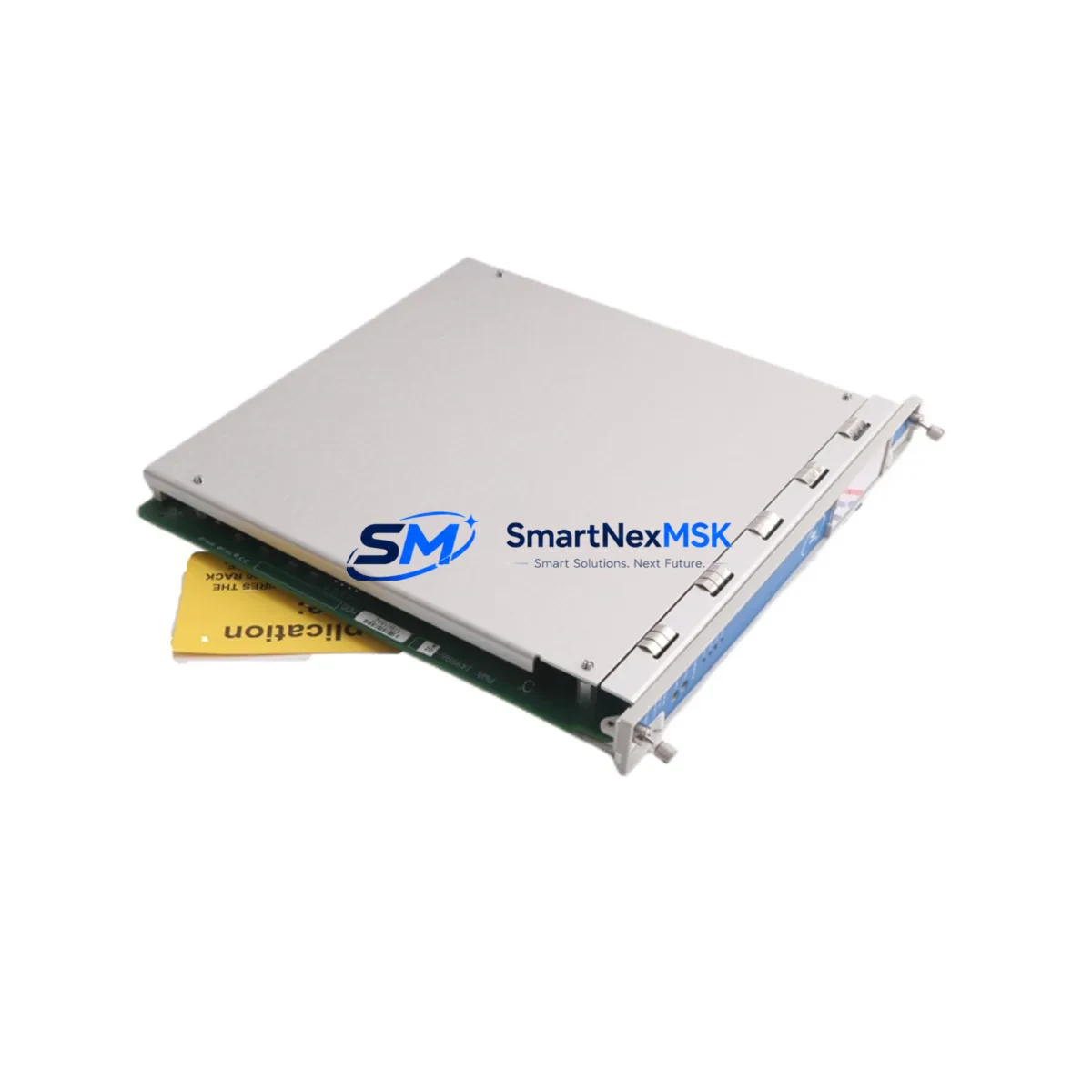

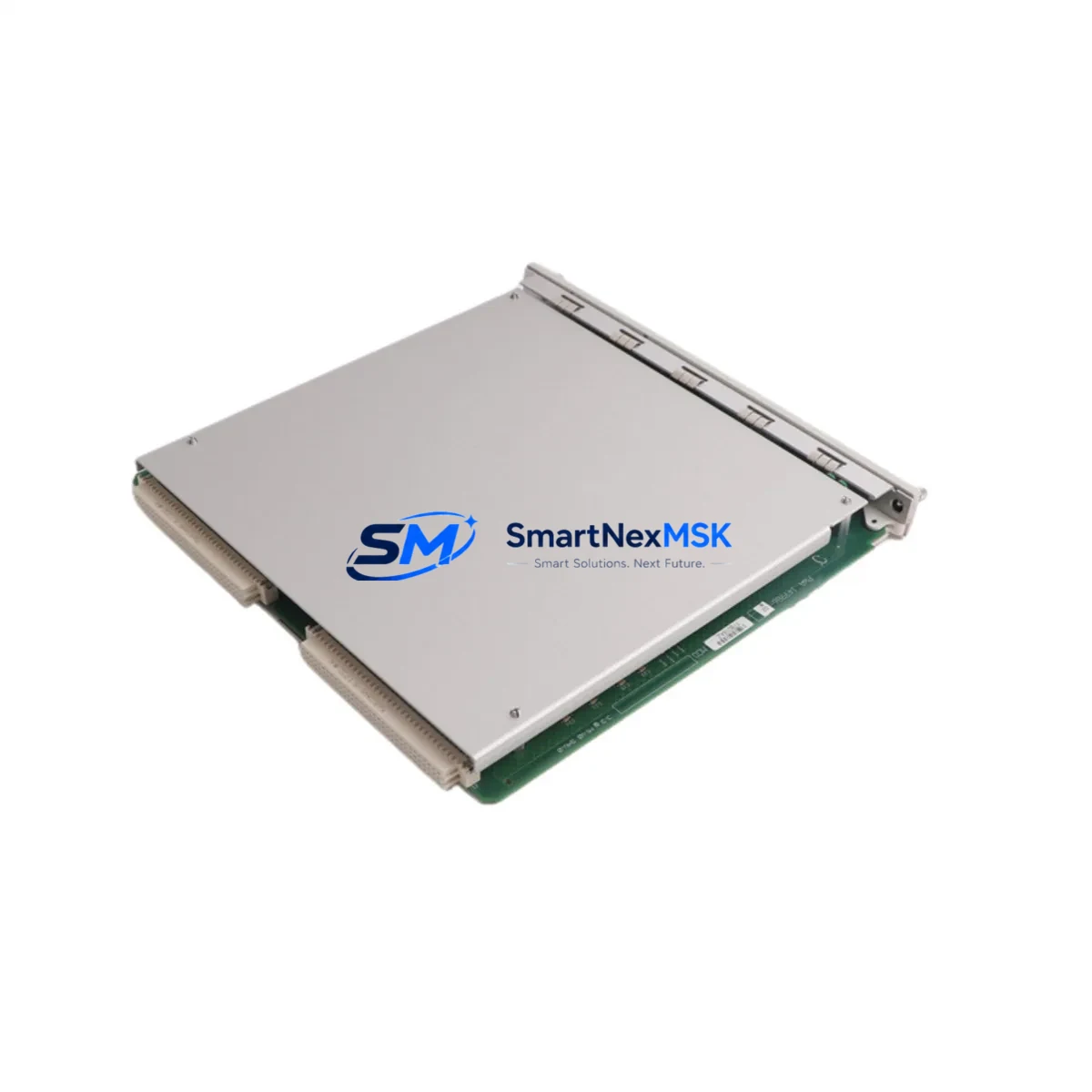

Bently Nevada 3500/32M 149986-02 Safety Relay Output Module

Bently Nevada 3500/32M 149986-02 Safety Relay Output Module: Hardened Control for Harsh Industrial Sites

The Bently Nevada 3500/32M 149986-02 is a ruggedized 4-channel relay output module engineered for mission-critical machinery protection and safety interlock systems in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection platform, this module delivers deterministic relay switching performance under conditions of high electromagnetic interference, continuous vibration, wide temperature swings, and aggressive electrical transients — precisely the conditions found in petrochemical plants, power generation facilities, offshore platforms, and heavy metallurgical operations.

In safety-critical control architectures, relay output modules serve as the final actuating element between a protection system’s logic solver and the field device — whether that is a solenoid valve, motor contactor, or emergency shutdown actuator. Any latency, contact bounce, or spurious trip in this stage can cascade into unplanned downtime, equipment damage, or personnel hazard. The 3500/32M 149986-02 addresses these risks through hardened relay contacts rated for industrial duty cycles, robust EMI shielding consistent with the 3500 rack’s overall design philosophy, and tight integration with the Bently Nevada 3500/20 rack power supply and 3500/22M transient data interface modules that govern system-level power conditioning and data acquisition.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 3500/32M 149986-02 within a control cabinet demands a systems-level approach to protection. In a typical 3500 rack installation, this relay output module operates downstream of the Bently Nevada 3500/40M proximitor I/O module, which conditions raw proximity probe signals before the system logic determines whether a trip threshold has been crossed. The relay contacts on the 3500/32M then actuate the field-side response — driving a Pepperl+Fuchs KFD2-SR2-Ex2.W safety relay barrier or equivalent galvanic isolator to ensure that hazardous-area field wiring remains fully isolated from the control cabinet’s low-voltage logic circuits.

Power quality within the cabinet is managed by the Bently Nevada 3500/20 rack power supply module, which provides regulated, filtered DC power to all modules on the backplane. Pairing this with a Phoenix Contact QUINT-PS/1AC/24DC/20 DIN-rail power supply on the auxiliary 24 VDC bus ensures that relay coil energization remains stable even during upstream AC line disturbances or momentary voltage sags — a common failure mode in facilities with large motor starts or arc furnace loads.

For communication integrity, the Bently Nevada 3500/22M transient data interface module handles high-speed waveform capture and Modbus/TCP or System 1 network communication, keeping the relay output module’s trip logic synchronized with the plant DCS — typically a Honeywell Experion PKS C300 controller or equivalent safety-rated DCS node. Surge protection on all field I/O terminals, such as Weidmüller VSSC4 CL 24VDC surge arresters, guards against lightning-induced transients propagating from field cable runs into the relay output stage, preventing spurious contact operations that could trigger false machinery trips or, worse, mask a genuine protective action.

In TMR (Triple Modular Redundant) configurations, three 3500/32M 149986-02 modules operate in a voted architecture alongside Bently Nevada 3500/15 power supply interface modules, ensuring that no single module failure can either prevent a required trip or cause an inadvertent shutdown — a fundamental requirement in SIL 2 and SIL 3 rated safety instrumented functions per IEC 61511.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 3500/32M 149986-02 is deployed in compressor train protection panels where high-speed relay actuation on vibration or axial displacement overtrip must occur within milliseconds to prevent seal failures, bearing damage, or catastrophic rotor contact. The module’s deterministic response time and hardened contacts make it the preferred choice for anti-surge valve actuation interlock circuits on centrifugal compressors handling flammable gas streams.

In thermal power generation, this relay output module is integrated into turbine supervisory instrumentation (TSI) panels, where it drives trip solenoids on steam admission valves and generator field breakers. The ability to maintain contact integrity across thousands of trip-and-reset cycles — without contact welding or increased contact resistance — is essential for units that undergo frequent load-following cycling.

In mining and mineral processing, the 3500/32M protects large SAG mill drives and crusher gearboxes by providing relay outputs to motor protection relays and lube oil system interlocks. The module’s tolerance for the high ambient vibration and dust-laden atmospheres typical of concentrator buildings ensures reliable operation without the nuisance trips that plague less robust relay modules.

In water and wastewater treatment, the module is used in pump station protection panels, where it interfaces with SCADA systems to provide relay-based alarm and shutdown outputs for high-vibration or bearing temperature exceedance events on large vertical turbine pumps and centrifugal blowers.

In port and bulk material handling facilities, the 3500/32M 149986-02 protects conveyor drive gearboxes and ship unloader slewing mechanisms, where continuous 24/7 operation and minimal planned maintenance windows demand the highest levels of module reliability and long-term spare parts availability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 3500/32M 149986-02?
The 12-month warranty covers all functional failures attributable to component defects or workmanship under normal operating conditions consistent with the module’s rated specifications. If the module fails to perform its relay switching function within the rated electrical and environmental parameters during the warranty period, we will repair or replace the unit at no charge. The warranty period begins from the date of confirmed shipment.

Q2: What pre-shipment testing is performed on each 3500/32M 149986-02 unit?
Every unit undergoes a comprehensive functional test protocol prior to dispatch. This includes relay contact continuity and isolation verification across all four channels, coil energization and de-energization timing checks, insulation resistance testing between relay contacts and backplane power rails, and a burn-in soak to screen for early-life component failures. Test records are retained and can be provided upon request for quality documentation purposes.

Q3: Is the 149986-02 revision compatible with all Bently Nevada 3500 rack configurations, including TMR systems?
Yes. The 3500/32M 149986-02 is compatible with standard single-rack and Triple Modular Redundant (TMR) 3500 Series rack configurations. It occupies a standard module slot and interfaces with the rack backplane in the same manner as other 3500 Series I/O modules. For TMR applications, three modules are installed in the voted relay output position. Compatibility with specific firmware revisions of the 3500/22M or rack controller should be confirmed against the Bently Nevada system configuration documentation for your installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
We maintain dedicated inventory of the Bently Nevada 3500/32M 149986-02 to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. Given that the 3500 Series remains widely deployed across global industrial facilities, we prioritize sustained stock availability for this module family. Customers with ongoing maintenance contracts or multi-site operations are encouraged to contact our sales team to discuss reserved inventory arrangements and volume pricing for spare parts programs.
