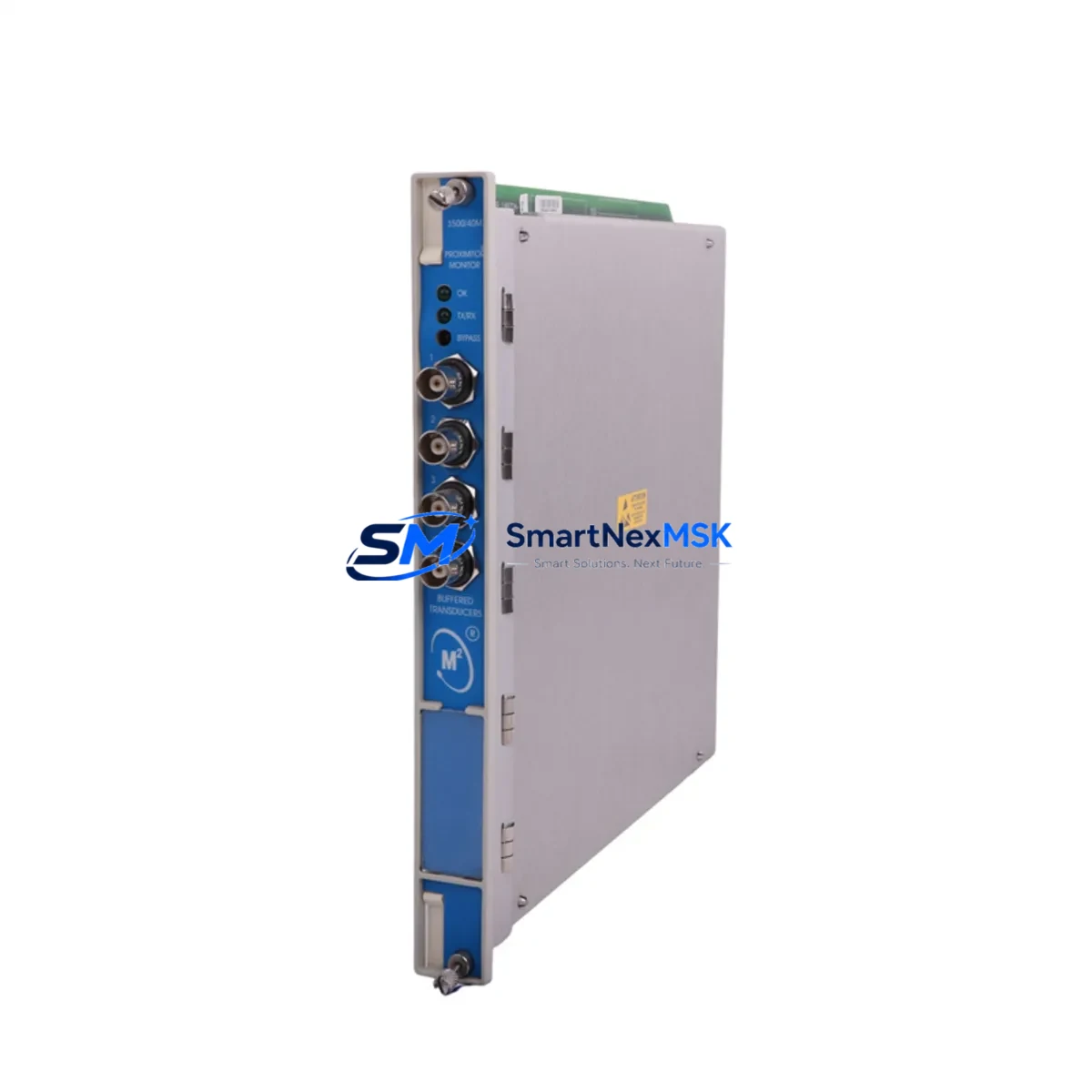

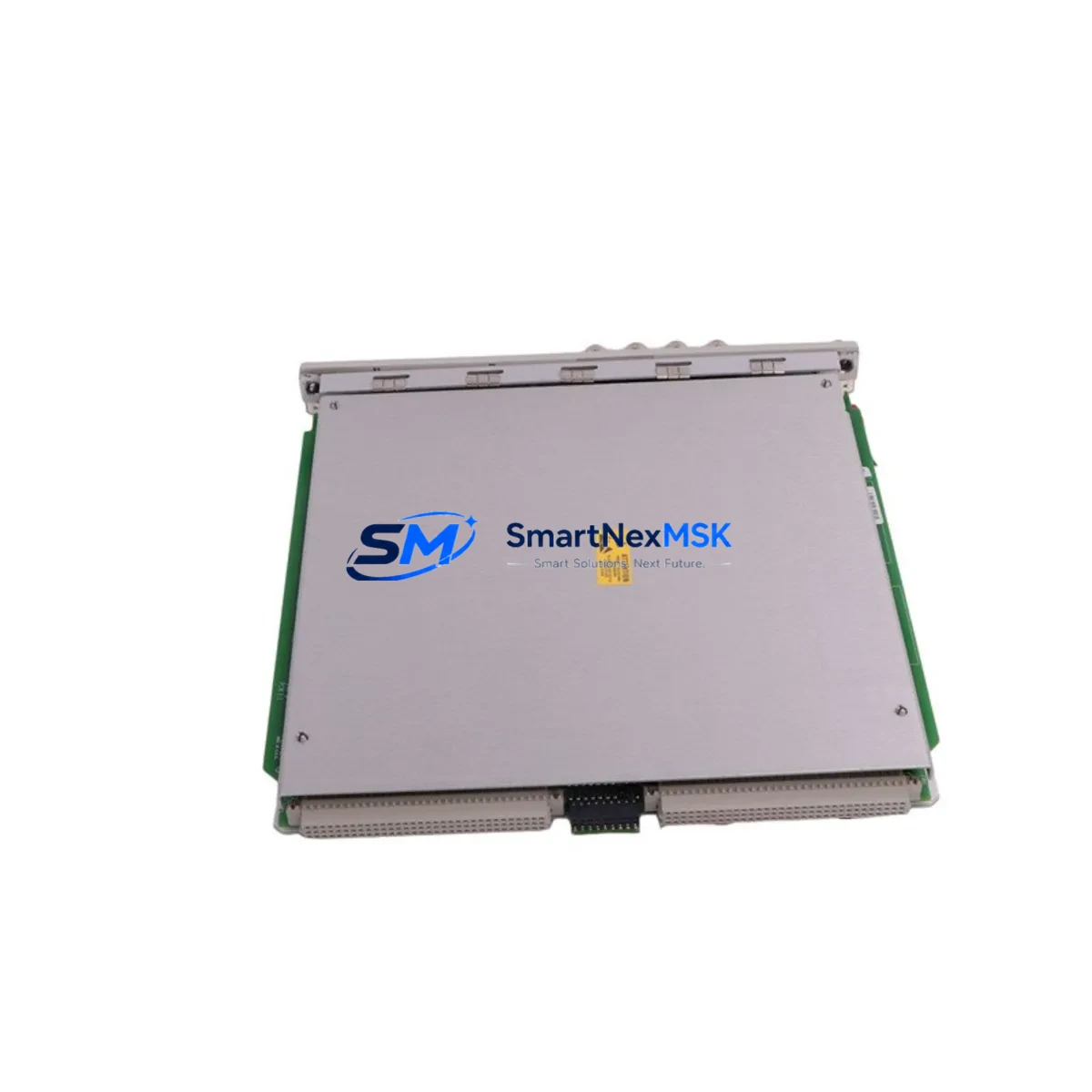

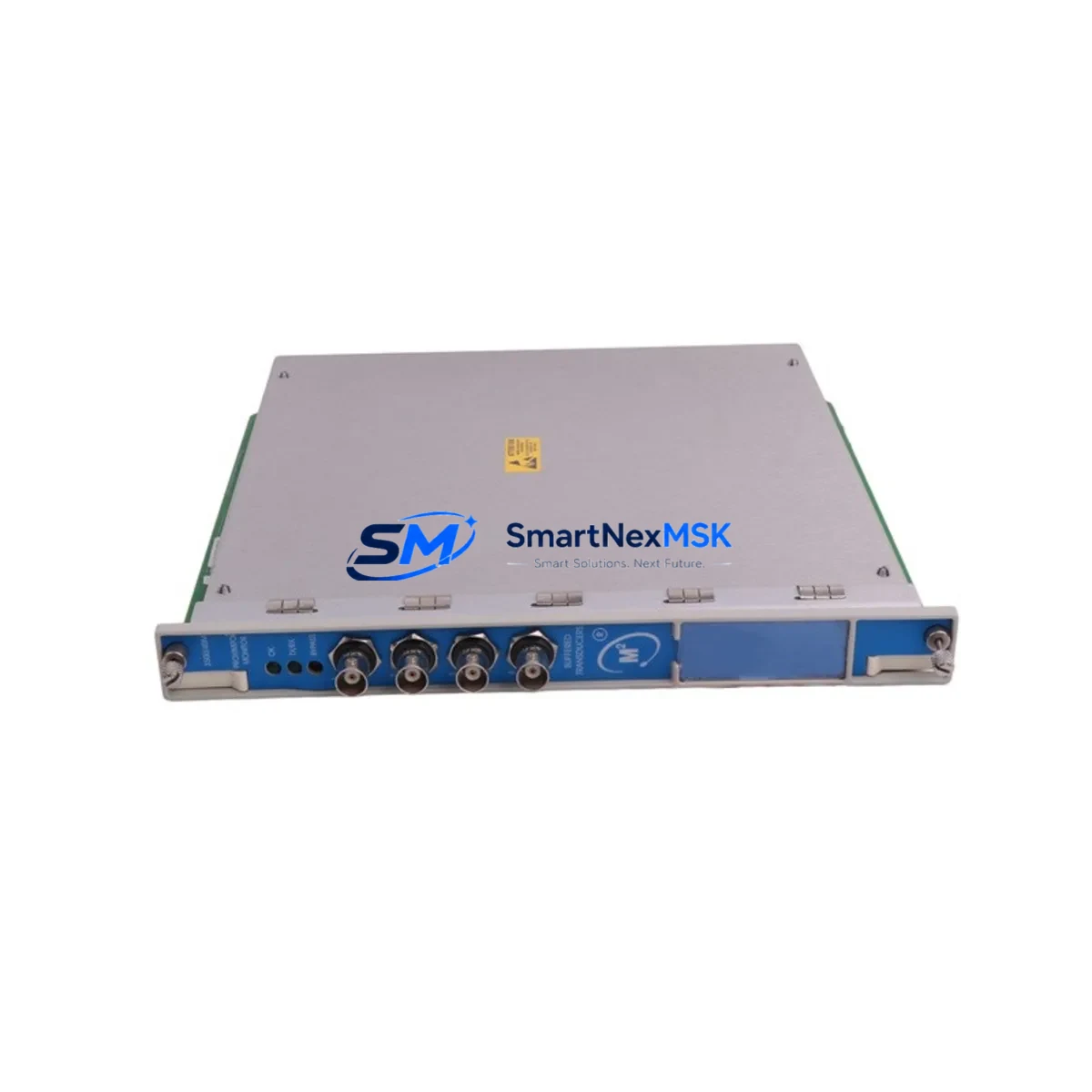

Bently Nevada 3500/40M 176449-01 Safety-Enhanced Vibration Monitor

Bently Nevada 3500/40M 176449-01 Safety-Enhanced Vibration Monitor for Harsh Industrial Sites

The Bently Nevada 3500/40M 176449-01 is a ruggedized, safety-grade vibration monitor module engineered for continuous operation in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection system, this module delivers real-time vibration measurement and alarm management for rotating equipment — including turbines, compressors, pumps, and motors — where unplanned downtime carries severe safety and financial consequences.

Designed to operate reliably in high-noise electrical environments, the 3500/40M 176449-01 features robust signal conditioning that suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) common in heavy industrial control cabinets. Its differential input architecture minimizes signal drift caused by ground loops, ensuring measurement integrity even when installed adjacent to high-power variable frequency drives, motor control centers, or large transformer banks. This makes it a preferred choice for engineers specifying protection systems in petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines where signal fidelity is non-negotiable.

In critical interlock and safety instrumented system (SIS) architectures, the 3500/40M 176449-01 integrates seamlessly with the Bently Nevada 3500/20 rack power supply and the 3500/15 power supply module, ensuring that power fluctuations and transient surges do not propagate into the measurement chain. The module’s internal watchdog circuitry continuously monitors its own operational status, triggering a fail-safe alarm output if an internal fault is detected — a critical behavior for machinery protection loops that must comply with IEC 61511 functional safety requirements.

When deployed alongside the Bently Nevada 3500/22M transient data interface and the 3500/42M proximitor I/O module, the 3500/40M creates a comprehensive vibration and position monitoring architecture capable of capturing both steady-state and transient machinery events. This combination is widely used in steam turbine protection panels, where simultaneous monitoring of shaft radial vibration, axial position, and differential expansion is required to prevent catastrophic mechanical failure. The 3500/32 4-channel relay module can be paired with the 3500/40M to provide hardwired trip outputs directly to emergency shutdown (ESD) systems, eliminating latency in the protective response chain.

For installations in hazardous classified areas or where cable runs exceed standard lengths, the 3500/40M 176449-01 is compatible with Bently Nevada 3300 XL 8mm proximity transducers and 3300 XL extension cables, maintaining signal accuracy across extended field wiring. The module’s configurable full-scale range and alarm setpoints allow site engineers to tailor protection thresholds to specific machinery baselines without requiring hardware changes, reducing commissioning time and minimizing the risk of nuisance trips during startup sequences.

In water treatment and municipal utility applications, where continuous pump and blower operation is essential to public safety, the 3500/40M 176449-01 provides the early-warning vibration trending data needed to schedule predictive maintenance before bearing failures escalate into emergency shutdowns. Similarly, in port and bulk material handling facilities, the module protects conveyor drive motors and ship unloader gearboxes operating under variable load cycles and high ambient vibration backgrounds.

Every Bently Nevada 3500/40M 176449-01 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including channel-by-channel signal verification, alarm relay actuation testing, and communication interface validation. Units are shipped with full anti-static packaging and documentation. A 12-month warranty is provided on all modules, covering manufacturing defects and functional failures under normal operating conditions. Long-term inventory availability is maintained to support both emergency replacement and planned maintenance outage schedules.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 3500/40M 176449-01 requires careful integration of complementary modules to ensure system-level safety and signal integrity. The 3500/20 rack power supply provides regulated, redundant DC power to all modules in the rack, while the 3500/15 power supply module serves as a hot-standby backup, preventing any power interruption from reaching the measurement chain during utility fluctuations or planned maintenance switching.

Transient surge protection at the field wiring termination points is critical in environments with frequent lightning events or large motor switching operations. Installing MTL surge protection barriers or equivalent DIN-rail surge arrestors on all proximitor cable entries prevents high-energy transients from damaging the 3500/40M’s input circuitry. For intrinsically safe installations in Zone 1 or Zone 2 hazardous areas, Bently Nevada 3825 intrinsic safety barriers are the recommended interface between the field transducers and the rack-mounted monitor.

Communication integrity between the 3500/40M and the plant DCS or safety PLC is maintained through the 3500/22M transient data interface module, which buffers high-speed waveform data and transmits it to Bently Nevada System 1 condition monitoring software over a dedicated Ethernet segment, isolated from the process control network. For legacy Modbus RTU integrations, the 3500/92 communication gateway module provides protocol translation without introducing latency into the protection response path.

Trip relay outputs from the 3500/40M are wired through the 3500/32 4-channel relay module to hardwired ESD logic solvers, ensuring that a vibration danger alarm results in a deterministic, sub-100ms machinery trip — independent of any software or network state. This hardwired trip architecture is a fundamental requirement in SIL 2-rated machinery protection loops for steam turbines, gas compressors, and boiler feed pumps.

Critical Industrial Safety Applications

The Bently Nevada 3500/40M 176449-01 is deployed across a wide range of critical industrial sectors where rotating machinery failure carries unacceptable safety and operational risk.

In petrochemical and refinery environments, the module protects high-speed centrifugal compressors and process gas turbines operating continuously in flammable atmosphere zones. Early detection of sub-synchronous instability or bearing wear through the 3500/40M’s real-time vibration trending prevents uncontrolled releases and fire hazards associated with sudden seal failures.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 3500/40M monitors steam turbine shaft vibration and provides the trip signal that initiates controlled turbine rundown before blade contact or bearing seizure can cause catastrophic rotor damage. Its integration with the plant’s distributed control system (DCS) allows operators to correlate vibration trends with process variables such as steam flow, load, and bearing temperature.

In mining and mineral processing operations, where large SAG mills, ball mills, and crusher drives operate under extreme mechanical loading and high ambient vibration, the 3500/40M provides the continuous monitoring needed to distinguish normal operational vibration from developing mechanical faults. This distinction is critical for avoiding both nuisance trips that interrupt production and missed alarms that allow equipment damage to progress to failure.

In water and wastewater treatment plants, the module protects large vertical turbine pumps and blower trains that must operate continuously to maintain regulatory compliance. In metallurgical and steel facilities, it monitors rolling mill drive motors and continuous caster pinch roll drives operating under high cyclic loads. In port and bulk terminal operations, it safeguards ship loader and unloader slewing drives and conveyor head pulley bearings against fatigue failures that would halt cargo operations.

Safety and Quality FAQ

Q1: What warranty is provided with the Bently Nevada 3500/40M 176449-01?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects and manufacturing failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize site downtime.

Q2: What pre-shipment testing is performed on each module?
Each 3500/40M 176449-01 undergoes channel-by-channel signal input verification, alarm relay actuation testing, communication interface validation, and visual inspection for connector and board integrity before shipment. Test records are available upon request.

Q3: Is the 3500/40M 176449-01 compatible with existing Bently Nevada 3500 Series racks?
Yes. The 3500/40M 176449-01 is a standard slot-compatible module for all Bently Nevada 3500 Series racks. It is backward-compatible with existing rack power supplies, relay modules, and communication interfaces, allowing direct replacement without rack modification or reconfiguration of adjacent modules.

Q4: Can long-term supply be guaranteed for planned maintenance and spare parts programs?
SMARTNEXMSK maintains standing inventory of the 3500/40M 176449-01 and related 3500 Series modules to support both emergency replacement and scheduled outage spare parts programs. Customers with multi-unit or annual supply requirements are encouraged to contact our sales team to discuss priority allocation and volume pricing arrangements.
