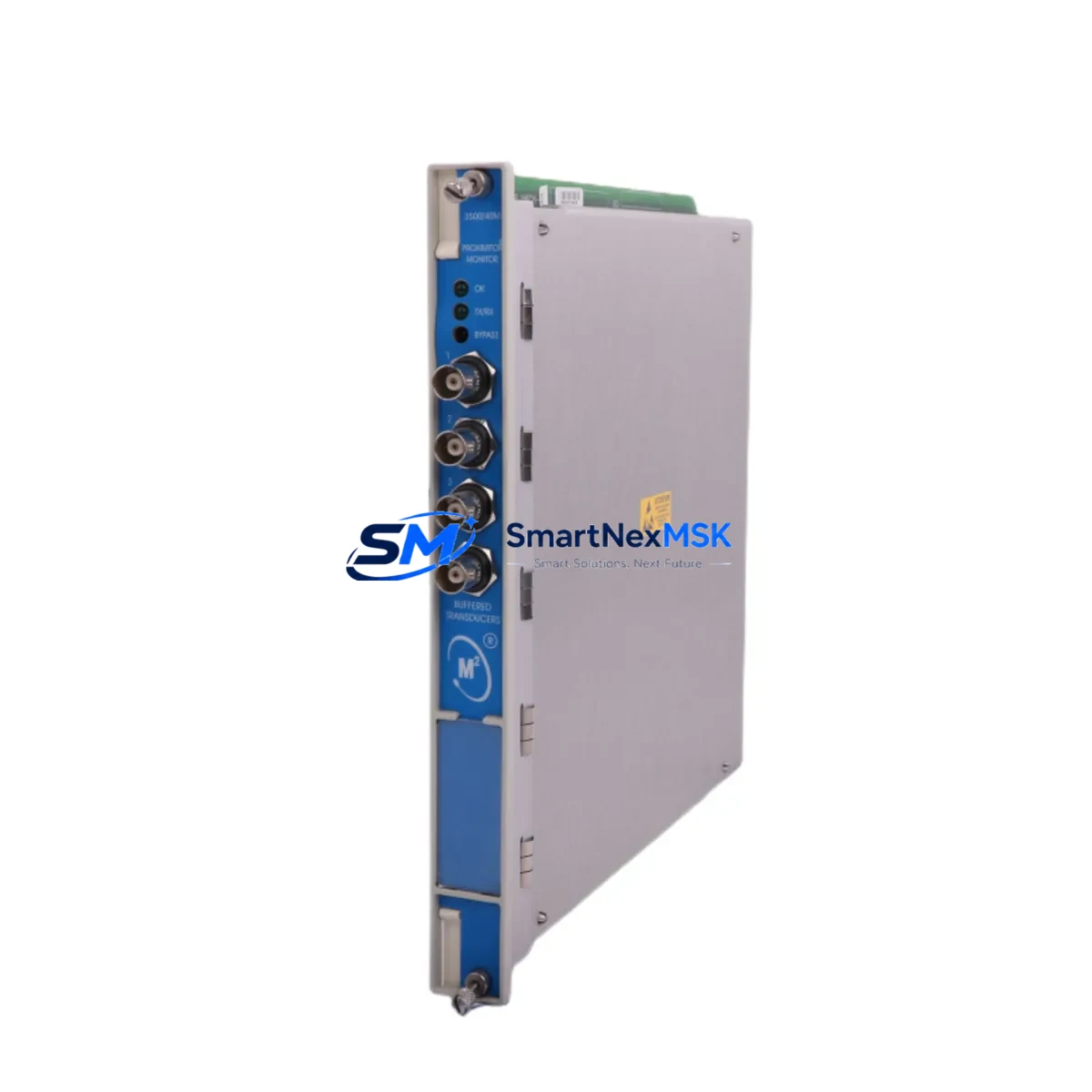

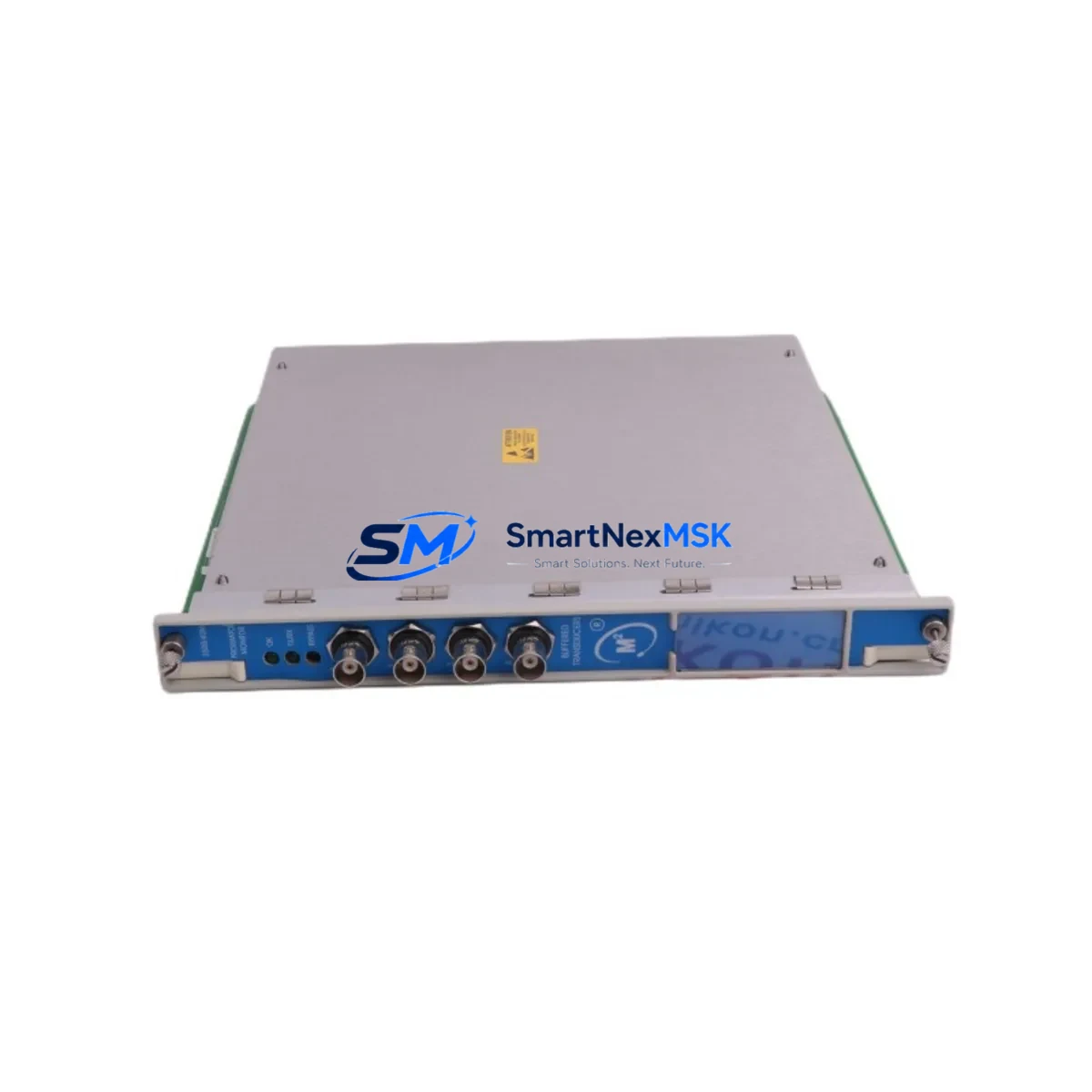

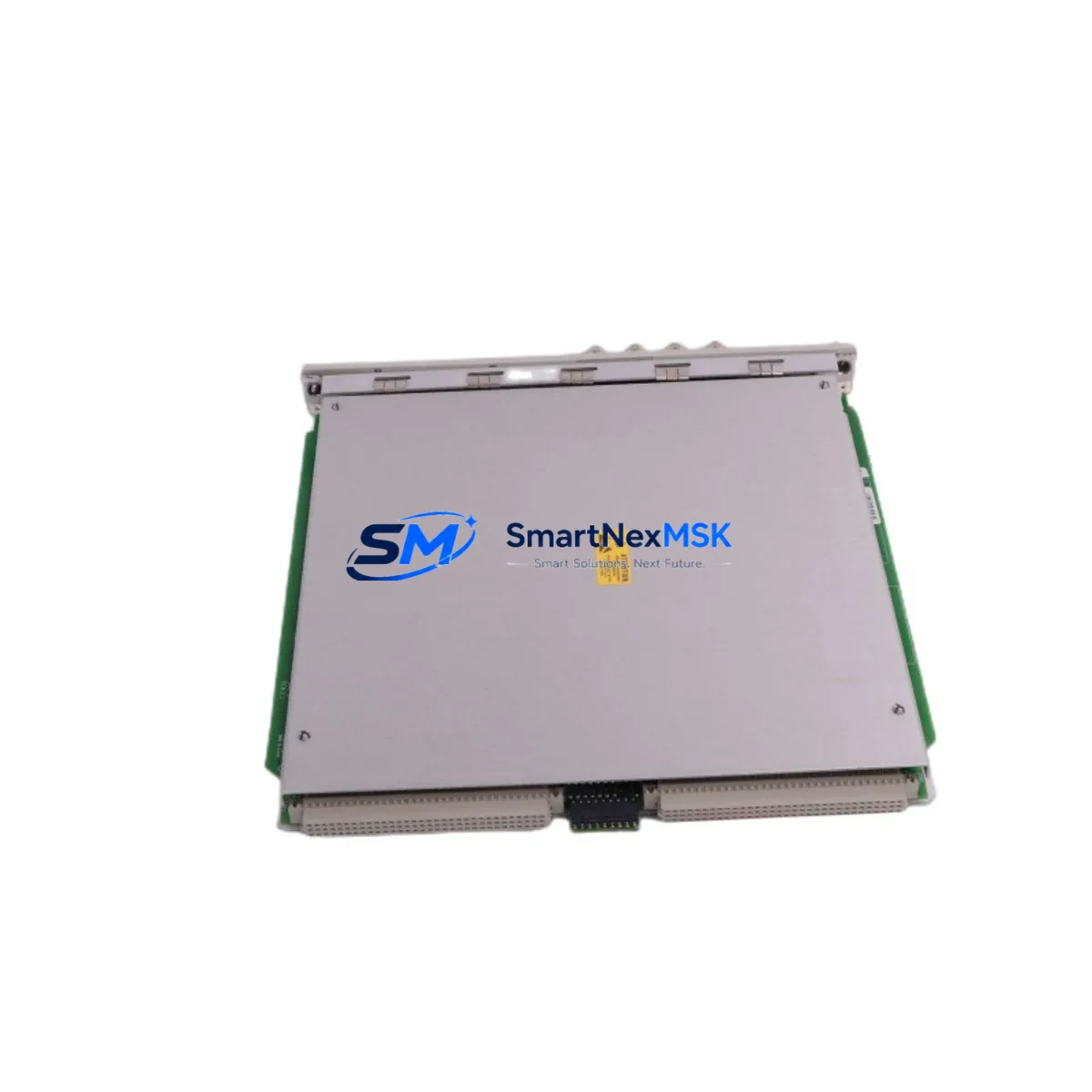

Bently Nevada 3500/40M Safety-Enhanced Seismic Monitor

Bently Nevada 3500/40M Safety-Enhanced Seismic Monitor: Reliable Control in Harsh Industrial Sites

The Bently Nevada 3500/40M is a ruggedized seismic vibration monitor engineered for continuous, safety-critical operation in the most demanding industrial environments. As a core module within the Bently Nevada 3500 Series condition monitoring platform, the 3500/40M delivers real-time seismic and absolute vibration measurement for rotating and reciprocating machinery — providing the early-warning intelligence that prevents catastrophic equipment failure, unplanned shutdowns, and personnel safety incidents.

In high-load, high-interference production facilities — including petrochemical complexes, power generation stations, offshore platforms, mining operations, and continuous steel or aluminum processing lines — control interruption is never an option. The 3500/40M is purpose-built to maintain measurement integrity under conditions of strong electromagnetic interference, ground potential fluctuations, and mechanical shock. Its isolated signal architecture and robust housing ensure that signal drift and module mis-operation are eliminated even when adjacent high-power drives, arc furnaces, or large motor starters introduce severe electrical noise into the control cabinet environment.

Safety Reliability Table

Control Cabinet Protection Strategy

The 3500/40M does not operate in isolation — it is the sensing and decision layer within a broader machinery protection architecture. In a properly configured control cabinet, the module works in concert with the Bently Nevada 3500/15 Power Supply Module, which provides clean, regulated DC power to the entire 3500 rack, eliminating voltage sag and ripple that could otherwise cause false trips or missed alarms. The 3500/22M TMR Communication Gateway bridges the rack to DCS and SCADA systems via Modbus or Ethernet/IP, ensuring that vibration alarm states are transmitted to the control room without latency or data loss.

For shaft-relative displacement monitoring on the same machine train, the Bently Nevada 3500/42M Proximitor Monitor is typically installed in an adjacent rack slot, sharing the same backplane and alarm management logic. Together, the 3500/40M and 3500/42M provide a complete picture of both absolute casing motion and relative shaft movement — the two complementary measurements required for API 670-compliant machinery protection on critical rotating equipment such as steam turbines, gas compressors, and large centrifugal pumps.

Upstream signal conditioning is handled by Bently Nevada 3500/20 Rack Interface Module, which manages system configuration, self-diagnostics, and OK relay status for the entire rack. When a channel fault, power anomaly, or sensor open-circuit is detected, the 3500/20 immediately flags the condition — preventing silent failures that could allow a dangerous machinery state to go undetected. For installations requiring temperature monitoring on the same machine, the Bently Nevada 3500/60 Temperature Monitor integrates seamlessly into the same rack, providing thermocouple or RTD inputs with the same relay-based alarm architecture.

In facilities where surge events from nearby switchgear, variable frequency drives, or large transformer energization are a recurring concern, supplementary Phoenix Contact TRABTECH surge protection devices are recommended on the transducer cable shield grounds and the 24 VDC supply lines feeding the rack. Similarly, Weidmüller or Phoenix Contact terminal block isolators on the 4–20 mA output loops prevent ground loop currents from corrupting the analog signals transmitted to the DCS input cards. For the DCS side, Emerson DeltaV SIS logic solver modules or equivalent safety-rated I/O cards receive the 3500/40M relay outputs and integrate them into the Safety Instrumented System (SIS) interlock logic, ensuring that a vibration Danger alarm triggers an automatic machine trip within the required SIL response time.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, the 3500/40M monitors seismic vibration on induced-draft fans, charge pumps, and gas compressors operating continuously at elevated temperatures and pressures. A vibration Danger trip initiated by the 3500/40M can prevent a bearing seizure from escalating into a seal failure, hydrocarbon release, or fire — protecting both personnel and process continuity.

Power Generation: Steam turbine-generators and gas turbine auxiliaries in thermal and combined-cycle power plants rely on the 3500/40M for casing vibration surveillance. The module’s dual-setpoint relay logic allows operators to configure an Alert level for maintenance scheduling and a Danger level for automatic turbine trip — meeting the requirements of IEC 61511 and NFPA 85 for boiler and turbine protection systems.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron ore processing plants operate under extreme mechanical loading and dusty, high-humidity conditions. The 3500/40M’s sealed housing and wide operating temperature range make it suitable for installation in field junction boxes and local control panels close to the machinery, reducing cable run lengths and improving signal integrity.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in municipal water treatment facilities benefit from continuous seismic monitoring to detect impeller imbalance, cavitation-induced vibration, and bearing wear before they cause unplanned outages that disrupt water supply to communities.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and ladle transfer cranes in integrated steel plants generate intense vibration and electromagnetic interference. The 3500/40M’s robust EMI rejection ensures reliable alarm output even in the presence of high-current bus bars, induction heating equipment, and large DC drive systems operating in the same facility.

Safety and Quality FAQ

Q1: What does the 12-Month Warranty cover for the Bently Nevada 3500/40M?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions. Each unit is function-tested prior to shipment, including relay output verification, analog output calibration check, and power supply compatibility confirmation. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q2: How is the 3500/40M tested before shipment?
Every 3500/40M unit undergoes a pre-shipment functional test that verifies channel input response, Alert and Danger relay switching at configured setpoints, 4–20 mA output linearity, and OK relay status under normal and fault-simulated conditions. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request.

Q3: Is the 3500/40M compatible with existing Bently Nevada 3500 racks and software?
Yes. The 3500/40M is fully compatible with all standard Bently Nevada 3500 Series rack frames, the 3500/20 Rack Interface Module, and Bently Nevada System 1 condition monitoring software. Configuration is performed via the standard 3500 Rack Configuration Software (RCS), and the module communicates over the rack backplane without requiring additional hardware adapters.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated inventory of the Bently Nevada 3500/40M and related 3500 Series modules to support both planned maintenance programs and emergency replacement requirements. For facilities operating multiple machine trains with 3500 Series protection systems, we recommend establishing a consignment or blanket order arrangement to ensure critical spare availability without capital lock-up. Contact our team to discuss long-term supply agreements tailored to your maintenance cycle.
