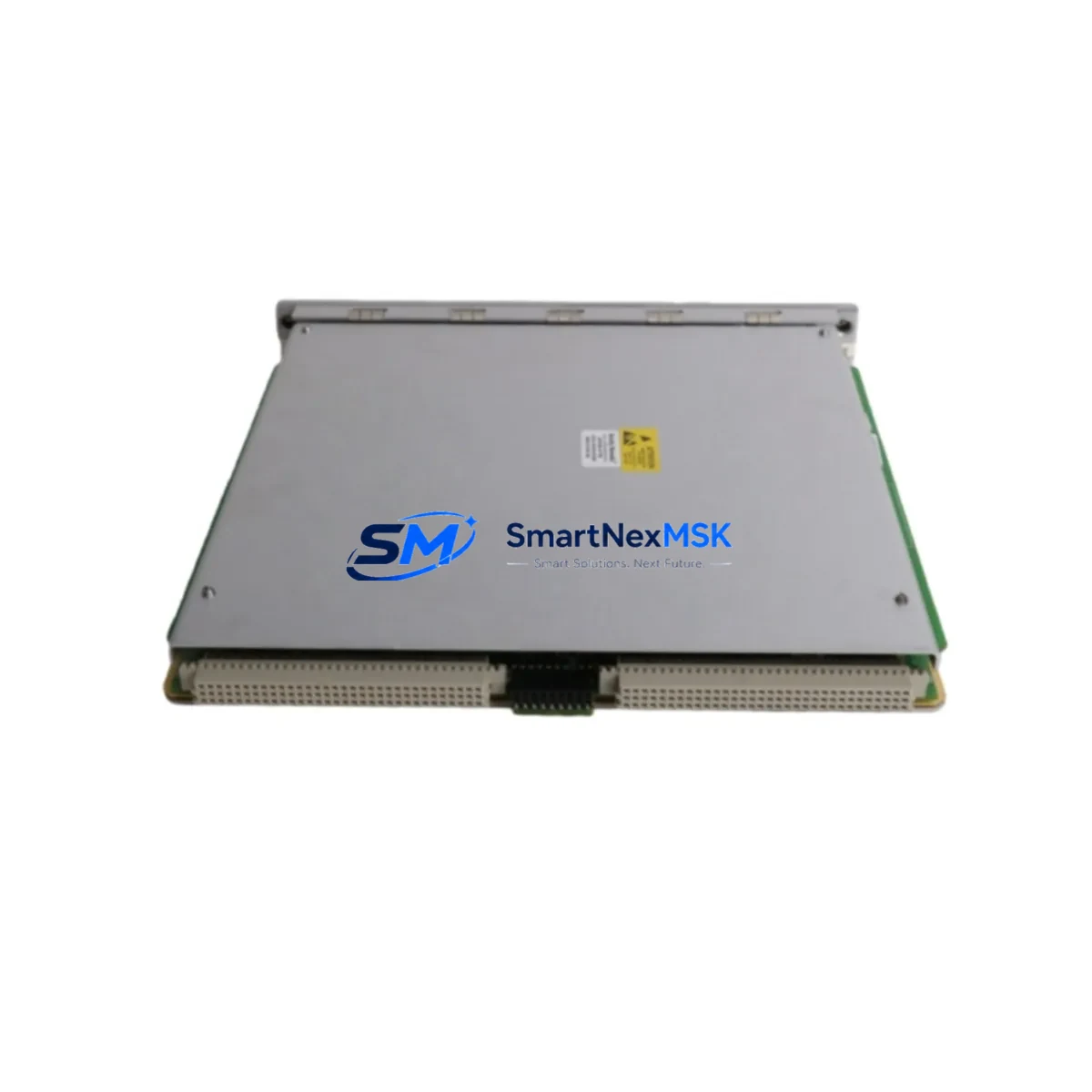

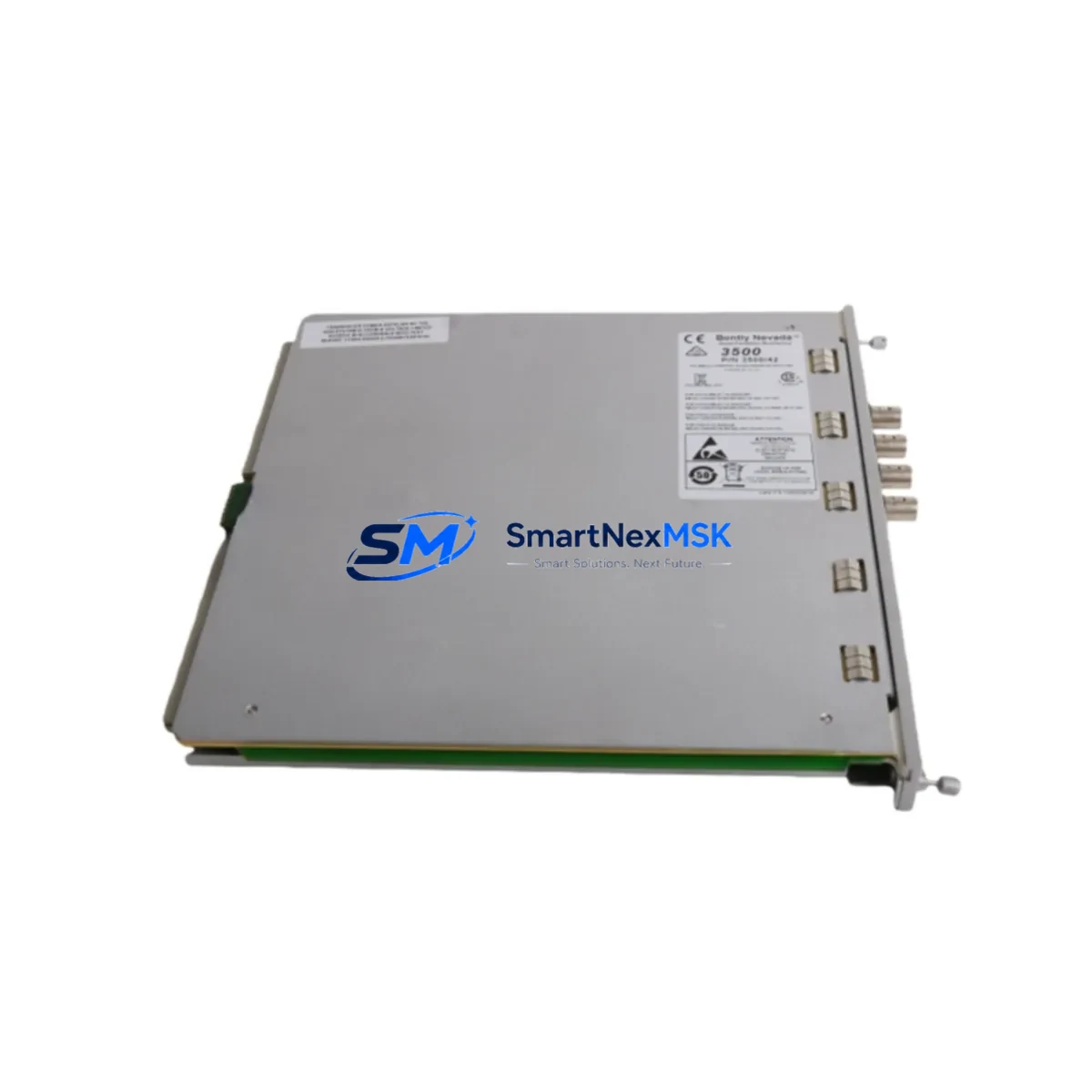

Bently Nevada 3500/42 Safety-Enhanced Relay Output Module

Bently Nevada 3500/42 Safety-Enhanced Relay Output Module for Harsh Industrial Sites

The Bently Nevada 3500/42 is a 4-channel SPDT relay output module engineered for safety-critical machinery protection and continuous industrial control environments. As a core component of the Bently Nevada 3500 Series Machinery Protection System, the 3500/42 delivers deterministic relay switching performance in high-vibration, high-interference, and high-availability plant settings — including petrochemical facilities, power generation stations, mining operations, metallurgical plants, water treatment infrastructure, and continuous process manufacturing lines.

In demanding control cabinet architectures, relay output modules are the final actuation layer between a protection system’s logic and the physical field device — whether that is a shutdown valve, a motor contactor, an alarm annunciator, or a safety interlock relay. Any instability in this layer — caused by signal drift, power fluctuation, surge transients, or module malfunction — can result in spurious trips, missed shutdowns, or unplanned downtime. The 3500/42 is specifically designed to eliminate these failure modes through robust relay contact ratings, galvanic isolation, and tight integration with the 3500 Series backplane and power infrastructure.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered 3500 Series protection rack, the 3500/42 relay output module operates downstream of monitor modules such as the Bently Nevada 3500/40M proximitor/seismic monitor and the 3500/45 position monitor, receiving trip and alert logic signals and converting them into hardwired relay closures that drive field devices. The reliability of this relay stage is foundational — a failed or slow relay output in a turbine protection panel can mean the difference between a controlled shutdown and a catastrophic mechanical failure.

Power integrity for the 3500/42 depends on the upstream Bently Nevada 3500/15 power supply module, which provides regulated, isolated DC power to the rack. In high-availability installations, dual redundant power supplies are deployed to eliminate single-point power failure. Alongside the power supply, the 3500/20 rack interface module manages system-level communication and configuration, ensuring that relay output states are correctly synchronized with the monitoring logic at all times.

For plants operating under IEC 61511 or IEC 61508 functional safety frameworks, the 3500/42 is typically integrated into a safety instrumented system (SIS) loop alongside Bently Nevada 3500/22M transient data interface modules and dedicated safety logic solvers. In these architectures, the relay output module must demonstrate consistent de-energize-to-trip (DTT) behavior — a requirement the 3500/42 meets through its normally energized relay design and fail-safe contact configuration.

In control cabinets subject to high-frequency electrical noise — common in variable frequency drive (VFD) environments, arc furnace facilities, or high-voltage switchgear rooms — the galvanic isolation of the 3500/42’s relay contacts prevents ground loops and common-mode interference from propagating into the protection logic. This is particularly important when the relay outputs are wired to solenoid valves, motor starters, or Bently Nevada 3500/32 4-channel relay modules used in parallel redundant trip circuits.

For communication-intensive installations, the 3500/42 works in conjunction with the Bently Nevada 3500/92 communication gateway module, which bridges the 3500 rack to plant DCS or SCADA systems via Modbus, Ethernet/IP, or OPC-DA protocols. Ensuring that relay output status is accurately reflected in the supervisory layer is critical for alarm management, audit trails, and regulatory compliance in safety-critical industries.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In compressor trains and pump protection panels, the 3500/42 drives emergency shutdown (ESD) solenoids and high-vibration trip relays. Its fast actuation time and fail-safe design are essential for API 670-compliant machinery protection systems protecting high-value rotating equipment operating 24/7 under continuous load.

Power Generation: Steam turbine and gas turbine protection systems rely on relay output modules to execute overspeed trips, bearing temperature shutdowns, and differential expansion alarms. The 3500/42’s deterministic switching behavior ensures that protection actions are executed within the required response window, preventing turbine damage and grid instability events.

Mining and Mineral Processing: In underground and surface mining operations, relay output modules must withstand extreme vibration, dust ingress, and wide temperature swings. The 3500/42’s ruggedized construction and wide operating temperature range make it suitable for crusher drive protection, conveyor motor monitoring, and ventilation fan safety interlock circuits.

Water and Wastewater Treatment: Large pump stations and blower systems in water treatment facilities use the 3500/42 to implement vibration-based protection that prevents bearing failures and unplanned outages. In these environments, continuous uptime is a public safety obligation, and the module’s 12-month warranty and verified stock availability support rapid spare-part replacement strategies.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and continuous casting machines operate in environments with intense electromagnetic interference from high-current bus bars and induction furnaces. The 3500/42’s EMI-hardened relay outputs maintain reliable trip circuit integrity even in these extreme electrical environments, protecting both equipment and personnel.

Port and Marine Infrastructure: Ship-to-shore crane drives and port conveyor systems require protection modules that can operate reliably in high-humidity, salt-laden air environments. The 3500/42’s sealed relay contacts and corrosion-resistant construction support long-term reliable operation in coastal industrial facilities.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 3500/42?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified relay switching functions within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed with priority to minimize plant downtime.

Q2: What pre-shipment testing is performed on the 3500/42?
Every 3500/42 unit undergoes full functional verification prior to dispatch, including relay contact continuity testing, isolation resistance measurement, and operational cycling of all four SPDT channels. Units are tested under load conditions representative of typical industrial applications to confirm reliable performance before reaching your facility.

Q3: Is the 3500/42 compatible with existing Bently Nevada 3500 Series racks and monitor modules?
Yes. The 3500/42 is designed for direct installation into any standard Bently Nevada 3500 Series rack, including the 3500/05 and 3500/15 chassis configurations. It is fully compatible with all 3500 Series monitor modules and the 3500/20 rack interface module. No firmware modifications or adapter hardware are required for standard installations.

Q4: Can you support long-term supply and emergency replacement for the 3500/42?
Yes. We maintain dedicated inventory of the Bently Nevada 3500/42 and related 3500 Series components to support both planned maintenance programs and emergency replacement scenarios. For critical plant applications, we recommend establishing a consignment or blanket order arrangement to guarantee availability. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance schedule.
