Bently Nevada 3500/42M Safety-Enhanced Vibration Monitor

Bently Nevada 3500/42M Safety-Enhanced Vibration Monitor: Reliable Control in Harsh Industrial Sites

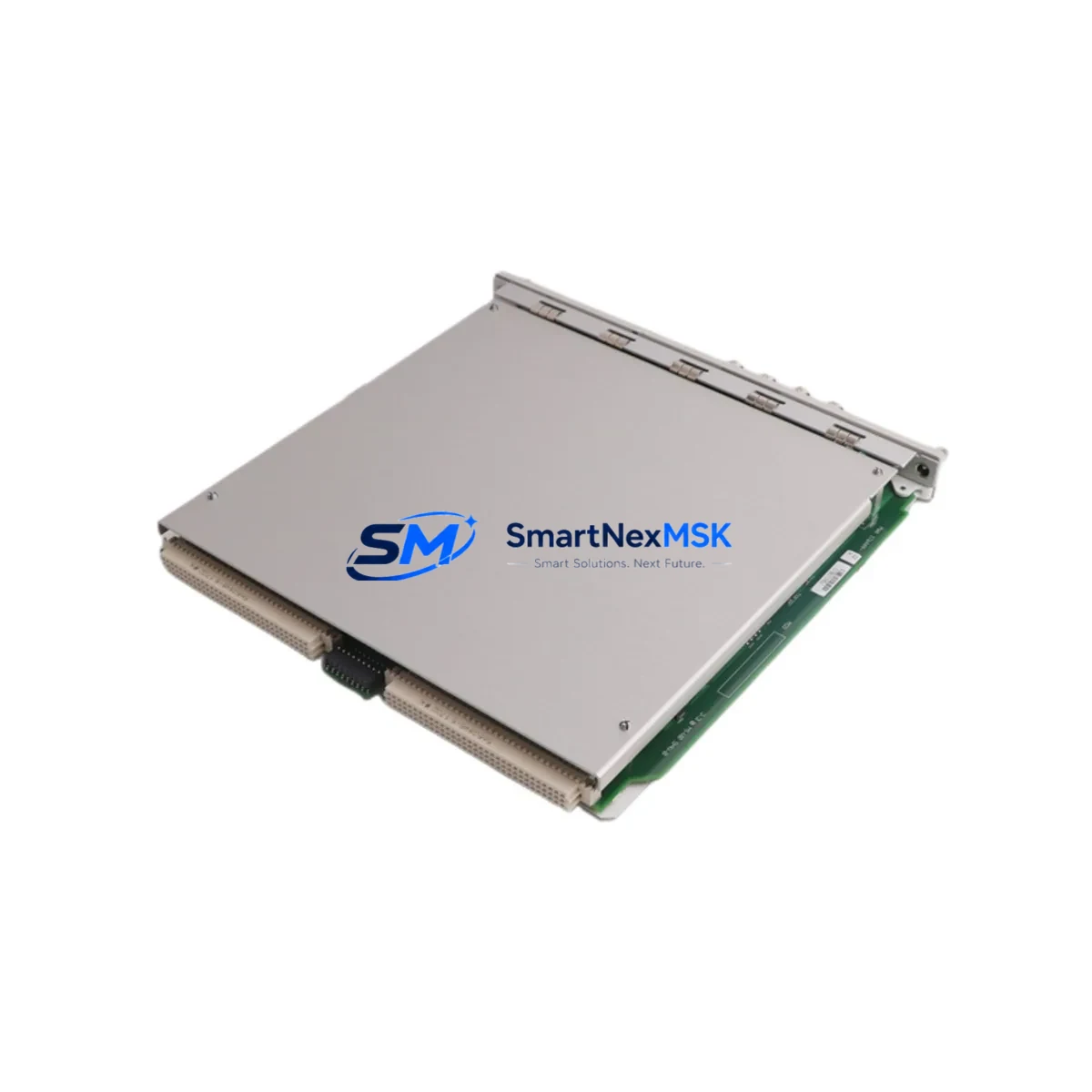

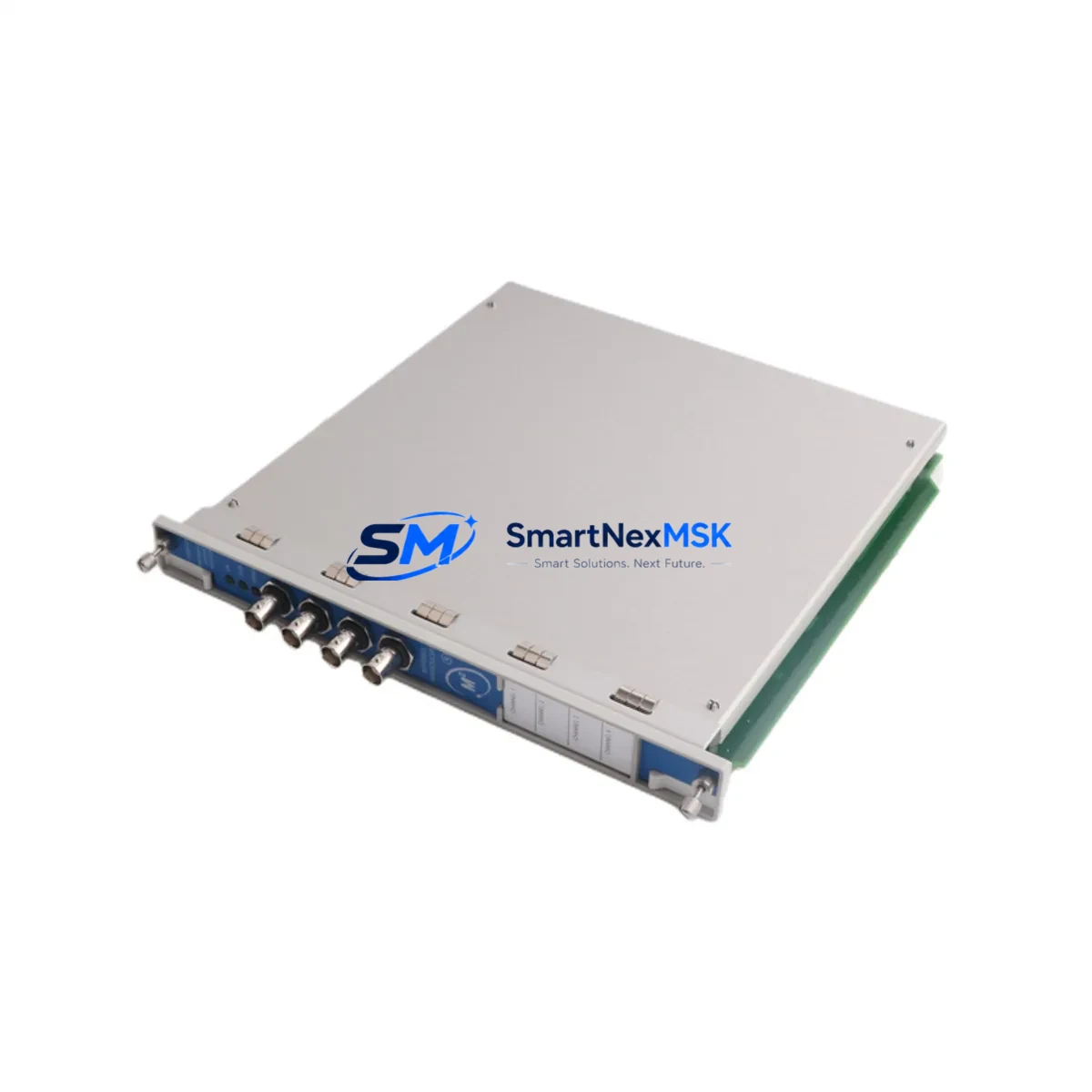

The Bently Nevada 3500/42M is a dual-channel proximity/seismic vibration monitor module engineered for continuous, safety-critical operation in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection system, the 3500/42M delivers real-time vibration measurement, alarm relay actuation, and trip signal output — all within a ruggedized, DIN-rail-mounted chassis designed to withstand the electrical noise, thermal stress, and mechanical vibration inherent to heavy industrial control cabinets.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port machinery rooms, unplanned machinery downtime caused by undetected vibration anomalies can result in catastrophic equipment failure, personnel hazards, and production losses measured in millions. The 3500/42M addresses this risk directly: its precision proximity transducer interface continuously monitors shaft displacement and seismic velocity, triggering configurable alert and danger relay outputs before vibration levels reach destructive thresholds. This makes it an indispensable element of any critical interlock loop protecting rotating equipment such as compressors, turbines, pumps, and fans.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 3500/42M as part of a comprehensive control cabinet protection strategy requires careful integration with complementary modules and field devices. Within the 3500 Series rack, the module operates alongside the Bently Nevada 3500/15 Power Supply, which provides regulated, noise-filtered DC power to all monitor modules — a critical safeguard against voltage sag and power-line transients that can cause false trips or missed alarms in high-load industrial environments.

For facilities running continuous production lines, the Bently Nevada 3500/22M Communication Gateway enables real-time data transmission to plant DCS and SCADA systems via Modbus TCP or Ethernet/IP, ensuring that vibration trend data is available to operators without polling delays that could mask developing faults. Paired with the Bently Nevada 3500/32 4-Channel Relay Module, the 3500/42M’s alarm outputs can be routed into hardwired safety interlock circuits, providing a deterministic trip path independent of software or network availability.

In the field, the 3500/42M interfaces directly with Bently Nevada 3300 XL 8mm Proximity Probes and their associated 3300 XL Extension Cables and 3300 XL Proximitor Sensors — a matched transducer system that ensures calibrated gap voltage, linear measurement range, and immunity to shaft runout errors. For seismic applications on bearing housings or gearbox casings, Bently Nevada 330400 Velocity Transducers provide a direct drop-in signal source compatible with the 3500/42M’s seismic input channel.

To protect the entire 3500 rack from surge events on signal cables entering from the field — a common failure mode in outdoor substations, compressor stations, and mining headframes — surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST or equivalent DIN-rail surge arresters should be installed at the cabinet entry point. Additionally, the Bently Nevada 3500/05 Rack itself provides the structural and backplane foundation that ensures all modules, including the 3500/42M, maintain secure electrical contact and mechanical stability even under continuous vibration from adjacent rotating equipment.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the 3500/42M monitors centrifugal compressors and process pumps operating in classified hazardous areas. Its relay outputs feed directly into Emergency Shutdown System (ESD) interlock loops, ensuring that a bearing failure or rotor imbalance event triggers an automatic safe-state shutdown before seal damage or fire risk escalates.

Power Generation: Steam and gas turbine protection systems rely on the 3500/42M for shaft eccentricity and differential expansion monitoring during startup and load transients. The module’s configurable trip multiply function allows operators to temporarily raise alarm thresholds during cold-start conditions while maintaining full protection at steady-state operation.

Mining & Mineral Processing: Ball mills, SAG mills, and conveyor drive motors in mining operations are subject to extreme shock loading and airborne dust. The 3500/42M’s robust signal conditioning rejects common-mode electrical noise from variable frequency drives (VFDs) and high-current motor starters, delivering clean vibration data even in the most electromagnetically hostile environments.

Water & Wastewater Treatment: Pump stations and blower systems in water treatment facilities operate continuously with minimal maintenance windows. The 3500/42M enables predictive maintenance scheduling by trending vibration amplitude over time, allowing maintenance teams to plan bearing replacements during planned outages rather than responding to emergency failures.

Metallurgy & Steel Production: Rolling mill drives and continuous casting equipment generate intense vibration and thermal cycling. The 3500/42M’s wide operating temperature range and EMI-hardened design ensure measurement integrity in environments where conventional instrumentation fails within months.

Port & Heavy Lifting Equipment: Crane hoists, ship loaders, and conveyor drives at port facilities benefit from the 3500/42M’s seismic channel, which detects structural resonance and drive-train imbalance before they progress to catastrophic mechanical failure during high-load cargo operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 3500/42M?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances from the date of shipment. Each unit undergoes pre-shipment functional testing including channel calibration verification, relay output actuation, and OK relay continuity checks. If a unit fails within the warranty period under normal operating conditions, we provide a replacement or full repair at no additional cost.

Q2: How is the 3500/42M tested before shipment?
Every 3500/42M module is bench-tested prior to dispatch. Testing includes power-on self-test (POST) verification, input channel signal simulation across the full measurement range, alarm and danger relay actuation at configured setpoints, and buffered output accuracy verification. A test record is available upon request for quality documentation purposes.

Q3: Is the 3500/42M compatible with existing Bently Nevada 3500 Series racks and transducers?
Yes. The 3500/42M is fully backward-compatible with all standard 3500 Series racks (3500/05 and variants) and is designed to interface with the complete range of Bently Nevada 3300 XL proximity probes, Proximitor sensors, and 330400-series velocity transducers. Configuration is performed via Rack Configuration Software (RCS), which is available from Bently Nevada and supports all legacy and current 3500 rack configurations.

Q4: Can you support long-term supply and replacement for the 3500/42M?
Yes. We maintain stock of the 3500/42M and related 3500 Series modules to support both immediate replacement needs and planned spare-parts programs. For facilities with critical rotating equipment, we recommend holding at least one spare 3500/42M per rack to enable hot-swap replacement without production interruption. Contact our team to discuss volume pricing, consignment stock arrangements, or scheduled supply agreements tailored to your maintenance cycle.
