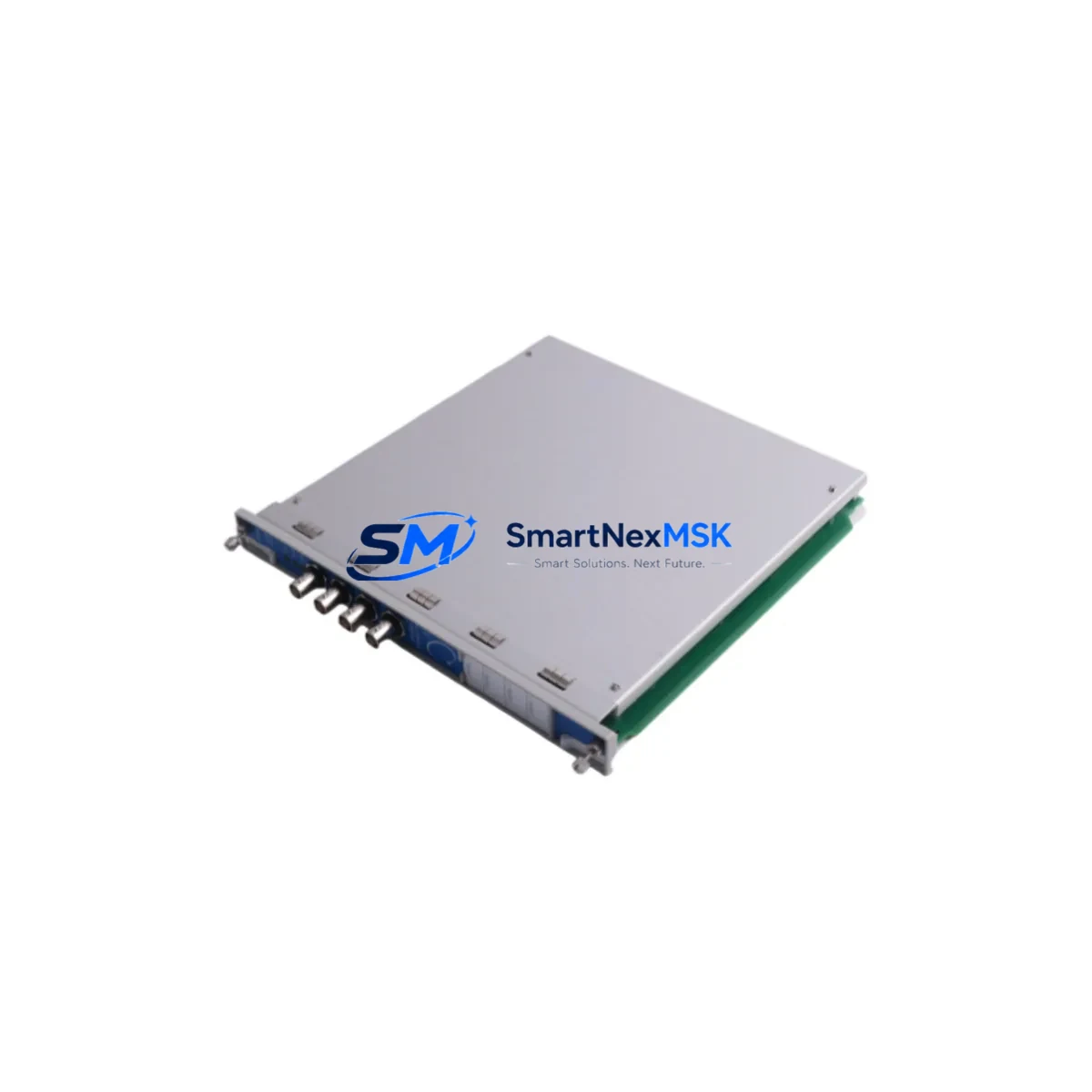

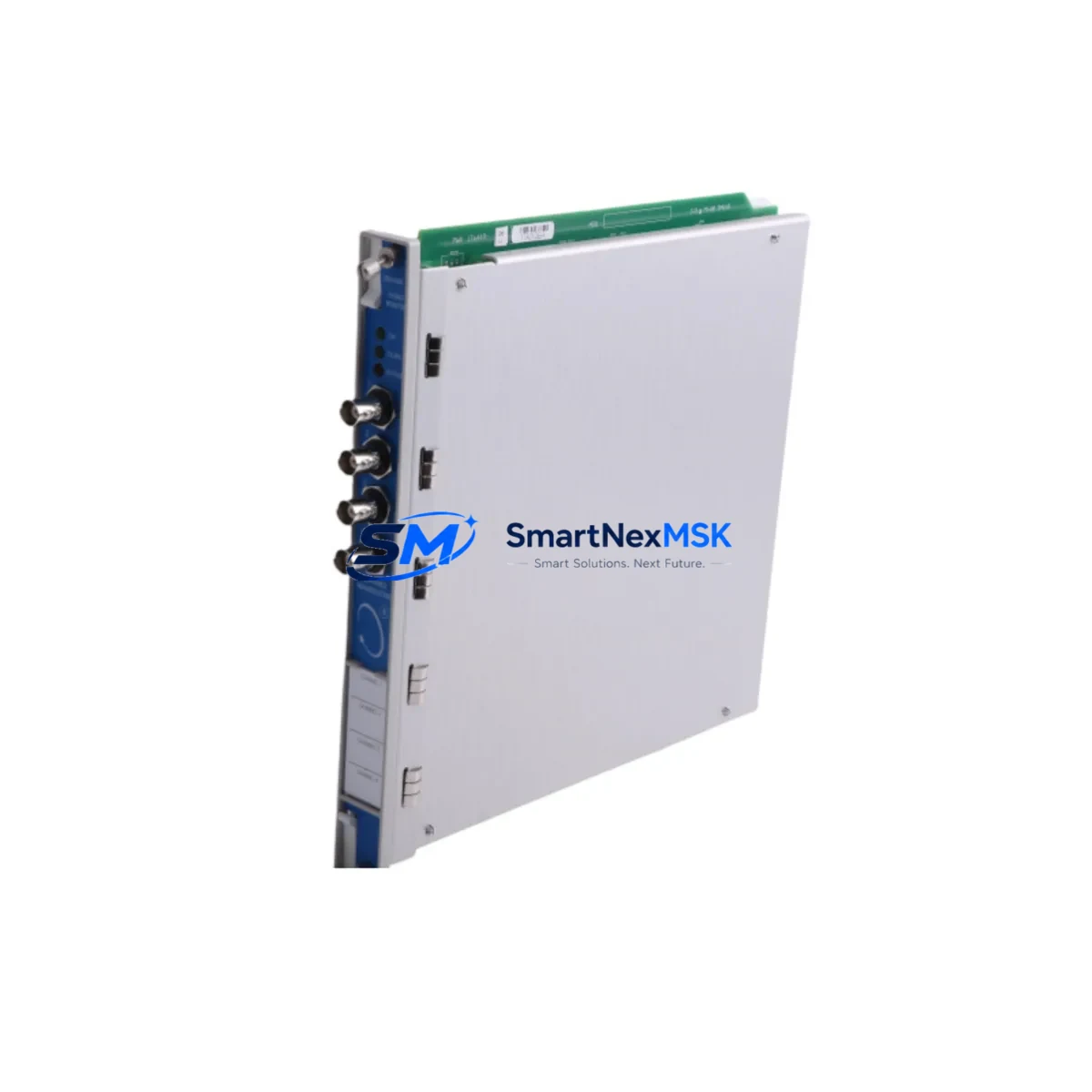

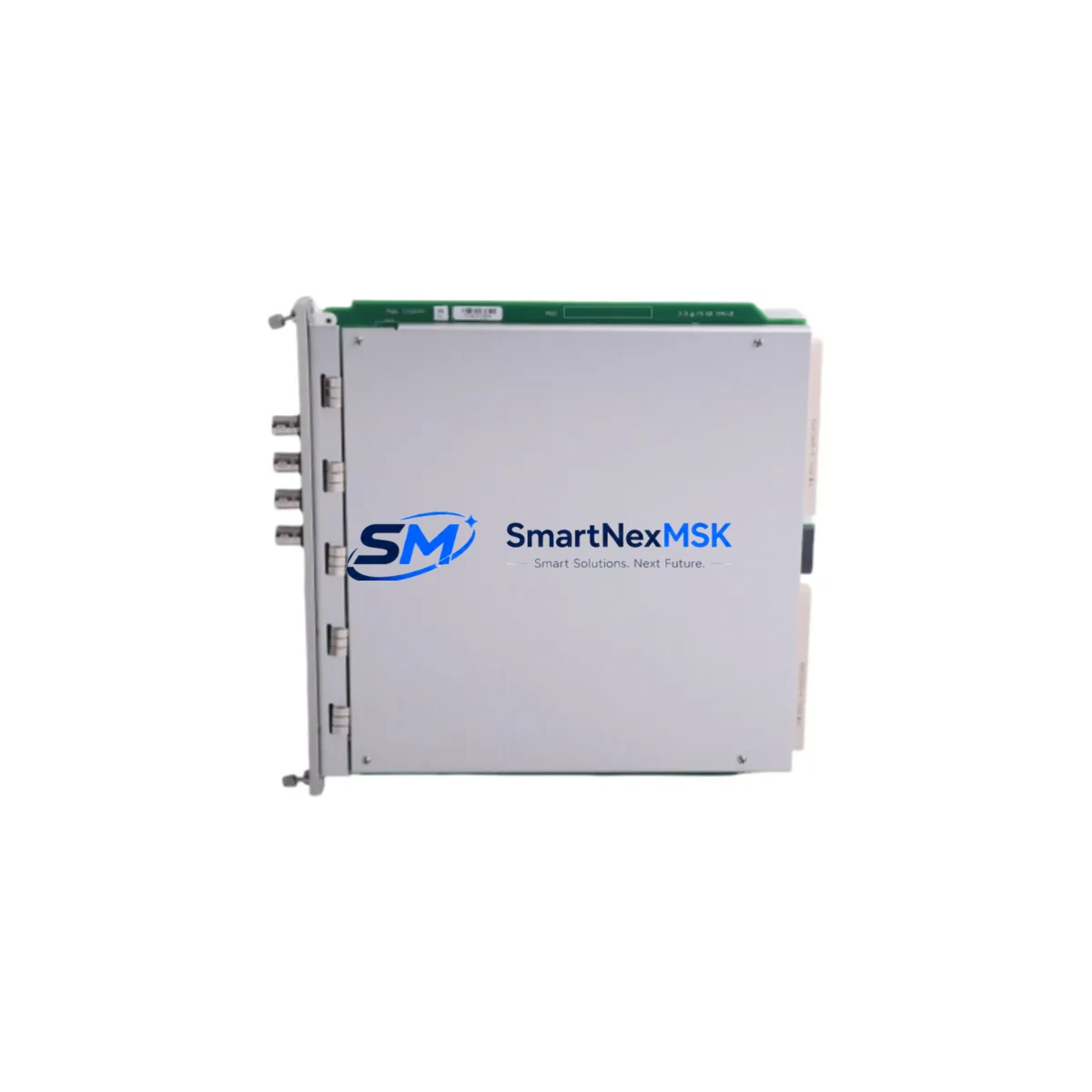

Bently Nevada 3500/46M 176449-06 Safety Hydro Monitor Module

Bently Nevada 3500/46M 176449-06 Safety Hydro Monitor Module: Reliable Control for Harsh Industrial Sites

The Bently Nevada 3500/46M 176449-06 is a ruggedized hydro monitor module engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3500 Series machinery protection system, this module delivers real-time shaft displacement, eccentricity, and absolute vibration measurements that are essential for protecting rotating machinery in power generation, petrochemical, mining, water treatment, metallurgical, and port operations.

In high-load, high-interference production facilities where control interruption is not an option, the 3500/46M 176449-06 provides the signal integrity and measurement stability that safety engineers and reliability teams depend on. Its ruggedized design addresses the full spectrum of field hazards — including signal drift caused by electromagnetic interference, power supply fluctuations, surge transients, module mis-operation, communication anomalies, and unplanned process shutdowns — making it a trusted choice for critical interlock loops and continuous protection architectures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a fully integrated Bently Nevada 3500 Series control cabinet, the 3500/46M 176449-06 does not operate in isolation — it functions as part of a coordinated machinery protection architecture. The module slots into the 3500 Series rack alongside the Bently Nevada 3500/20 Rack Interface Module, which manages system communication and Modbus/TCP or RS-232 data output to the plant DCS or SCADA layer. Power integrity is maintained by the Bently Nevada 3500/15 Power Supply Module, which provides regulated, redundant DC power to all rack-mounted modules, ensuring that voltage fluctuations on the plant bus do not propagate into the monitoring system.

Proximity transducer signals feeding the 3500/46M are conditioned at the field end by Bently Nevada 3300 XL proximity transducer systems, including the 3300 XL 8mm and 3300 XL 11mm series, which are specifically calibrated for shaft displacement measurement in hydro turbine and large rotating machine applications. These transducers are paired with Bently Nevada 330180 extension cables and 330130 proximitor sensors to maintain signal fidelity across long cable runs in electrically noisy environments.

For plants requiring enhanced communication redundancy, the 3500/46M integrates with the Bently Nevada 3500/92 Communication Gateway Module, enabling dual-channel Ethernet output and seamless handshake with plant-level safety PLCs such as the Rockwell Automation 1756-L85E ControlLogix or Siemens S7-400H redundant CPU used in critical interlock architectures. Surge protection at the cabinet entry point is typically provided by Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail mounted transient voltage suppressors, preventing lightning-induced or switching transients from reaching the sensitive analog input circuitry of the monitor module.

For applications requiring SIL 2 or SIL 3 safety loop compliance, the 3500/46M alarm relay outputs are wired into dedicated safety relay modules — such as the Pilz PNOZ X series or Rockwell Automation 440R GuardMaster — to form a certified machinery protection interlock that can initiate controlled shutdown sequences without relying on the main control PLC. This layered protection strategy ensures that even in the event of a communication bus fault or PLC CPU failure, the mechanical protection function remains active and independent.

Critical Industrial Safety Applications

Hydroelectric Power Generation: The 3500/46M 176449-06 is purpose-built for hydro turbine shaft monitoring, where eccentricity and axial position measurements are critical to preventing catastrophic bearing failure and runner imbalance. In run-of-river and pumped-storage hydro plants, this module provides continuous protection across all load conditions, from no-load spinning reserve to full-rated output, ensuring that any abnormal shaft behavior triggers an immediate alert or danger relay before mechanical damage occurs.

Petrochemical and Refinery Operations: In compressor trains, boiler feed pumps, and reactor agitator drives operating in classified hazardous areas, the 3500/46M delivers the measurement reliability required for API 670-compliant machinery protection. Its ability to maintain stable output in high-EMI environments — common near variable frequency drives, large motor starters, and high-voltage switchgear — makes it a preferred choice for refinery reliability engineers managing continuous process units where unplanned shutdowns carry significant safety and financial consequences.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives in mining operations subject monitoring equipment to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 3500/46M, combined with its rack-based isolation from field-side disturbances, ensures that shaft monitoring data remains accurate and actionable even in the harshest mineral processing environments.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure require continuous shaft monitoring to prevent bearing failures that could disrupt water supply. The 3500/46M’s multi-channel architecture allows a single module to monitor multiple pump shafts simultaneously, reducing cabinet footprint while maintaining full protection coverage across the pump station.

Metallurgical and Steel Plant Applications: Rolling mill drives, blast furnace blowers, and continuous casting machine drives operate under extreme load cycling and thermal stress. The 3500/46M provides the measurement stability needed to detect early-stage shaft misalignment and bearing wear before these conditions escalate into unplanned outages in continuous production lines where downtime costs are measured in thousands of dollars per minute.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 3500/46M 176449-06?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and includes replacement support. Our technical team provides pre-shipment and post-installation assistance to ensure the module performs correctly in your specific rack configuration.

Q2: How is each unit tested before shipment?
Every 3500/46M 176449-06 module undergoes a comprehensive pre-shipment functional test, including power-on verification, channel input/output response testing, alarm relay actuation checks, and communication interface validation. Units that do not meet Bently Nevada factory performance specifications are not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 3500/46M 176449-06 compatible with existing 3500 Series racks and transducer systems?
Yes. The 3500/46M 176449-06 is fully compatible with all standard Bently Nevada 3500 Series racks, including the 3500/05 and 3500/20 rack configurations. It accepts input from Bently Nevada 3300 XL proximity transducer systems and integrates with existing rack communication modules without requiring firmware or hardware modifications to the host rack.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of the 3500/46M 176449-06 and related 3500 Series components to support both planned maintenance schedules and emergency replacement requirements. Our inventory management strategy prioritizes continuity of supply for critical spare parts, and we can provide lead-time commitments for volume orders. Contact our sales team to discuss blanket order arrangements or consignment stock programs tailored to your plant’s maintenance strategy.
