Bently Nevada 3500/46M Safety Hydro Monitor for Harsh Sites

Bently Nevada 3500/46M Safety Hydro Monitor for Harsh Industrial Sites

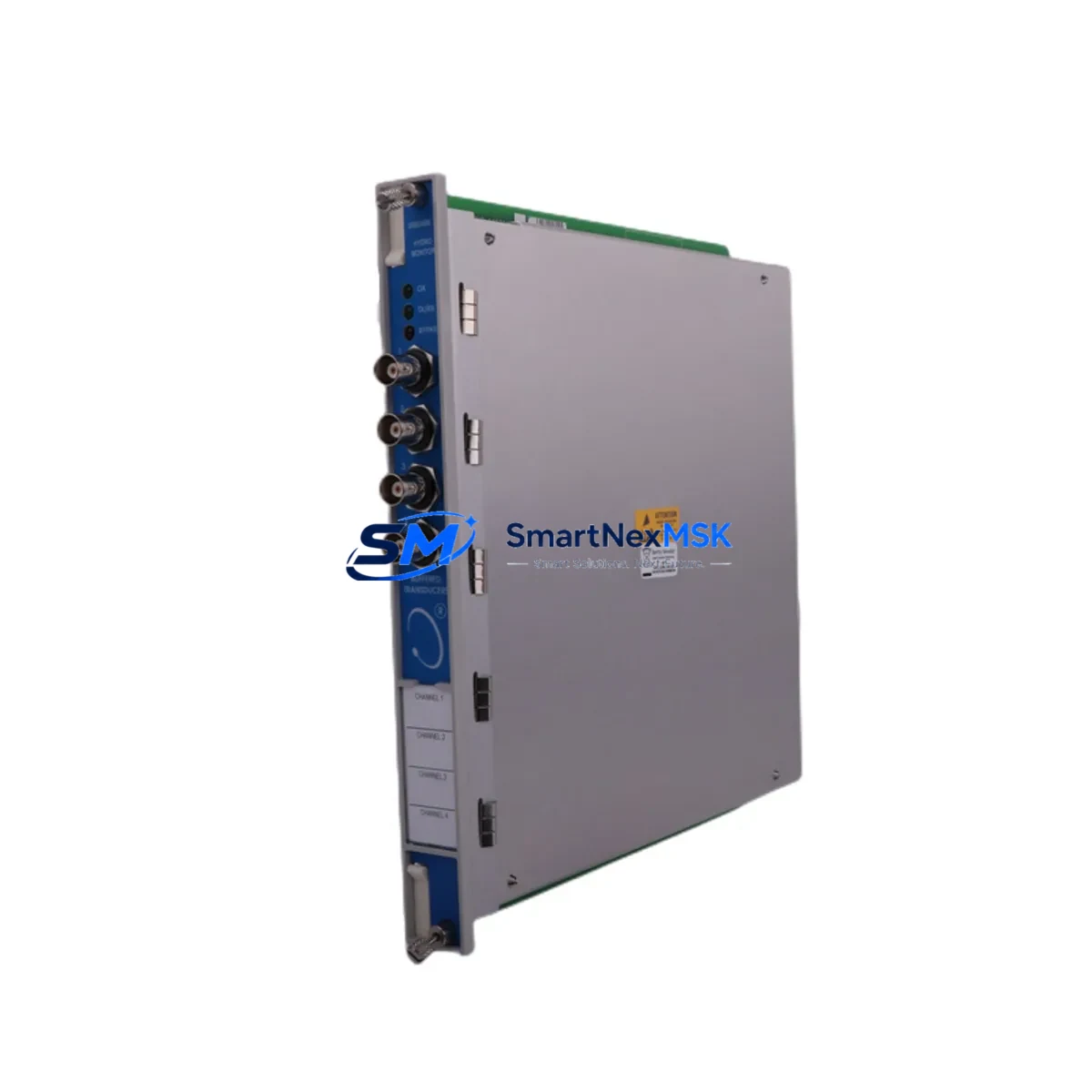

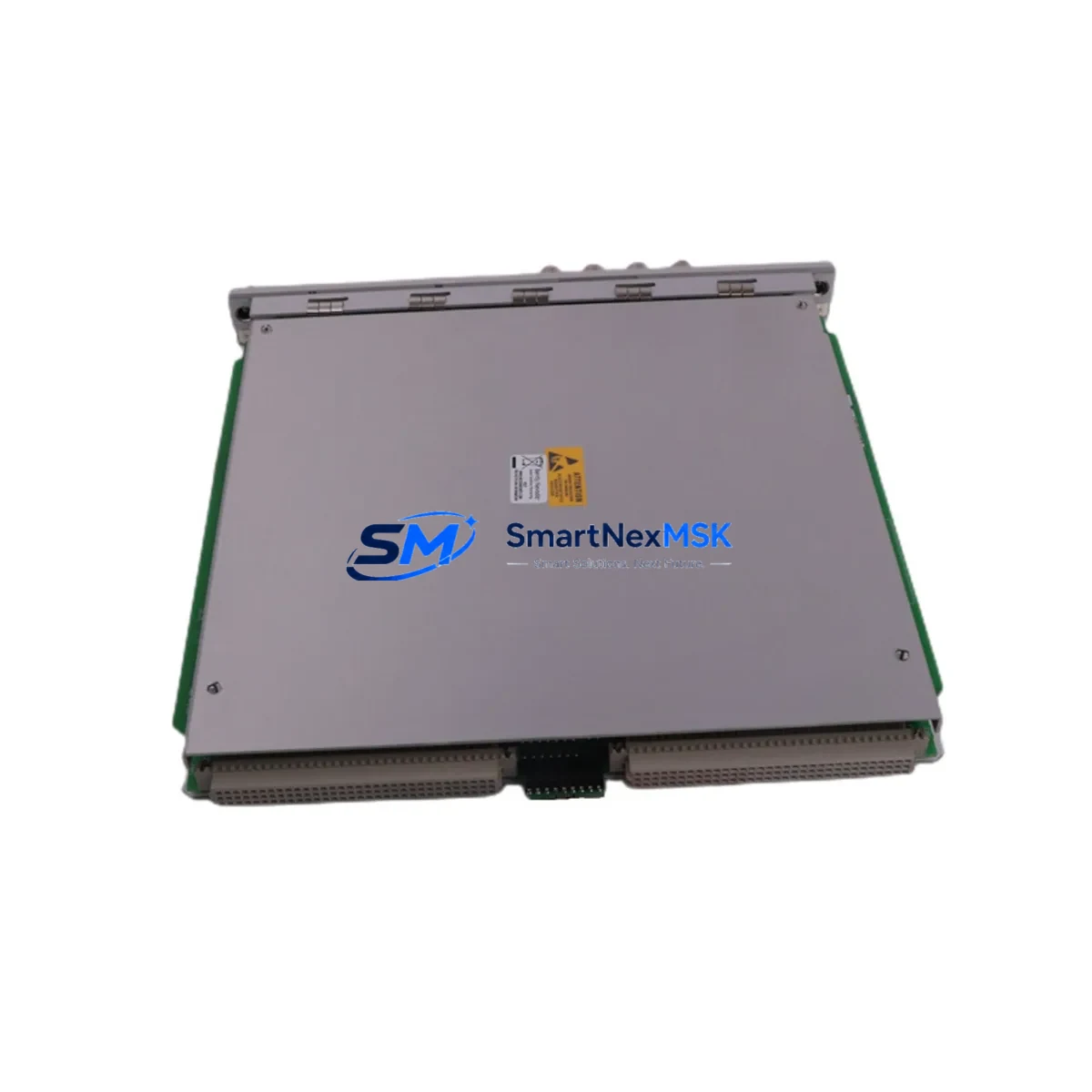

The Bently Nevada 3500/46M is a 4-channel hydro monitor module engineered for continuous, safety-critical condition monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection system, the 3500/46M delivers real-time shaft vibration, axial position, and differential expansion measurements that are essential for protecting rotating machinery in hydroelectric, petrochemical, power generation, and heavy manufacturing facilities. Designed to operate reliably under high electromagnetic interference, wide temperature swings, and continuous 24/7 production loads, this module is the backbone of any robust turbine or generator protection strategy.

In critical control cabinets where uptime is non-negotiable, the 3500/46M integrates seamlessly with the Bently Nevada 3500/15 Power Supply Module to ensure stable, conditioned power delivery to the entire rack. Signal integrity is maintained through the 3500/20 Rack Interface Module, which manages communication between the monitoring rack and the plant DCS or safety PLC. For plants running Modbus or FOUNDATION Fieldbus architectures, the 3500/22M Communication Gateway Module provides the protocol bridge needed to feed vibration data into the broader control loop without latency or data loss.

The 3500/46M is specifically optimized for hydro turbine shaft monitoring, where low-speed, high-amplitude shaft movement demands exceptional sensor sensitivity and noise rejection. It accepts inputs from proximity probes such as the Bently Nevada 3300 XL 8mm Proximity Transducer System, delivering accurate gap voltage readings even in oil-mist and high-humidity environments. When paired with the 3500/42M Four-Channel Vibration Monitor in the same rack, operators gain comprehensive radial and axial coverage across all critical bearing planes — a configuration widely adopted in large hydro units and steam turbine trains.

For facilities where functional safety compliance is mandatory, the 3500/46M supports integration with safety instrumented systems (SIS). Its relay output cards, including the 3500/32 Relay Output Module, can be wired directly into emergency shutdown (ESD) logic or interlock circuits, enabling automatic trip actions when vibration or position thresholds are exceeded. This closed-loop protection architecture significantly reduces the risk of catastrophic machinery failure, unplanned downtime, and personnel safety incidents in high-consequence zones such as mine hoists, pump stations, and offshore platforms.

Surge and transient protection is a critical consideration in any industrial installation. The 3500/46M’s internal signal conditioning circuitry is designed to reject common-mode noise and withstand voltage transients that would compromise lesser monitoring hardware. In control rooms where the Bently Nevada 3500/05 System Rack houses multiple monitoring modules, proper grounding and shielding practices — combined with the module’s inherent EMC robustness — ensure that signal drift and false trips are minimized even in electrically noisy environments near variable frequency drives (VFDs), large motors, or arc furnaces.

Replacement and spare parts availability is a key concern for maintenance engineers managing aging machinery protection systems. SMARTNEXMSK maintains in-stock inventory of the 3500/46M alongside complementary modules including the 3500/40M Proximitor/Seismic Monitor and the 3500/50 Tachometer Module, enabling rapid like-for-like substitution during planned outages or emergency repairs. All units undergo pre-shipment functional verification, including channel-by-channel calibration checks and relay output testing, before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 3500/46M typically integrates multiple layers of defense. At the power layer, the Bently Nevada 3500/15 Power Supply Module provides redundant, filtered DC power to the rack, preventing voltage sag or ripple from propagating into sensitive measurement circuits. The 3500/20 Rack Interface Module serves as the communication hub, aggregating channel data and forwarding it to the plant historian or DCS via the 3500/22M Communication Gateway. For plants requiring hardwired trip logic, the 3500/32 Relay Output Module provides configurable normally-open and normally-closed contacts that can be wired into the safety PLC or emergency shutdown panel.

At the sensor layer, Bently Nevada 3300 XL Proximity Transducers feed conditioned gap voltage signals into the 3500/46M’s input channels. These probes are designed for continuous immersion in bearing oil environments and maintain calibration stability over years of service. Complementing the hydro monitor, the 3500/40M Proximitor/Seismic Monitor handles seismic velocity inputs from casing-mounted accelerometers, while the 3500/50 Tachometer Module provides shaft speed reference signals used for vector filtering and phase-referenced vibration analysis. Together, these modules form a complete, defense-in-depth protection architecture that addresses vibration, position, speed, and process variable monitoring within a single standardized rack platform.

Critical Industrial Safety Applications

The Bently Nevada 3500/46M is deployed across a wide range of high-consequence industrial sectors. In hydroelectric power stations, it monitors the shaft runout and axial thrust of vertical Kaplan and Francis turbines, providing early warning of bearing wear, misalignment, or rotor imbalance before catastrophic failure occurs. In petrochemical and refinery facilities, it protects large centrifugal compressors and boiler feed pumps operating in continuous service, where an unplanned trip can trigger a full-plant shutdown and significant production loss.

In mining and mineral processing operations, the 3500/46M is installed on SAG mill pinion drives, slurry pump trains, and ventilation fan assemblies — all of which operate in high-dust, high-vibration environments where conventional instrumentation fails prematurely. Steel and metallurgical plants rely on it to monitor rolling mill drive trains and continuous casting machine drives, where thermal cycling and mechanical shock loads are extreme. In municipal water and wastewater treatment facilities, it protects large vertical turbine pumps and blower trains that must operate reliably around the clock with minimal maintenance intervention. Across all these applications, the 3500/46M’s combination of multi-channel flexibility, relay trip capability, and proven field reliability makes it the preferred choice for machinery protection engineers worldwide.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 3500/46M?
The 12-month warranty covers all manufacturing defects, functional failures, and relay output integrity issues from the date of shipment. If the module fails to perform within its published specifications under normal operating conditions, SMARTNEXMSK will provide a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your downtime exposure.

Q2: What pre-shipment testing is performed on each 3500/46M unit?
Every unit undergoes a structured pre-shipment inspection that includes channel-by-channel gap voltage calibration verification, analog output (4–20 mA) accuracy check, relay output functional testing (both NO and NC contacts), and visual inspection for connector integrity and PCB condition. A test record is available upon request for quality documentation purposes.

Q3: Is the 3500/46M compatible with existing 3500 Series racks and modules?
Yes. The 3500/46M is fully compatible with the standard Bently Nevada 3500 Series 19″ rack infrastructure, including the 3500/05 System Rack, 3500/15 Power Supply, and 3500/20 Rack Interface Module. It can be installed as a direct replacement for existing hydro monitor slots without requiring rack reconfiguration, making it ideal for like-for-like spare parts replacement during planned maintenance windows.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains a dedicated inventory of Bently Nevada 3500 Series modules, including the 3500/46M, to support both emergency replacement and planned maintenance programs. We work with industrial facilities on a consignment and scheduled replenishment basis to ensure that critical spare parts are available when needed, reducing the risk of extended downtime due to parts unavailability. Contact our team to discuss a supply agreement tailored to your maintenance schedule.
