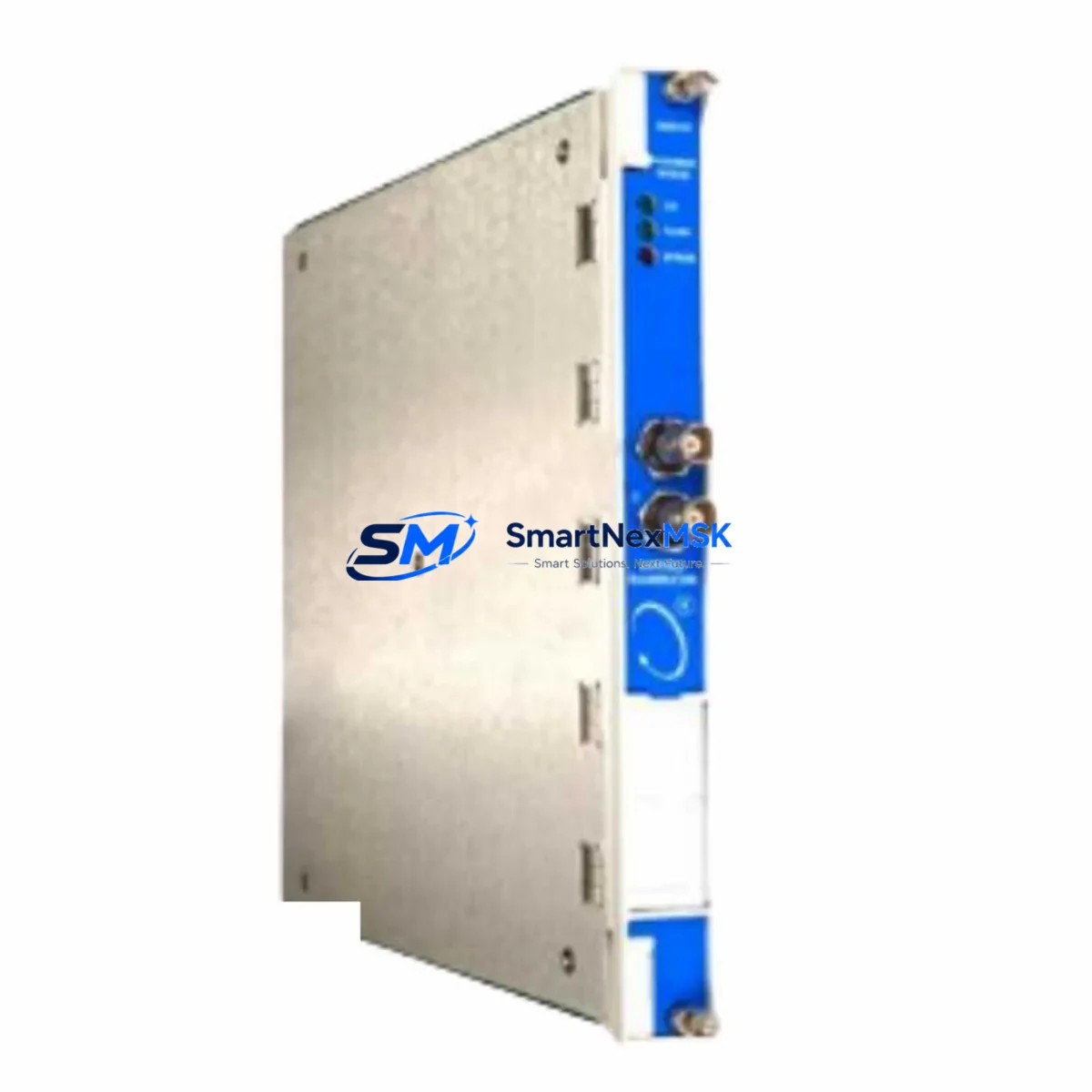

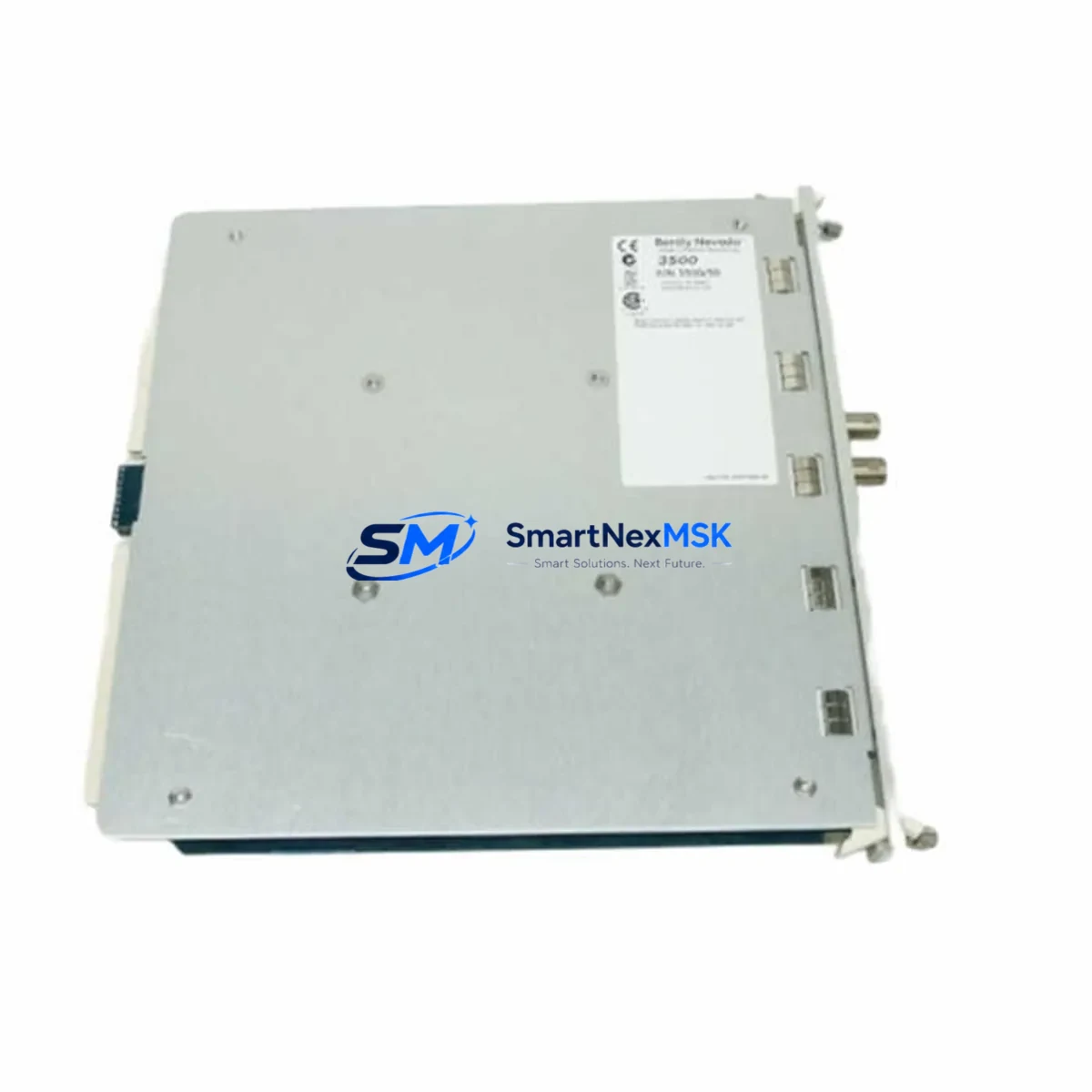

Bently Nevada 3500/50M 286566-02 Safety Speed Ref Module

Bently Nevada 3500/50M 286566-02 Safety Speed Ref Module: Reliable Control in Harsh Industrial Sites

The Bently Nevada 3500/50M 286566-02 is a ruggedized Speed and Keyphasor Phase Reference Module engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3500 Series Machinery Protection System, this module delivers precise rotational speed measurement and phase reference signals that are essential for turbine overspeed protection, compressor surge detection, and rotating machinery safety interlock circuits. In high-stakes facilities where an unplanned shutdown can cost hundreds of thousands of dollars per hour, the 3500/50M 286566-02 provides the measurement integrity that plant engineers and safety system designers depend on.

Built to withstand the electrical noise, vibration, temperature extremes, and power fluctuations common to petrochemical plants, power generation stations, offshore platforms, and heavy metallurgical facilities, this module maintains signal accuracy even under severe electromagnetic interference. Its isolated input architecture minimizes the risk of ground loops and signal drift that can cause false trips or, more critically, missed protective shutdowns. Whether installed in a dedicated machinery protection cabinet alongside the Bently Nevada 3500/15 Power Supply Module or integrated into a broader safety instrumented system, the 286566-02 maintains measurement continuity across the full operational lifecycle of the rotating asset it monitors.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the Bently Nevada 3500/50M 286566-02 does not operate in isolation — it functions as part of a tightly integrated protection architecture. The module slots into the 3500 Series rack alongside the Bently Nevada 3500/15 Power Supply Module, which provides conditioned, redundant DC power to eliminate voltage sag events that could cause module resets or false speed readings during grid disturbances. The Bently Nevada 3500/20 Rack Interface Module (RIM) manages communication between the rack and the host DCS or safety PLC, ensuring that speed and phase data is transmitted without latency or packet loss even during high-traffic network conditions.

For facilities running Emerson Ovation DCS or Honeywell Safety Manager, the speed reference output from the 286566-02 feeds directly into overspeed logic blocks, where it is cross-validated against signals from the Bently Nevada 3500/25 Keyphasor Module to confirm shaft position and rotational phase. This cross-validation architecture is critical in steam turbine and gas compressor applications where a single-point speed sensor failure must not result in a spurious trip or, worse, a missed overspeed event.

Surge protection at the cabinet level is reinforced by installing Phoenix Contact TRABTECH surge protection devices on all field wiring terminals, preventing transient voltages from lightning strikes or motor switching from propagating into the 3500 rack. The Bently Nevada 3500/40M Proximitor I/O Module handles radial and axial vibration signals from the same shaft, and its data is correlated with the speed reference from the 286566-02 to produce complete rotor dynamic profiles used in predictive maintenance programs. For facilities requiring SIL-rated protection loops, the 286566-02 is typically paired with a Pilz PNOZ safety relay or equivalent SIL 2-certified logic solver to form a complete overspeed safety instrumented function (SIF).

Communication integrity is maintained through the Bently Nevada 3500/92 Communication Gateway Module, which bridges the 3500 rack to Modbus TCP, PROFIBUS DP, or OPC-UA networks used by plant historians and alarm management systems. This ensures that speed and phase reference data is continuously archived and available for post-event analysis following any protective shutdown. Redundant communication paths, combined with the module’s onboard non-volatile memory for configuration storage, mean that the system recovers to full operational status rapidly after a power cycle — a critical requirement in continuous process industries where restart time directly impacts production throughput.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking (FCC) units and ethylene compressor trains, the 3500/50M 286566-02 provides the speed reference signal that arms the emergency shutdown system (ESD) against compressor overspeed. A speed measurement error of even 1–2% in these environments can mean the difference between a controlled shutdown and a catastrophic mechanical failure. The module’s high-frequency response and noise-immune input circuitry ensure that speed pulses from reluctance-type proximity probes are captured accurately even in the presence of strong variable-frequency drive (VFD) interference from adjacent motor control centers.

Power Generation — Steam & Gas Turbines: Turbine overspeed protection is one of the most safety-critical functions in any power plant. The 286566-02 feeds real-time speed data to the turbine control system, enabling the emergency trip valve to actuate within milliseconds of detecting an overspeed condition. Its Keyphasor output simultaneously provides the once-per-revolution phase reference required for online balancing and vibration vector analysis, reducing planned maintenance downtime by enabling condition-based maintenance strategies.

Mining & Mineral Processing: In SAG mill drives, conveyor head pulleys, and crusher gearboxes, the module monitors shaft speed to detect belt slip, gear tooth failure, and bearing-induced speed irregularities before they escalate into structural damage. The ruggedized design withstands the high-vibration, high-dust environments typical of underground and open-pit mining operations.

Water & Wastewater Treatment: Large centrifugal pump stations and blower systems in municipal water treatment facilities rely on speed monitoring to detect cavitation, impeller wear, and motor coupling failures. The 286566-02 provides the speed reference that enables the SCADA system to correlate pump speed with flow rate and pressure, flagging deviations that indicate developing faults before they cause unplanned outages.

Metallurgy & Steel Production: Rolling mill main drives, continuous casting withdrawal rolls, and blast furnace blower trains operate under extreme thermal and mechanical stress. The 3500/50M 286566-02 maintains measurement accuracy across the wide temperature swings and heavy electromagnetic interference generated by large DC and AC drive systems in these facilities, ensuring that speed-based protective functions remain reliable throughout the production campaign.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 3500/50M 286566-02?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from OEM specifications. If the module fails to perform its speed measurement or Keyphasor phase reference functions within the warranty period under normal operating conditions, we will repair or replace the unit at no charge. Warranty claims are processed within 5 business days of receipt of the returned module.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/50M 286566-02 undergoes a full functional verification test before dispatch. This includes power-on self-test confirmation, input channel response verification across the rated frequency range, output signal integrity check, and backplane communication validation using a 3500 Series test rack. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all 3500 Series racks and the current Bently Nevada System 1 software?
Yes. The 286566-02 is fully compatible with all standard 3500 Series 19-inch rack frames and communicates natively with Bently Nevada System 1 Evolution software for configuration, monitoring, and alarm management. It is also backward compatible with earlier System 1 versions. For integration with third-party DCS or safety PLC platforms, the 3500/92 Communication Gateway Module provides the necessary protocol translation.

Q4: Can you guarantee long-term supply and replacement support for this module?
Yes. We maintain dedicated inventory of the Bently Nevada 3500/50M 286566-02 and related 3500 Series modules to support both planned maintenance schedules and emergency replacement requirements. Our procurement network covers new, surplus-new, and refurbished-to-OEM-spec units, ensuring supply continuity even for modules that have reached end-of-production status. Emergency orders with same-day or next-day dispatch are available for critical plant situations.
