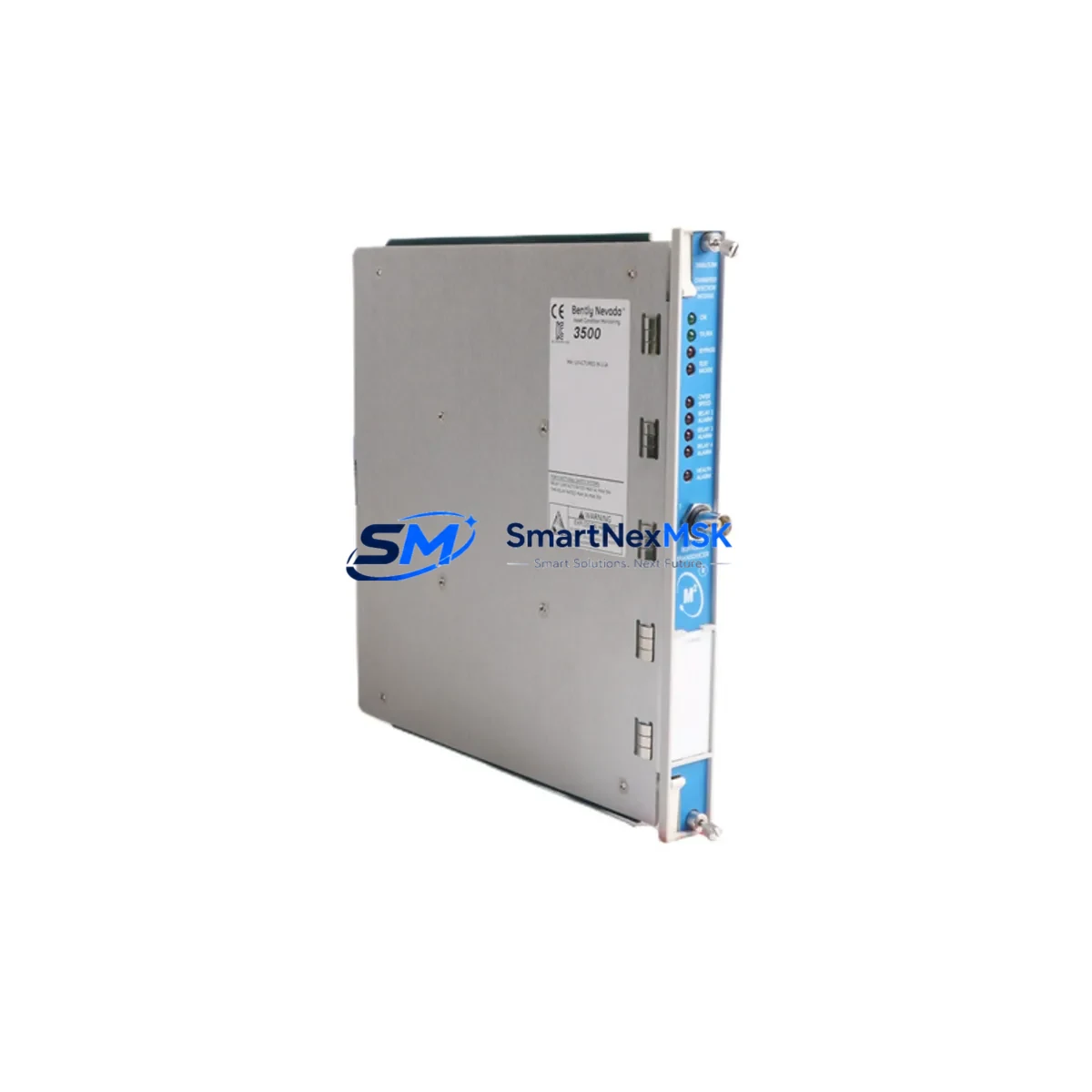

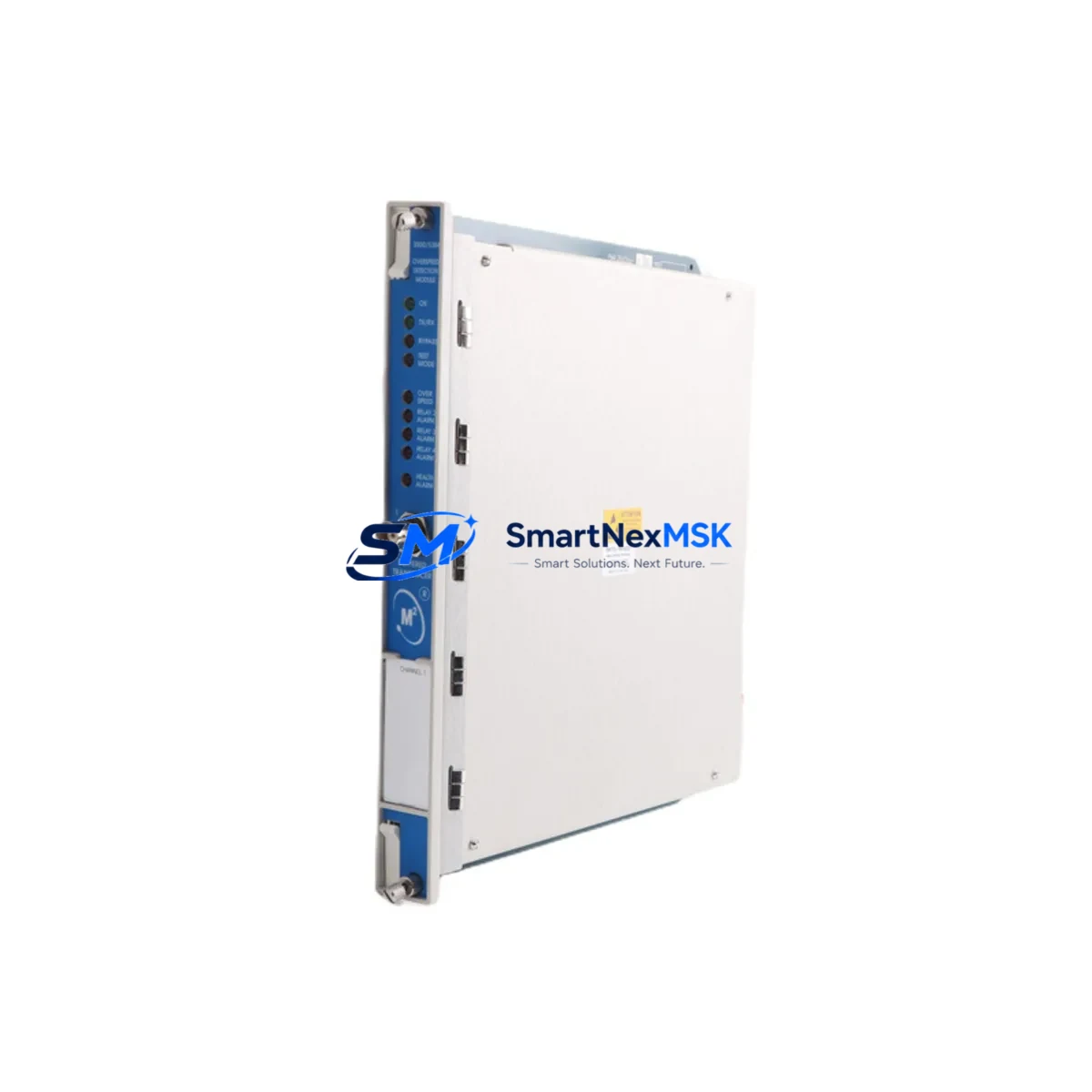

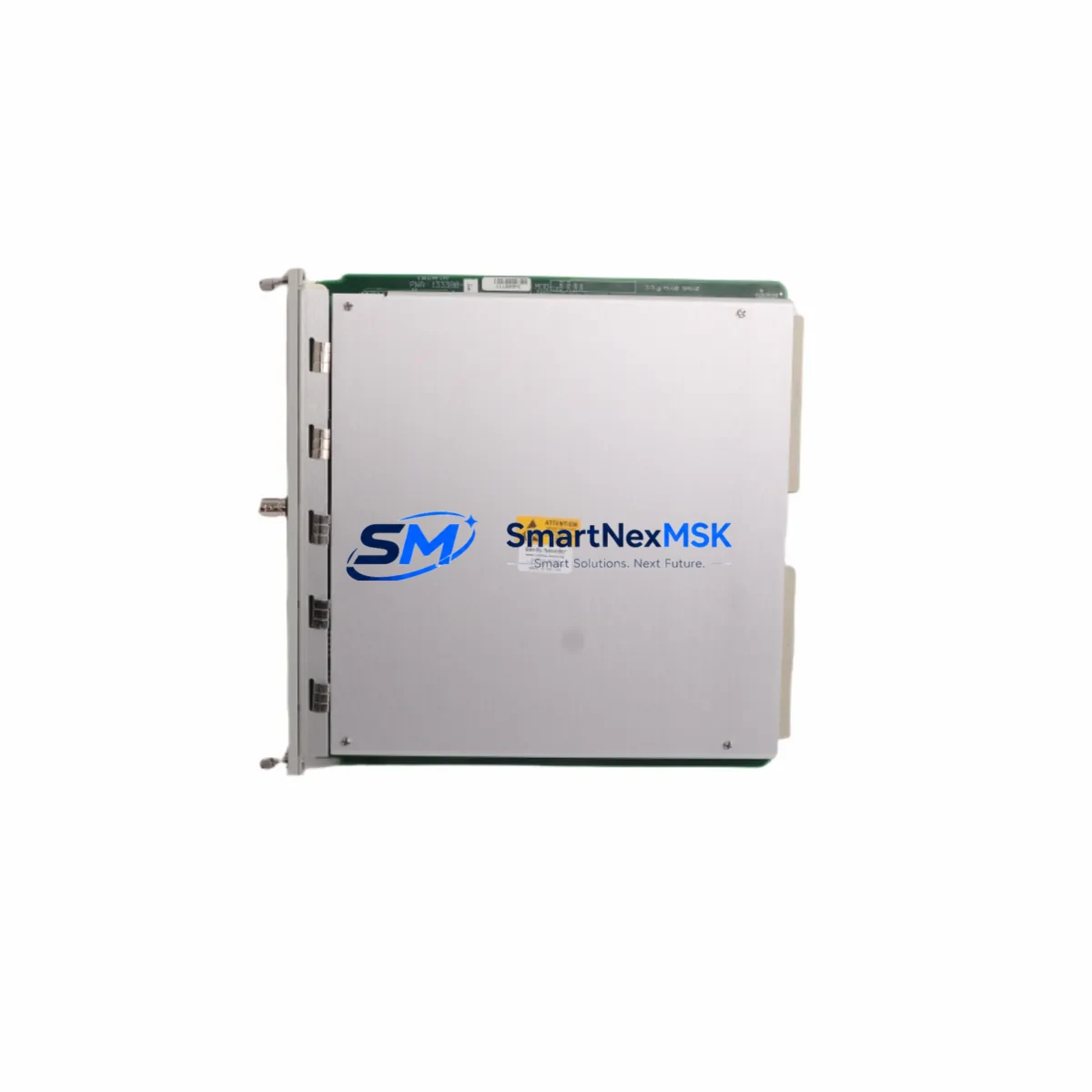

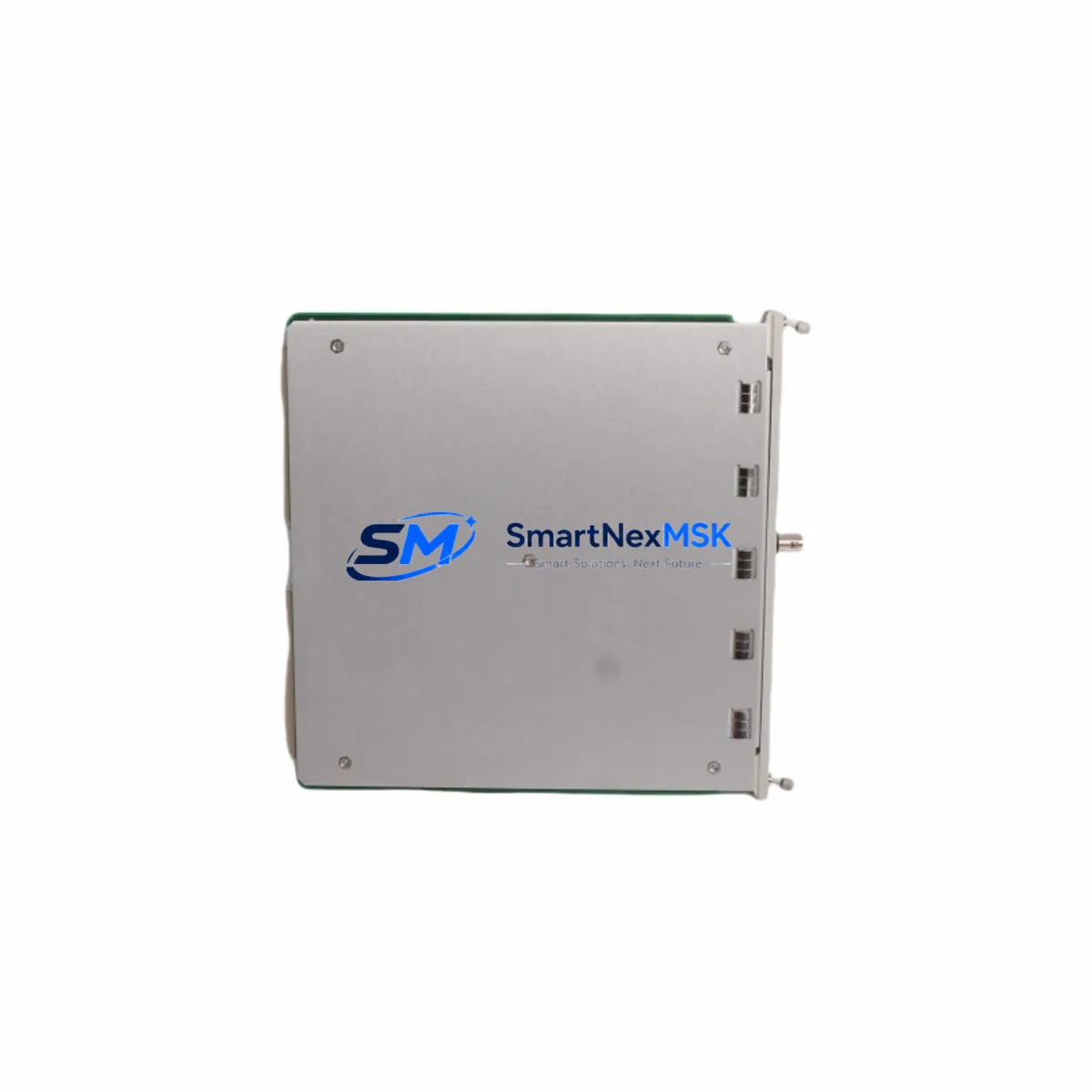

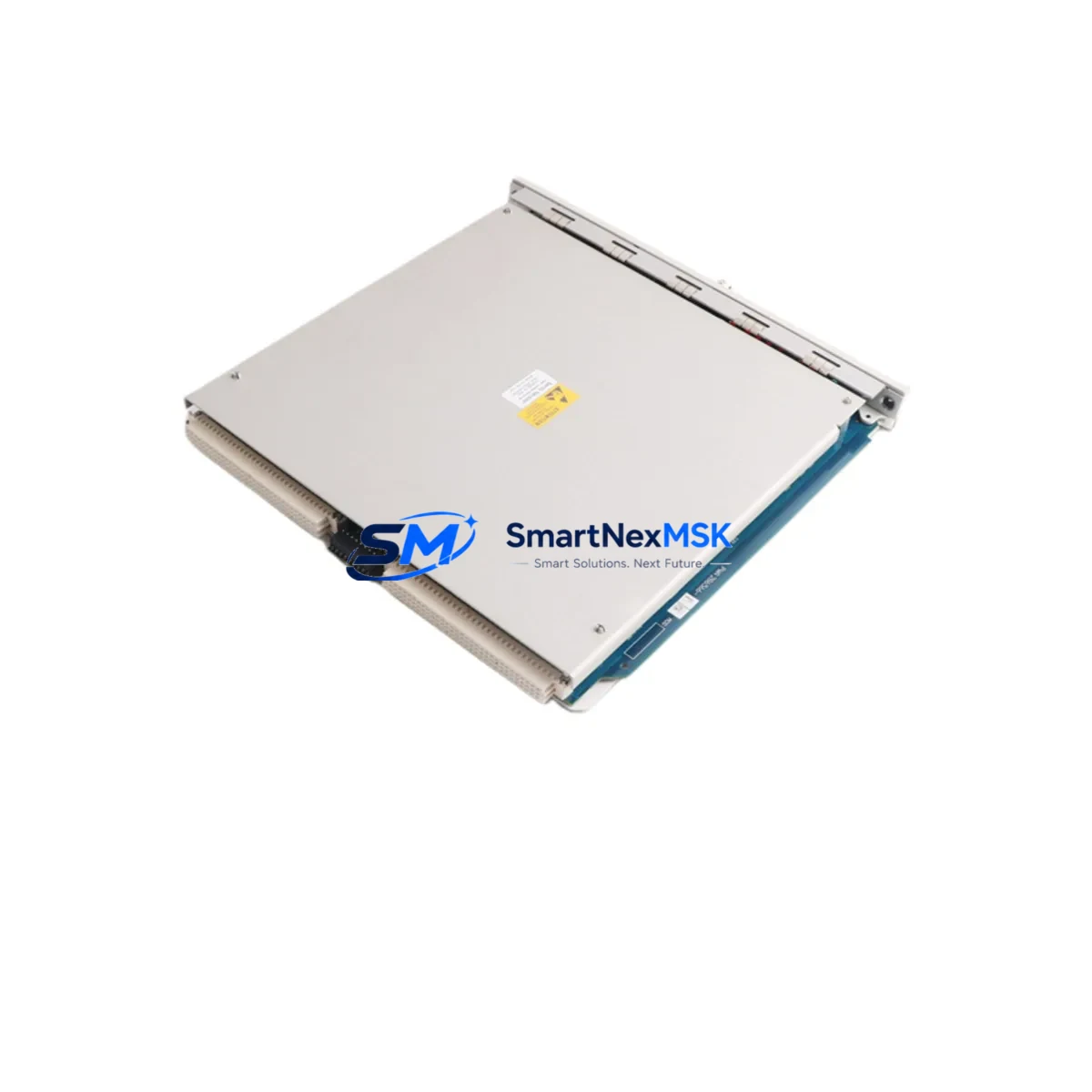

Bently Nevada 3500/53-133388-01 Safety-Enhanced Overspeed Detection

Bently Nevada 3500/53-133388-01 Safety-Enhanced Overspeed Detection for Harsh Industrial Sites

The Bently Nevada 3500/53-133388-01 is a ruggedized overspeed detection module engineered for mission-critical rotating machinery protection in the most demanding industrial environments. As part of the globally trusted Bently Nevada 3500 Series machinery protection system, this module delivers real-time overspeed trip logic with deterministic response times, ensuring that turbines, compressors, pumps, and generators are safeguarded against catastrophic runaway events before irreversible mechanical damage or personnel injury can occur.

In high-load, high-interference production facilities — including petrochemical plants, thermal power stations, offshore platforms, and continuous steel mills — control interruptions caused by signal drift, power fluctuation, or module misoperation can cascade into full-site shutdowns. The 3500/53-133388-01 is specifically designed to eliminate these failure modes. Its isolated signal conditioning architecture suppresses electromagnetic interference from adjacent variable-frequency drives, high-voltage switchgear, and bus-bar transients, maintaining clean speed signal integrity even in the most electrically noisy control cabinets.

Surge immunity is built into the module’s front-end circuitry, protecting against voltage spikes that commonly propagate through shared instrument cable trays in heavy industrial facilities. When paired with the Bently Nevada 3500/15 Power Supply Module and 3500/20 Rack Interface Module, the system forms a fully redundant, self-monitoring protection backbone. The 3500/22M Transient Data Interface further extends diagnostic capability, capturing speed transient waveforms for post-event forensic analysis — a critical feature for root-cause investigation after a near-miss overspeed event.

For facilities operating under IEC 61511 or IEC 62061 functional safety frameworks, the 3500/53-133388-01 integrates cleanly into Safety Instrumented System (SIS) architectures. Its trip output contacts are compatible with Triconex TRICON and Rockwell Automation GuardLogix safety PLCs, enabling seamless interlock logic across the safety layer without requiring additional signal converters. The module’s voting logic supports 1oo2 and 2oo3 configurations, reducing both spurious trip rates and dangerous failure probability simultaneously.

In critical interlock loops protecting steam turbine governor systems, the 3500/53-133388-01 works in concert with the Bently Nevada 3500/40M Proximitor I/O Module for shaft displacement monitoring and the 3500/42M Proximitor Seismic I/O Module for vibration-based early warning. Together, these modules provide a multi-parameter protection envelope that catches developing faults — whether mechanical imbalance, bearing wear, or rotor instability — before they escalate to overspeed conditions. The 3500/25 Enhanced Keyphasor Module provides the precision phase reference signal that the overspeed module relies on for accurate RPM calculation across the full operating speed range.

Communication reliability is equally prioritized. The module’s rack-level communication with the 3500/93 Communication Gateway Module enables real-time status reporting to DCS platforms including Emerson DeltaV and Honeywell Experion PKS via Modbus TCP or OPC DA/UA, ensuring that control room operators receive continuous, latency-free protection system health data. Any communication anomaly — whether a broken Ethernet segment or a corrupted Modbus frame — is flagged immediately at the rack level, preventing silent failure of the monitoring chain.

Every 3500/53-133388-01 unit supplied by SMARTNEXMSK undergoes a structured pre-shipment inspection protocol: functional power-on verification, trip relay actuation test, speed input channel calibration check, and visual inspection of connector pins and module housing. Units are shipped in anti-static packaging with individual test records. Stock is maintained in climate-controlled storage to prevent humidity-induced PCB degradation, ensuring that modules arrive in field-ready condition regardless of lead time.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection cabinet built around the 3500/53-133388-01 demands careful selection of every supporting component. The Bently Nevada 3500/15 Power Supply Module provides dual-redundant 24 VDC rail power with automatic failover, eliminating power interruption as a trip cause. The 3500/20 Rack Interface Module manages inter-module communication and system OK logic, while the 3500/22M Transient Data Interface captures high-resolution speed transient data for post-event analysis.

Shaft and bearing condition monitoring is handled by the 3500/40M Proximitor I/O Module (radial displacement) and 3500/42M Proximitor Seismic I/O Module (velocity and acceleration), both feeding alarm and danger setpoints into the same rack. The 3500/25 Enhanced Keyphasor Module delivers the phase reference signal essential for accurate overspeed calculation and vector-based vibration analysis. For process variable integration — bearing temperature, lube oil pressure, seal gas differential — the 3500/60 Temperature Monitor and 3500/62 Process Variable Monitor complete the protection envelope within a single 3500 rack chassis.

At the safety PLC layer, trip relay outputs from the 3500/53-133388-01 wire directly into Triconex TRICON TMR digital input modules or Rockwell GuardLogix 5580 safety I/O, maintaining SIL integrity without intermediate relays. Upstream power quality is protected by a Phoenix Contact QUINT-PS DIN-rail power supply with SFB (Selective Fuse Breaking) technology, preventing a single cabinet fault from collapsing the entire 24 VDC protection bus. Surge protection on field cable entries — using MTL Surge Technologies SD Series or equivalent DIN-rail SPDs — blocks lightning-induced transients from reaching module inputs.

Critical Industrial Safety Applications

Petrochemical & Refinery: Steam turbine-driven compressor trains in ethylene crackers and crude distillation units operate continuously at high RPM under variable load. The 3500/53-133388-01 provides the final hardware overspeed trip barrier, independent of DCS logic, ensuring that a PLC communication failure or operator error cannot prevent a mechanical trip. In these facilities, a single uncontrolled overspeed event can destroy a multi-million-dollar compressor and trigger a site-wide emergency shutdown.

Thermal Power Generation: Steam and gas turbine generators in coal-fired, combined-cycle, and waste-heat recovery plants rely on overspeed protection as the last line of defense during load rejection events. The module’s sub-millisecond trip response is essential when turbine speed can accelerate from rated RPM to destructive overspeed in under two seconds following a full-load trip.

Mining & Mineral Processing: Large ball mills, SAG mills, and conveyor drive motors in open-pit and underground mining operations are subject to sudden load changes that can induce overspeed conditions in wound-rotor or synchronous drive systems. The 3500/53-133388-01 provides reliable protection in environments with extreme dust, vibration, and electrical noise from high-power variable-speed drives.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in municipal water treatment plants require overspeed protection to prevent mechanical seal failure and catastrophic pump casing rupture. The module’s low-maintenance design and long MTBF make it suitable for unmanned or remotely monitored pump stations.

Metallurgy & Steel: Rolling mill main drives and continuous casting machine drives in integrated steel plants operate under severe electromagnetic interference from thyristor rectifiers and arc furnaces. The module’s EMI-hardened signal conditioning maintains trip accuracy in these environments, where false trips and missed trips are equally unacceptable.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide on the 3500/53-133388-01?
All units carry a 12-month warranty from the date of shipment. If a module fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each module?
Every 3500/53-133388-01 undergoes power-on functional verification, trip relay actuation test across all output contacts, speed input channel signal integrity check, and full visual inspection of PCB, connectors, and housing. A test record accompanies each shipment. Units that do not pass all checks are quarantined and not shipped.

Q3: Is this module compatible with existing Bently Nevada 3500 racks and software?
Yes. The 3500/53-133388-01 is fully compatible with all standard and enhanced Bently Nevada 3500 Series rack chassis and is configurable via Bently Nevada System 1 and 3500 Rack Configuration Software. It supports all standard 3500 Series I/O and communication modules without firmware modification.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains standing inventory of the 3500/53-133388-01 and related 3500 Series modules to support both planned maintenance cycles and emergency breakdown replacements. Same-day dispatch is available for in-stock units. For facilities requiring guaranteed spare availability, contact our team to discuss consignment or reserved-stock arrangements.
