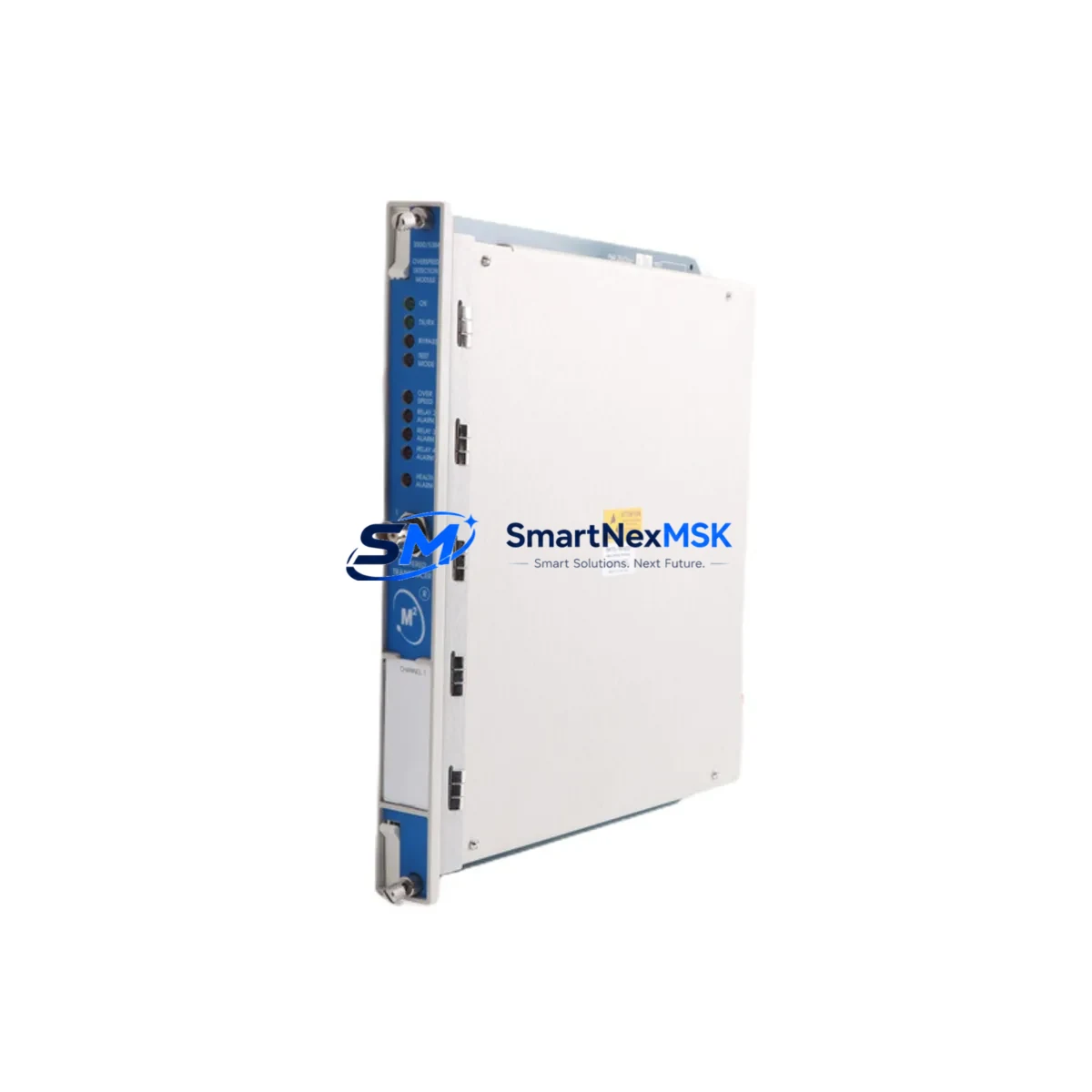

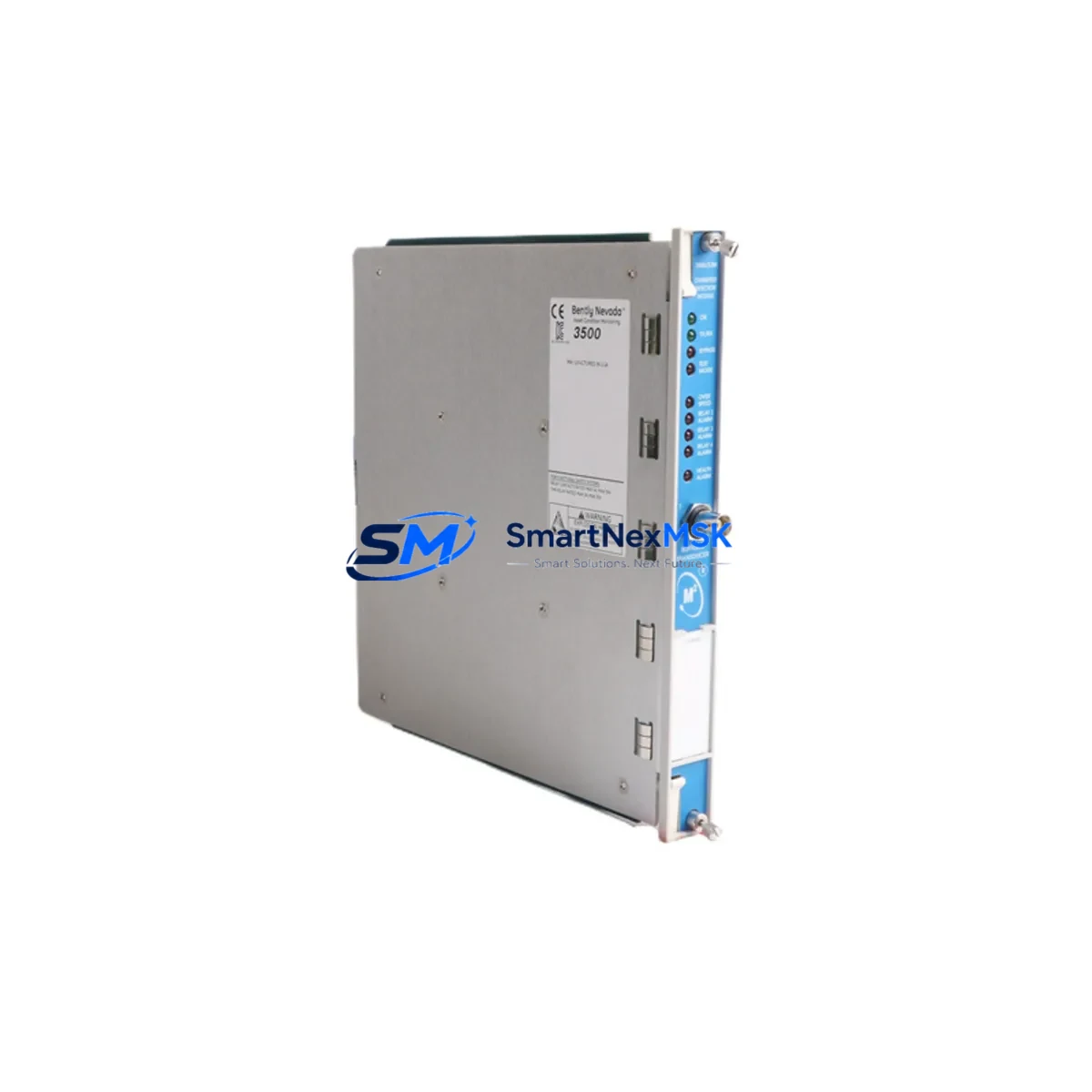

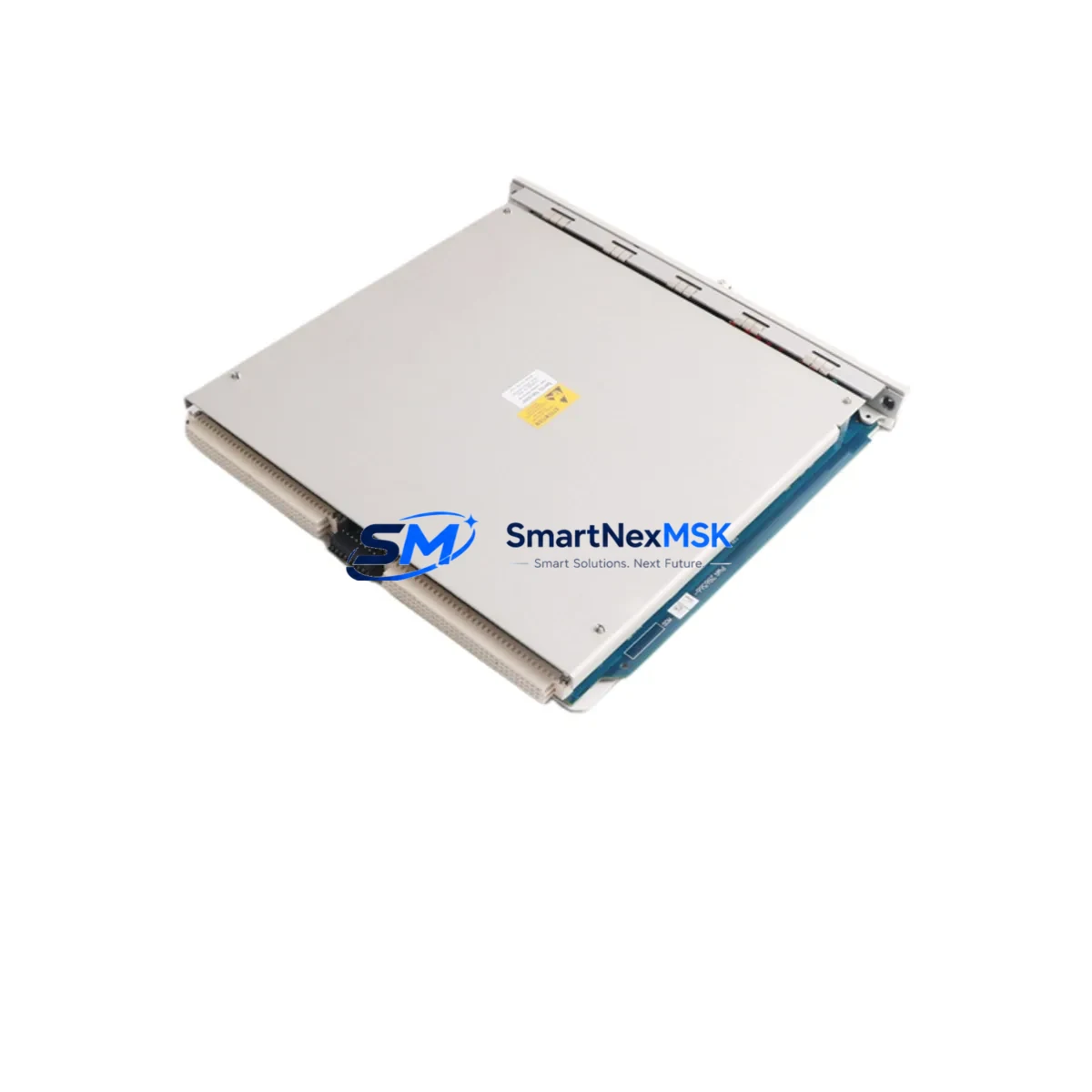

Bently Nevada 3500/53M 286566-01 Safety Overspeed Module: Reliable Overspeed Control for Harsh Industrial Sites
The Bently Nevada 3500/53M 286566-01 is a ruggedized overspeed detection module engineered for continuous, safety-critical machinery protection in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series Machinery Protection System, this module monitors rotational speed in real time and triggers protective shutdown actions the moment a dangerous overspeed condition is detected — preventing catastrophic equipment failure, personnel injury, and unplanned production downtime.
Designed for deployment in high-vibration, high-temperature, and electromagnetically noisy environments, the 3500/53M 286566-01 delivers consistent signal integrity even under severe electrical interference. Its hardened architecture resists signal drift caused by ground loops, power fluctuations, and transient surges — conditions that routinely compromise lesser protection modules in petrochemical plants, power generation facilities, and heavy metallurgical operations.
Every unit shipped by SMARTNEXMSK undergoes full functional verification and burn-in testing prior to dispatch. Stock is maintained on-hand for immediate fulfillment, and all units are covered by a 12-month warranty from the date of shipment.
Safety Reliability Table
| Parameter | Specification / Capability |
|---|---|
| SKU / Part Number | 3500/53M 286566-01 |
| Brand / Series | Bently Nevada / 3500 Series Machinery Protection System |
| Module Function | Overspeed Detection & Protective Trip Output |
| Input Signal Type | Proximity probe / magnetic pickup speed signals |
| Trip Relay Output | Dual-channel safety relay with configurable trip setpoints |
| Operating Voltage | 18–30 VDC (from 3500 Series rack power supply) |
| Operating Temperature | 0°C to +65°C (storage: -40°C to +85°C) |
| EMI / RFI Protection | High-immunity design per IEC 61000 series |
| Surge / Transient Protection | Built-in transient suppression on all I/O lines |
| Enclosure / Form Factor | 3500 Series rack-mount module (standard slot) |
| Communication | Compatible with 3500/20 Rack Interface Module (RIM) |
| Safety Standard Alignment | Suitable for SIL-rated protection loop integration |
| Country of Origin | China (CN) — tested and verified stock |
| Warranty | 12 Months from date of shipment |
| Pre-shipment Testing | Full functional verification and burn-in test performed |
Control Cabinet Protection Strategy
In a well-engineered machinery protection cabinet, the Bently Nevada 3500/53M 286566-01 does not operate in isolation — it functions as the overspeed detection anchor within a layered protection architecture. The module slots into a Bently Nevada 3500/05 Rack, which provides the structural and power backbone for the entire protection system. Rack power is delivered through the Bently Nevada 3500/15 Power Supply Module, which maintains stable DC bus voltage even during upstream AC fluctuations — a critical requirement when the overspeed module must remain armed during grid disturbances.
Speed signals are conditioned upstream by Bently Nevada 3300 XL 8mm proximity probes or compatible magnetic pickup sensors before being routed to the 3500/53M. Signal integrity is further protected by the Bently Nevada 3500/20 Rack Interface Module, which manages communication between the protection rack and the plant DCS or safety PLC — typically a Rockwell Automation GuardLogix safety controller or a Siemens S7-400F/FH in high-availability configurations.
Trip relay outputs from the 3500/53M 286566-01 are wired into the plant’s emergency shutdown (ESD) interlock loop, often in conjunction with a Bently Nevada 3500/32M 4-Channel Relay Module for expanded trip logic. Surge protection on field wiring is handled by dedicated Phoenix Contact TRABTECH surge protection devices installed at the cabinet entry point, preventing transient energy from propagating into the protection module’s sensitive analog front end.
For facilities running redundant protection architectures, the 3500/53M is commonly paired with a secondary Bently Nevada 3500/40M Proximitor / Seismic Monitor to provide simultaneous vibration and overspeed monitoring from a single rack — reducing cabinet footprint while maintaining full SIL-capable protection coverage. Communication health is monitored via the Bently Nevada 3500/22M Transient Data Interface, which captures high-resolution speed transient data for post-event analysis and predictive maintenance workflows.
Critical Industrial Safety Applications
The Bently Nevada 3500/53M 286566-01 is deployed across the most demanding continuous-process and heavy-industry sectors where uncontrolled overspeed events carry catastrophic consequences:
Petrochemical & Refinery Plants: Installed on high-speed compressor trains, steam turbine drivers, and centrifugal pump sets where overspeed events can rupture seals, ignite flammable media, and trigger cascading process failures. The module’s fast trip response time is essential for meeting API 670 machinery protection requirements.
Power Generation: Used on gas turbine generators and steam turbine-generator sets to provide the primary overspeed trip function. In combined-cycle plants, the 3500/53M works alongside turbine control systems to ensure that load rejection events do not allow rotor speed to exceed mechanical design limits.
Mining & Mineral Processing: Protects large grinding mill drives, conveyor head pulleys, and hoisting machinery in underground and open-pit operations where high-inertia loads create severe overspeed risk during drive faults or load drops.
Water & Wastewater Treatment: Monitors high-speed centrifugal blowers and pump stations in critical water infrastructure, where unplanned shutdowns affect public health and regulatory compliance.
Metallurgy & Steel Production: Deployed on rolling mill main drives, continuous casting machine drives, and converter fan systems where speed excursions cause product defects, equipment damage, and personnel hazards in high-temperature environments.
Port & Bulk Material Handling: Protects ship unloader drives, stacker-reclaimer slewing drives, and belt conveyor systems operating in corrosive coastal environments with high EMI from variable-frequency drives and crane power systems.
Safety and Quality FAQ
Q1: What warranty does the Bently Nevada 3500/53M 286566-01 carry?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. If a unit fails under normal operating conditions within the warranty period, we provide replacement or full refund support. Warranty claims are processed within 5 business days of fault confirmation.
Q2: How is each unit tested before shipment?
Every 3500/53M 286566-01 module undergoes a full functional verification procedure including power-on self-test, trip relay actuation test, speed signal input simulation, and communication interface check. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.
Q3: Is this module compatible with existing Bently Nevada 3500 Series racks?
Yes. The 3500/53M 286566-01 is a standard 3500 Series rack-mount module and is fully compatible with all Bently Nevada 3500/05 racks and associated power supply and interface modules. No rack modification is required for direct replacement of a failed unit. Firmware version compatibility should be confirmed against your existing rack configuration prior to installation.
Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains standing inventory of the 3500/53M 286566-01 and related 3500 Series modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. We offer expedited shipping for critical plant shutdowns and can provide advance replacement units under agreed commercial terms for key accounts.
