Bently Nevada 3500/60 173186-01 Retrofit-Ready Temp Monitor

Bently Nevada 3500/60 173186-01 Retrofit-Ready Temperature Monitor: Compatible Modernization & Smooth System Upgrade

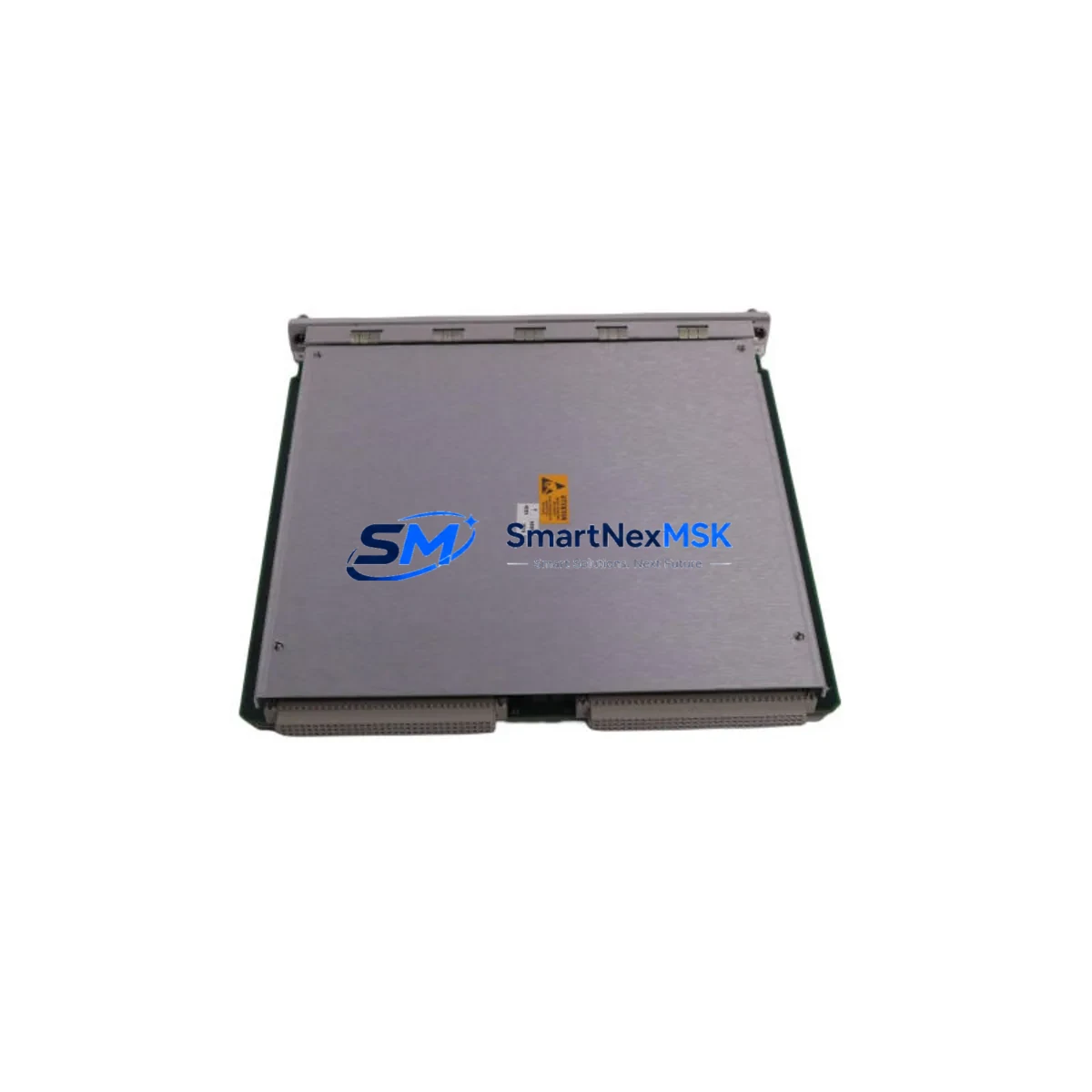

The Bently Nevada 3500/60 173186-01 is a rack-mounted Temperature Monitor module designed for the Bently Nevada 3500 Series machinery protection system. As legacy installations age and OEM support windows close, this module has become a critical retrofit component for plants seeking to extend the operational life of their 3500 Series control infrastructure without committing to a full platform migration. Whether you are replacing a failed unit, restocking critical spares, or executing a planned control cabinet upgrade, the 3500/60 173186-01 delivers verified drop-in compatibility with the existing 3500 Series backplane architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3500/60 173186-01 into an existing machinery protection system requires careful pre-installation planning. Before removing the failed or end-of-life module, engineers should document the current channel configuration using Bently Nevada’s rack configuration software, noting thermocouple type assignments (typically Type K or Type J), RTD wiring topology, and per-channel alarm and danger setpoints. The 3500 Series rack architecture allows hot-swap in some configurations, but most sites treat temperature monitor replacement as a planned shutdown event to avoid nuisance trips.

The 3500/60 173186-01 occupies a standard two-slot position in the 3500 Series rack. Confirm that the adjacent 3500/05 Power Supply module is delivering the correct DC rail voltage before insertion. If the rack also houses a 3500/20 Rack Interface Module or a 3500/22M Transient Data Interface, verify that the communication link to the host System 1 software remains intact after the swap — a module address conflict can cause the entire rack to drop offline.

For sites migrating from older 3300 Series or 7200 Series Bently Nevada platforms, the 3500/60 173186-01 represents a significant upgrade in diagnostic capability. The transition typically requires new field wiring terminations at the I/O terminal block, re-mapping of temperature channels in the DCS historian, and updates to any HMI faceplates that display temperature trend data. If the plant uses a third-party DCS — such as a Honeywell Experion PKS controller or an Emerson DeltaV system — the Modbus register map for the 3500 Series rack must be re-imported into the DCS I/O configuration to ensure correct tag binding.

Sites running older programming cables and laptop-based configuration tools should confirm USB-to-serial adapter compatibility with the 3500 Series rack communication port before on-site commissioning. A 3500/93 Rack Configuration Software license and a compatible communication interface are required to push the restored configuration to the replacement module. If the original configuration file (.rck) is unavailable, the channel parameters must be re-entered manually — a process that typically adds two to four hours to the commissioning schedule.

For control cabinets that also house Bently Nevada 3500/40M Proximitor/Seismic Monitor modules, 3500/42M Proximitor/Seismic Monitor modules, or 3500/45 Position Monitor modules alongside the temperature monitor, ensure that the rack’s total power budget is recalculated after module replacement. The 3500/05 Power Supply has a defined maximum load; adding a replacement module with a different revision may marginally shift the power draw. This is especially relevant in high-density racks where multiple I/O modules share a single power supply rail.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/60 173186-01 replacement begins with pre-staging. Before the maintenance window opens, the replacement module should be bench-tested against a known-good rack or verified using the 3500/93 offline configuration tool to confirm that the firmware revision matches the site’s existing rack configuration. This pre-commissioning step eliminates the most common cause of extended downtime: firmware incompatibility discovered only after the old module has been removed.

During the swap, the original program logic in the host DCS or safety system is not affected — the 3500 Series rack operates as a standalone monitoring layer that feeds alarm and trip signals to the plant control system via hardwired relay outputs or Modbus communication. Preserving the relay output wiring and confirming continuity before re-energizing the rack ensures that the plant’s existing interlock logic remains intact throughout the replacement process.

For sites where continuous monitoring is contractually required, a temporary bypass strategy using a portable vibration and temperature data collector can maintain data logging on critical machinery while the permanent rack module is being replaced. Once the 3500/60 173186-01 is installed and the rack configuration is restored, a functional test of all alarm and danger setpoints — including a simulated over-temperature condition — should be performed before returning the machine train to service. All test results should be documented in the site’s maintenance management system to support audit and compliance requirements.

Shipping from verified stock with pre-dispatch functional testing ensures that the replacement unit arrives ready for installation. Each 3500/60 173186-01 unit is inspected and tested prior to shipment, reducing the risk of receiving a non-functional module during a critical maintenance window.

Retrofit Support FAQ

Q1: Is the 3500/60 173186-01 a direct drop-in replacement for all 3500/60 revisions?
The 173186-01 revision is compatible with the standard 3500 Series rack backplane. However, firmware revisions may differ between production batches. It is recommended to verify the firmware version using 3500/93 Rack Configuration Software before commissioning. In most cases, the configuration file from the original module can be loaded directly onto the replacement unit without modification.

Q2: What wiring changes are required when replacing the 3500/60 173186-01?
If the replacement module uses the same I/O terminal block pinout as the original, no field wiring changes are required. Confirm thermocouple or RTD wiring polarity at the terminal block before powering the rack. For sites migrating from a different module revision or a different temperature monitor model, a wiring adapter or terminal block re-termination may be necessary.

Q3: How is compatibility with System 1 software and Modbus-connected DCS systems verified?
After installation, use the 3500/93 Rack Configuration Software to confirm that the module is recognized by the rack and that all channel configurations are correctly loaded. For Modbus-connected systems, verify that the register map addresses for temperature channels match the DCS I/O configuration. A communication loop test — reading live temperature values at the DCS operator station — should be completed before the machine train is returned to service.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair. To initiate a warranty claim, contact our sales team with the order reference number and a description of the fault. Pre-shipment functional testing is performed on all units before dispatch to minimize the risk of DOA (dead-on-arrival) failures in the field.
