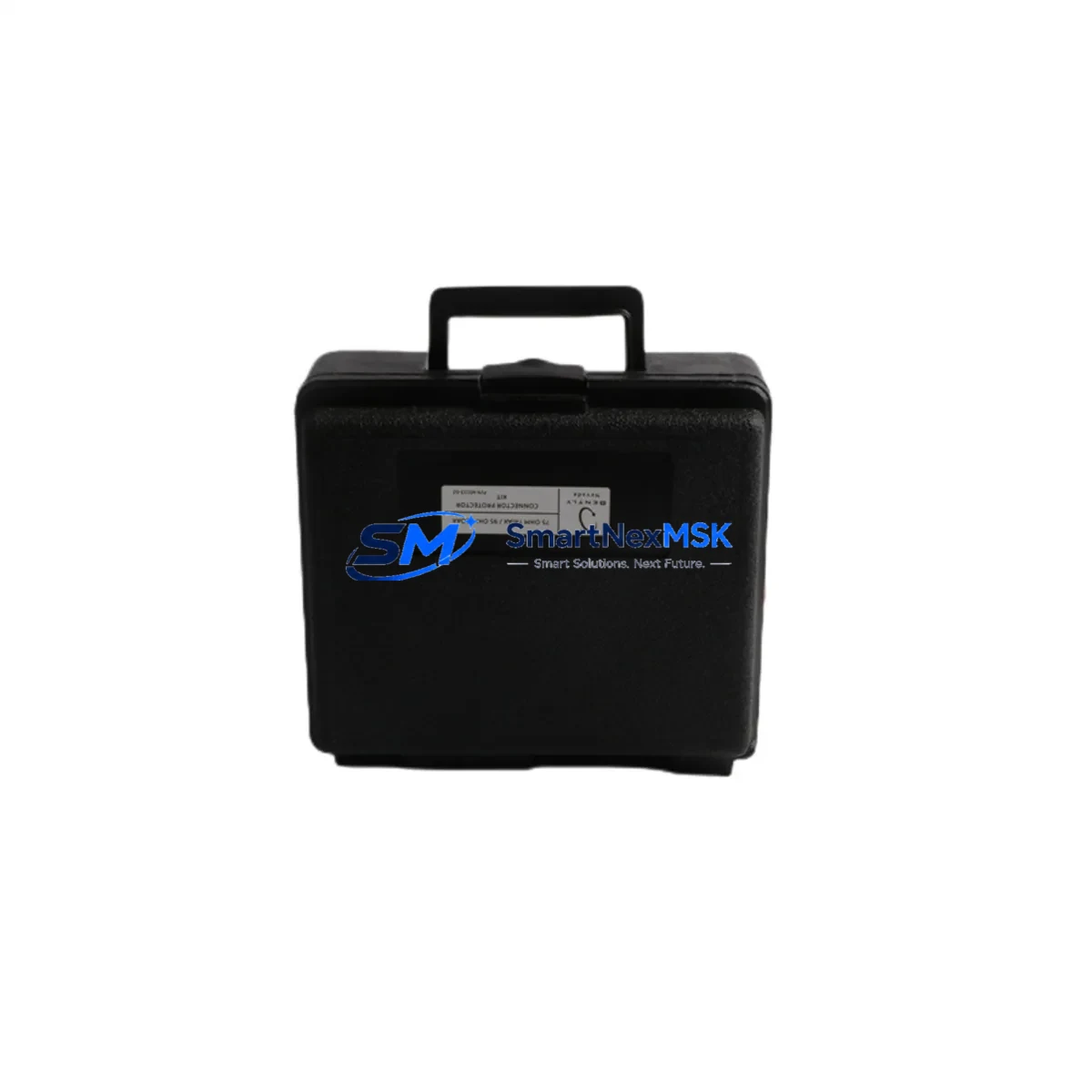

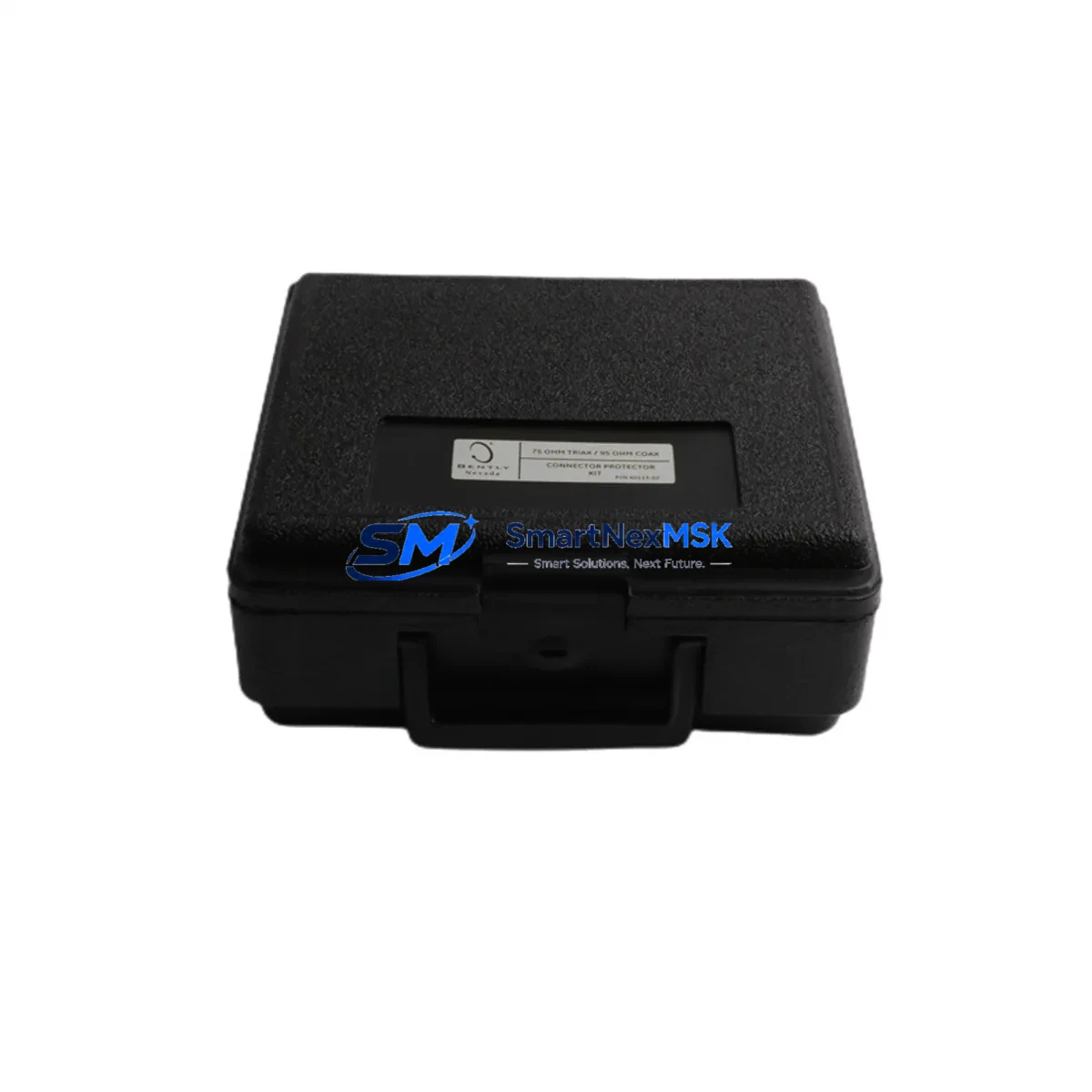

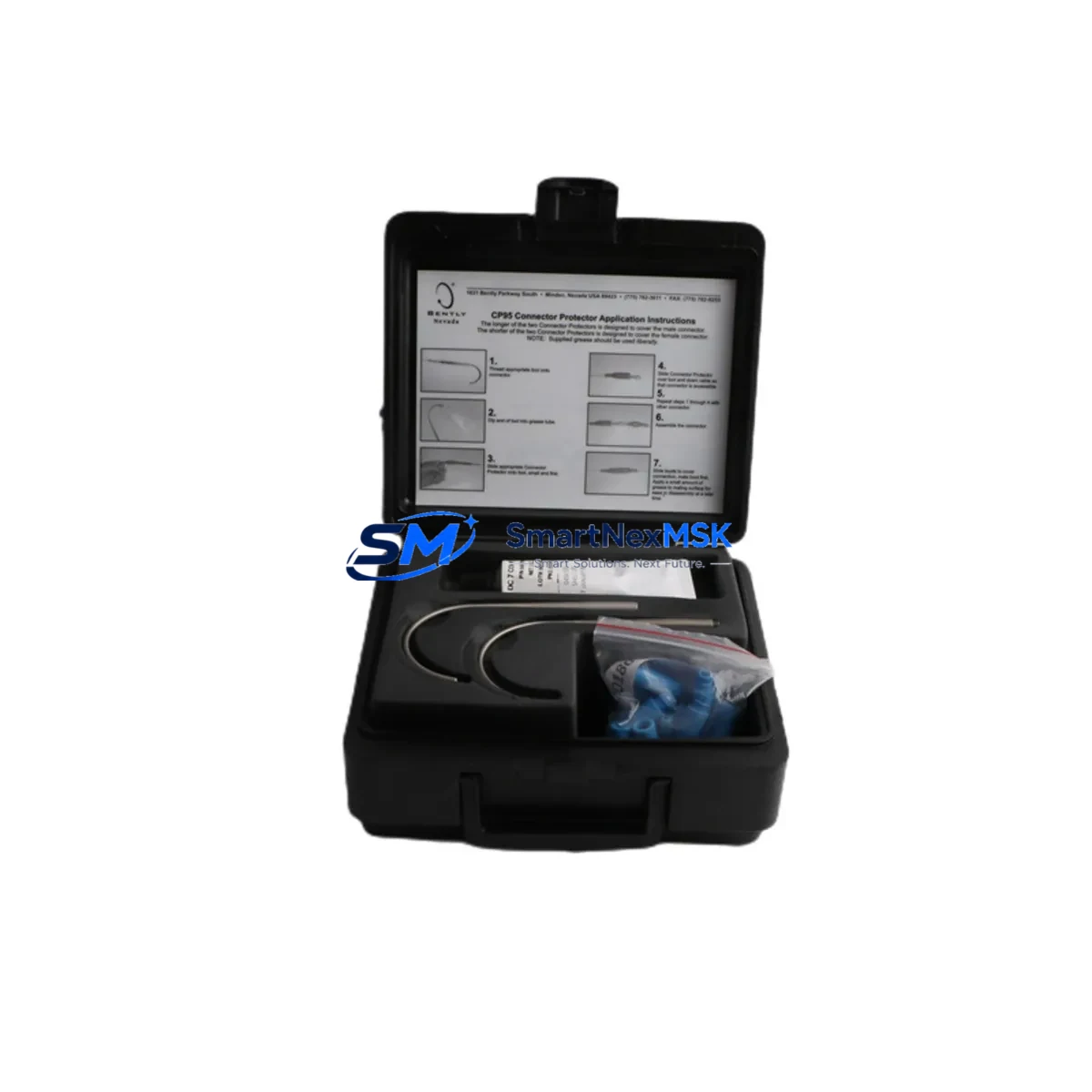

Bently Nevada 40113-02 Safety Connector Protector Kit

Bently Nevada 40113-02 Safety-Enhanced Connector Protector for Harsh Industrial Sites

In continuous-process industries where control system uptime is non-negotiable, the integrity of every physical connection inside the monitoring cabinet is a frontline safety concern. The Bently Nevada 40113-02 Connector Protector Kit is engineered specifically to address this challenge, providing robust mechanical and environmental shielding for the field wiring connectors used throughout the Bently Nevada 3500 Series machinery protection system. Whether deployed in a petrochemical plant, a power generation facility, or a heavy-duty mining operation, this kit ensures that the critical signal paths between field sensors and the monitoring rack remain stable, secure, and free from the degradation caused by vibration, electromagnetic interference, moisture ingress, and accidental disconnection.

The 3500 Series platform is the industry benchmark for continuous machinery protection, monitoring rotating equipment such as turbines, compressors, pumps, and motors across the most demanding industrial environments. Within this architecture, the connector interface between field cables and rack modules is a point of vulnerability — particularly in high-vibration zones or cabinets subject to frequent maintenance access. The 40113-02 kit directly mitigates this risk by securing connectors with a positive locking mechanism that resists loosening under sustained mechanical stress, while the protective housing guards against contamination and incidental contact that could cause signal interruption or ground faults.

For facilities running the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, or the 3500/45 Position Monitor, maintaining clean, stable connector seating is essential to preserving measurement accuracy. A loose or corroded connector on a proximity probe input can introduce signal drift that mimics real machinery faults, triggering spurious trips and unnecessary shutdowns — or worse, masking genuine fault conditions. The 40113-02 eliminates this failure mode at the source.

Safety Reliability Table

Control Cabinet Protection Strategy

A well-protected control cabinet is the foundation of safe, continuous industrial operation. In a typical 3500 Series installation, the rack houses a combination of modules — including the 3500/01 Rack Interface Module, 3500/05 Power Supply, and various monitor modules — all interconnected through field wiring connectors that are exposed to the cumulative effects of vibration, thermal cycling, and maintenance activity over years of service. The 40113-02 Connector Protector Kit is the final layer of physical security for these connections, complementing the electrical protection already built into the system.

In cabinets where the 3500/20 Rack Interface Module manages communication to the plant DCS or historian via Modbus or Ethernet, a compromised connector on any monitor module can disrupt the entire data chain, causing gaps in machinery health records and potentially masking developing faults. Similarly, installations using the 3500/32 4-Channel Relay Module for safety interlock outputs depend on secure connector seating to ensure that trip signals are transmitted reliably when threshold conditions are met.

For sites that also deploy Bently Nevada 3300 Series monitors in legacy sections of the plant, the discipline of connector protection should extend across all racks. Facilities upgrading from older 7200 Series proximity systems to the 3500 platform will find that applying the 40113-02 kit from the outset of the new installation prevents the connector degradation issues that often develop in high-vibration environments over time. When combined with proper cable management, ferrite EMI suppression cores on signal cables, and periodic torque verification of terminal blocks, the 40113-02 forms part of a comprehensive cabinet protection strategy that minimizes unplanned intervention.

In applications where the Bently Nevada TDXnet or a System 1 software platform aggregates data from multiple racks, the reliability of every physical connection in the network directly affects the quality of the predictive maintenance data available to plant engineers. Protecting those connections with the 40113-02 is a low-cost, high-impact measure that pays dividends in system availability and data integrity.

Critical Industrial Safety Applications

The 40113-02 Connector Protector Kit is deployed across the full spectrum of heavy industrial environments where the Bently Nevada 3500 Series is the machinery protection standard of choice.

In petrochemical and refinery applications, the kit protects connectors on compressor and turbine monitors operating in zones subject to hydrocarbon vapors, high ambient temperatures, and constant mechanical vibration from rotating equipment. A single connector failure in a compressor protection loop can result in a forced shutdown of a critical process train, with significant production and safety consequences.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 3500 Series monitors steam turbines and generators that must operate continuously for extended periods between planned outages. The 40113-02 ensures that the connector interfaces on shaft vibration, axial position, and speed monitoring channels remain secure throughout these extended run cycles.

In mining and mineral processing operations, control cabinets are exposed to dust, humidity, and structural vibration from blasting and heavy machinery. The connector protection provided by the 40113-02 is particularly valuable in these environments, where the consequences of a monitoring system failure can include both equipment damage and personnel safety incidents.

In water and wastewater treatment plants, pump and blower protection systems based on the 3500 Series benefit from the 40113-02’s moisture resistance, ensuring that the humid environment inside pump station control rooms does not compromise connector integrity over time. Metallurgical and port facilities operating large electric motors and conveyor drives similarly rely on this protection to maintain continuous monitoring without false trips caused by connector-related signal anomalies.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 40113-02 carry?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. Each kit undergoes a full functional inspection and dimensional verification prior to dispatch to confirm it meets OEM specifications for fit and protective performance.

Q2: How do I confirm compatibility with my existing 3500 Series rack?
The 40113-02 is designed for use with the standard field wiring connectors used across the Bently Nevada 3500 Series platform. To confirm compatibility with your specific rack configuration, provide your rack model numbers and module types to our technical team. We will verify fit against the connector types installed in your system before shipment.

Q3: Can this kit be installed during a live system maintenance window without a full rack shutdown?
Connector protector installation is typically performed during scheduled maintenance windows when the affected module’s field wiring connector is accessible. In most 3500 Series installations, individual module connectors can be accessed without powering down the entire rack, but site-specific safety procedures and permit-to-work requirements must always be followed. Consult your plant safety officer before performing any work on live machinery protection systems.

Q4: What is your lead time and long-term supply availability for the 40113-02?
The 40113-02 is maintained in stock for immediate dispatch. SMARTNEXMSK supports long-term supply continuity for 3500 Series accessories and spare parts, including items that may be approaching end-of-availability from the OEM. Contact our team to discuss blanket order arrangements or reserve stock programs for your facility’s ongoing maintenance requirements.
