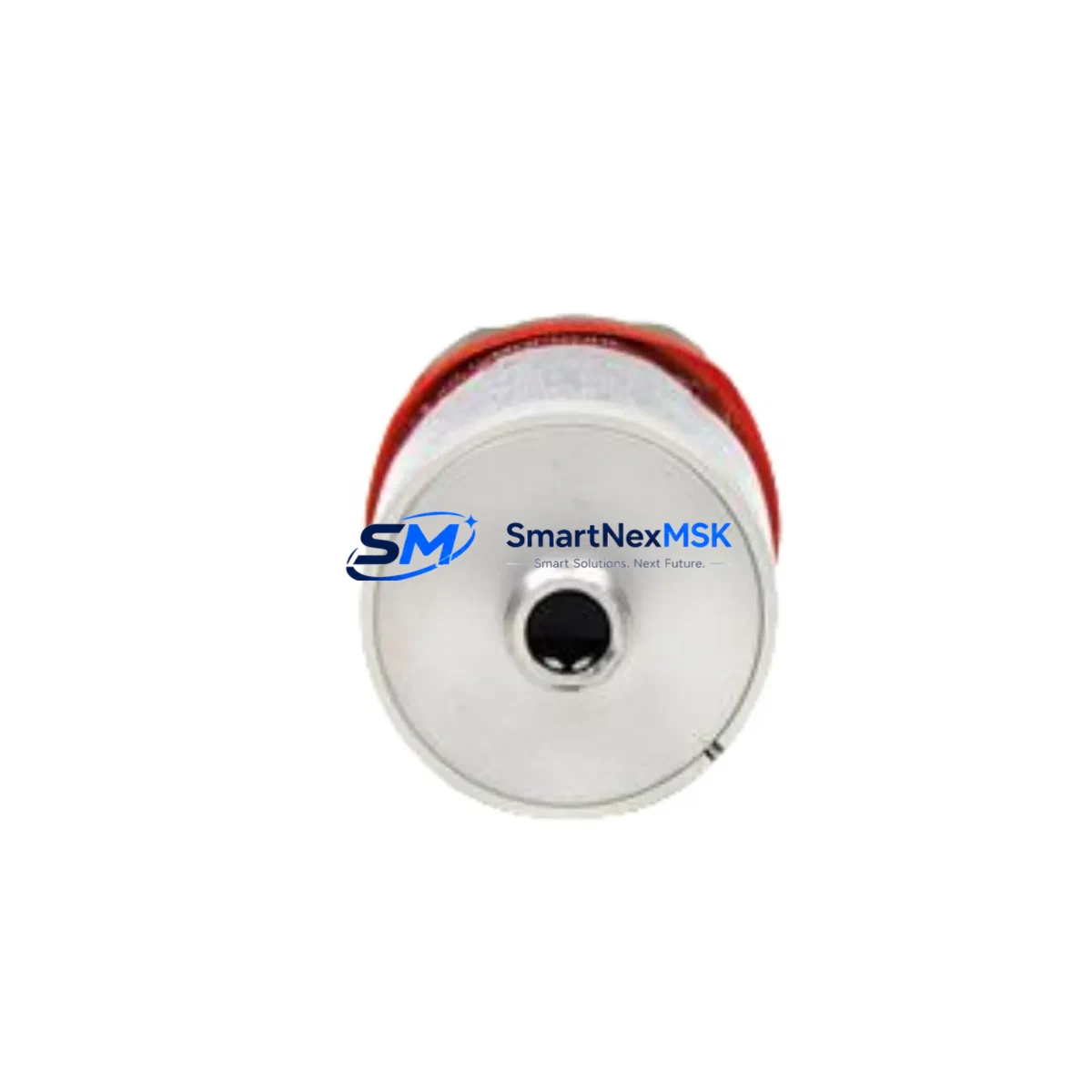

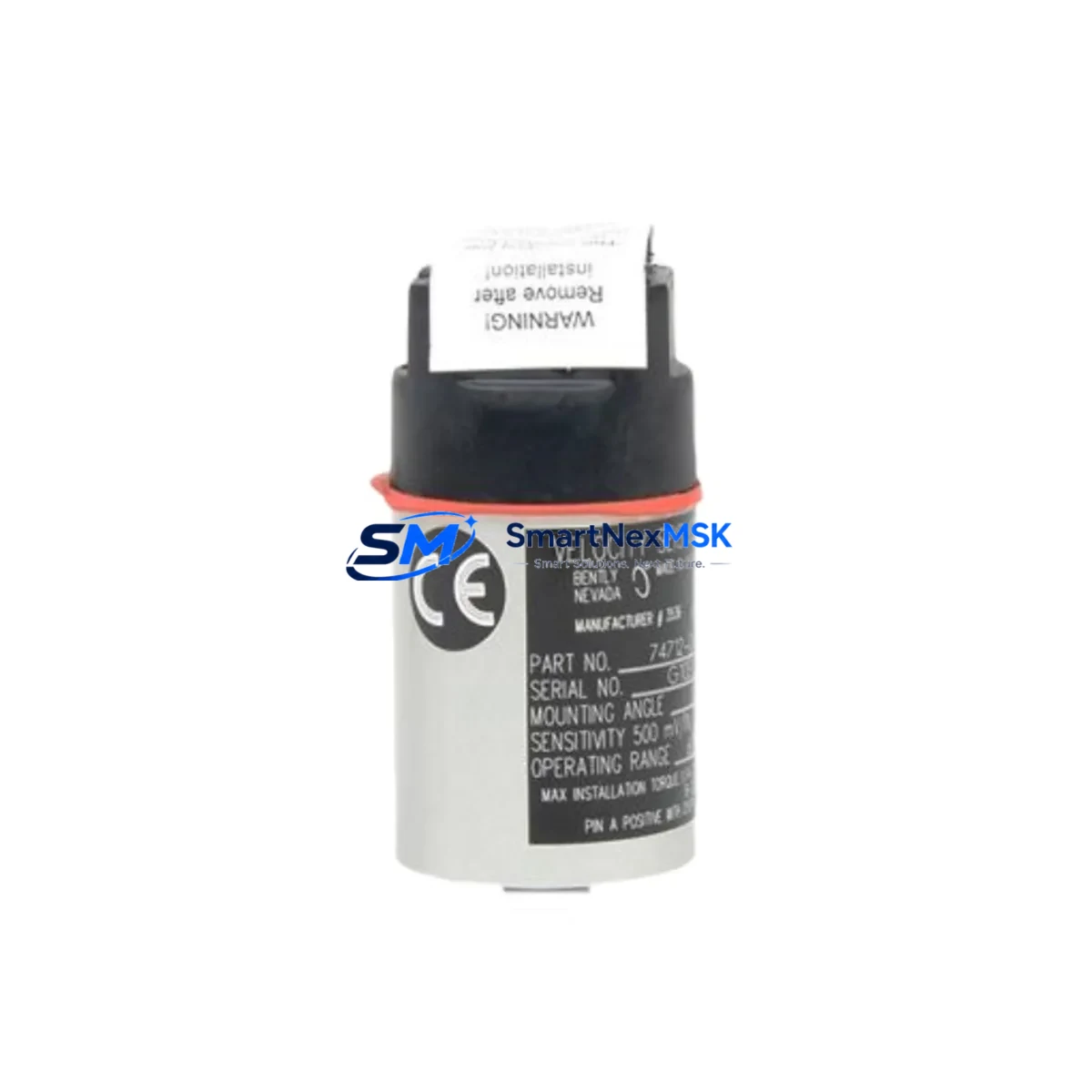

The Bently Nevada 74712-06-01-03-00 is a high-precision eddy-current proximity transducer engineered for seamless integration into legacy and modernized vibration monitoring systems. Designed as a direct retrofit replacement within the 74712 Series transducer family, this unit supports smooth migration from discontinued configurations while maintaining full compatibility with the Bently Nevada 3300 XL monitoring platform. Whether you are upgrading an aging control cabinet, restoring a decommissioned monitoring loop, or expanding I/O capacity on an existing rack, the 74712-06-01-03-00 delivers the dimensional accuracy, signal linearity, and connector compatibility required for zero-compromise installation.

Industrial facilities operating rotating machinery — including turbines, compressors, pumps, and gearboxes — rely on proximity transducers to provide continuous shaft position and vibration data to the control system. When original transducer models reach end-of-life or become unavailable through OEM channels, sourcing a verified retrofit unit is critical to avoiding unplanned downtime. The 74712-06-01-03-00 addresses this need directly, offering a stocked, tested, and warranted replacement that engineering teams can deploy with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 74712-06-01-03-00 begins well before the unit arrives on site. Engineering teams should audit the existing transducer loop, starting with the Bently Nevada 3300 XL proximitor / velomitor signal conditioner mounted in the monitoring rack. Confirm that the proximitor output range (typically −18 VDC bias) matches the replacement transducer’s sensitivity specification (nominally 7.87 V/mm or 200 mV/mil). If the existing 74712-06 extension cable is being reused, inspect the cable for shielding integrity and connector wear — a degraded cable is a common source of noise after transducer replacement.

For facilities running the Bently Nevada 3500/42M proximitor I/O module or the 3500/22M transient data interface, verify that the new transducer’s scale factor is correctly entered in the rack configuration software (System 1 or Rack Configuration Software). Incorrect scale factor entry is the leading cause of false OK/Not-OK relay trips during commissioning. If the control system also interfaces with a Bently Nevada TK-3 or TK-81 calibration kit, use it to simulate the gap voltage sweep and confirm the full-scale output before connecting to the live shaft.

In control cabinets where the Bently Nevada 3500/15 power supply module feeds the monitoring rack, verify that the available current budget accommodates the replacement transducer alongside any co-installed 3500/25 keyphasor module or 3500/32 four-channel relay module. Overloaded power rails are a silent failure mode that manifests as intermittent OK relay dropout rather than a hard fault. Document the rail loading before and after the swap.

For plants migrating from older 7200 Series transducer assemblies to the 74712 platform, note that the physical probe body diameter and thread pitch may differ. A thread adapter or revised mounting bracket may be required. Coordinate with the mechanical team to confirm bearing housing clearance and probe holder geometry before scheduling the outage window. Where HMI screens display shaft gap or vibration trend data sourced from the replaced transducer channel, update the engineering unit scaling in the DCS or SCADA historian tag to reflect the new sensitivity value — failure to do so will produce offset trend data that can mislead condition monitoring analysts.

Downtime Control During System Migration

Minimizing production impact during a proximity transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, pre-configure the replacement 74712-06-01-03-00 on a bench test rig using a Bently Nevada TK-3 calibration kit or equivalent gap simulator. Record the OK voltage window and confirm the output linearity across the full measurement range. This bench verification step eliminates the most common cause of extended commissioning time — discovering a configuration mismatch after the machine is already offline.

During the swap, preserve the original program logic in the 3500 rack by exporting the rack configuration file before disconnecting any modules. If the monitoring rack shares a backplane with a 3500/20 rack interface module connected to a Modbus or OPC-DA data highway, note the node address and tag mapping before the outage so that the historian reconnects automatically after power restoration. Where the transducer channel feeds a trip multiply or inhibit relay logic block, engage the inhibit function in the rack software before removing the old transducer to prevent a spurious machine trip during the open-circuit interval.

After installation, perform a live gap check with the shaft stationary, confirm the OK relay energizes within the specified gap range, and verify that the vibration trend in the System 1 condition monitoring software or connected SCADA display returns to baseline within one shaft rotation. Document the as-found and as-left gap voltage values in the maintenance record. Total planned downtime for a single-channel transducer replacement, when pre-staged correctly, should not exceed 2–4 hours including functional testing.

Retrofit Support FAQ

Q1: Is the 74712-06-01-03-00 a direct drop-in replacement for my existing 74712 Series transducer?
In most cases, yes. The 74712-06-01-03-00 shares the same probe body diameter, thread pitch, and connector interface as other 74712-06 variants. The key variable is the overall system length (probe + extension cable + proximitor). Confirm that your existing 74712-06 extension cable length matches the replacement configuration. If your original assembly used a different suffix (e.g., -02-00 vs. -03-00), cross-reference the system length specification before ordering.

Q2: What commissioning steps are required after installation?
After mechanical installation, perform a static gap voltage measurement with the shaft stationary. The OK voltage window for 74712 Series transducers is typically −10 VDC to −18 VDC (verify against your proximitor datasheet). Confirm the OK relay energizes, check the scale factor entry in the rack configuration software, and run a slow-roll vibration check to verify baseline noise floor. If the channel feeds a Keyphasor® module, confirm the once-per-revolution pulse is detected correctly before returning the machine to service.

Q3: Can this transducer be used with the Bently Nevada 3500 Series monitoring rack?
The 74712 Series transducers are natively compatible with the Bently Nevada 3300 XL proximitor. Use with a 3500/42M or 3500/45S I/O module requires verification of the proximitor sensitivity and OK window settings within the 3500 rack configuration. In most retrofit scenarios, the existing proximitor is retained and only the probe and extension cable are replaced, which simplifies 3500 compatibility.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every 74712-06-01-03-00 unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing including gap voltage linearity verification and connector integrity inspection. The 12-month warranty covers manufacturing defects and signal performance deviations from published specifications. Units showing physical damage from improper installation or mechanical impact are not covered. Warranty claims are processed with a target response time of 3 business days. Contact sales@smartnexmsk.com to initiate a warranty claim.
