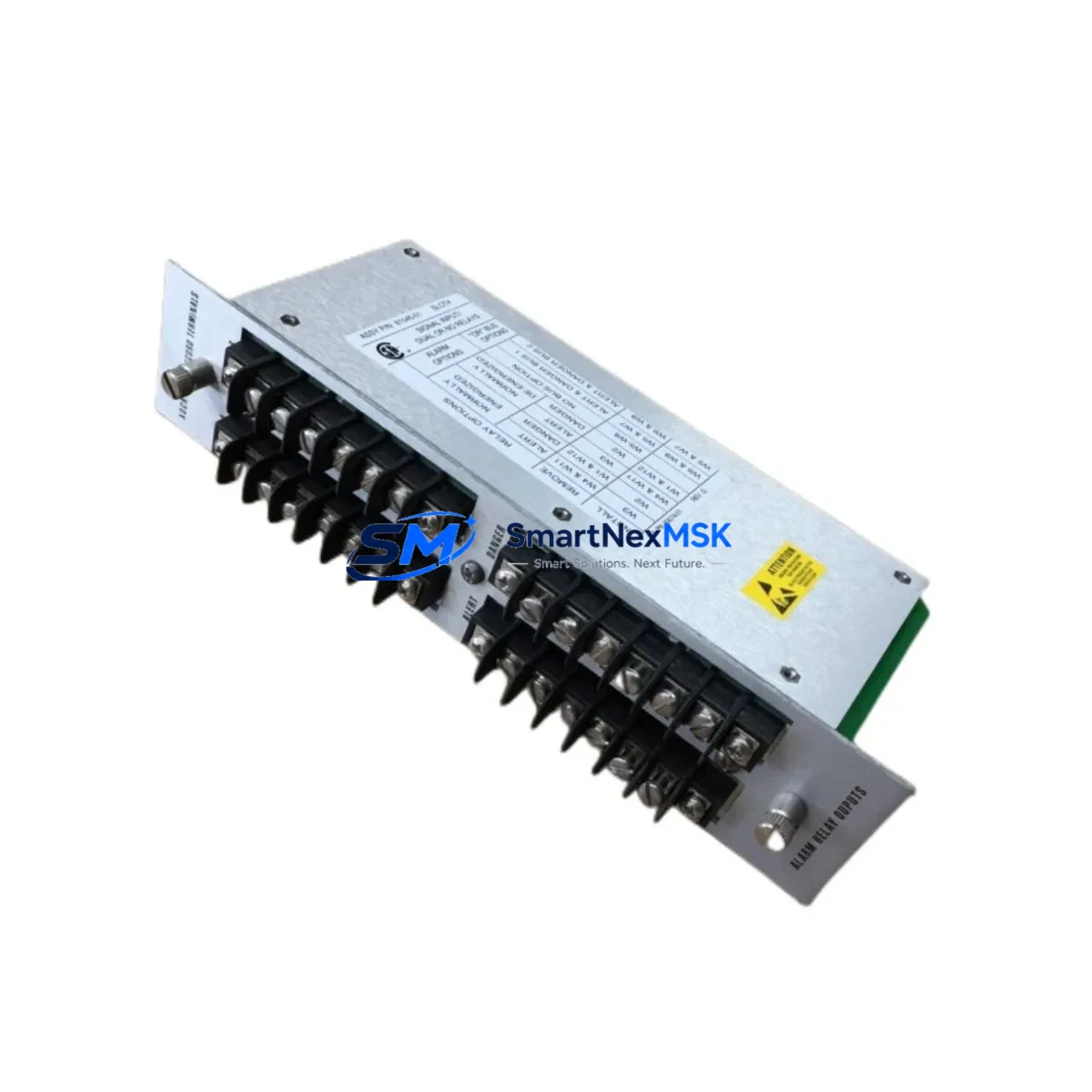

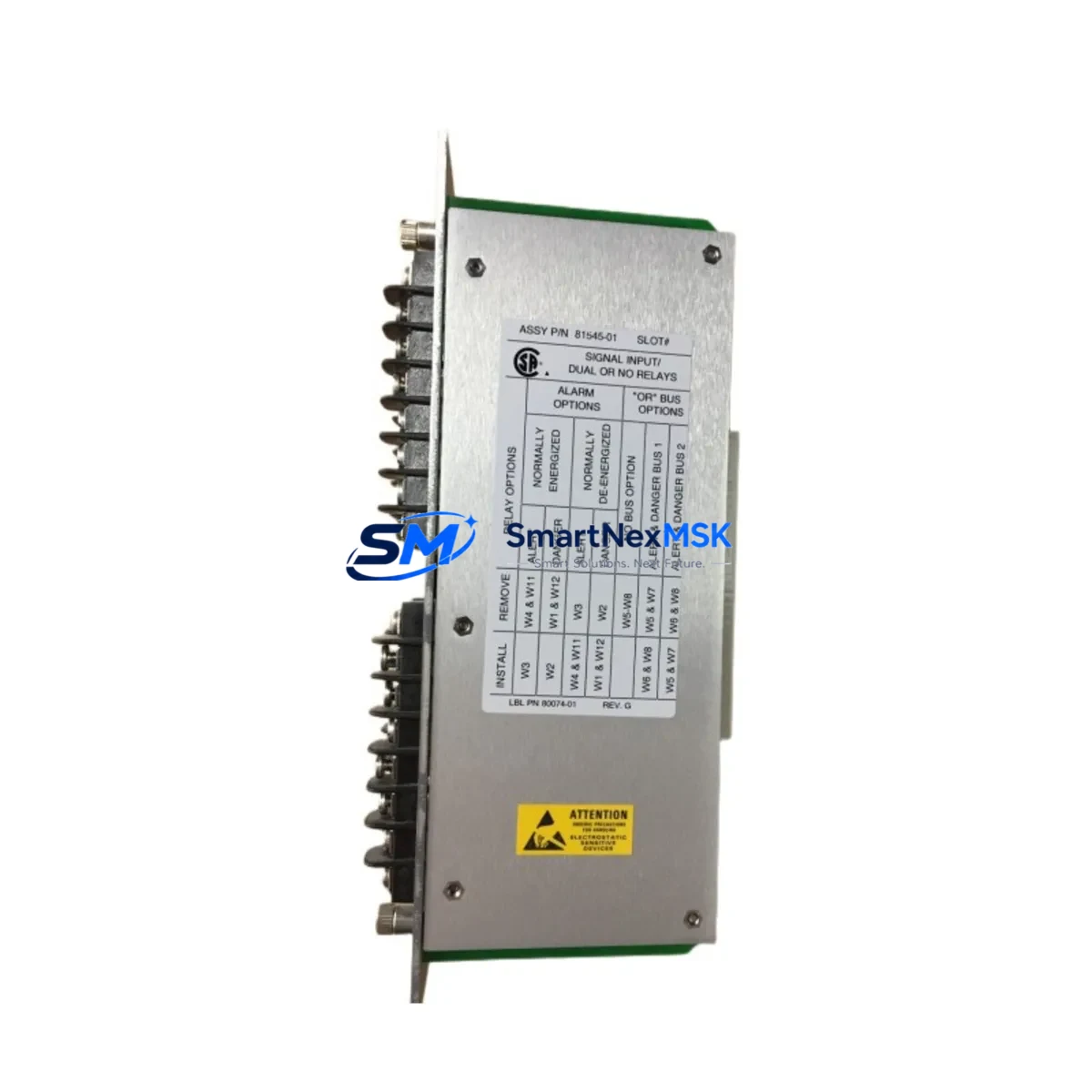

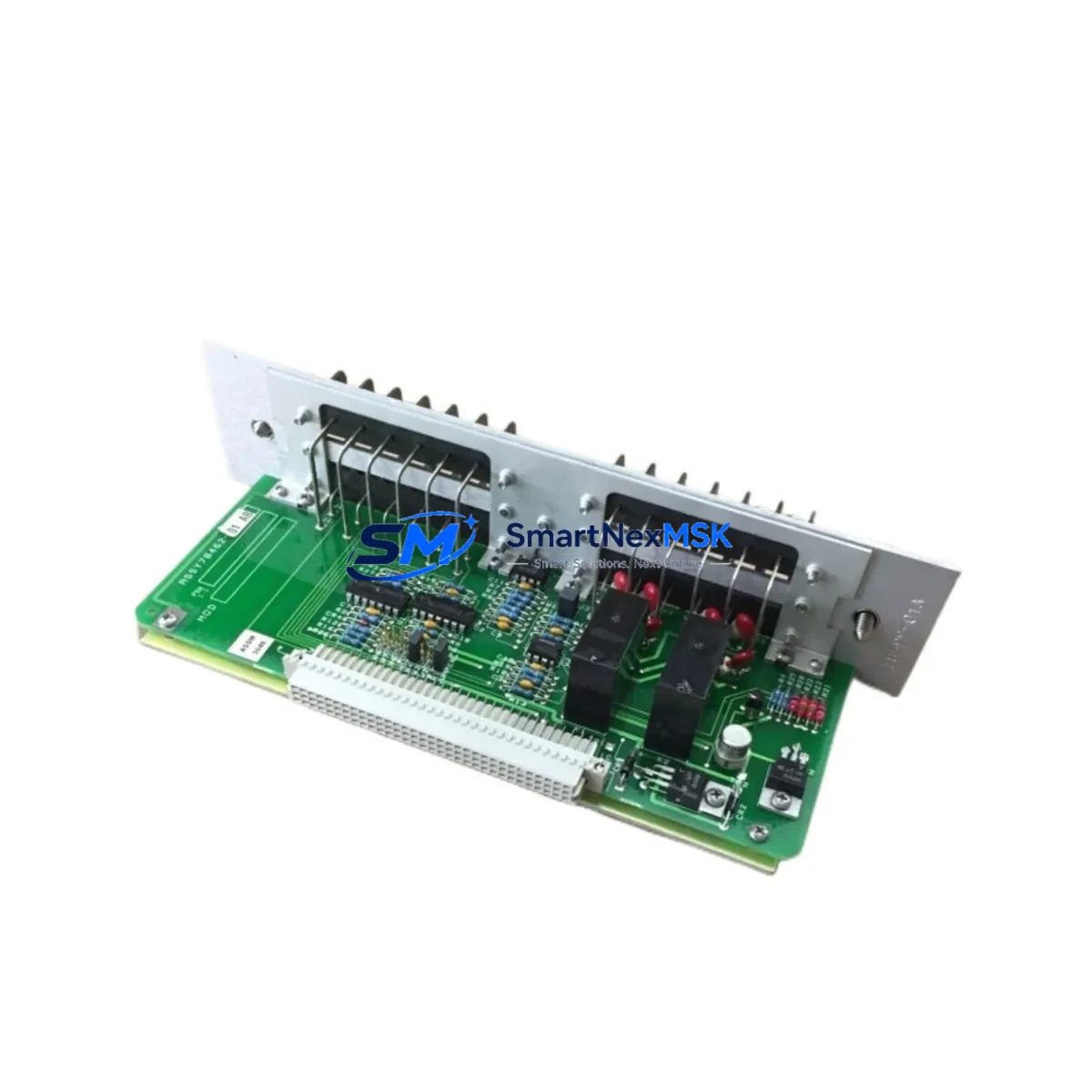

Bently Nevada 81545-01 Safety-Enhanced Signal Alarm Module

Bently Nevada 81545-01 Safety-Enhanced Signal Alarm Module: Reliable Control in Harsh Industrial Sites

The Bently Nevada 81545-01 is a ruggedized Signal Input/Alarm Output Module engineered for the Bently Nevada 3500 Series machinery protection system — one of the most trusted continuous monitoring platforms in critical industrial infrastructure worldwide. Designed to operate reliably in high-vibration, high-temperature, and electromagnetically hostile environments, the 81545-01 plays a central role in safeguarding rotating machinery, turbines, compressors, and pumps across petrochemical, power generation, mining, metallurgical, and water treatment facilities.

In continuous production environments where unplanned downtime carries catastrophic operational and financial consequences, the integrity of every signal path and alarm output is non-negotiable. The 81545-01 module provides deterministic alarm response, ensuring that critical threshold breaches — whether from vibration, displacement, or process anomalies — are captured and acted upon without delay. Its hardened signal conditioning circuitry minimizes the risk of signal drift under thermal cycling and electromagnetic interference (EMI), two of the most common causes of false trips and missed alarms in heavy industrial control cabinets.

When integrated into a 3500 Series rack alongside the Bently Nevada 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor, the 81545-01 forms a tightly coordinated monitoring and alarm architecture. The module’s alarm outputs interface directly with safety relay circuits and distributed control systems (DCS), enabling fast, reliable interlock activation when process limits are exceeded. This is particularly critical in safety instrumented systems (SIS) where response time and signal fidelity directly determine whether a protective shutdown is executed correctly.

Power supply stability is a foundational requirement for any safety-critical monitoring module. The 81545-01 is designed to operate within the regulated DC power environment provided by the Bently Nevada 3500/15 Power Supply Module, which delivers clean, conditioned power across the rack. In installations where power quality is a concern — such as facilities with large motor drives, arc furnaces, or frequent load switching — pairing the 81545-01 with a redundant power supply configuration and a dedicated DC UPS module ensures uninterrupted monitoring continuity even during grid disturbances or momentary power interruptions.

Communication integrity is equally important. The 81545-01 supports integration with plant-level SCADA and DCS platforms via the Bently Nevada 3500/92 Communication Gateway Module, enabling real-time data transmission over Modbus, Ethernet/IP, or Profibus protocols. In facilities running Emerson DeltaV or Honeywell Experion PKS distributed control systems, this communication pathway ensures that alarm states and vibration data are continuously available to operators and safety logic solvers without latency or data loss.

For installations in hazardous classified areas — including Zone 1 and Zone 2 gas environments or Division 1 dust locations — the 81545-01 is typically deployed within a certified control enclosure rated to IP54 or higher, often alongside Zener barrier assemblies or galvanic isolators to maintain intrinsic safety compliance on field wiring. This configuration is standard practice in offshore platforms, LNG terminals, and chemical processing units where ignition risk management is a regulatory requirement.

Surge and transient protection is another critical consideration in heavy industrial sites. Field wiring connected to the 81545-01’s signal inputs can act as an antenna for induced surges from nearby high-voltage switching, lightning events, or large inductive loads. Installing DIN-rail mounted surge protection devices (SPDs) on signal lines — such as those from the Phoenix Contact TRABTECH or Weidmuller Varitector series — upstream of the module’s input terminals significantly reduces the risk of input circuit damage and measurement corruption.

The 81545-01 is a direct replacement module for legacy 3500 Series installations, making it an essential spare part for maintenance teams managing aging machinery protection infrastructure. Its plug-and-play compatibility with existing 3500 rack backplanes eliminates the need for rewiring or reconfiguration during replacement, minimizing mean time to repair (MTTR) and reducing the window of unprotected operation. Facilities managing large rotating equipment fleets — such as refineries operating multiple centrifugal compressor trains — are advised to maintain at least one 81545-01 in their critical spare inventory to support rapid field replacement.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet strategy for machinery protection begins with a well-structured 3500 Series rack. The 81545-01 Signal Input/Alarm Output Module anchors the alarm logic layer, but its effectiveness depends on the quality of every upstream and downstream component in the cabinet. The Bently Nevada 3500/15 Power Supply Module must deliver stable, ripple-free DC power to prevent measurement baseline shifts that can trigger nuisance alarms or mask genuine fault conditions. Redundant power supply configurations are strongly recommended for Tier 1 critical assets.

On the monitoring side, the Bently Nevada 3500/42M Proximitor/Seismic Monitor feeds conditioned vibration and position signals into the rack, which the 81545-01 then processes for alarm threshold evaluation. For machines with complex vibration signatures — such as multi-stage centrifugal compressors or gearboxes — the 3500/22M Transient Data Interface provides high-resolution transient capture capability, complementing the steady-state alarm functions of the 81545-01.

Communication to the plant DCS is handled through the Bently Nevada 3500/92 Communication Gateway Module, which bridges the 3500 rack to Modbus TCP, Ethernet/IP, or Profibus DP networks. This ensures that alarm states generated by the 81545-01 are immediately visible to operators in the control room and to safety logic solvers in the SIS layer. For facilities using Emerson DeltaV SIS or Triconex Safety Controllers, this communication path is a critical element of the overall functional safety architecture.

Field wiring protection is addressed through the use of DIN-rail surge protection devices on all signal input lines entering the cabinet, combined with galvanic isolators on loops that cross hazardous area boundaries. Terminal block assemblies from the Phoenix Contact PTFIX or Weidmuller Klippon series provide organized, labeled termination points that simplify maintenance and reduce the risk of wiring errors during module replacement. Together, these components create a layered protection strategy that maximizes the operational reliability of the 81545-01 in demanding industrial environments.

Critical Industrial Safety Applications

The Bently Nevada 81545-01 is deployed across a wide range of critical industrial applications where continuous machinery monitoring and reliable alarm response are essential to operational safety and regulatory compliance.

In petrochemical and refinery operations, the module protects high-speed centrifugal compressors and steam turbines driving critical process trains. A single undetected bearing failure or rotor imbalance event in these machines can result in catastrophic mechanical damage, process release, and extended unplanned outages. The 81545-01’s alarm outputs are wired directly into the facility’s emergency shutdown (ESD) system, ensuring that protective action is initiated within milliseconds of a threshold breach.

In power generation facilities — including gas turbine plants, combined-cycle units, and large steam turbine generators — the module provides continuous shaft vibration and axial displacement monitoring. Grid-connected generators operate under strict reliability standards, and any machinery protection system component must demonstrate consistent, repeatable alarm behavior across the full range of operating conditions, from cold startup to full-load steady-state operation.

In mining and mineral processing environments, the 81545-01 monitors large grinding mills, slurry pumps, and conveyor drive systems in conditions characterized by extreme dust loading, high ambient temperatures, and significant mechanical shock. The module’s ruggedized design and EMI-hardened signal paths maintain measurement integrity even in the presence of large variable-frequency drives (VFDs) and high-current motor starters that generate significant electrical noise.

In water and wastewater treatment plants, the module protects large centrifugal pumps and blower systems that operate continuously with minimal maintenance intervention. Alarm reliability is critical in these facilities, as false trips can disrupt treatment processes and create compliance issues, while missed alarms can result in pump failures that take days to repair. The 81545-01’s proven alarm accuracy makes it a preferred choice for municipal and industrial water infrastructure operators.

In metallurgical and steel production facilities, the module is used to monitor rolling mill drives, blast furnace blowers, and continuous casting machine drives — all of which operate in environments with extreme thermal gradients, heavy vibration, and intense electromagnetic interference from large induction furnaces and arc furnaces. The 81545-01’s ability to maintain signal integrity in these conditions is a key reason for its widespread adoption in heavy industry.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 81545-01?
All 81545-01 modules supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and functional failure from the date of shipment. In the event of a warranty claim, we provide rapid replacement support to minimize your equipment downtime. Our warranty terms are documented and provided with every shipment.

Q2: What pre-shipment testing is performed on the 81545-01?
Every 81545-01 module undergoes functional verification testing prior to dispatch. This includes power-on self-test validation, signal input/output continuity checks, and alarm relay function verification. Modules are inspected for physical integrity and packed in anti-static, shock-protected packaging to ensure they arrive in field-ready condition.

Q3: Is the 81545-01 compatible with all Bently Nevada 3500 Series racks?
Yes. The 81545-01 is designed for direct plug-in compatibility with the standard Bently Nevada 3500 Series rack backplane. It is a drop-in replacement for existing installations and does not require rack reconfiguration or field wiring changes. Compatibility with specific rack revisions and firmware versions should be confirmed against your system documentation for safety-critical applications.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 81545-01?
Yes. SMARTNEXMSK maintains dedicated inventory of the Bently Nevada 81545-01 and other 3500 Series modules to support both immediate replacement needs and planned maintenance programs. We work with facilities managing large rotating equipment fleets to establish preferred supplier agreements and consignment stock arrangements, ensuring that critical spare parts are available when needed without lead time risk.
