Bently Nevada 84147-01 Safety-Enhanced I/O Terminal Board: Reliable Control for Harsh Industrial Sites

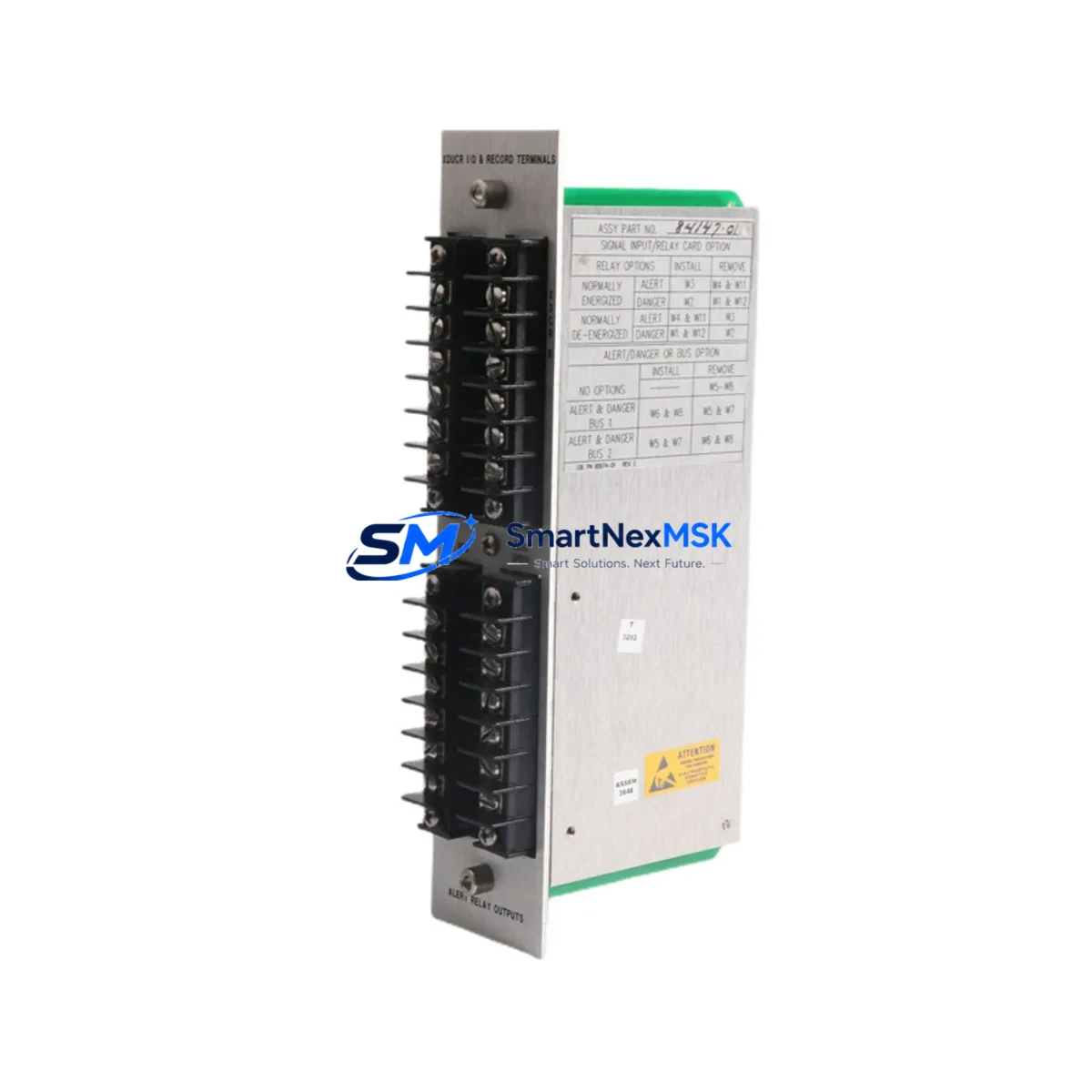

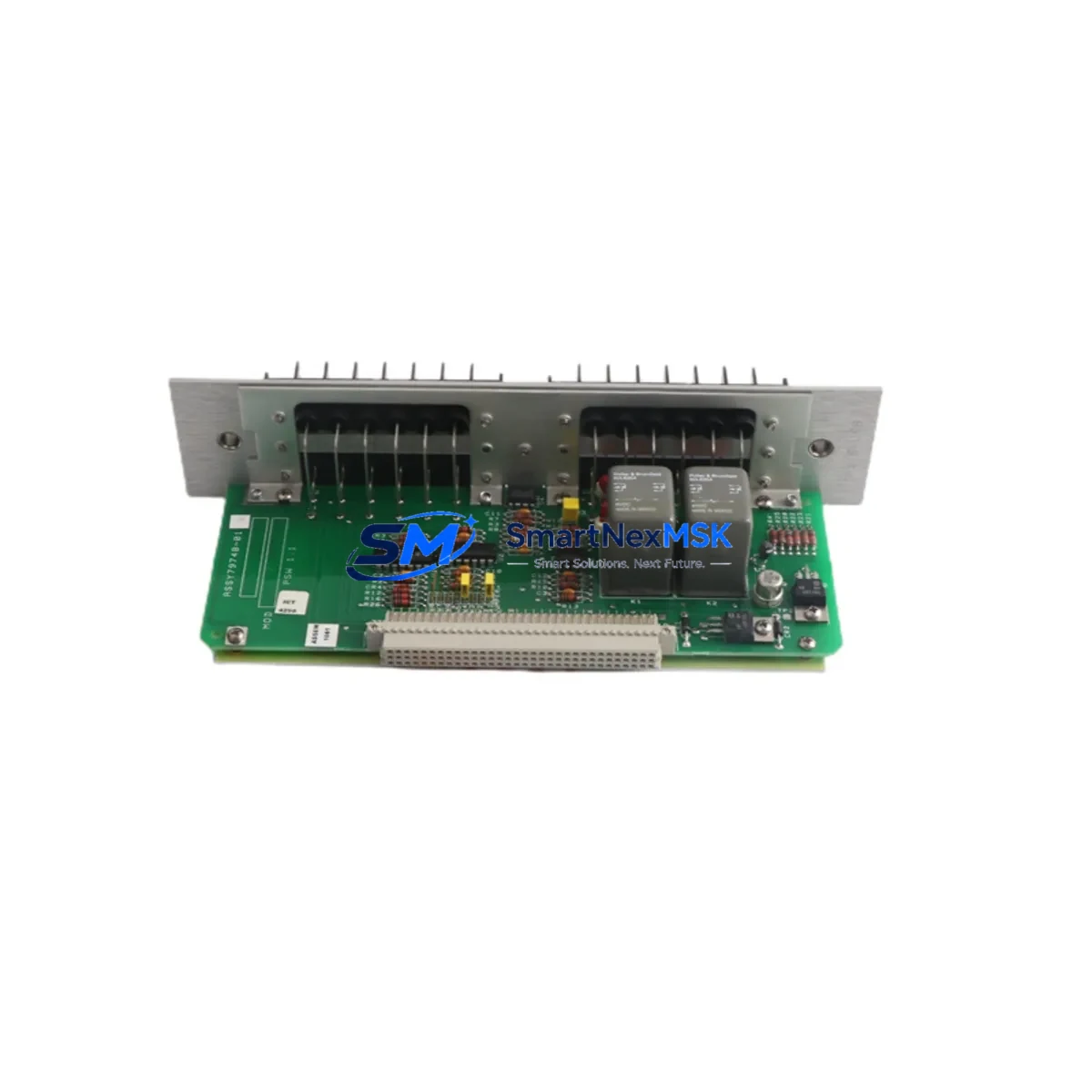

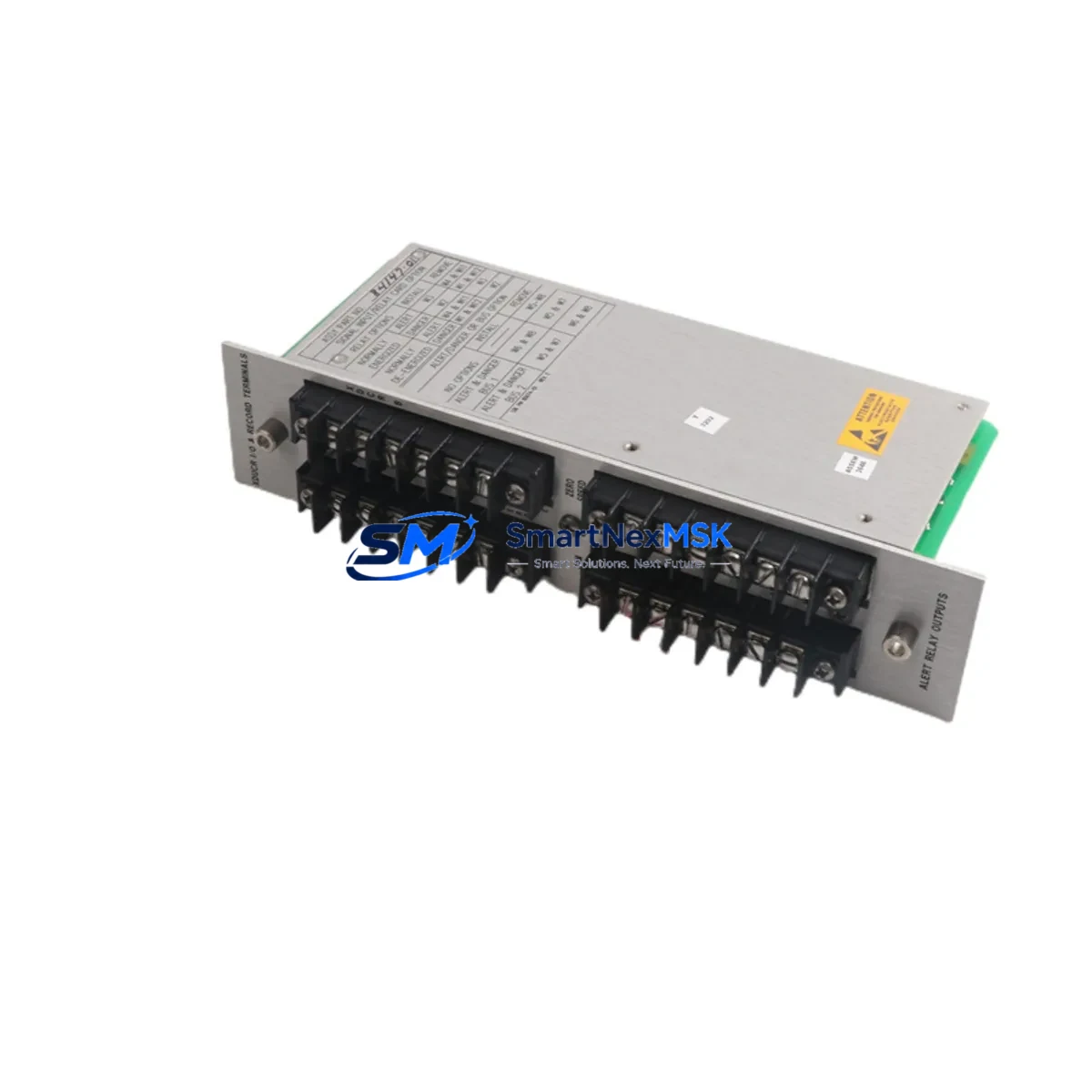

The Bently Nevada 84147-01 is a ruggedized transducer I/O terminal board engineered for the 3500 Series Machinery Protection Rack — one of the most trusted continuous machinery monitoring platforms deployed across heavy industry worldwide. Designed to operate reliably in high-vibration, high-temperature, and electromagnetically noisy environments, the 84147-01 serves as the critical interface between field-mounted transducers and the 3500 rack’s processing modules, ensuring that every vibration, position, and speed signal reaches the safety logic solver without distortion, dropout, or delay.

In continuous production facilities — petrochemical plants, power generation stations, offshore platforms, and metallurgical complexes — a single compromised I/O connection can cascade into unplanned downtime, equipment damage, or a safety interlock failure. The 84147-01 eliminates this risk by providing robust, shielded terminal connections that maintain signal integrity even under sustained electrical interference from variable-frequency drives, high-current bus bars, and adjacent relay panels.

Safety Reliability Table

Control Cabinet Protection Strategy

The 84147-01 terminal board does not operate in isolation — its safety value is fully realized when integrated into a well-engineered control cabinet architecture. In a typical 3500 Series protection rack installation, the terminal board interfaces directly with the Bently Nevada 3500/20 Rack Interface Module, which manages power distribution and communication backplane integrity across all installed monitor cards. Upstream, a Bently Nevada 3500/15 Power Supply Module provides the regulated, redundant DC power that keeps the entire rack operational during grid fluctuations or momentary supply interruptions — a common occurrence in heavy industrial substations.

On the monitoring side, the 84147-01 feeds transducer signals into modules such as the Bently Nevada 3500/40M Proximitor/Seismic Monitor and the Bently Nevada 3500/42M Proximitor/Seismic Monitor, both of which process radial vibration and axial position data from Bently Nevada 3300 XL 8mm proximity probes. For speed and overspeed protection on turbines and compressors, the terminal board also supports signal routing to the Bently Nevada 3500/50M Tachometer Module, which provides critical overspeed trip logic in compliance with API 670 machinery protection standards.

To protect the rack from power line surges and transient spikes — particularly in plants where large motors start and stop frequently — engineers often pair the 3500 rack with dedicated surge protection devices (SPDs) and isolation transformers at the cabinet power entry point. Communication integrity between the 3500 rack and the plant DCS or safety PLC is maintained through the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus, Profibus, and other industrial protocols. For installations requiring SIL-rated safety loop closure, the 84147-01’s signal outputs are often routed through a Bently Nevada 3500/33 16-Channel Relay Module, enabling hardwired trip and alarm outputs to emergency shutdown systems and distributed control panels.

Critical Industrial Safety Applications

The Bently Nevada 84147-01 I/O terminal board is deployed across the most demanding rotating equipment protection scenarios in global heavy industry:

Petrochemical & Refinery Plants: In continuous catalytic cracking units and compressor trains, the 84147-01 provides the transducer interface for real-time vibration monitoring of centrifugal compressors and pumps. Any signal anomaly — whether from bearing wear, rotor imbalance, or seal degradation — is captured and transmitted to the 3500 rack’s monitor modules, triggering alarms or automatic shutdown before catastrophic failure occurs.

Power Generation: Steam turbine and gas turbine protection systems rely on the 84147-01 to maintain uninterrupted signal paths between shaft proximity probes and the protection rack. In combined-cycle power plants operating 24/7, the terminal board’s ruggedized construction ensures that thermal cycling and vibration from the turbine hall do not degrade connection quality over years of continuous service.

Mining & Mineral Processing: Ball mills, SAG mills, and large conveyor drive motors in open-pit and underground mining operations generate extreme mechanical vibration and electrical noise. The 84147-01’s shielded terminal design maintains clean signal transmission in these environments, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: Large pump stations and blower systems in municipal water infrastructure use the 3500 Series for critical pump protection. The 84147-01 ensures that vibration and position signals from submersible and vertical turbine pumps are accurately relayed to the protection system, preventing bearing failures that could disrupt water supply.

Metallurgy & Steel Production: Rolling mills, blast furnace blowers, and continuous casting machines operate under extreme thermal and mechanical stress. The 84147-01 supports the machinery protection architecture that keeps these assets running safely, with reliable signal integrity even in the presence of high-frequency electrical interference from induction furnaces and arc welders.

Port & Marine Terminals: Ship-to-shore cranes, bulk material handlers, and marine propulsion systems increasingly incorporate 3500 Series protection. The 84147-01 provides the robust I/O interface needed for reliable operation in salt-air, high-humidity coastal environments.

Safety and Quality FAQ

Q1: What warranty does the 84147-01 carry, and what does it cover?
The Bently Nevada 84147-01 is supplied with a 12-month warranty covering functional failure under normal operating and storage conditions. If the module fails to perform to its published specification within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed promptly to minimize any impact on your production schedule.

Q2: How is the 84147-01 tested before shipment?
Every unit undergoes a multi-point functional inspection prior to dispatch. Testing includes terminal continuity verification, signal path integrity checks, and visual inspection for physical damage or connector wear. Units that do not pass all inspection criteria are not shipped. A test record is available upon request for quality-critical installations.

Q3: Is the 84147-01 compatible with all 3500 Series rack configurations?
The 84147-01 is designed for use within the Bently Nevada 3500 Series Machinery Protection Rack and is compatible with standard 3500 monitor modules including the 3500/40M, 3500/42M, 3500/45, and 3500/50M. If you are integrating this terminal board into a specific rack configuration or replacing an existing board, please share your rack layout and we will confirm compatibility before shipment.

Q4: Can you support long-term or repeat supply of the 84147-01?
Yes. We maintain standing inventory of the 84147-01 and other 3500 Series components to support both immediate replacement needs and planned maintenance programs. For facilities managing multiple 3500 racks or operating under a spare-parts management agreement, we can discuss scheduled supply arrangements to ensure you always have critical spares on hand without overstocking.
