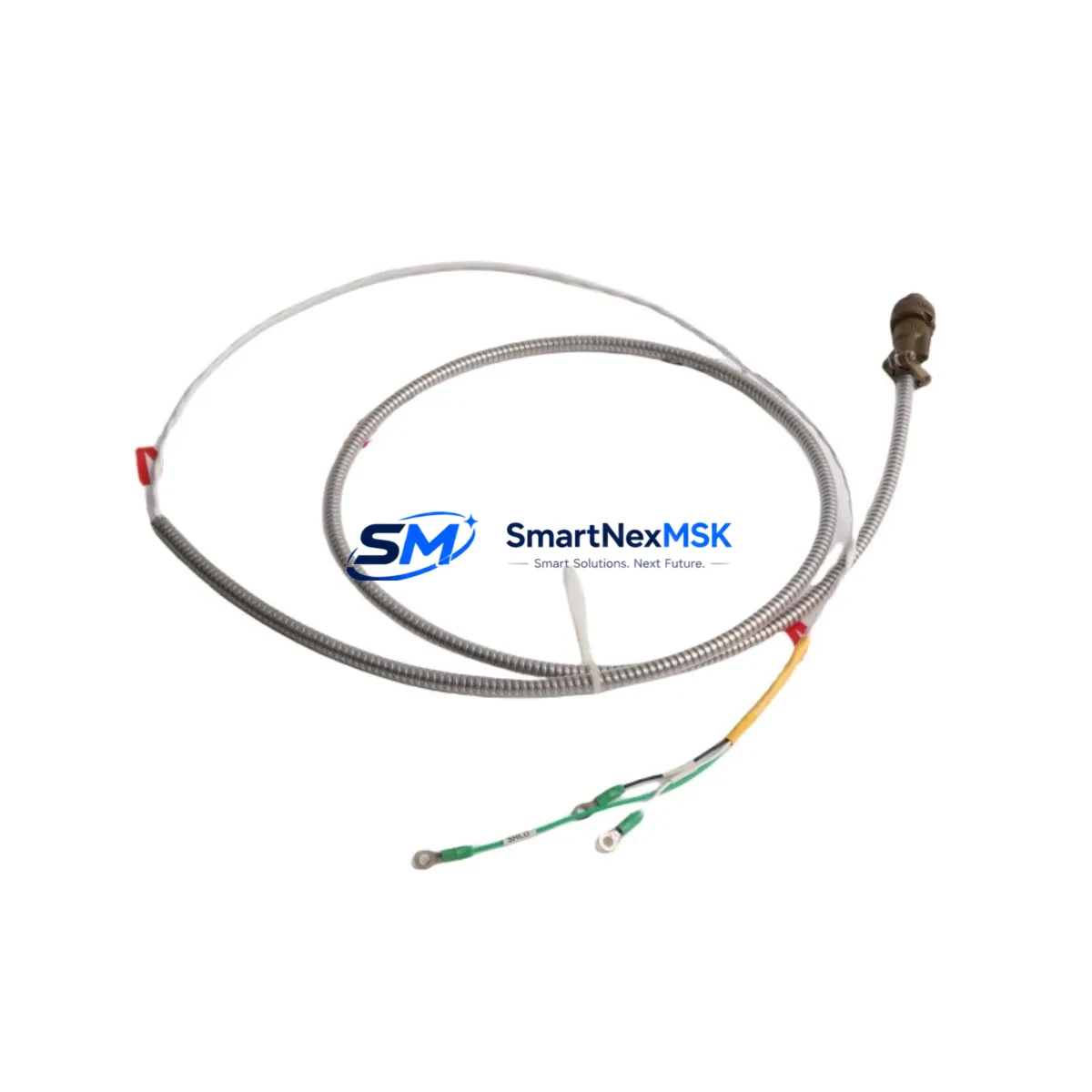

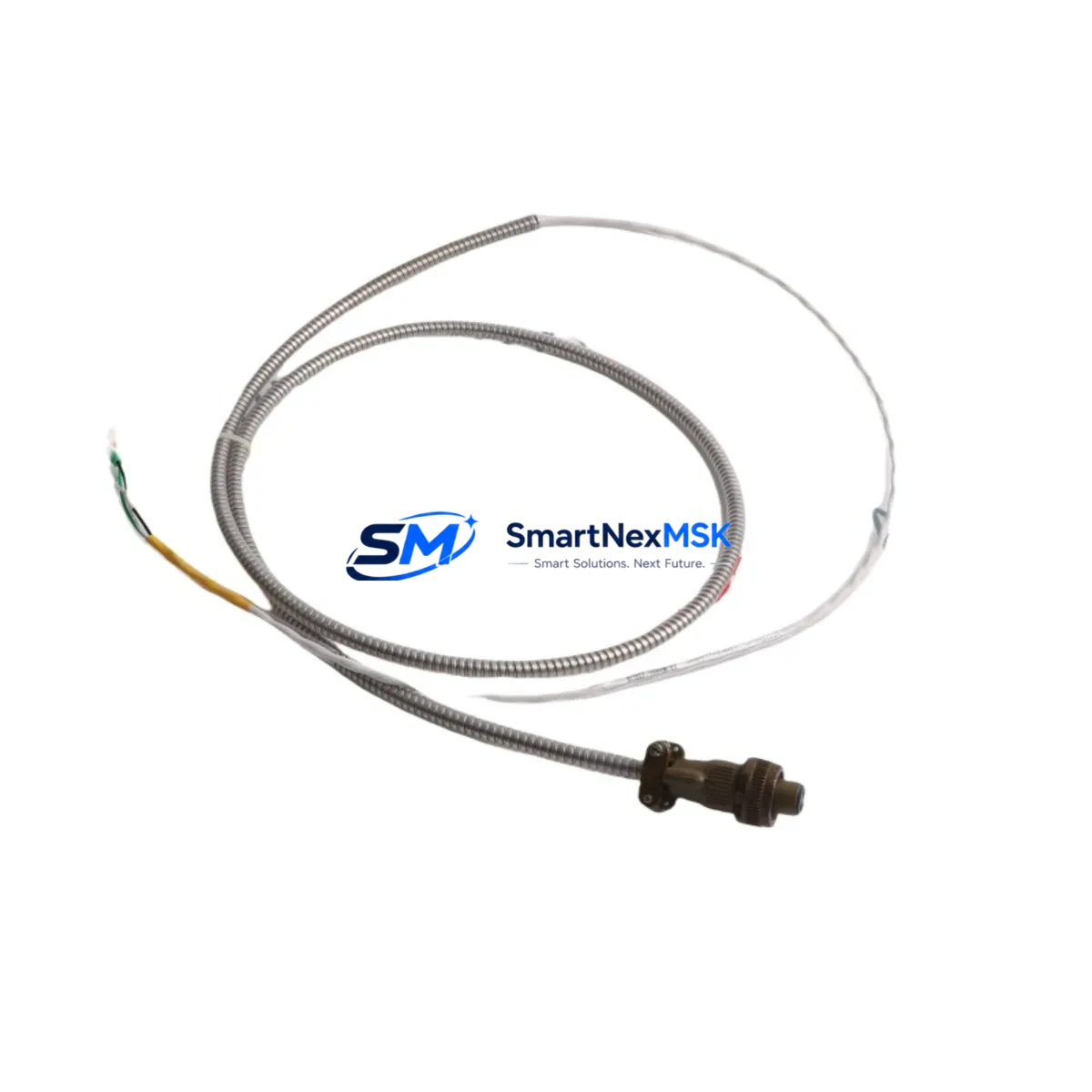

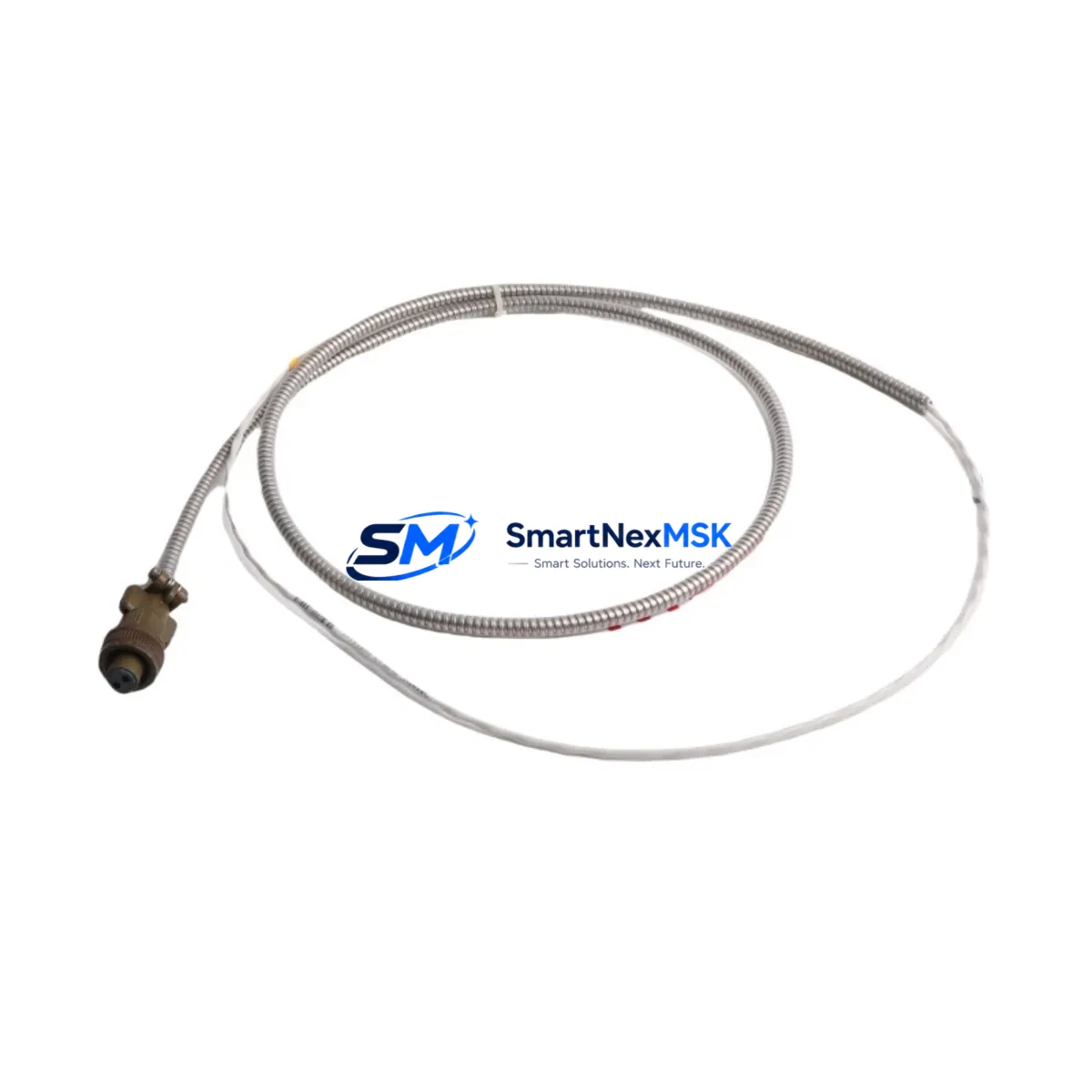

Bently Nevada 84661-06 Retrofit-Ready Proximity Cable 3300 XL

Bently Nevada 84661-06 Retrofit-Ready Proximity Probe Cable for 3300 XL Control Systems

The Bently Nevada 84661-06 is a precision proximity probe cable engineered for seamless integration into 3300 XL Series vibration monitoring systems. As legacy machinery monitoring infrastructure ages across refineries, power generation facilities, and rotating equipment plants, the 84661-06 serves as a verified drop-in replacement that eliminates the need for full system overhauls. Whether you are upgrading a control cabinet, restoring a decommissioned monitoring loop, or migrating from an older Bently Nevada 3300 Series platform to the current 3300 XL architecture, this cable provides the electrical and mechanical compatibility required for a controlled, low-risk retrofit.

The 84661-06 is designed to interface directly with Bently Nevada 3300 XL proximitor/seismic transducer modules, maintaining the signal integrity required for accurate shaft displacement measurement. Its shielded construction minimizes electromagnetic interference in high-noise industrial environments, and its connector geometry matches the standard Bently Nevada field-wiring convention used across the 3300 XL rack system. Engineers replacing worn or damaged cables in existing installations can substitute the 84661-06 without modifying terminal assignments, probe driver settings, or DCS input scaling.

Before completing a cable replacement in a live system, technicians should verify the following: power supply capacity at the proximitor module (typically –24 VDC), terminal block wiring polarity at the junction box, cable routing clearance within the control cabinet, and the gap voltage calibration range of the paired proximity probe. The 84661-06 is compatible with standard Bently Nevada 3300 XL proximitor modules and supports the –18 VDC to –24 VDC operating range typical of the platform. Confirm that the replacement cable length matches the original installation to preserve the system’s calibrated gap voltage window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 84661-06 typically occurs within a broader system modernization effort. In many facilities, the 3300 XL rack houses multiple channel types simultaneously — including the 3300/16 dual-channel vibration monitor, the 3300/20 Keyphasor module, and the 3300/46 temperature monitor — all sharing a common backplane and power distribution bus. When replacing a proximity probe cable, it is important to assess whether the associated proximitor module (such as the 3300 XL 8mm proximitor) also requires replacement, as cable degradation and sensor wear often occur concurrently in high-vibration environments.

For installations where the control system communicates via a 3500 Series rack or where data is aggregated through a System 1 condition monitoring platform, the cable replacement must be coordinated with the I/O mapping in the DCS or PLC. Facilities running Bently Nevada TDI (Transient Data Interface) modules or integrating vibration data into a Rockwell Automation ControlLogix or Siemens S7-300 PLC via a communication gateway should verify that channel addressing is preserved after the cable swap. Any change in signal routing that affects the I/O module’s channel assignment will require a corresponding update in the PLC program and, where applicable, in the HMI tag database.

In control cabinet upgrades where the junction box or terminal strip is being replaced alongside the cable, technicians should document the original wiring layout before disconnection. The 84661-06 follows the standard Bently Nevada three-wire convention (signal, shield, and power return), and the terminal block assignments must be preserved exactly to avoid polarity reversal or shield grounding errors. If the retrofit also involves replacing the proximity probe itself — for example, substituting a worn 190500 or 330780 series probe — the new probe’s sensitivity factor must be entered into the proximitor configuration before the system is returned to service.

Facilities upgrading from older Bently Nevada 3300 Series racks to the current 3300 XL platform may also need to address rack and I/O carrier compatibility. The 3300 XL uses a dedicated I/O module carrier that differs from the earlier 3300 Series backplane, and the cable assembly must be routed to match the new rack geometry. In these cases, the 84661-06 can be used as part of a phased migration strategy, replacing cables one channel at a time while the remainder of the system remains in service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe cable replacement requires careful pre-outage preparation. Before the maintenance window opens, technicians should have the 84661-06 pre-tested for continuity and insulation resistance, with all connector ends inspected for damage. A pre-wired spare cable assembly staged at the control cabinet reduces the time the monitoring loop is offline.

Where the process cannot tolerate a full monitoring blackout, a temporary bypass using a portable vibration analyzer connected directly to the probe can maintain shaft displacement visibility during the cable swap. This approach is particularly valuable on critical rotating equipment — compressors, turbines, and pumps — where the 3300 XL system provides the primary overspeed or high-vibration trip signal to the safety instrumented system (SIS).

After the 84661-06 is installed and terminated, the recommissioning sequence should include: (1) power-up verification of the proximitor module LED status, (2) gap voltage measurement at the proximitor output terminals, (3) confirmation of the vibration signal in the System 1 or DCS historian, and (4) a functional test of the trip relay output if the channel is configured for automatic shutdown. All test results should be documented in the maintenance management system before the equipment is returned to normal operation. Our team ships each 84661-06 with a pre-shipment continuity test report, and the 12-month warranty covers any defect identified during initial commissioning.

Retrofit Support FAQ

Q: Is the 84661-06 a direct replacement for the original Bently Nevada cable in my 3300 XL system?
A: Yes. The 84661-06 is a direct, terminal-for-terminal replacement for the original Bently Nevada proximity probe cable used in 3300 XL Series installations. No modification to the proximitor module, rack wiring, or DCS configuration is required, provided the cable length and connector type match the original specification.

Q: What commissioning checks are required after installing the 84661-06?
A: After installation, verify the gap voltage at the proximitor output terminals (typically –10 VDC ±0.5 V at the calibrated probe-to-target gap), confirm the vibration signal is present and within the expected range in the monitoring system, and test the trip relay output if the channel is configured for automatic shutdown. Document all readings before returning the equipment to service.

Q: Can the 84661-06 be used with proximity probes from other manufacturers?
A: The 84661-06 is designed and tested for use with Bently Nevada proximity probes and proximitor modules within the 3300 XL platform. Use with probes from other manufacturers may affect gap voltage calibration and signal accuracy. Compatibility verification is recommended before installation in non-standard configurations.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical continuity failures, and connector integrity issues identified under normal operating conditions. Each unit is shipped with a pre-shipment test report. Warranty claims are processed promptly — contact sales@smartnexmsk.com with your order reference and a description of the issue.
