Bently Nevada 84661-35 Spare for 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

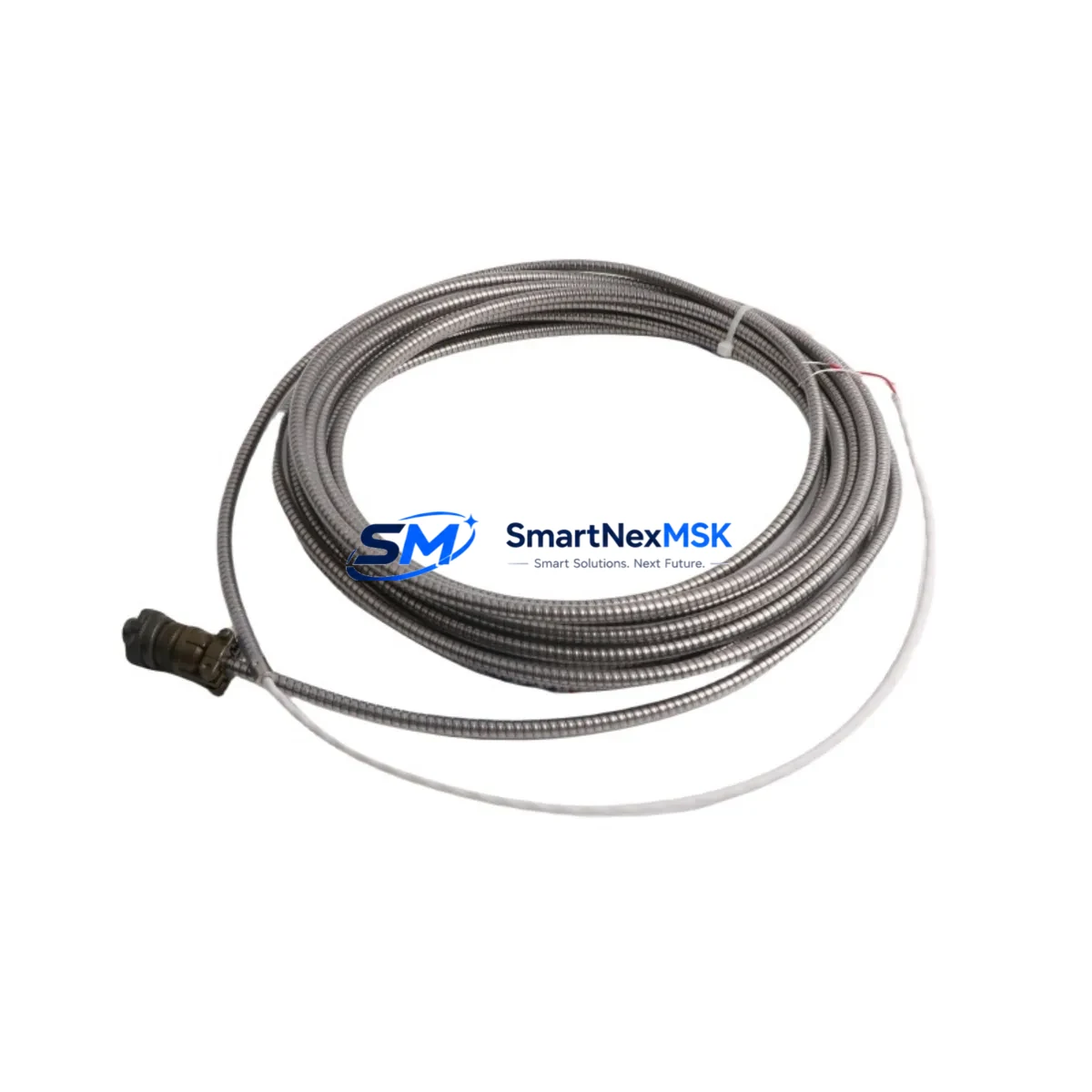

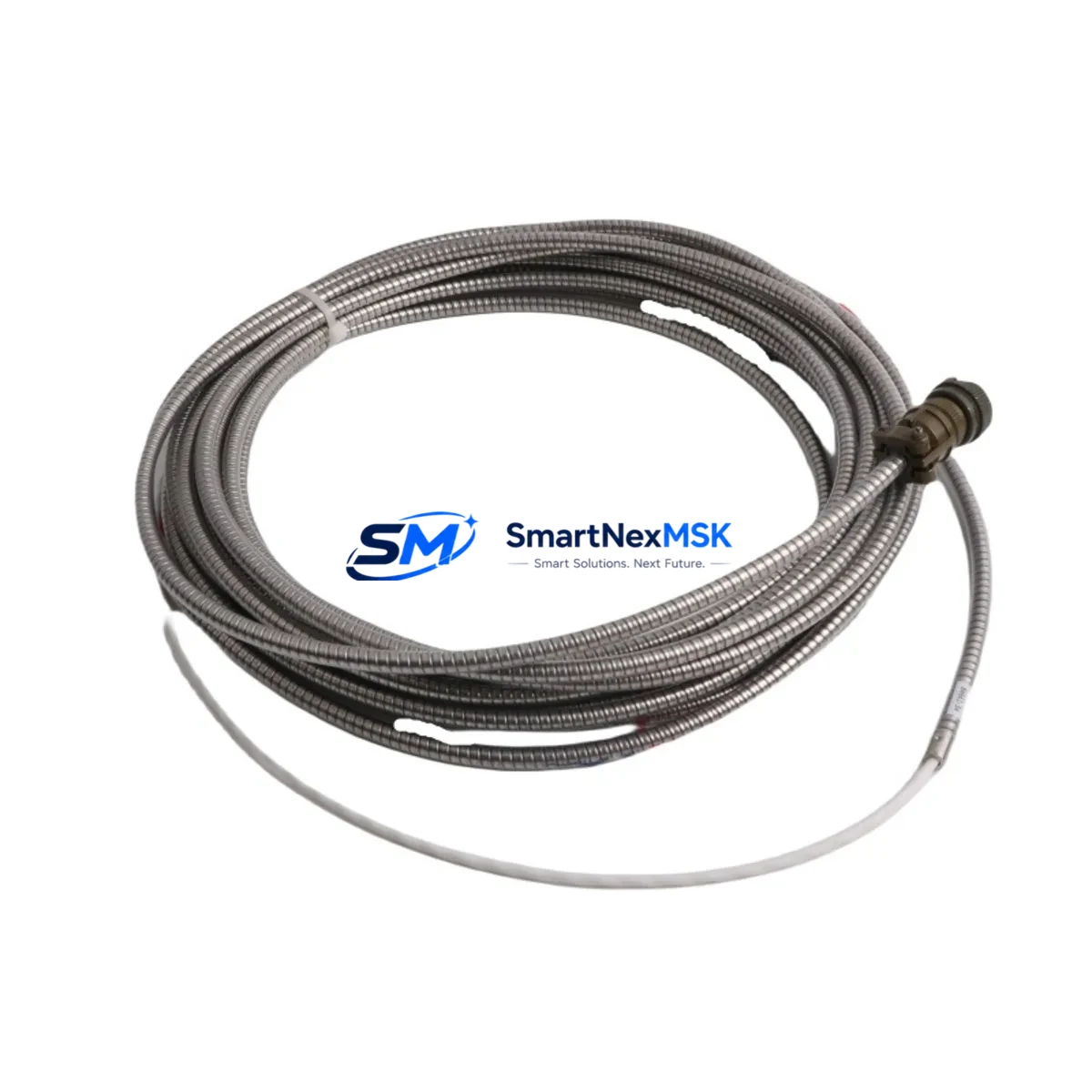

The Bently Nevada 84661-35 is an original armoured extension cable engineered for the 3300 XL Proximity System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and critical rotating assets, this extension cable is a precision-matched signal path component that directly affects measurement accuracy, system reliability, and alarm integrity. Stocking a verified replacement of the 84661-35 is not optional in high-availability environments — it is a fundamental element of any credible spare parts strategy.
When a proximity probe system fails or produces erratic readings, the extension cable is among the first components to inspect. Signal degradation, intermittent grounding faults, connector corrosion, and mechanical damage from cable routing or vibration fatigue are common failure modes in industrial environments. The 84661-35 is designed to withstand these conditions, but like all field-installed components, it has a finite service life and must be available for rapid swap-out during planned or emergency maintenance windows.
Spare Maintenance Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 84661-35 |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity System |
| Product Type | Armoured Extension Cable |
| Compatible Probes | 3300 XL 8mm Proximity Probes |
| Compatible Drivers | 3300 XL Proximitor Sensors |
| Cable Construction | Armoured, shielded coaxial |
| Connector Type | Standard Bently Nevada coaxial connectors |
| Application Environment | Rotating machinery, turbines, compressors, pumps |
| Installation | Direct replacement; no recalibration of probe/driver gap required if cable length matches |
| Origin | United States |
| Condition | Original / New |
| Warranty | 12 Months |
| Shipping | Tested before dispatch; worldwide express available |
Maintenance Planning for Continuous Operation
Replacing the 84661-35 extension cable in a 3300 XL channel is rarely an isolated task. A disciplined maintenance engineer will treat this as an opportunity to inspect and verify the entire proximity measurement loop. Begin with the 3300 XL 8mm proximity probe (e.g. 330103 series) — check tip condition, thread integrity, and gap setting. Verify the 3300 XL Proximitor Sensor (e.g. 330180 or 330130 series) output voltage and confirm it falls within the calibrated linear range. Inspect the junction box or field enclosure for moisture ingress, terminal corrosion, and cable strain relief integrity.
At the control cabinet level, confirm that the 3500/42M Proximitor/Seismic Monitor or equivalent rack monitor card is receiving clean signal. Check the 3500 rack I/O module terminal assignments and verify that the channel is not in bypass or inhibit mode. If the plant uses a Bently Nevada 3500/22M Transient Data Interface, confirm that the channel mapping is intact after the cable swap. For systems integrated with a DCS or safety layer, verify that the 4–20 mA output signal from the monitor is reaching the DCS input card correctly — a faulty extension cable can cause the monitor to output a fault state that propagates to the control system.
In older installations, it is also worth inspecting coaxial cable connectors and field junction terminals for oxidation, and checking whether the cable routing conduit has introduced any mechanical stress points. Where the 84661-35 interfaces with a barrier or intrinsic safety isolator for hazardous area installations, verify that the isolator is functioning within specification. Finally, confirm that the spare cable length matches the original — cable length is a calibrated parameter in eddy-current proximity systems, and substituting a different length without recalibration will introduce measurement error.
Site Replacement Workflow
The 84661-35 is a direct replacement for the original Bently Nevada armoured extension cable used in 3300 XL proximity measurement chains. No firmware changes, no driver reconfiguration, and no rack-level reprogramming are required — provided the replacement cable is the same length and connector type as the original. This makes it one of the fastest field-replaceable components in a proximity monitoring system, with typical swap time under 30 minutes for a trained technician.
To minimize downtime: isolate the channel at the monitor rack (place in bypass/inhibit if the system supports it), disconnect the old cable at both the probe end and the Proximitor end, route and connect the new 84661-35, restore the channel from bypass, and verify output voltage and alarm setpoints before returning the machine to service. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory accordingly. For critical machines, maintain at least one additional 84661-35 in the local spare parts store after each replacement event.
For plants managing legacy 3300 XL systems that are no longer in active production, the 84661-35 remains available as a long-term supply item. Sourcing original spare cables — rather than field-fabricated substitutes — ensures that the calibrated system performance is preserved and that the measurement chain remains traceable to the original factory specification.
Spare Parts Support FAQ
Q1: Is the 84661-35 compatible with all 3300 XL proximity probes and Proximitor sensors?
A: Yes. The 84661-35 is designed for use within the Bently Nevada 3300 XL system ecosystem. It is compatible with 3300 XL 8mm proximity probes and the corresponding 3300 XL Proximitor Sensors. Always verify that the cable length matches the original installation, as cable length is a calibrated parameter in eddy-current proximity systems.
Q2: How is the 84661-35 tested before shipment?
A: Each unit undergoes electrical continuity and insulation resistance checks prior to dispatch. Connector integrity and shielding continuity are verified. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and electrical performance.
Q3: What is the recommended spare parts stocking strategy for the 84661-35?
A: For critical rotating machinery applications, we recommend maintaining a minimum of one spare 84661-35 per monitored machine train, with an additional buffer unit in the central warehouse. For plants with multiple 3300 XL channels, a pooled inventory of 2–4 units is a practical baseline. Review and replenish after each replacement event.
Q4: Can the 84661-35 be used to extend an existing proximity probe installation?
A: No. Extension cables in eddy-current proximity systems are calibrated components — the cable length is part of the system calibration. The 84661-35 must be used as a like-for-like replacement for the original cable of the same length. Using a different cable length without recalibrating the Proximitor sensor will result in measurement error and potential false alarms or missed trips.
