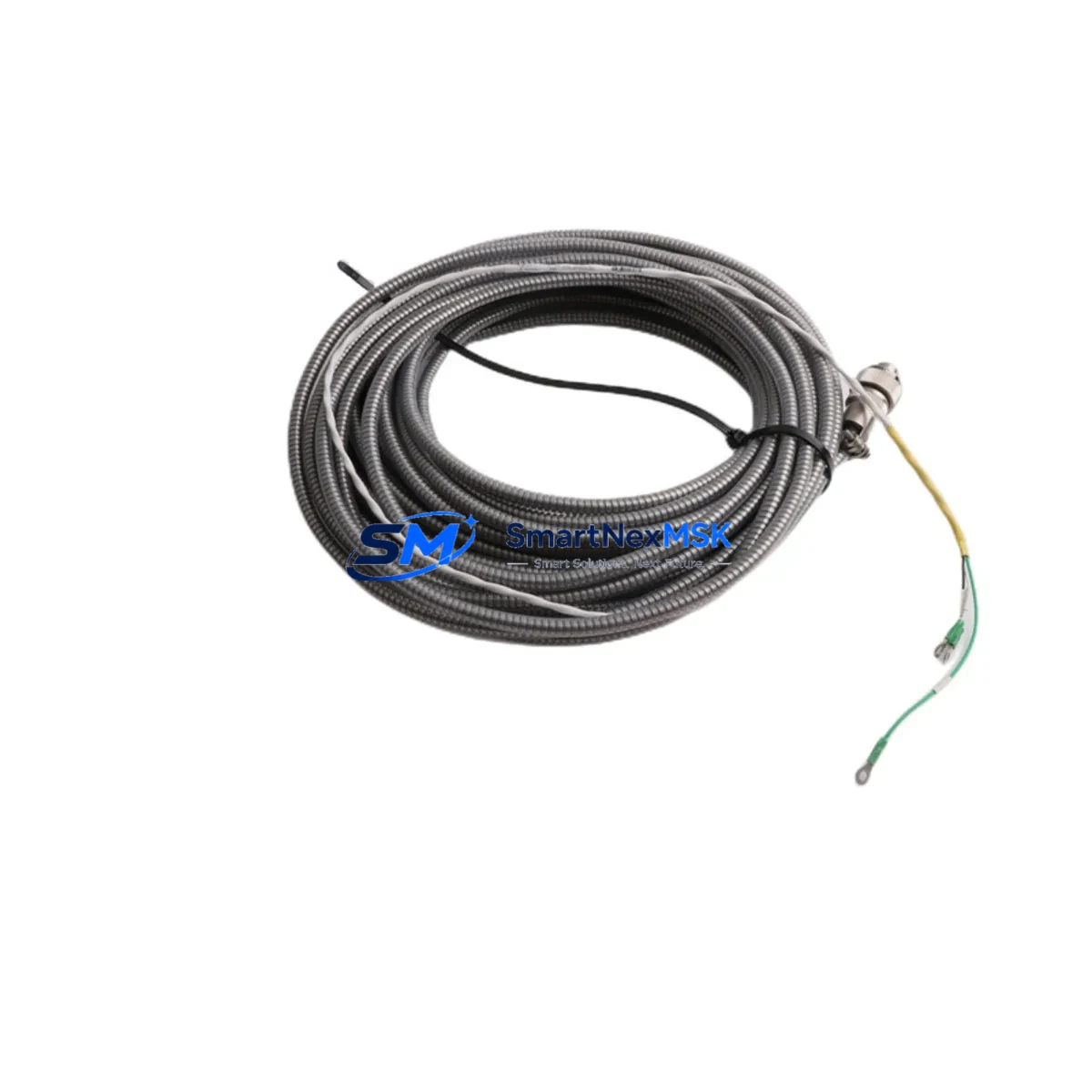

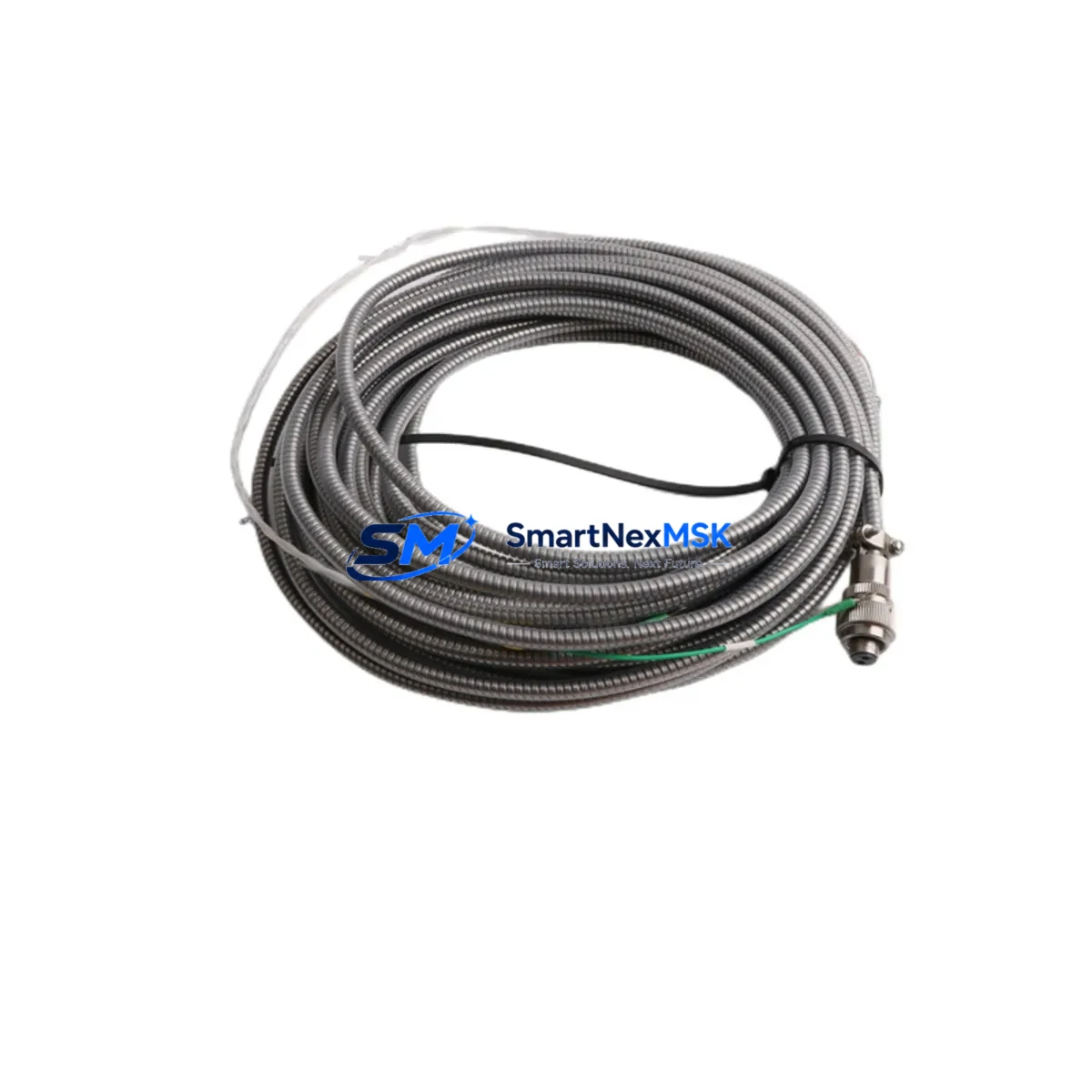

Bently Nevada 84661-50 Safety-Enhanced Interconnect Cable

Bently Nevada 84661-50 Safety-Enhanced Interconnect Cable: Reliable Control in Harsh Industrial Sites

In continuous production environments where control interruption is not an option, the Bently Nevada 84661-50 ruggedized interconnect cable delivers the signal integrity and mechanical resilience that critical machinery protection systems demand. Engineered specifically for the Bently Nevada 3500 Series machinery protection platform, this cable forms the essential physical link between field-mounted transducers and the 3500 rack-based monitoring modules — a link that must remain stable under vibration, electromagnetic interference, thermal cycling, and mechanical stress found in petrochemical plants, power generation facilities, mining operations, and heavy metallurgical sites.

Signal drift and intermittent connectivity are among the leading causes of false trips and missed alarms in rotating machinery protection systems. The 84661-50 addresses these failure modes through its ruggedized construction: shielded conductors that suppress EMI from adjacent variable frequency drives, motor control centers, and high-current bus bars; robust connector terminations that resist loosening under continuous vibration; and a jacket material rated for the temperature extremes and chemical exposure common in refinery and compressor station environments. When paired with the Bently Nevada 3500/42M proximitor I/O module or the 3500/40M proximitor monitor, this cable ensures that the 4–20 mA and proximity probe signals arrive at the rack without attenuation or noise injection that could compromise alarm setpoint accuracy.

Safety Reliability Table

Control Cabinet Protection Strategy

A machinery protection system is only as reliable as its weakest interconnect. In a typical 3500 Series control cabinet installation, the 84661-50 cable routes signals from field-mounted Bently Nevada 330180-51-05 proximity probes — positioned at turbine bearing journals or compressor thrust faces — back to the rack-mounted 3500/42M Proximitor I/O Module. The rack itself, housed in a hardened control cabinet alongside the 3500/15 Power Supply Module, depends on clean, uninterrupted signal paths to execute protective relay outputs through the 3500/32 4-Channel Relay Module.

In installations where surge protection is a concern — particularly in outdoor substations or facilities with frequent lightning activity — the 84661-50 is typically deployed in conjunction with Bently Nevada transient voltage surge suppressors installed at the cabinet entry point, preventing surge energy from propagating into the sensitive analog input circuitry of the 3500/40M Proximitor Monitor. For systems integrating process variables alongside vibration data, the cable also supports the signal chain feeding the 3500/60 Temperature Monitor and 3500/64 Dynamic Pressure Monitor, ensuring that all monitored parameters share the same high-integrity wiring standard throughout the cabinet.

In facilities running System 1 condition monitoring software, the data quality delivered by properly terminated 84661-50 cables directly affects the accuracy of trend analysis and alarm rationalization. A degraded cable connection introduces noise floors that mask early-warning vibration signatures — the very signatures that differentiate a developing bearing defect from normal operational variation. Maintaining cable integrity is therefore not merely a wiring task; it is a core element of the plant’s predictive maintenance and functional safety strategy.

Critical Industrial Safety Applications

The Bently Nevada 84661-50 interconnect cable is deployed across the most demanding continuous-process industries where unplanned shutdowns carry severe safety and financial consequences.

In petrochemical and refinery environments, it connects proximity probes monitoring the radial and axial displacement of centrifugal compressors and steam turbines in API 670-compliant protection systems. A cable failure in this context can silence a critical vibration alarm, allowing a developing rotor imbalance or bearing failure to progress to a catastrophic mechanical event. The ruggedized construction of the 84661-50 resists the hydrocarbon vapors, heat radiation, and vibration transmitted through pipe racks and equipment skids common in these facilities.

In power generation plants — both thermal and combined-cycle — the cable supports the protection of boiler feed pumps, induced draft fans, and gas turbine generator sets. These machines operate continuously at high speeds, and the 3500 Series protection system must receive clean, noise-free signals to distinguish genuine shaft excursions from electrical interference generated by the plant’s own high-voltage switchgear and transformer banks.

In mining and mineral processing operations, where ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, ground potential differences, and heavy equipment-induced vibration, the shielded construction of the 84661-50 maintains signal quality even when cable runs pass near high-current motor feeders or variable speed drive output cables.

In water and wastewater treatment facilities, the cable supports the monitoring of large vertical turbine pumps and blower trains where moisture ingress and chemical exposure are constant concerns. In metallurgical and steel plants, it withstands the radiated heat and electromagnetic environment near electric arc furnaces and rolling mill drives. Across all these applications, the 84661-50 is a mission-critical component — not a commodity cable — and its selection, installation, and periodic inspection are integral to the plant’s overall functional safety management system.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 84661-50?
The 84661-50 is supplied with a 12-month warranty covering manufacturing defects, connector integrity, and signal transmission performance under normal industrial operating conditions. Warranty claims are supported with replacement dispatch and technical documentation to minimize system downtime.

Q2: What pre-shipment testing is performed on each cable?
Every 84661-50 unit undergoes continuity testing across all conductors, insulation resistance measurement, and shield continuity verification before dispatch. This ensures that the cable arrives ready for installation without requiring field re-testing, reducing commissioning time in time-critical maintenance windows.

Q3: Is the 84661-50 compatible with all 3500 Series modules and existing Bently Nevada installations?
Yes. The 84661-50 is designed to OEM specification for the Bently Nevada 3500 Series platform and is compatible with the full range of 3500 rack modules including the 3500/40M, 3500/42M, 3500/45, 3500/50, and associated I/O modules. It is a direct replacement for worn or damaged cables in existing installations without requiring rack reconfiguration or software changes.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the 84661-50 to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. Customers operating large fleets of 3500 Series systems can arrange blanket orders or scheduled replenishment to ensure cable availability aligns with their preventive maintenance intervals, eliminating the risk of extended lead times during critical outage windows.
