Bently Nevada 900800XL-090-03-01 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 900800XL-090-03-01 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

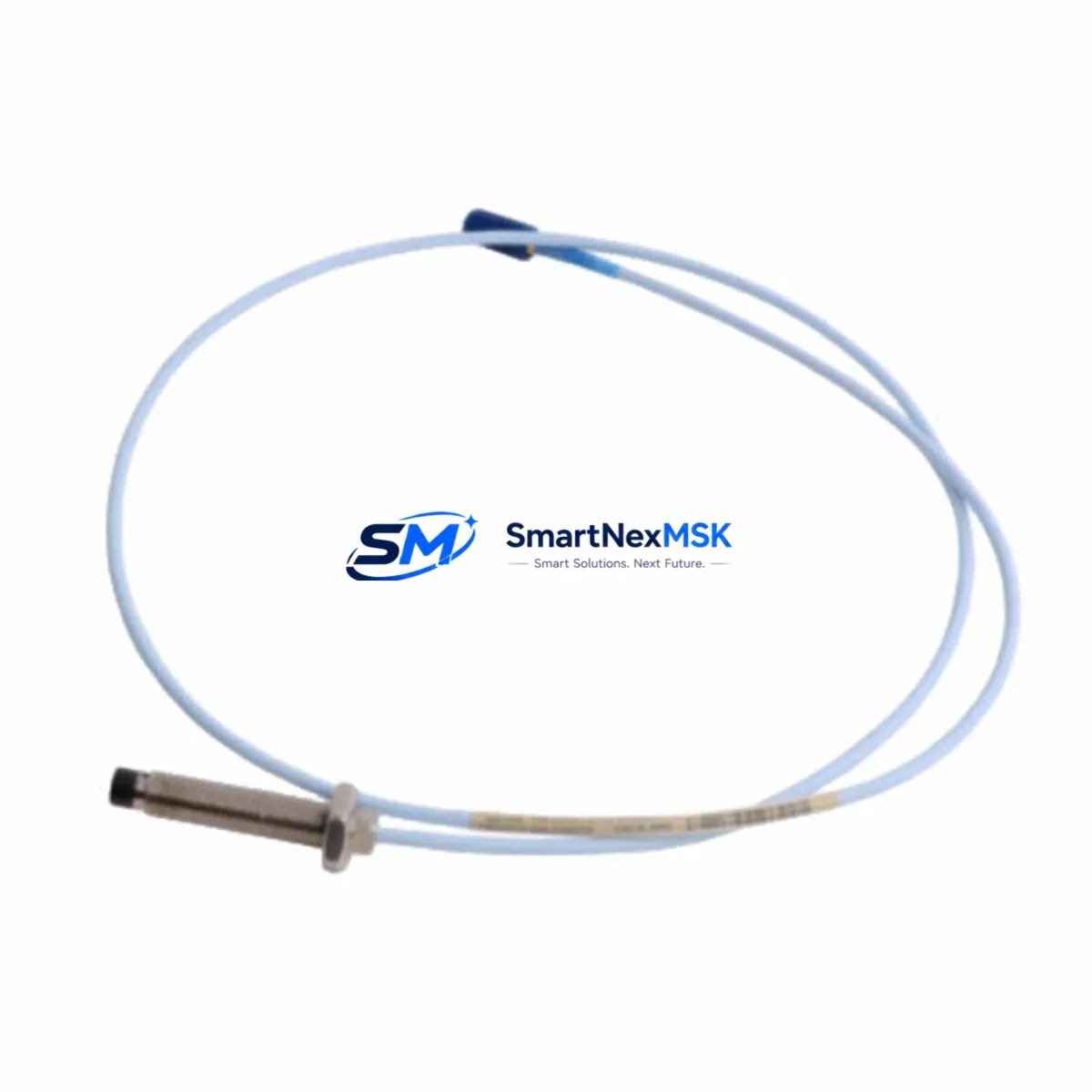

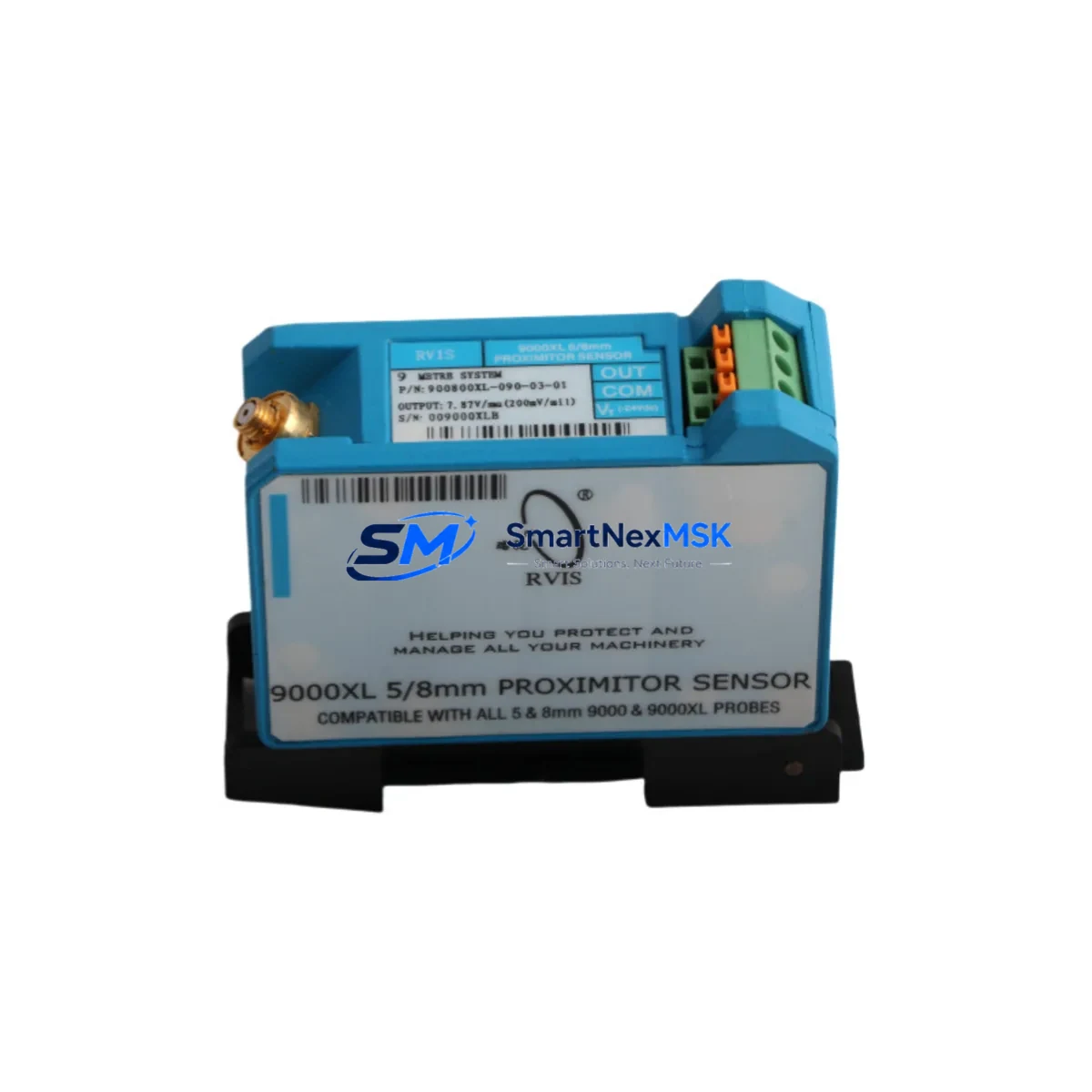

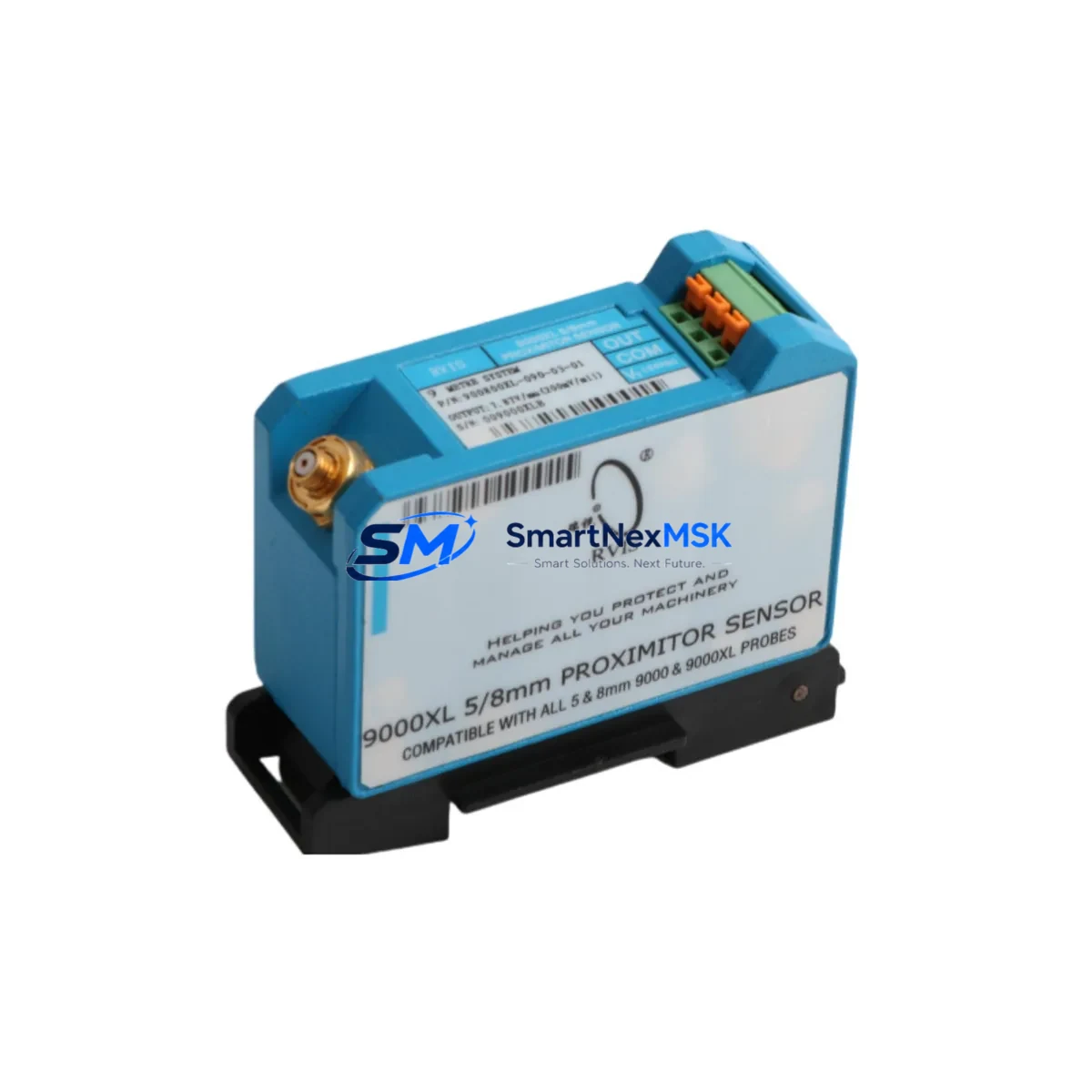

The Bently Nevada 900800XL-090-03-01 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Designed as a direct retrofit replacement for legacy 3300 Series installations, this probe delivers full signal compatibility with existing Proximitor® sensor assemblies, junction boxes, and monitor rack cards — enabling a smooth upgrade path without rewiring or reconfiguring the host system.

Industrial facilities operating aging turbomachinery protection systems frequently encounter discontinued proximity probe assemblies that are no longer available through OEM channels. The 900800XL-090-03-01 addresses this gap with a 9-metre armored extension cable, standard TNC connector termination, and calibrated output sensitivity of 7.87 V/mm — matching the electrical characteristics required by the 3300 XL 16-Channel Monitor and associated rack-mounted I/O modules. Whether you are replacing a failed probe on a critical compressor train or upgrading an entire vibration monitoring loop, this assembly integrates directly into your existing cable routing and terminal block layout.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 900800XL-090-03-01 into a live turbomachinery protection system requires a structured pre-installation review. Before removing the failed probe assembly, maintenance engineers should document the existing gap voltage reading at the 3300 XL Proximitor® Sensor (typically mounted in the field junction box) and confirm the DC bias level is within the −10 V ± 0.5 V acceptance window. This baseline reading is critical for post-installation verification and should be recorded in the machine history file.

On the rack side, verify that the 3300 XL 16-Channel Monitor card is configured for the correct probe type and sensitivity constant. If the rack also houses a 3300 XL Dual Voting Logic module or a 3300 XL Keyphasor® Module, confirm that the channel assignment and voting logic thresholds remain unchanged after the probe swap. In systems where the vibration data feeds into a System 1 Evolution condition monitoring platform, no software reconfiguration is typically required — the analog signal chain is preserved end-to-end.

For installations where the original probe cable routing passes through a 3300 XL I/O Module terminal block, inspect the terminal screws for corrosion and re-torque to specification before reconnecting. If the control cabinet also contains a 3300 XL Power Supply Module, measure the −24 VDC rail under load to confirm adequate current headroom for the replacement probe. Facilities upgrading multiple measurement points simultaneously should also audit the 3300 XL Rack Interface Module backplane connectors for wear, as intermittent backplane contact is a common root cause of spurious vibration alarms during and after probe replacement campaigns.

Where the existing installation uses a TK-3 Proximitor® Extension Cable between the probe and the Proximitor sensor, inspect the cable jacket and connector bodies for mechanical damage before reuse. A damaged extension cable will introduce signal noise that can mask genuine shaft vibration events and trigger nuisance trips. Replacement extension cables are available in matched lengths to preserve the calibrated system sensitivity.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging the 900800XL-090-03-01 assembly alongside all required hand tools, torque specifications, and a calibrated millivoltmeter before the maintenance window opens. Where the protection system architecture permits, place the affected monitor channel in Bypass mode through the 3300 XL front-panel interface or via the System 1 software console prior to probe removal. This prevents a spurious trip signal from propagating to the Emergency Shutdown System (ESD) or the Distributed Control System (DCS) during the physical swap.

After installing the new probe and reconnecting the Proximitor sensor, restore the channel from Bypass only after confirming the gap voltage is stable and within the acceptance band. Log the as-found and as-left gap voltage values, the probe serial number, and the installation date in the plant maintenance management system. If the machine is part of an API 670-compliant protection loop, retain the calibration record for audit purposes. The 900800XL-090-03-01 ships pre-tested and is supplied with a factory test certificate, supporting a streamlined commissioning process and reducing the time required to return the machine to service.

For facilities managing a fleet of rotating machines with aging 3300 Series probes, a proactive spares strategy — holding at least one 900800XL-090-03-01 per critical machine train — eliminates the lead-time risk associated with emergency procurement and supports a mean-time-to-repair (MTTR) target of under four hours for probe-related failures.

Retrofit Support FAQ

Q1: Is the 900800XL-090-03-01 a direct replacement for the legacy Bently Nevada 330180-90-05 proximity probe assembly?
The 900800XL-090-03-01 is the 3300 XL Series successor to earlier 330180-series probe assemblies. Both use 8mm probe tips and TNC connectors, and both operate with the same −24 VDC Proximitor supply. The XL-series probe is fully compatible with 3300 XL monitor cards and can replace the 330180-series in most installations without changes to terminal wiring or monitor configuration. Confirm the cable length and sensitivity constant match your existing system documentation before installation.

Q2: What commissioning checks are required after installation?
After physical installation, measure the DC gap voltage at the Proximitor output terminal. The acceptable range is −10 V ± 0.5 V for a standard 8mm probe at the nominal air gap. Adjust the probe axial position in the probe holder until the gap voltage is within specification, then lock the probe in place with the locknut. Verify the vibration channel is reading a plausible dynamic signal (typically <1 mil pk-pk on a stopped machine) before releasing the channel from Bypass mode.

Q3: Can this probe be used with Modbus or PROFIBUS-connected monitor racks?
The 900800XL-090-03-01 is an analog sensor; it does not itself communicate over Modbus or PROFIBUS. However, the 3300 XL 16-Channel Monitor rack can be equipped with a 3300 XL Rack Interface Module that provides Modbus RTU or PROFIBUS DP connectivity to the plant DCS or SCADA system. The probe output feeds the monitor card’s analog input stage, and the digitized vibration data is then available over the rack’s communication bus. No changes to the communication module configuration are required when replacing a probe of the same type and sensitivity.

Q4: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified supply voltage range. To initiate a warranty claim, contact our sales team with the probe serial number, purchase order reference, and a description of the observed failure mode. We will arrange return shipping and provide a replacement or repair within the agreed lead time. All units are functionally tested prior to dispatch and shipped with a test certificate.
