Bently Nevada 9571-33 Maintenance-Ready Spare for 3500 Automation

Bently Nevada 9571-33 Maintenance-Ready Spare for 3500 Series Automation

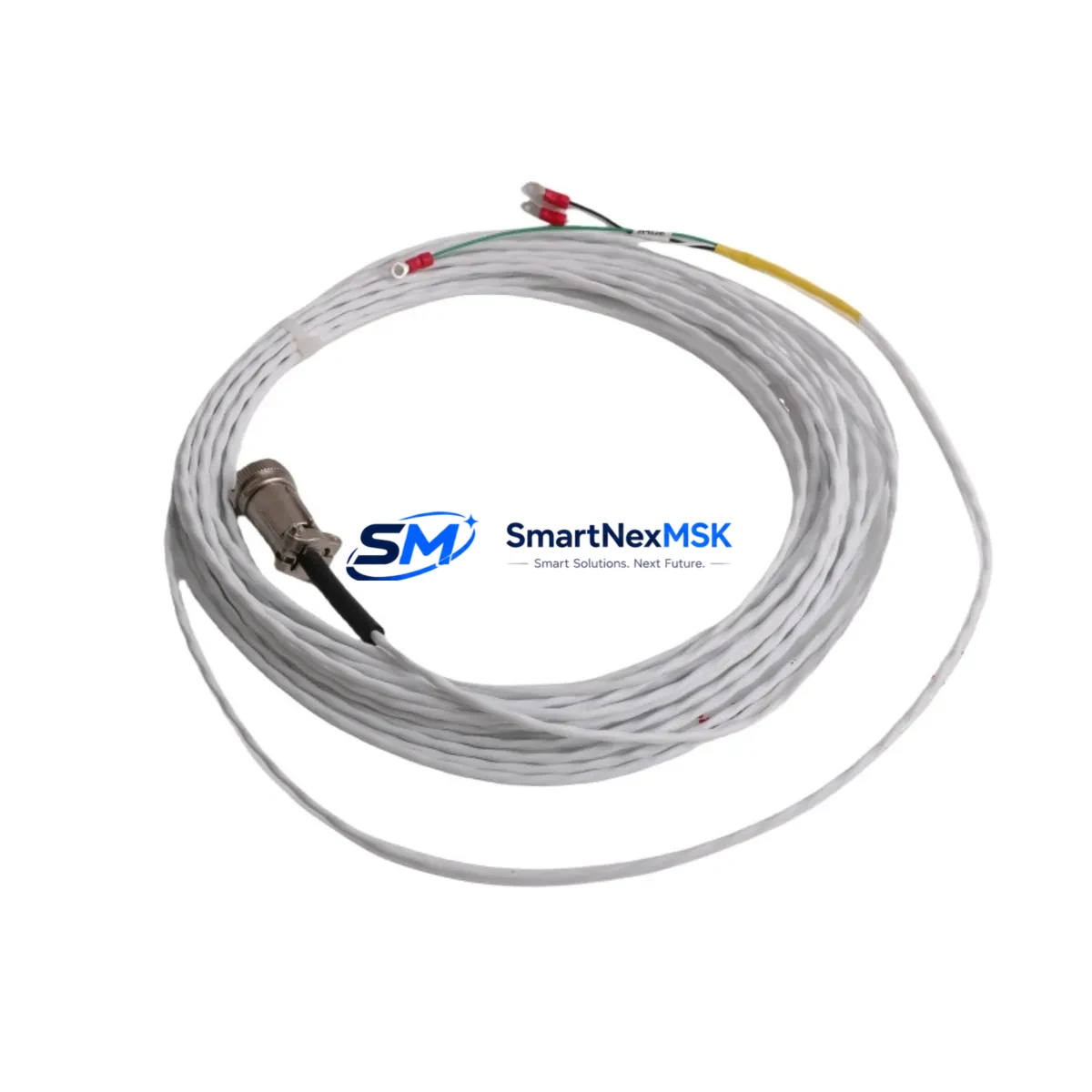

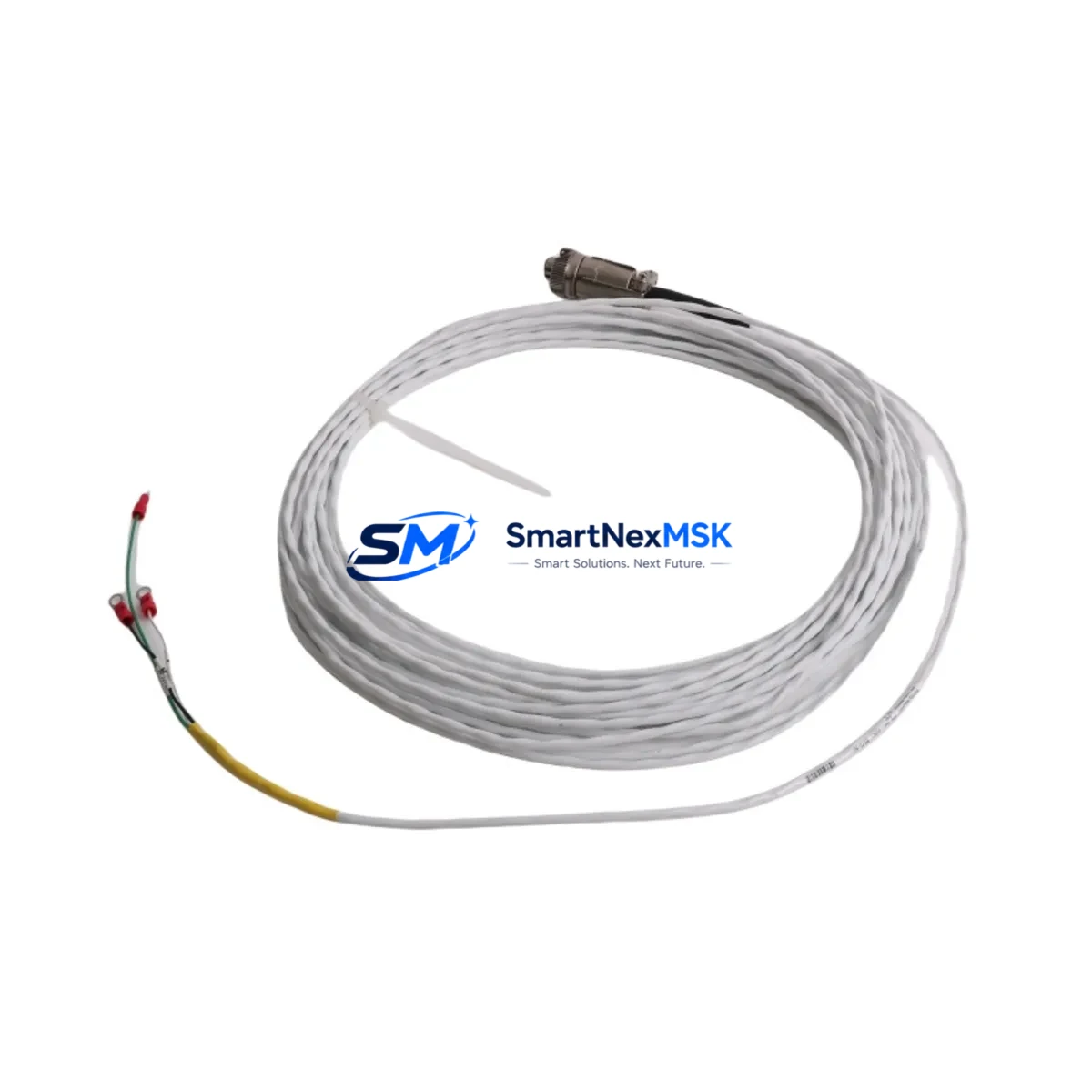

The Bently Nevada 9571-33 is an original interconnect cable engineered for the 3500 Series Machinery Protection System — one of the most widely deployed continuous monitoring platforms in rotating equipment protection. For maintenance engineers managing turbines, compressors, pumps, and generators, this cable is a critical link between field-mounted transducers and the 3500 rack’s I/O and monitor modules. A failed or degraded 9571-33 can interrupt vibration, position, or speed signal transmission, triggering nuisance trips or — worse — masking real machinery faults. Holding a verified original spare in your maintenance inventory is the most direct way to eliminate cable-related downtime risk.

At SMARTNEXMSK, every 9571-33 unit is sourced from authorized supply channels, inspected against Bently Nevada’s original specifications, and tested prior to shipment. Each unit ships with a 12-month warranty and full documentation support. We maintain standing stock to support both planned outages and emergency callouts, with same-day dispatch available for urgent orders.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 9571-33 interconnect cable is flagged for replacement during a planned inspection or emergency callout, experienced maintenance engineers treat it as a trigger to audit the surrounding signal chain. The 3500 rack is a system — and cable integrity issues rarely occur in isolation. During the same maintenance window, it is best practice to verify the condition of the 3500/20 Rack Interface Module, which manages backplane communication and power distribution to all installed cards. A degraded RIM can cause intermittent signal loss that mimics cable faults.

Inspect the 3500/22 Transient Data Interface if the machine is monitored for transient events such as startups and coastdowns — the TDI relies on clean, low-noise signal paths that the interconnect cable directly supports. For proximity probe installations, check the 3500/25 Enhanced Keyphasor Module and its associated 330130 Proximity Probes and 330180 Proximitor Sensors for connector wear, gap voltage drift, and cable jacket condition.

On the power side, confirm that the 3500/15 Power Supply Module is delivering stable ±24 VDC to the rack. Voltage ripple or transient drops can stress cable insulation over time and accelerate connector oxidation. If the installation uses a redundant power configuration, test both supply modules independently. For racks with communication cards, verify the 3500/92 Communication Gateway Module and its associated RS-232/RS-485 or Ethernet cabling — a loose or corroded connector here can cause false system-level alarms that complicate fault isolation.

Terminal blocks and field junction boxes in the transducer wiring loop should also be inspected. Loose terminations on 3500 Series terminal boards are a common source of intermittent signal errors that are misdiagnosed as monitor or cable faults. Finally, if the rack includes a 3500/60 Temperature Monitor or 3500/50 Tachometer Module, verify that their input wiring and connector seating are secure, as these modules share the same backplane environment and are subject to the same vibration and thermal cycling stresses.

Building a structured spare parts kit around the 9571-33 — including at minimum one spare power supply module, a set of proximity probe cables, and a replacement keyphasor module — is the most cost-effective strategy for reducing mean time to repair on 3500-equipped machinery trains.

Site Replacement Workflow

1. Pre-replacement verification: Before removing the existing cable, document the current system status in the 3500 rack’s System Event List. Confirm which monitor slots are active and note any pre-existing alarms. This baseline prevents post-replacement confusion about whether a new alarm is related to the cable swap.

2. De-energize and isolate: Follow your site’s lockout/tagout procedure. The 3500 rack can remain powered during cable replacement in some configurations, but field transducer wiring should be isolated to prevent false trips during connector handling.

3. Connector inspection: Before installing the 9571-33, inspect the mating connectors on both the rack module and the field junction point. Clean with appropriate contact cleaner if oxidation is present. Do not force connectors — misalignment is a leading cause of premature cable failure.

4. Installation and seating: Route the new cable following the original cable path to maintain EMI shielding integrity. Secure all strain relief points. Confirm that the connector is fully seated and locked before re-energizing.

5. Post-installation verification: After re-energizing, confirm that the affected monitor channel returns to normal status in the 3500 rack display. Check gap voltage on proximity probe channels. Log the replacement in your maintenance management system with the new cable’s serial number and installation date.

6. Compatibility note: The 9571-33 is designed for use within the Bently Nevada 3500 ecosystem. If you are replacing an older 9000 Series or 7200 Series cable in a legacy system, verify connector type and signal level compatibility before installation. SMARTNEXMSK technical support can assist with cross-reference confirmation prior to order.

Spare Parts Support FAQ

Q1: Is the 9571-33 compatible with all 3500 Series monitor modules?
The 9571-33 is an interconnect cable designed for the Bently Nevada 3500 Series platform. Compatibility depends on the specific monitor module and transducer type in your installation. We recommend confirming your rack configuration — including monitor card model and transducer type — before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What is included in the 12-month warranty?
Every 9571-33 shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and verified pre-shipment test failures. Warranty claims are processed with priority turnaround. Units are tested for continuity, insulation resistance, and connector integrity before dispatch. Warranty does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental range.

Q3: How quickly can I receive a replacement unit for an emergency shutdown?
We maintain standing stock of the 9571-33 and can dispatch same-day for orders confirmed before our daily cutoff. International express shipping is available to most industrial regions. Contact sales@smartnexmsk.com or call +86 18259474341 to confirm stock availability and arrange emergency dispatch.

Q4: Can SMARTNEXMSK supply other 3500 Series spare parts alongside the 9571-33?
Yes. We stock a broad range of Bently Nevada 3500 Series components including power supply modules, rack interface modules, monitor cards, keyphasor modules, proximity probes, and communication gateways. Consolidated orders reduce shipping cost and simplify incoming inspection. Contact us with your full spare parts list for a consolidated quotation.
