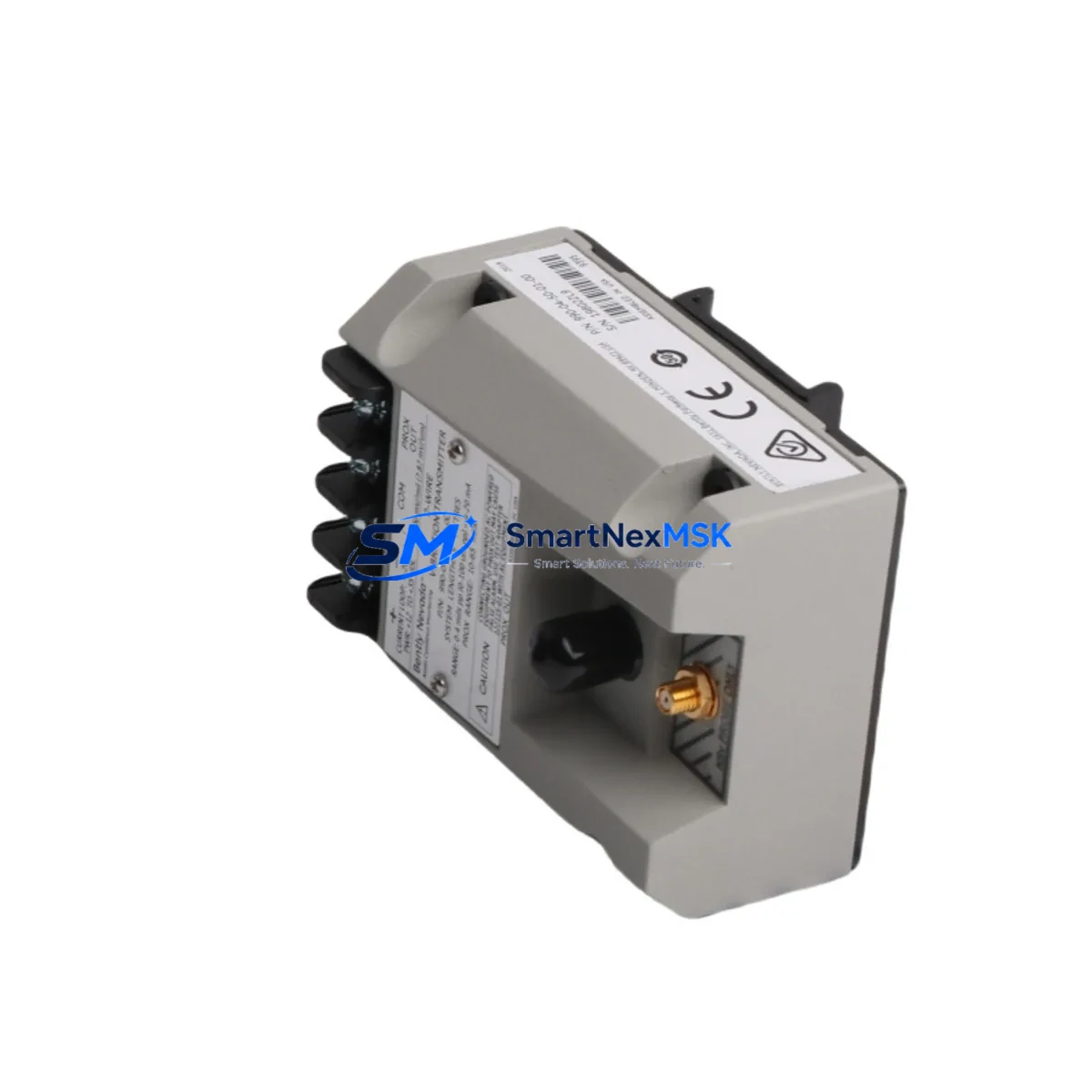

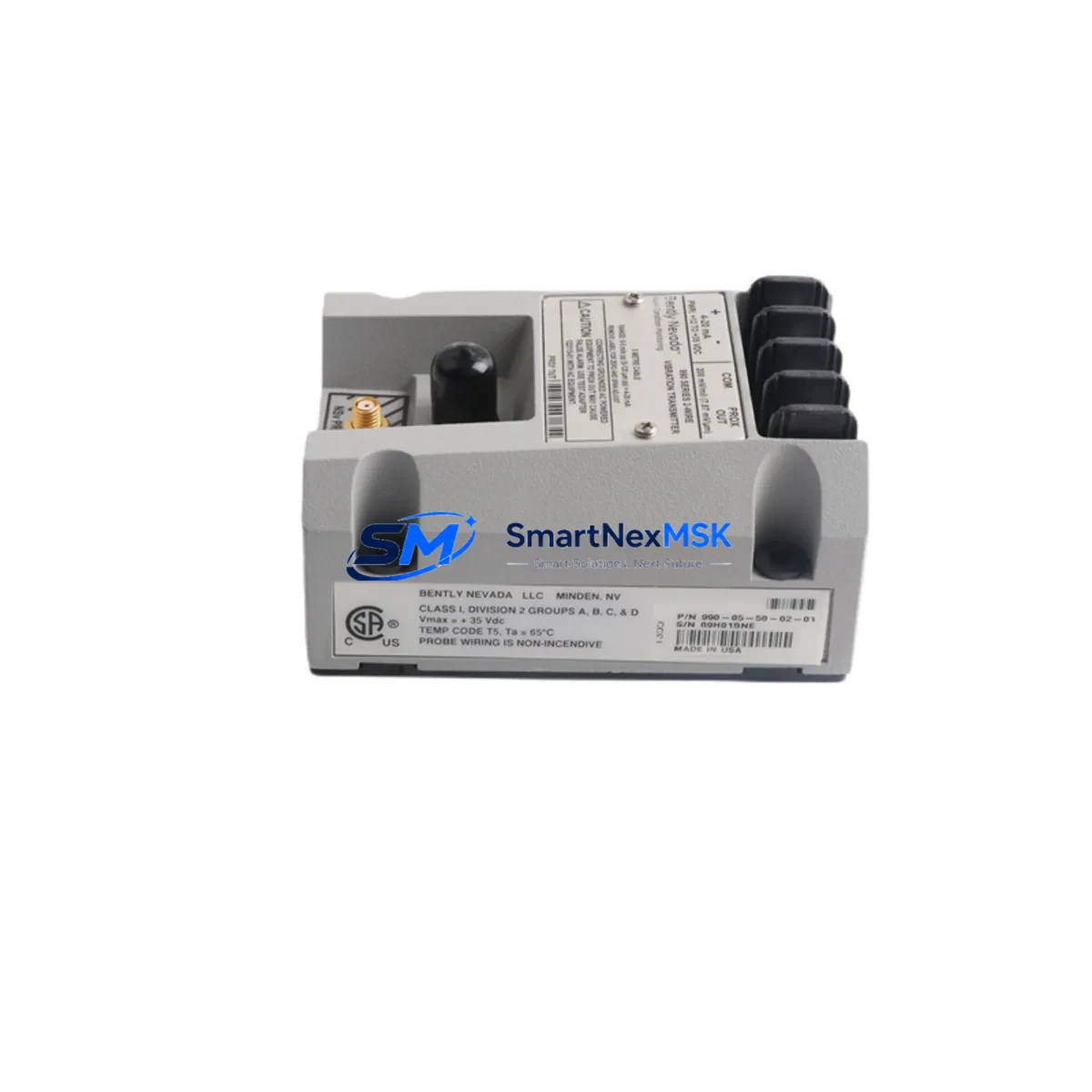

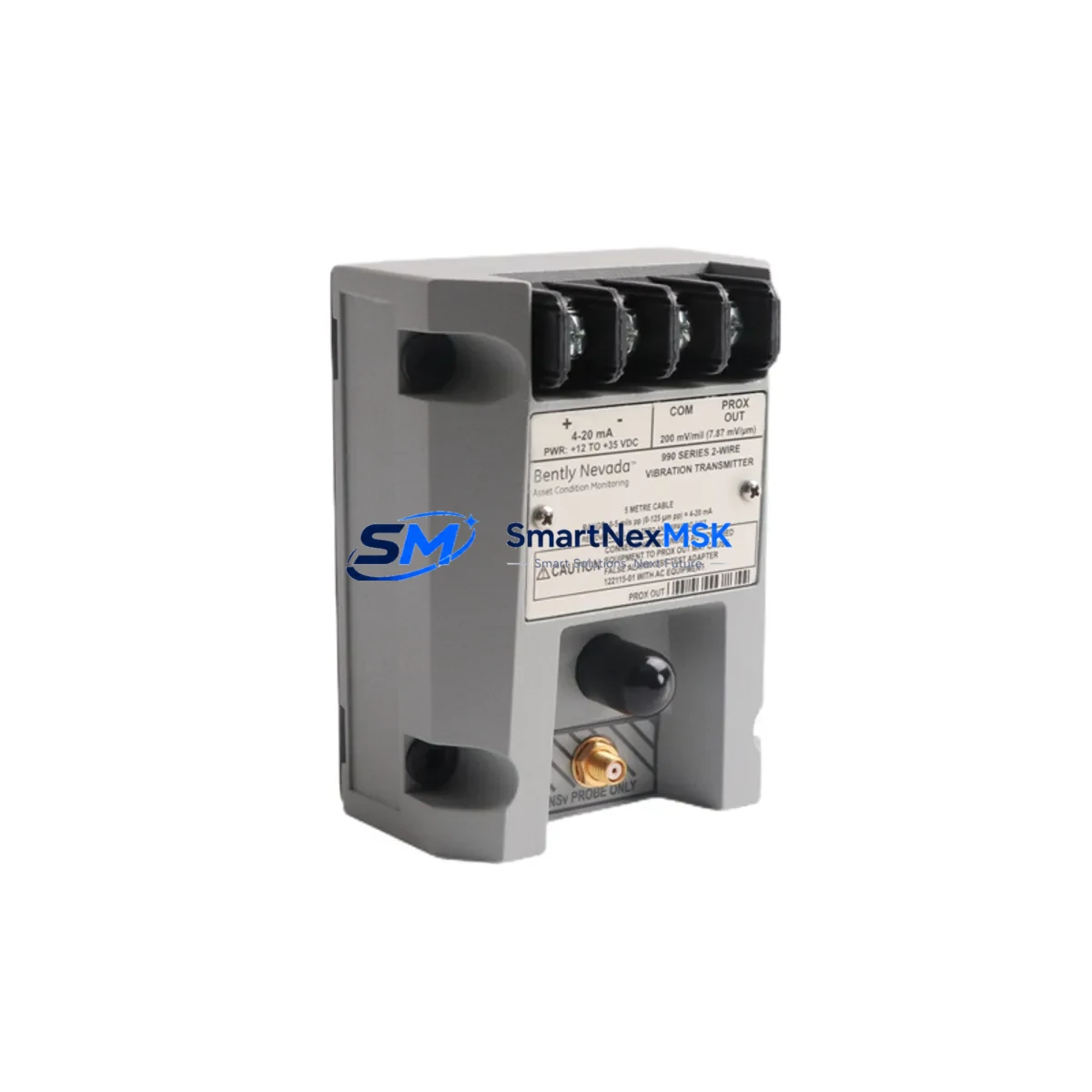

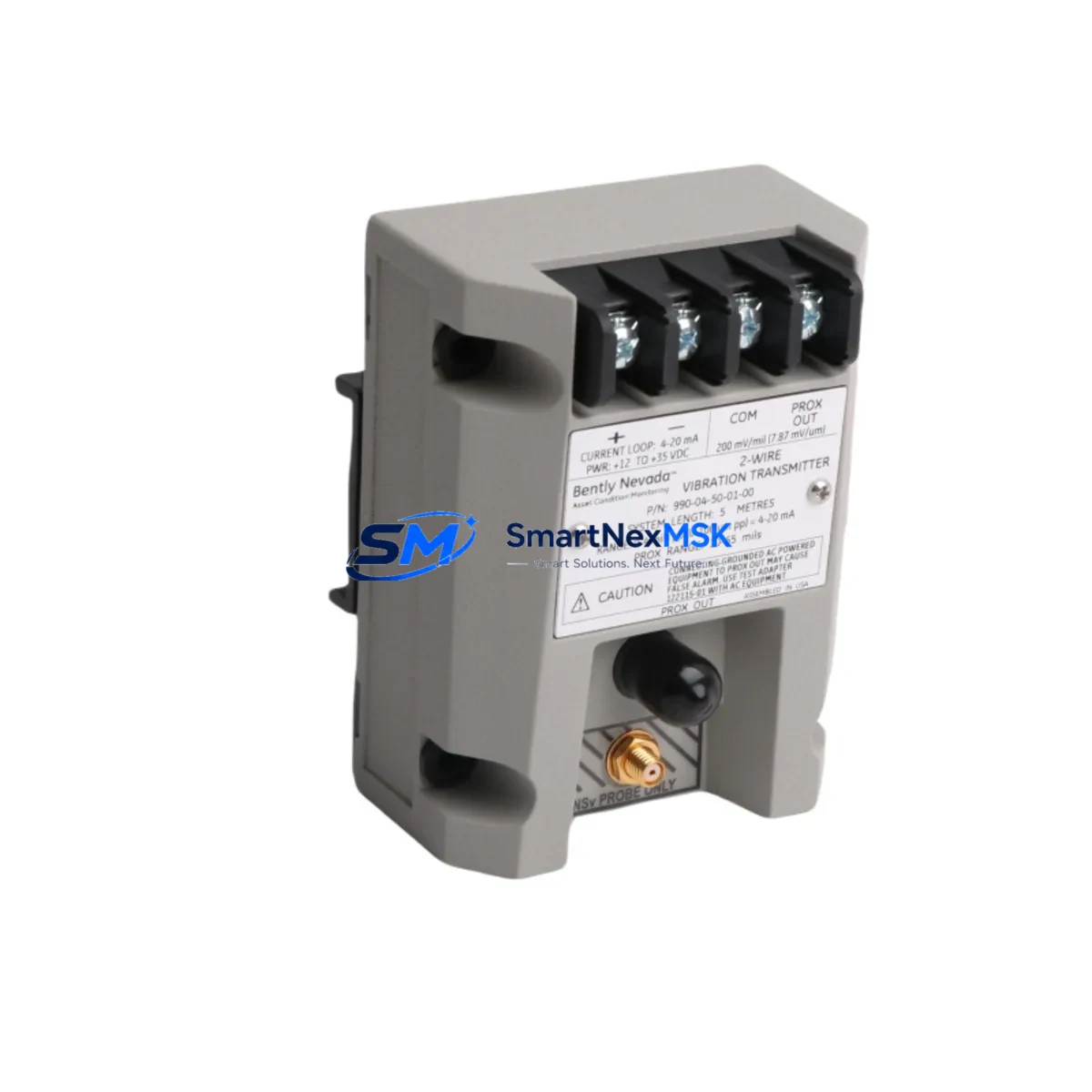

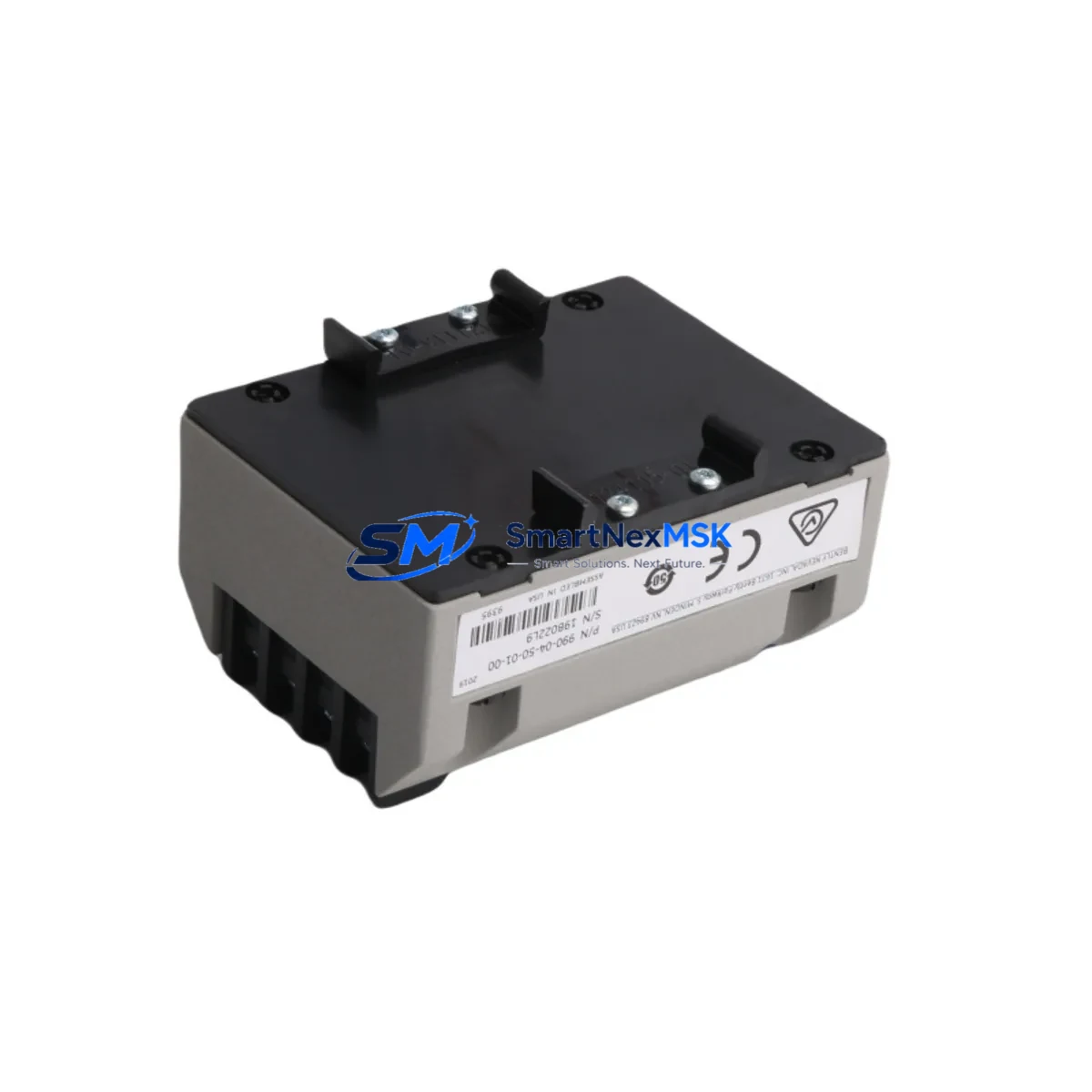

Bently Nevada 990-04-50-01-00 Safety-Enhanced Displacement Transmitter

Bently Nevada 990-04-50-01-00 Safety-Enhanced Displacement Transmitter: Reliable Control in Harsh Industrial Sites

The Bently Nevada 990-04-50-01-00 is a ruggedized 4–20 mA shaft displacement transmitter engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed as a core component of the Bently Nevada 990 Series and fully compatible with the 3300 XL 8mm Proximitor sensing system, this transmitter delivers precise, drift-free proximity measurements that are essential for protecting rotating machinery, safeguarding personnel, and maintaining uninterrupted production across high-risk industrial sites.

In petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, water treatment stations, and port logistics systems, shaft displacement monitoring is not optional — it is a fundamental layer of machine protection. The 990-04-50-01-00 is purpose-built to fulfill this role with the signal integrity, environmental resilience, and long-term stability that safety engineers and reliability teams depend on.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machine protection architecture, the 990-04-50-01-00 transmitter does not operate in isolation. It is one critical node in a layered safety and control strategy that spans the field instrument level, the signal conditioning level, and the supervisory control level.

At the field level, the 990-04-50-01-00 works in close coordination with the Bently Nevada 3300 XL 8mm Proximitor Sensor and its associated extension cables. The Proximitor converts the eddy-current gap signal into a calibrated voltage output, which the 990-04-50-01-00 then conditions into a stable 4–20 mA loop signal suitable for long-distance transmission to the control cabinet without signal degradation or ground loop interference.

Inside the control cabinet, the 4–20 mA signal is typically received by a Bently Nevada 3500 Series Machinery Protection System rack — for example, the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor — which performs real-time alarm and trip logic based on the displacement values. These monitors interface directly with the plant’s safety instrumented system (SIS) or distributed control system (DCS), ensuring that any shaft excursion beyond safe operating limits triggers an immediate protective response.

To maintain signal integrity across the entire loop, engineers typically install Bently Nevada I/O Module assemblies and dedicated terminal board assemblies within the 3500 rack, providing clean, isolated signal paths that resist common-mode noise from variable frequency drives (VFDs), high-current motor starters, and bus-bar switching transients. Surge protection devices and Bently Nevada field wiring junction boxes at the machine skid further protect the transmitter loop from lightning-induced surges and ground faults that are common in outdoor or semi-outdoor installations.

For power supply integrity — a critical factor in preventing nuisance trips and control interruptions — the 990-04-50-01-00 loop is typically powered through a dedicated 24 VDC redundant power supply module within the protection rack, often supplemented by an uninterruptible power supply (UPS) to ensure continuous monitoring during grid disturbances. In facilities running Emerson Ovation DCS or Honeywell Experion PKS platforms, the displacement data from the 990-04-50-01-00 is integrated into the plant historian and alarm management system, providing operators with real-time vibration trend data and enabling predictive maintenance decisions before a developing fault escalates to an unplanned shutdown.

In safety interlock circuits, the transmitter’s output is often wired in parallel to both the machinery protection system and a Triconex Safety Controller or equivalent SIL-rated logic solver, ensuring that the displacement measurement contributes to both the basic process control system (BPCS) and the safety instrumented function (SIF) without creating single-point-of-failure vulnerabilities in the protection architecture.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In compressor trains, centrifugal pumps, and turbine-driven process units, shaft displacement monitoring is a mandatory element of API 670-compliant machinery protection. The 990-04-50-01-00 provides the continuous radial displacement data required to detect bearing wear, rotor imbalance, and oil film instability before they progress to catastrophic failure — protecting both the asset and the surrounding process environment from fire, explosion, or toxic release risk.

Power Generation: Steam turbines, gas turbines, and large generator sets in power plants operate under extreme thermal and mechanical loads. The 990-04-50-01-00 monitors shaft position with the precision needed to detect rotor bow, thermal growth anomalies, and bearing degradation in real time, enabling operators to make informed load-shedding or maintenance decisions without forcing an unplanned outage.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drive systems, and slurry pumps in mining operations are subject to severe vibration, dust ingress, and electrical noise. The ruggedized design of the 990-04-50-01-00 — with its IP66-rated enclosure and high EMI immunity — ensures reliable signal output even in these extreme conditions, reducing the risk of false trips that can disrupt continuous production cycles.

Water and Wastewater Treatment: Large centrifugal pumps and blower units in water treatment facilities require continuous condition monitoring to prevent unplanned failures that could compromise public health infrastructure. The 990-04-50-01-00 provides the long-term signal stability needed for reliable alarm setpoint management in these critical utility applications.

Metallurgy and Steel Production: Rolling mills, continuous casting lines, and induction furnace drive systems generate intense electromagnetic interference and mechanical shock loads. The 990-04-50-01-00’s robust signal conditioning and surge-tolerant design maintain measurement accuracy in these environments, supporting safe and efficient operation of high-value production assets.

Safety and Quality FAQ

Q1: What warranty does the 990-04-50-01-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or repair at no additional cost within the warranty period.

Q2: How is each unit tested before shipment?
Every 990-04-50-01-00 unit undergoes a full functional verification test prior to dispatch, including signal output calibration check, loop integrity verification, and visual inspection of connectors and enclosure integrity. A test report is available upon request.

Q3: Is the 990-04-50-01-00 compatible with existing 3300 XL Proximitor installations?
Yes. The 990-04-50-01-00 is a direct-fit replacement for existing Bently Nevada 990 Series transmitters used with 3300 XL 8mm Proximitor sensors. No recalibration of the Proximitor system is required, and the 4–20 mA output is fully compatible with standard Bently Nevada 3500 Series monitor inputs and third-party DCS analog input cards.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the 990-04-50-01-00 and related 990 Series components to support planned maintenance schedules, emergency replacements, and capital project requirements. We provide sourcing support for both single-unit spare orders and bulk procurement for plant turnaround projects, with consistent lead times and documented traceability.
