Bently Nevada 990-04-XX-01-CN Spare for 990 Series Automation

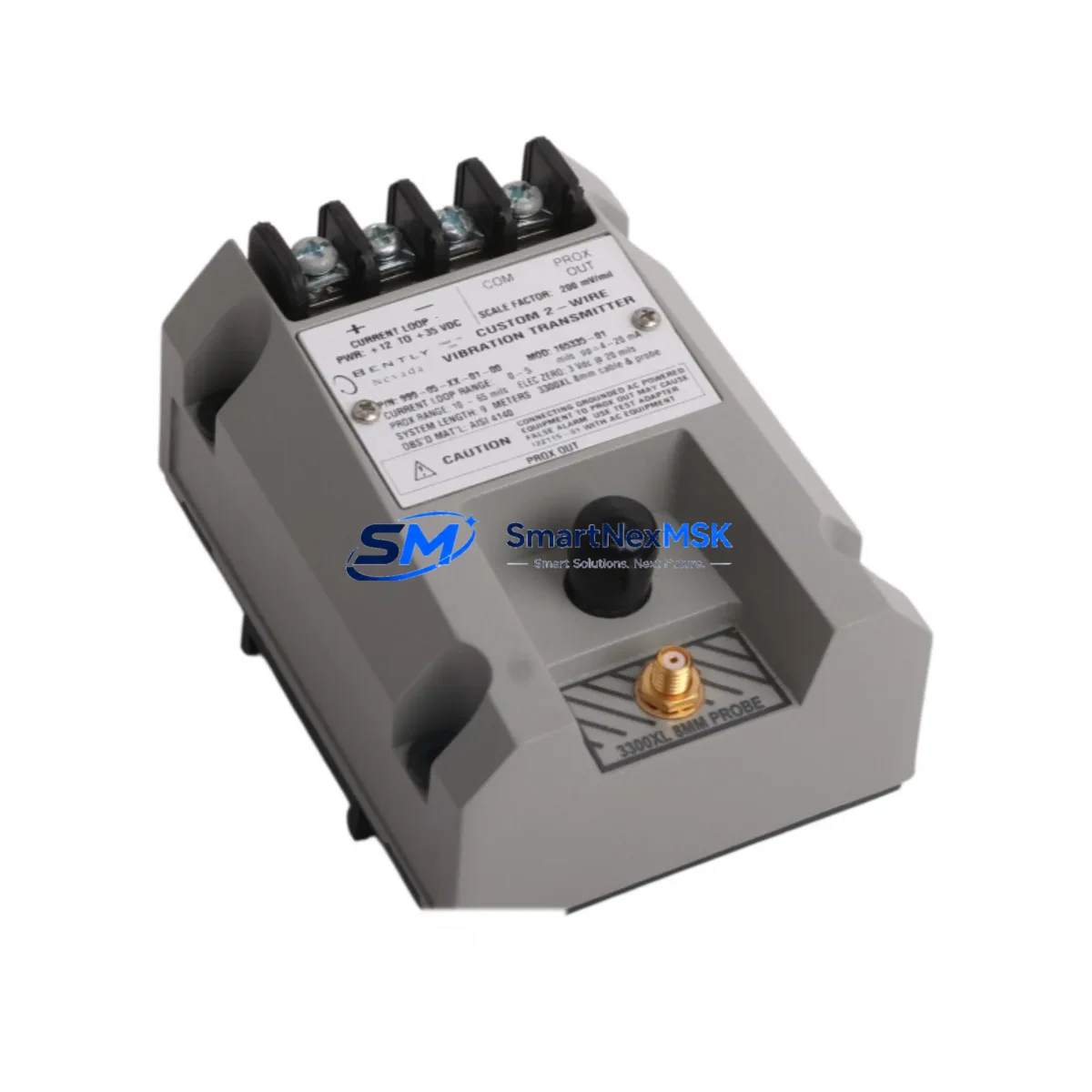

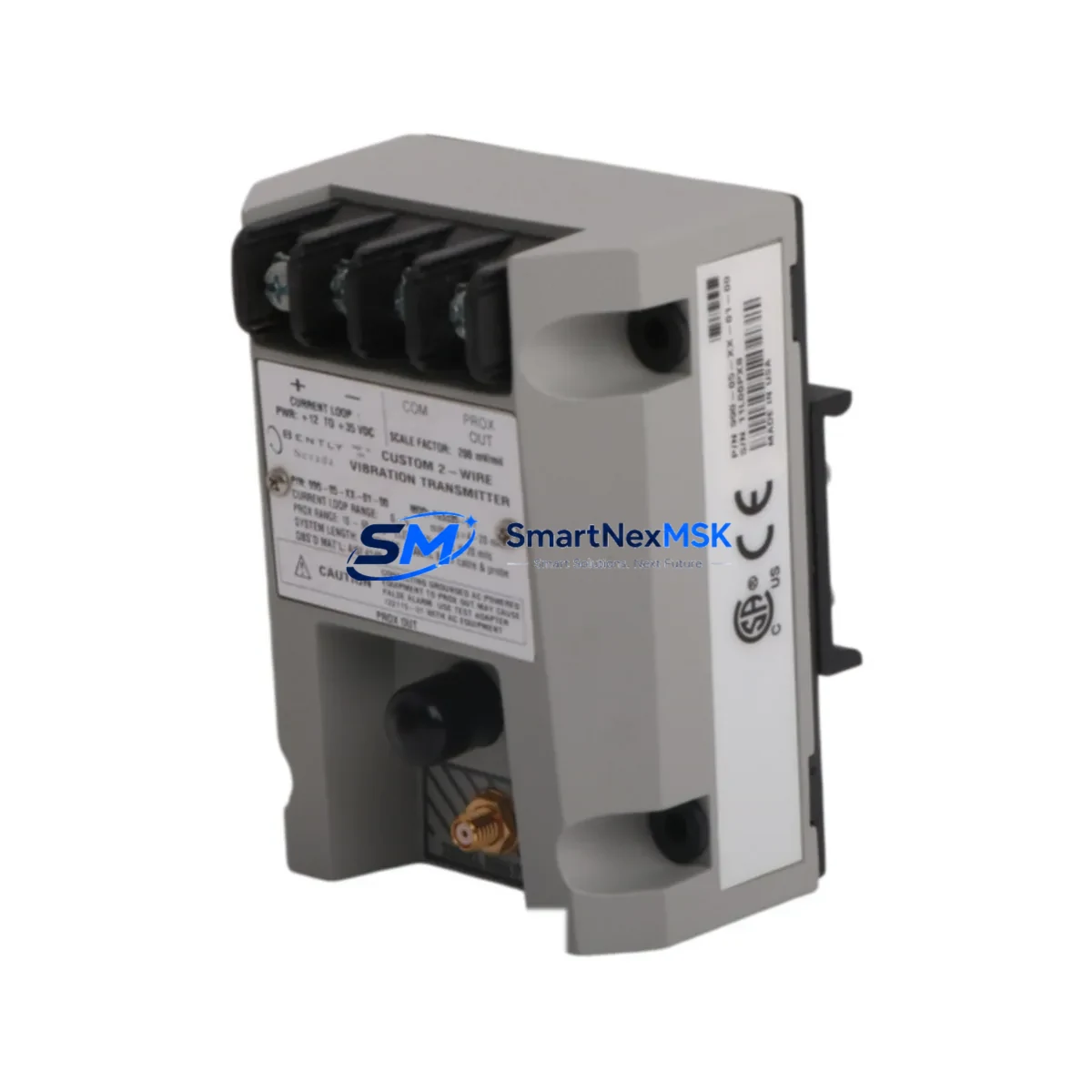

The Bently Nevada 990-04-XX-01-CN MOD:165335-01 is an original vibration transmitter designed for continuous machinery protection in industrial automation environments. As a critical spare part within the Bently Nevada 990 Series ecosystem, this transmitter delivers reliable 4-20mA analog output for shaft vibration monitoring on rotating equipment including turbines, compressors, pumps, and motors. For maintenance engineers managing aging DCS or PLC-based control architectures, maintaining a verified stock of this transmitter is essential to minimizing unplanned downtime and protecting high-value rotating assets.
This unit is sourced as an original spare, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with Bently Nevada 3500 Series rack systems and integrates directly into existing vibration monitoring loops without requiring signal reconfiguration. Fast dispatch and long-term supply availability make it a dependable choice for both emergency replacement and planned maintenance inventory programs.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 990-04-XX-01-CN MOD:165335-01 |
| Brand | Bently Nevada |
| Series | 990 Series |
| Product Type | Vibration Transmitter |
| Output Signal | 4-20mA Analog |
| Rack Compatibility | Bently Nevada 3500 Series Monitoring Rack |
| Measurement Type | Shaft Vibration (Proximity Probe Input) |
| Installation | DIN Rail / Panel Mount, field-replaceable |
| Application Environment | Industrial plant floor, turbine hall, compressor station |
| Origin | USA |
| Weight | 460g |
| Condition | Original Spare, Tested Before Shipment |
| Warranty | 12 Months |
| Maintenance Recommendation | Inspect signal cable shielding and connector integrity at each replacement; verify 4-20mA loop calibration post-installation |
Maintenance Planning for Continuous Operation
When replacing the 990-04-XX-01-CN MOD:165335-01 in the field, a thorough inspection of the surrounding measurement loop is strongly recommended to prevent repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3300 XL 8mm proximity probe and its associated extension cable — probe tip wear or cable insulation breakdown are common root causes of transmitter overload and premature failure. The proximitor/driver module (typically a 3300 Series proximitor) should also be checked for output voltage stability before the new transmitter is commissioned.
Within the 3500 rack, inspect the 3500/20 rack interface module and the 3500/22M transient data interface for any fault indicators. If the vibration channel was alarming prior to failure, the 3500/42M four-channel vibration monitor card should be tested for threshold configuration integrity. Power supply redundancy within the rack — typically provided by a 3500/15 power supply module — should be confirmed operational, as power fluctuations are a leading cause of transmitter signal drift.
On the control system side, verify that the 4-20mA input channel on the DCS I/O card (such as a Honeywell C300 or Emerson DeltaV AI card) is reading correctly after replacement. Check the field junction box terminal blocks and cable shielding continuity. If the plant uses a signal isolator or barrier between the transmitter and the DCS input, inspect the isolator for output accuracy — a degraded signal isolator can mask a correctly functioning transmitter. Fuse integrity on the 24VDC loop power circuit should also be confirmed. For sites using a Bently Nevada System 1 software platform, recalibrate the channel and verify alarm setpoints are correctly restored after the swap.
Procurement engineers building a spare parts inventory for rotating equipment protection should consider stocking the 990-04-XX-01-CN alongside complementary items such as proximity probe tip assemblies, extension cable sets, and a spare proximitor module to enable complete loop replacement during a single maintenance window — reducing total downtime from hours to minutes.
Site Replacement Workflow
The 990-04-XX-01-CN MOD:165335-01 is a direct replacement for legacy Bently Nevada 990 Series transmitters that may have reached end-of-service life or been discontinued in earlier production runs. The MOD:165335-01 revision designation confirms hardware compatibility with standard 990 Series wiring harnesses and rack connectors, allowing field engineers to perform a like-for-like swap without rewiring or reconfiguring the monitoring rack.
Step 1 — Isolation: De-energize the 24VDC loop power to the transmitter channel at the field junction box. Confirm zero voltage with a calibrated multimeter before disconnecting the signal cable.
Step 2 — Removal: Disconnect the transmitter from the proximity probe extension cable and remove from the mounting bracket. Label all connectors before removal to prevent cross-connection errors.
Step 3 — Installation: Mount the replacement 990-04-XX-01-CN unit, reconnect the probe cable and signal wiring per the original loop drawing. Verify shield grounding at one end only to prevent ground loops.
Step 4 — Commissioning: Re-energize the loop and verify the 4-20mA output at the DCS input card. Confirm the reading matches the expected gap voltage from the proximitor. Check alarm and trip setpoints in the 3500 rack monitor card and System 1 software.
Step 5 — Documentation: Record the replacement in the plant CMMS with the new unit serial number, installation date, and post-commissioning readings. Update the spare parts inventory accordingly.
This workflow is applicable to turbine protection panels, compressor control cabinets, and pump monitoring skids where Bently Nevada 990 Series transmitters are deployed as part of an API 670-compliant machinery protection system.
Spare Parts Support FAQ
Q1: Is the 990-04-XX-01-CN MOD:165335-01 compatible with my existing 3500 Series rack?
Yes. The 990-04-XX-01-CN is designed for use within the Bently Nevada 3500 Series monitoring architecture. The MOD:165335-01 hardware revision maintains full connector and signal compatibility with standard 3500 rack wiring. Always verify the rack slot configuration and channel assignment against your loop drawing before installation.
Q2: What testing is performed before shipment?
Each unit undergoes functional verification of the 4-20mA output signal and connector integrity prior to dispatch. Units are shipped with protective packaging to prevent transit damage. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
Q3: How should I manage spare parts inventory for long-term system support?
For plants operating Bently Nevada 990 Series transmitters on critical rotating equipment, we recommend maintaining a minimum of one spare transmitter per monitored machine train, plus a complete proximity probe and extension cable set. For facilities with 10 or more monitored channels, a dedicated spare rack module (3500/42M or equivalent) should also be held on-site to support rapid fault isolation.
Q4: What is the lead time and long-term supply availability?
Stock units are available for fast dispatch, typically within 1-3 business days. Long-term supply is supported through established sourcing channels for Bently Nevada 990 Series components. Contact our team for volume pricing, consignment stock arrangements, or scheduled delivery programs tailored to your plant maintenance calendar.
