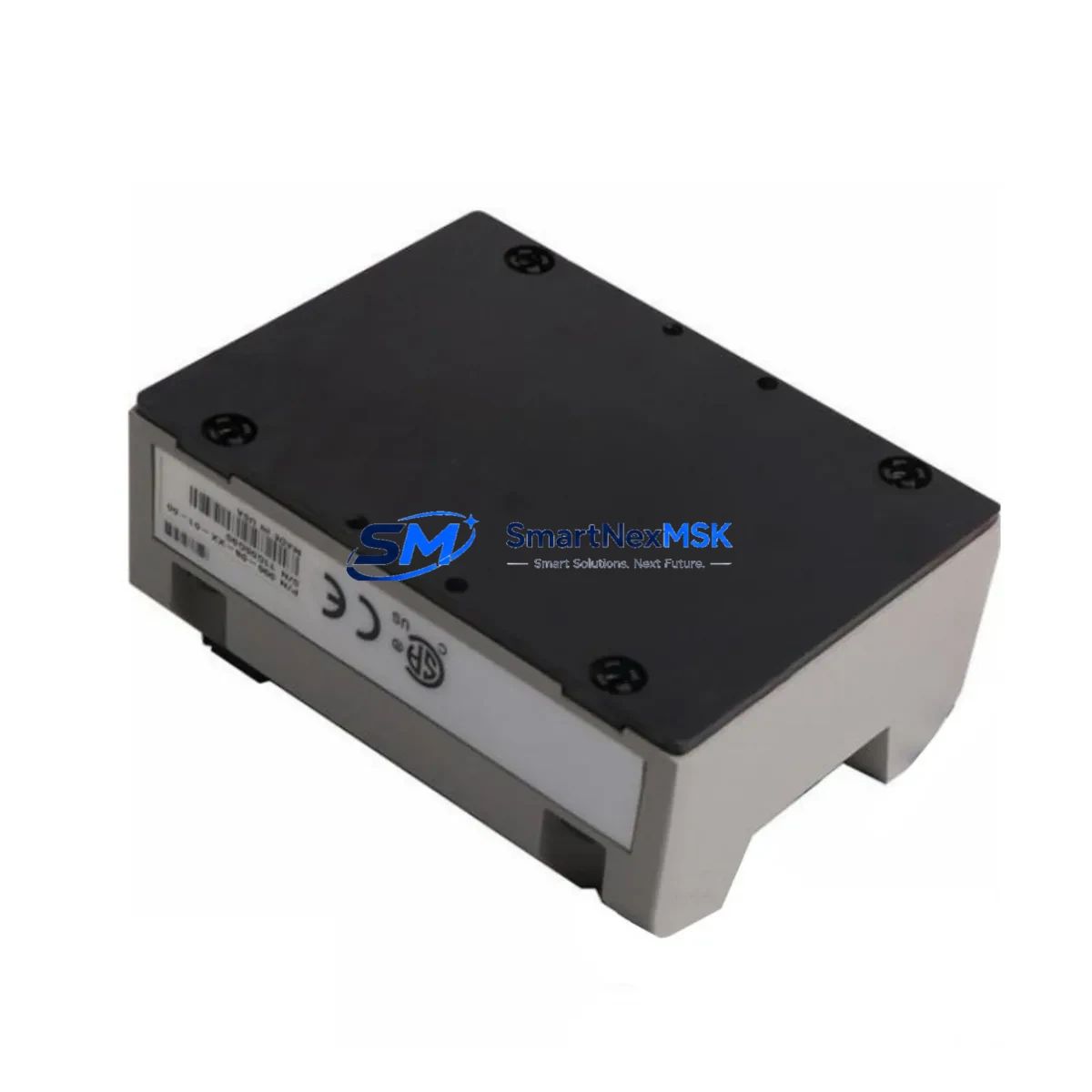

Bently Nevada 990-08-XX-01-00 Retrofit-Ready Vibration Transmitter

Bently Nevada 990-08-XX-01-00 Retrofit-Ready Vibration Transmitter for 990 Series Control Systems

The Bently Nevada 990-08-XX-01-00 is a precision vibration transmitter engineered for seamless integration into existing 990 Series machinery protection and condition monitoring systems. As legacy Bently Nevada platforms approach end-of-life and OEM support windows close, plant engineers and reliability teams increasingly rely on verified retrofit-ready replacements to sustain continuous operation without committing to full system overhauls. This unit is stocked, tested, and ready to ship — purpose-built for drop-in replacement in rotating machinery protection applications including turbines, compressors, pumps, and motors.

Whether you are replacing a failed module in a critical production line or executing a planned upgrade across a multi-rack 990 Series cabinet, the 990-08-XX-01-00 delivers the electrical and mechanical compatibility required to restore system integrity with minimal engineering rework. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty covering manufacturing defects and performance deviations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 990-08-XX-01-00 into an operational plant environment requires a structured approach that accounts for the full signal chain — from the proximity probe and extension cable through the transmitter, rack backplane, and ultimately to the DCS or safety PLC receiving the 4–20 mA process variable. Before initiating the swap, engineers should document the existing gap voltage reading (typically –10 VDC for a standard 8 mm probe at mid-gap), confirm the transducer sensitivity (7.87 mV/µm or 200 mV/mil for standard Bently Nevada probes), and verify that the replacement transmitter’s OK relay output is wired correctly to the machinery protection logic in the host system.

In multi-channel 990 Series racks, the 990-04-XX-01-00 (4-channel version) and 990-05-XX-01-00 (thrust position variant) are commonly installed alongside the 990-08-XX-01-00 in the same cabinet. When planning a rack-level upgrade, it is advisable to audit all installed modules simultaneously to avoid repeat outages. The 3500/42M Proximitor/Seismic Monitor and 3500/22M Transient Data Interface are frequently found in adjacent racks within the same machinery protection system and may require firmware or configuration updates when transmitter modules are replaced.

For plants migrating from legacy 990 Series racks to the newer 3500 Series platform, the 990-08-XX-01-00 can serve as an interim solution — maintaining existing probe wiring and analog output loops while the 3500 rack infrastructure is staged and commissioned in parallel. This phased approach allows engineering teams to validate new rack addressing, I/O mapping, and HMI tag assignments without interrupting live machinery protection coverage. The 3500/20 Rack Interface Module and 3500/15 Power Supply are typically the first components staged in such migrations, followed by channel-by-channel cutover of individual transmitter loops.

Terminal wiring compatibility is a critical checkpoint. The 990-08-XX-01-00 uses a standard Bently Nevada terminal block layout; however, plants that have previously modified field wiring to accommodate third-party transmitters should verify conductor color coding, shield grounding practice, and terminal torque specifications before energizing the replacement unit. The 330130 Extension Cable and 330180 Proximity Probe are the most common field components paired with this transmitter and should be inspected for insulation integrity and connector condition during the same maintenance window.

Where the 990 Series rack communicates upstream via a Modbus RTU or FOUNDATION Fieldbus gateway module, the analog output from the 990-08-XX-01-00 feeds into a dedicated analog input card on the host DCS — commonly an Emerson DeltaV AI Card or equivalent Honeywell Experion analog input module. Confirm that the DCS channel scaling (0–25 mm/s or 0–50 µm pk-pk, depending on the application) matches the transmitter’s configured output range before closing out the work order.

Downtime Control During System Migration

Minimizing unplanned downtime during a 990-08-XX-01-00 replacement requires pre-staging the replacement unit, pre-configuring any adjustable parameters (sensitivity, OK relay threshold, output range), and coordinating the physical swap during a scheduled maintenance window aligned with the plant’s machinery protection bypass procedure. Most sites require a formal bypass authorization before any vibration monitor channel can be taken out of service — this typically involves notifying the control room, enabling the bypass relay on the 3500/32M or equivalent relay output module, and confirming that the machinery protection system has acknowledged the bypass state.

The physical swap itself — disconnecting the transducer cable, removing the transmitter from the rack, inserting the replacement, and reconnecting field wiring — typically takes under 30 minutes for a trained technician. The critical path is the post-installation verification: confirming gap voltage within the OK window, verifying the 4–20 mA output against a known vibration reference, and checking that the OK relay has re-energized before releasing the bypass. Where the original program logic in the host PLC or DCS references the transmitter’s OK status as a permissive for start-up sequences or shutdown interlocks, the control engineer should confirm that all permissive logic has been satisfied before returning the machine to service. HMI faceplate displays tied to the vibration tag should be verified for correct engineering unit display and alarm setpoint alignment before the work order is closed.

Retrofit Support FAQ

Q1: Is the 990-08-XX-01-00 a direct drop-in replacement for the original Bently Nevada module?
Yes. This unit is designed as a form-fit-function replacement for the original 990-08-XX-01-00. Terminal wiring, rack slot dimensions, and analog output characteristics are compatible with the original specification. Minor sensitivity trimming may be required after installation to match the existing gap voltage and output calibration of the replaced unit.

Q2: What commissioning steps are required after installation?
After physical installation, verify the gap voltage reading at the transducer (typically –10 VDC ±1 VDC for standard 8 mm probes), confirm the 4–20 mA output corresponds to the expected vibration level, check that the OK relay has energized, and validate alarm and danger setpoints against the machinery protection setpoint schedule. Document all readings in the site maintenance management system before releasing the bypass.

Q3: Can this transmitter be used with non-Bently Nevada proximity probes?
The 990-08-XX-01-00 is optimized for use with Bently Nevada 3300 XL and 330xxx series proximity probes and extension cables. Use with third-party probes is possible if the probe sensitivity (mV/mil or mV/µm) and driver output impedance are compatible, but full performance verification is recommended. Contact our technical team for application-specific guidance.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and deviations from published performance specifications. It does not cover damage resulting from incorrect installation, overvoltage, reverse polarity, or physical mishandling. Warranty claims are processed with a return authorization; replacement or repair is completed within 10 business days of receipt.
