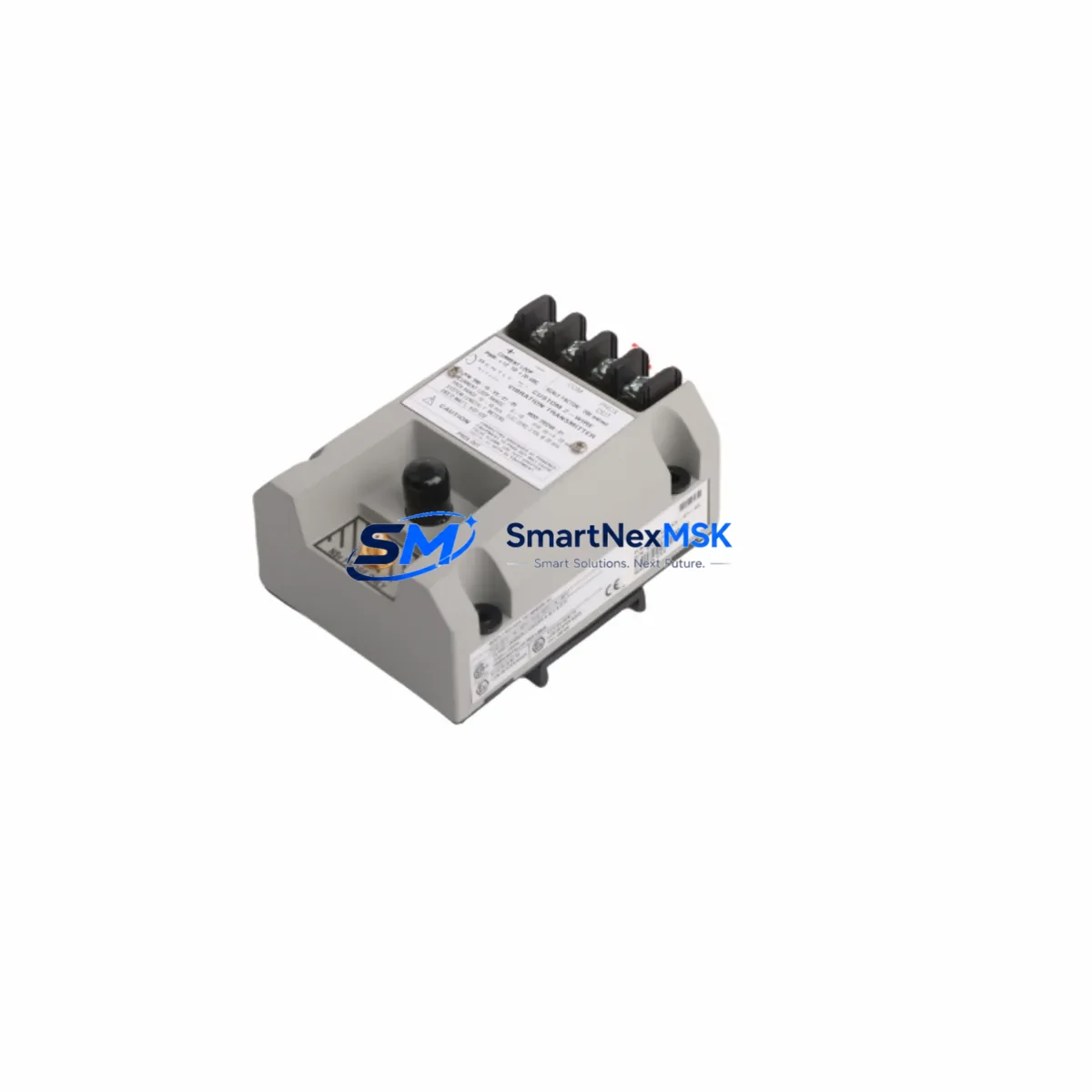

Bently Nevada 990-10-XX-01-05 285269-01 Safety Vibration Transmitter

Bently Nevada 990-10-XX-01-05 285269-01 Safety-Enhanced Vibration Transmitter for Harsh Industrial Sites

The Bently Nevada 990-10-XX-01-05 (Part No. 285269-01) is a ruggedized, safety-grade vibration transmitter from the industry-proven Bently Nevada 990 Series. Engineered for continuous operation in the most demanding industrial environments, this transmitter delivers a stable, interference-resistant 4–20 mA analog output that integrates directly into safety instrumented systems (SIS), distributed control systems (DCS), and programmable logic controller (PLC) architectures. It is purpose-built to protect rotating machinery — turbines, compressors, pumps, and motors — from catastrophic failure caused by undetected vibration anomalies.

In high-load, high-interference production facilities such as petrochemical plants, power generation stations, metallurgical smelters, and offshore platforms, vibration signal integrity is a non-negotiable safety requirement. The 990-10-XX-01-05 285269-01 addresses this by providing a conditioned, loop-powered output that remains stable under electromagnetic interference (EMI), ground loop noise, and supply voltage fluctuations. Its robust signal chain eliminates the risk of signal drift that can trigger false shutdowns or, more critically, mask genuine machinery faults before they escalate to mechanical failure or personnel injury.

This transmitter is designed to interface seamlessly with Bently Nevada 3500 Series rack-based monitoring systems, including the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor/Seismic Monitor, providing end-to-end vibration monitoring continuity within a single-vendor safety architecture. When paired with Bently Nevada 330180 proximity probes and 330130 extension cables, the complete measurement chain maintains calibration traceability and minimizes the risk of signal chain errors that could compromise machinery protection decisions.

Within the control cabinet, the 990-10-XX-01-05 285269-01 is typically installed alongside Bently Nevada 3500/15 Power Supply modules to ensure clean, regulated DC power delivery. Voltage transients and power surges — common in heavy industrial switchgear environments — are a leading cause of transmitter malfunction and spurious trip signals. The combination of a dedicated, filtered power supply and the 990 Series transmitter’s internal surge protection significantly reduces the probability of nuisance trips in critical interlock loops. For installations requiring additional surge protection at field terminal boards, supplementary transient voltage suppression (TVS) barrier modules are recommended as part of a layered cabinet protection strategy.

In safety instrumented function (SIF) applications, the transmitter’s 4–20 mA output is routed through safety-rated I/O modules on the DCS or SIS platform — such as those found in Emerson DeltaV SIS or Honeywell Safety Manager architectures — where it feeds vibration high-high (VHVH) trip logic. The reliability of this signal path is critical: any interruption, drift, or noise injection between the transmitter and the logic solver can result in either a dangerous undetected failure (spurious non-trip) or an unwanted process shutdown. The 990-10-XX-01-05 285269-01’s proven signal stability directly supports the integrity of these safety functions.

For facilities operating under IEC 61511 or ISA-84 safety lifecycle requirements, maintaining a qualified spare inventory of the 990-10-XX-01-05 285269-01 is a recognized best practice. Mean time to repair (MTTR) targets for SIS-related instrumentation are typically measured in hours, not days. Having verified, tested spare transmitters on-site — rather than relying on spot-market procurement during an unplanned outage — is a direct operational risk mitigation measure. Our inventory is pre-tested, serialized, and shipped with full documentation to support your site’s spare parts management program.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture extends well beyond the transmitter itself. In a typical heavy industrial control cabinet housing the 990-10-XX-01-05 285269-01, the vibration signal is one of several critical inputs that must be protected from disruption. The Bently Nevada 3500/15 Power Supply provides the regulated 24 VDC backbone for the monitoring rack, while 3500/20 Rack Interface Modules manage communication between the rack and the plant DCS via Modbus or OPC-DA/UA protocols — ensuring that vibration data reaches the control room without latency or packet loss.

Field wiring from the transmitter to the rack passes through intrinsically safe Zener barriers or galvanic isolators in hazardous area installations, preventing energy ingress into Zone 1 or Zone 2 classified areas. At the DCS marshalling cabinet, signal conditioner modules provide additional galvanic isolation and filtering before the 4–20 mA signal reaches the analog input cards. For installations where the transmitter feeds a safety PLC — such as a Siemens S7-300F or Rockwell ControlLogix L7xS — the signal path integrity is validated as part of the SIL verification process.

Complementary protection components in the same cabinet ecosystem include Bently Nevada 3500/22M Transient Data Interface modules for waveform capture during machinery events, 3500/32 4-Channel Relay modules for hardwired trip output to the process ESD system, and 3500/92 Communication Gateway modules for integration with plant asset management systems. Together, these components form a closed-loop machinery safety architecture where the 990-10-XX-01-05 285269-01 serves as the primary field sensing element.

Critical Industrial Safety Applications

The 990-10-XX-01-05 285269-01 is deployed across a wide range of critical industrial sectors where rotating machinery failure carries severe safety and financial consequences:

Petrochemical & Refining: Installed on centrifugal compressors, reactor feed pumps, and cooling tower fans where continuous vibration monitoring is mandated by API 670 machinery protection standards. Undetected bearing wear or rotor imbalance in these applications can result in hydrocarbon release, fire, or explosion.

Power Generation: Used on steam turbine generator sets and boiler feed pumps in thermal power plants, where a single unplanned trip can cost tens of thousands of dollars per hour in lost generation capacity. The transmitter’s stable 4–20 mA output feeds turbine supervisory instrumentation (TSI) systems that provide the first line of defense against catastrophic rotor failure.

Mining & Mineral Processing: Applied to SAG mills, ball mills, conveyor drive motors, and slurry pumps operating in high-dust, high-vibration environments. The IP66-rated enclosure and wide operating temperature range make the 990 Series transmitter suitable for open-pit and underground mining installations.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower units in municipal water infrastructure, where unplanned downtime directly impacts public health and regulatory compliance.

Metallurgy & Steel: Deployed on rolling mill drives, continuous casting machine motors, and blast furnace blowers, where the combination of high ambient temperature, heavy electromagnetic interference from arc furnaces, and continuous 24/7 operation demands the highest level of transmitter reliability.

Port & Material Handling: Installed on ship-to-shore crane drives and bulk material conveyor systems, where vibration anomalies in drive motors can cause load drops or structural damage to handling equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 990-10-XX-01-05 285269-01?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the transmitter fails to meet its specified 4–20 mA output accuracy or exhibits signal instability within the warranty period, we will provide a replacement unit at no charge. Warranty claims are processed with priority to minimize your site’s exposure to unmonitored machinery operation.

Q2: What pre-shipment testing is performed on each unit?
Every 990-10-XX-01-05 285269-01 unit undergoes full functional verification prior to dispatch, including loop current output accuracy check across the 4–20 mA range, supply voltage tolerance testing, and visual inspection for physical integrity. Units are shipped with a test record and are serialized for traceability. This process ensures that the transmitter is field-ready upon arrival and eliminates the risk of installing a defective unit in a critical safety loop.

Q3: Is this transmitter compatible with my existing Bently Nevada 3500 Series monitoring rack?
Yes. The 990-10-XX-01-05 285269-01 is designed to interface directly with Bently Nevada 3500 Series monitor modules that accept 4–20 mA seismic inputs, including the 3500/42M and 3500/40M. It is also compatible with any DCS or SIS analog input card that accepts a standard 2-wire 4–20 mA loop signal. If you are integrating into a non-Bently Nevada system, please confirm the input impedance and loop supply voltage specifications with your I/O card datasheet.

Q4: Can you guarantee long-term supply availability for this part number?
We maintain dedicated stock of the 990-10-XX-01-05 285269-01 (Part No. 285269-01) to support both planned maintenance programs and emergency replacement requirements. For customers with critical spare parts programs, we offer reserved stock arrangements and advance procurement support. Our sourcing network ensures continuity of supply even for parts that have been discontinued or have extended lead times from the OEM, providing your facility with a reliable long-term replacement source.
