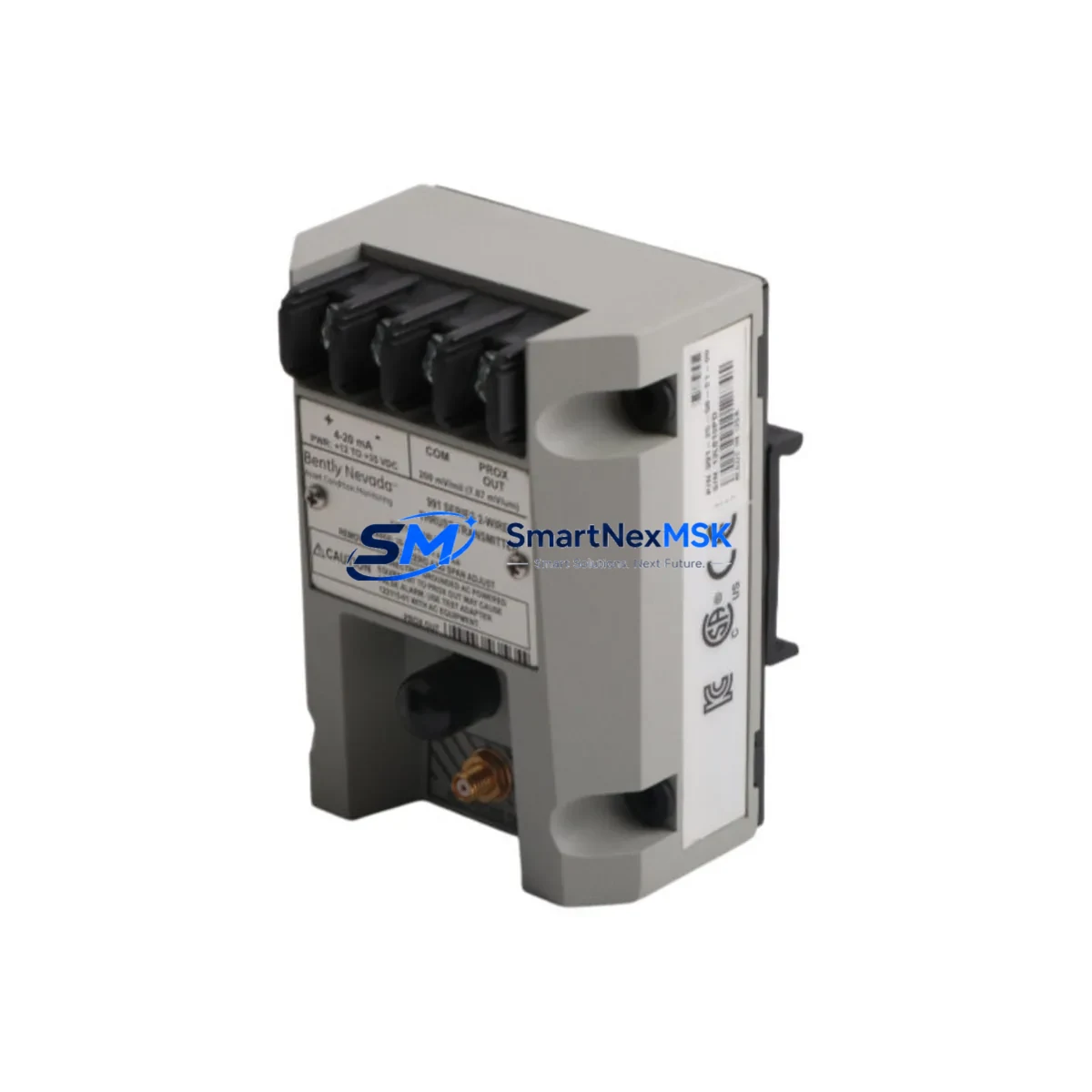

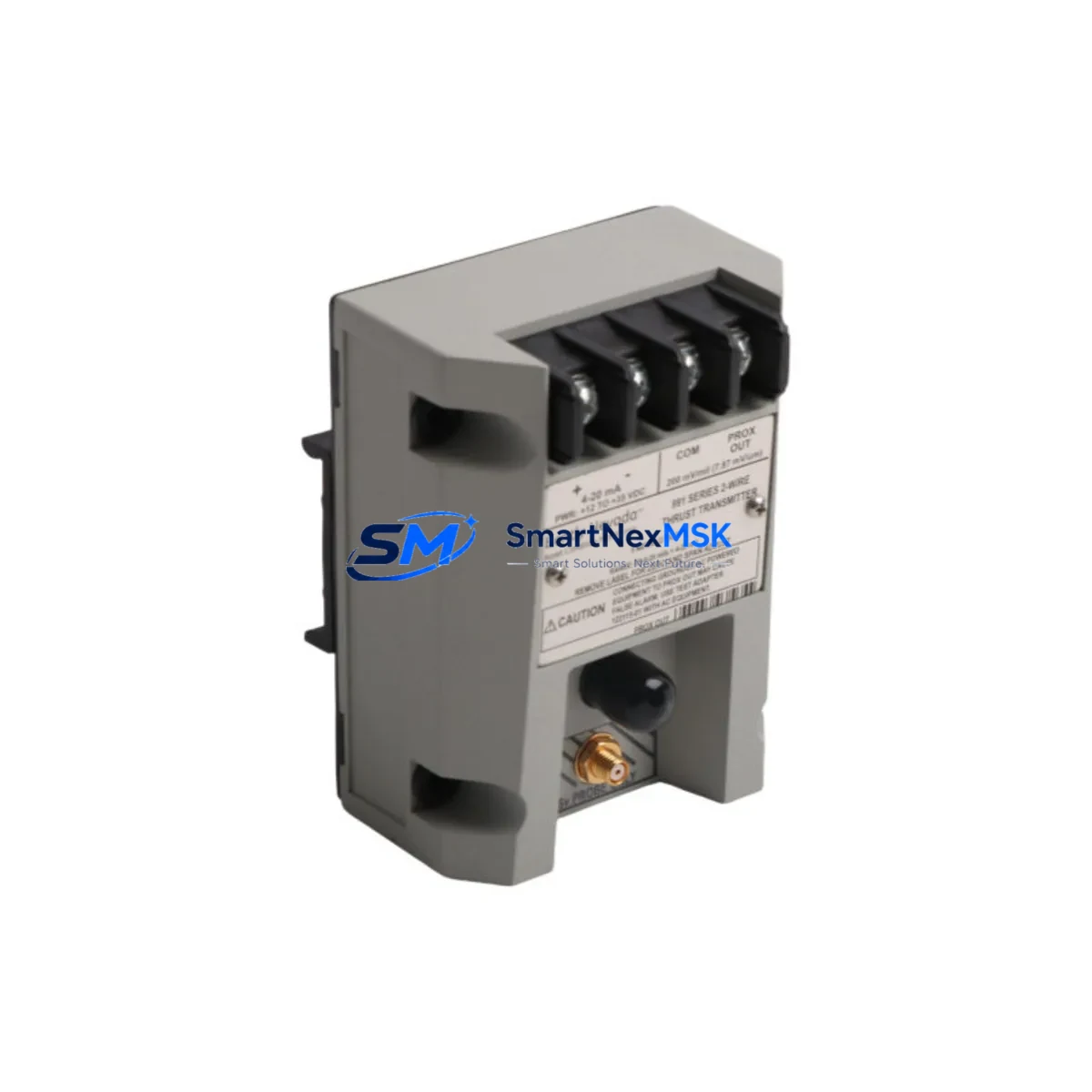

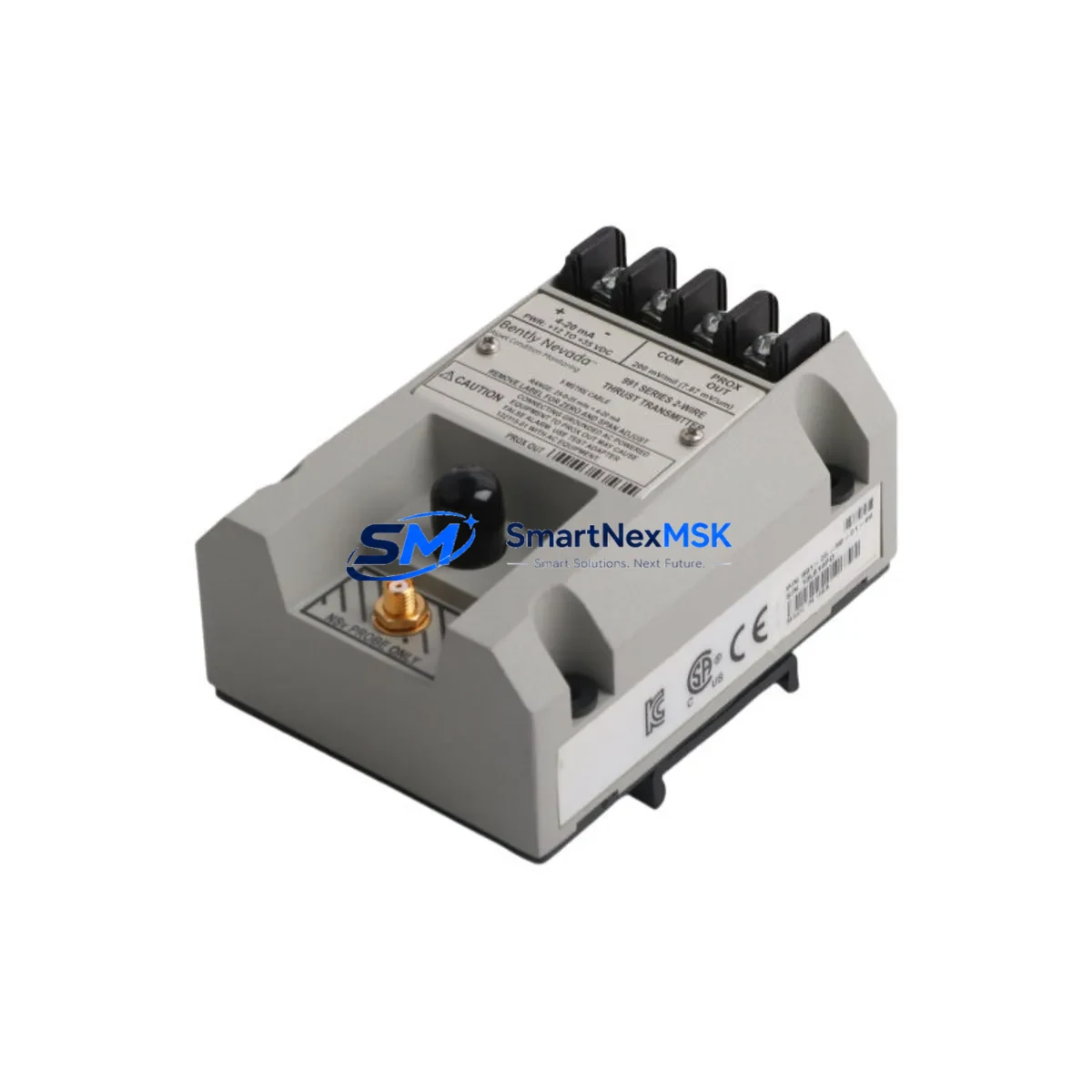

Bently Nevada 991-25-50-01-00 Safety Thrust Transmitter

Bently Nevada 991-25-50-01-00 Safety Thrust Transmitter: Precision Control for Harsh Industrial Sites

The Bently Nevada 991-25-50-01-00 is a ruggedized proximity-based thrust transmitter engineered for continuous, safety-critical operation in the most demanding industrial environments. As part of the renowned Bently Nevada 3500 Series machinery protection platform, this module delivers real-time axial displacement monitoring with the signal integrity and environmental resilience required for petrochemical plants, power generation facilities, mining operations, water treatment infrastructure, metallurgical processing lines, and port automation systems.

In high-load, high-interference production environments — where control interruptions, signal drift, power fluctuations, and module mis-operation can trigger cascading failures — the 991-25-50-01-00 provides a stable, calibrated output that feeds directly into protective relay logic and safety interlock circuits. Its eddy-current sensing principle eliminates mechanical contact, ensuring zero wear-induced degradation over extended continuous-duty cycles. The module is designed to maintain measurement accuracy even under severe electromagnetic interference, vibration, and thermal cycling, making it a cornerstone component in critical machinery protection cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 991-25-50-01-00 thrust transmitter operates as part of a layered defense architecture. The transmitter pairs directly with the Bently Nevada 3500/40M Proximitor Monitor, which processes the raw proximity signal and triggers alarm or trip outputs when axial displacement exceeds configured thresholds. Upstream, a Bently Nevada 3500/15 Power Supply Module provides the regulated -24 VDC rail that powers the Proximitor driver, ensuring that power fluctuations on the plant bus do not propagate into the measurement loop.

For installations in classified hazardous areas — such as compressor halls or turbine enclosures with flammable atmospheres — the signal path is routed through a Pepperl+Fuchs KFD2-STC4-Ex1 Zener barrier or equivalent galvanic isolator, preventing ignition-capable energy from reaching Zone 1 areas. The Bently Nevada 3500/20 Rack Interface Module manages communication between the protection rack and the plant DCS, typically a Honeywell Experion PKS C300 Controller or equivalent, via Modbus RTU or OPC-DA gateway.

Surge protection on the field cable entry is provided by a Phoenix Contact TRABTECH PT 2X2-24DC-ST surge arrester, guarding against lightning-induced transients and switching surges that could corrupt the 4–20 mA signal or damage the transmitter front-end. Within the same protection loop, a Bently Nevada 3500/42M Velocity Monitor and a 3500/44M Temperature Monitor share the same rack chassis, enabling coordinated trip logic across vibration, thrust, and temperature channels — a configuration mandated by API 670 for critical rotating machinery.

Cable integrity is maintained using Belden 9501 shielded twisted-pair instrumentation cable, which provides the low-capacitance, high-shield-coverage characteristics required to preserve signal fidelity over long field runs in electrically noisy environments such as motor control centers and variable-frequency drive (VFD) enclosures.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracker compressor trains, axial thrust monitoring is a mandatory API 670 requirement. The 991-25-50-01-00 provides the continuous, drift-free displacement signal needed to detect thrust bearing wear before catastrophic failure, enabling planned maintenance shutdowns rather than unplanned production losses worth millions per hour.

Power Generation: Steam turbine and gas turbine installations rely on thrust transmitters to protect journal and thrust bearings during load transients, grid synchronization events, and startup/shutdown cycles. The 3500 Series platform’s fast response time — typically under 20 ms — ensures that protective relays receive actionable signals before mechanical damage propagates.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in open-pit and underground mining operations operate under extreme vibration and dust loading. The IP65-rated, EMI-hardened design of the 991-25-50-01-00 ensures reliable operation in these environments without signal dropout or false trips that could halt production.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water infrastructure require continuous protection monitoring to meet regulatory uptime requirements. The non-contact sensing principle eliminates maintenance touchpoints in wet, corrosive pump rooms.

Metallurgy & Steel: Rolling mill main drives and continuous casting machine drives experience severe electromagnetic interference from high-current bus bars and induction furnaces. The 991-25-50-01-00’s shielded architecture and differential signal conditioning reject common-mode noise, maintaining measurement integrity in these extreme EMI environments.

Port & Heavy Logistics: Ship-to-shore crane drives and bulk material handling conveyor systems benefit from the module’s wide operating temperature range and vibration tolerance, ensuring reliable protection monitoring in outdoor, coastal, and high-cycle-duty applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Warranty claims are processed with priority dispatch — a replacement or repaired unit is shipped within 5 business days of fault confirmation. The warranty period begins from the date of shipment and is supported by our pre-shipment test documentation.

Q2: What pre-shipment testing is performed on the 991-25-50-01-00?
Every unit undergoes a full functional verification protocol before dispatch: output signal linearity check across the full displacement range, supply current draw verification, insulation resistance test, and connector integrity inspection. A test report is available upon request and accompanies bulk orders as standard documentation.

Q3: Is the 991-25-50-01-00 compatible with existing 3500 Series racks?
Yes. The 991-25-50-01-00 is fully compatible with all standard Bently Nevada 3500 Series rack configurations, including the 3500/40M, 3500/42M, and 3500/44M monitor modules. It is a direct form-fit-function replacement for field-installed units and requires no rack reconfiguration or firmware update in standard applications.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
Yes. We maintain dedicated safety-critical spare inventory for the 991-25-50-01-00 and related 3500 Series components to support planned maintenance intervals, turnaround shutdowns, and emergency replacement requirements. Customers operating large rotating machinery fleets are encouraged to contact us for consignment stock arrangements and annual supply agreements to eliminate lead-time risk.
